Ultra Max II 1595

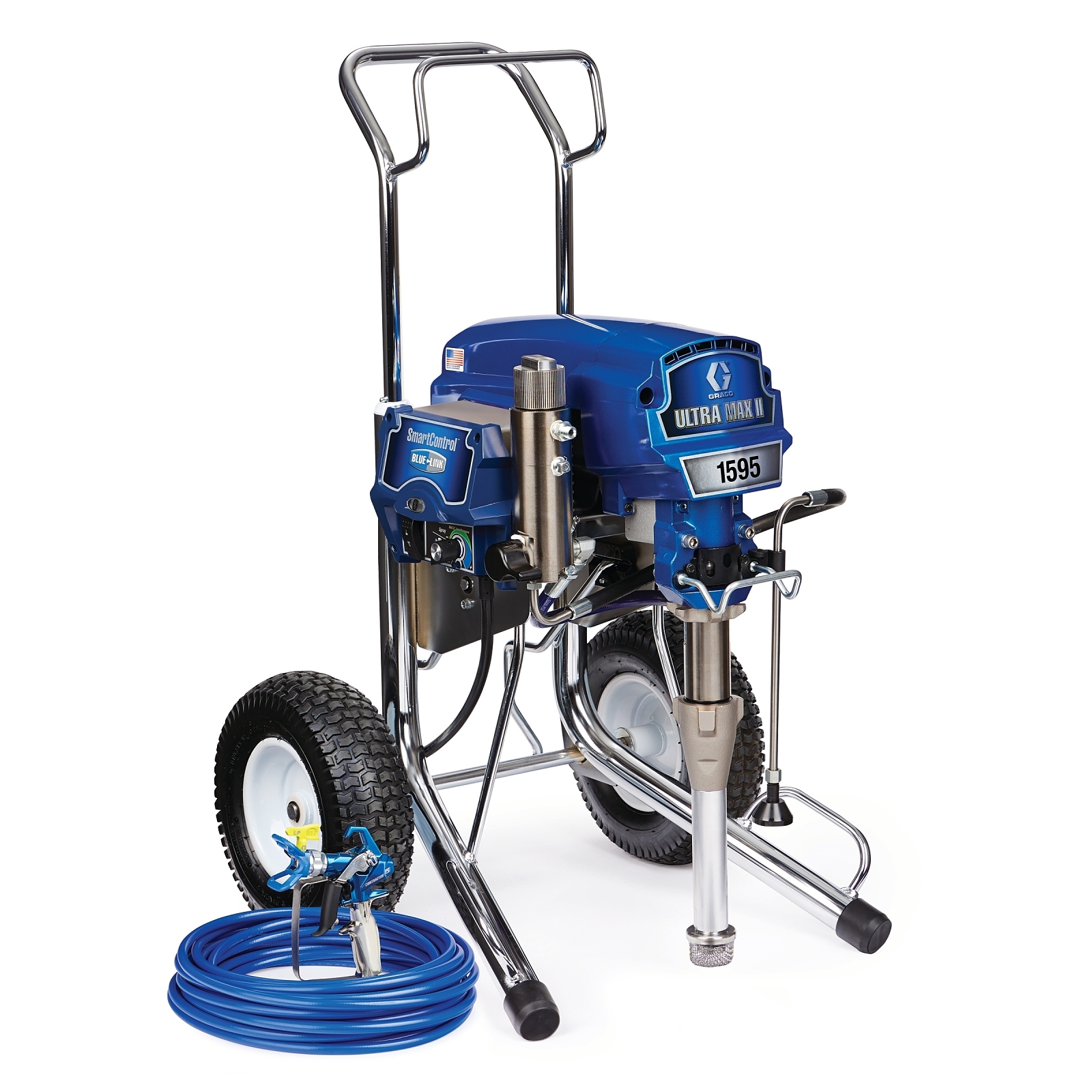

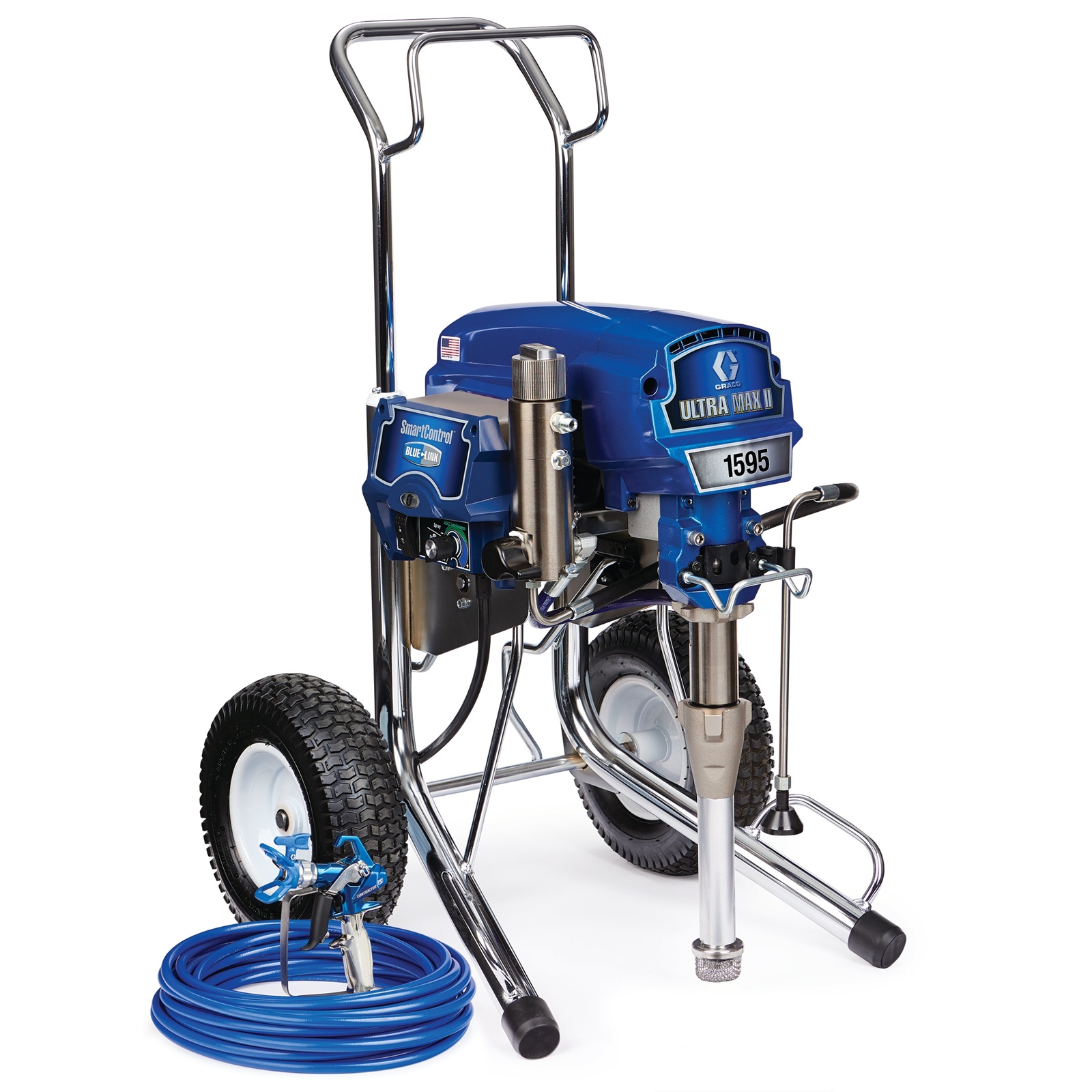

Ultra Max II 1595 Standard Series Electric Airless Sprayer
Part Number: 17E589
Ultra Max II 1595
Ultra Max II 1595 Standard Series Electric Airless Sprayer
Part Number: 17E589
The Ultra Max II 1595 Standard Series is Graco’s largest electric sprayer with a 2.8 hp brushless DC motor to spray up to 1.5 gpm and includes the industry-proven Chromex pump with 2X life, SmartControl 4.0, BlueLink Job & Sprayer Management System, the lightweight Contractor PC gun and more.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Ultra Max II 1595 Standard Series is Graco’s largest electric sprayer with a 2.8 hp brushless DC motor to spray up to 1.5 gpm and includes the industry-proven Chromex pump with 2X life, SmartControl 4.0, BlueLink Job & Sprayer Management System, the lightweight Contractor PC gun and more.
Everyday Reliability. Graco’s largest Standard Series electric airless sprayers are ideal for the large residential, commercial and industrial painters as it can handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.
- Endurance Chromex Piston Pump
- Lasts 2X Longer than competing pumps
- Repack the pump in minutes with the new QuikPak Cartridge System
- Faster cleaning with the QuikAccess intake foot valve
- SmartControl 4.0 with ProGuard Protection System
- Precision Pressure control at any pressure
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- BlueLink Job & Sprayer Management App
- Streamline Your Business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- More info: graco.com/BlueLink
- MaxPower Motor
- Get more work done
- Proven performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- Advantage Drive
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
- Lifetime Drive Train Warranty
- FastFlush
- Clean the pump 2X faster using 1/2 the water
- High-velocity fluid flow delivered with 60% higher motor speed
- Easy Out Filter
- Easy maintenance & less clogging
- Exclusive inside-out filtering process ensures a quality finish
- Vertical design for less mess
- Heavy-Duty Prime Valve
- Maintenance-free high-pressure dumping capability
- Durable Cart Design with Kickstand
- Withstands rugged environments
- Design allows for easy, one-person bucket changes
- Retractable handle doubles as hose storage
- Kickstand for easy one person bucket changes
- Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 20 |
|---|---|
| Compatible Material | Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler, Dry Fall, Elastomerics |
| Construction | Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Engine Size (HP) | 2.8 |
| Features | Endurance Chromex Pump, SmartControl 4.0, BlueLink System, MaxPower Brushless, Advantage Drive, ProConnect 2, FastFlush 2, Easy Out Filter, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (in) | 1/4 |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose |
| Maximum Flow Rate (GPM) | 1.35 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.039 |
| Maximum Tip Size 1 Gun (in) | 0.039 |
| Maximum Tip Size 2 Guns (in) | 0.029 |
| Maximum Tip Size 3 Guns (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | Ultra Max II |
| Motor Type | MaxPower |
| Number of Guns | 3 |
| Overall Height (in) | 38.5 |
| Overall Length (in) | 26 |
| Overall Width (in) | 24 |
| Power Rating (HP) | 2.8 |
| Power Rating (W) | 2088 |
| Power Rating (kW) | 2.09 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product Series | Standard |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Hardened Stainless Steel |
| Pump Type | Endurance |
| Recommended Annual Usage | Over 200 gallons per week |
| Series | 1595 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 110 |
| Weight (lb) | 125 |
| Amperage (A) | 20 |
| Compatible Material | Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler, Dry Fall, Elastomerics |
| Construction | Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Features | Endurance Chromex Pump, SmartControl 4.0, BlueLink System, MaxPower Brushless, Advantage Drive, ProConnect 2, FastFlush 2, Easy Out Filter, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose |
| Maximum Flow Rate (L/min) | 5.1 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.039 |
| Maximum Tip Size 1 Gun (in) | 0.039 |
| Maximum Tip Size 2 Guns (in) | 0.029 |
| Maximum Tip Size 3 Guns (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | Ultra Max II |
| Motor Type | MaxPower |
| Number of Guns | 3 |
| Overall Height (cm) | 97.8 |
| Overall Height (mm) | 978 |
| Overall Length (cm) | 66 |
| Overall Length (mm) | 660 |
| Overall Width (cm) | 61 |
| Overall Width (mm) | 610 |
| Power Rating (W) | 2088 |
| Power Rating (kW) | 2.09 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product Series | Standard |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Hardened Stainless Steel |
| Pump Type | Endurance |
| Recommended Annual Usage | Over 200 gallons per week |
| Series | 1595 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 110 |
| Weight (kg) | 57 |
Product Manuals
Warranty
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 246215 | RAC X HandTite Tip Guard | 1 | ea |
| 240794 | BlueMax II Airless Hose, 1/4 in x 50 ft | 1 | ea |
| 17Y043 | Contractor PC Airless Spray Gun with RAC X LP 517 SwitchTip | 1 | ea |
| LP517 | Low Pressure RAC X LP SwitchTip, 517 | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
| 240794 | BlueMax II Airless Hose, 1/4 in x 50 ft |
| 248215 | KIT, REPAIR, INTAKE TUBE |
| 257188 | KIT, REPAIR, MOTOR, C104 1595 |
| 189920 | Inlet Strainer, SST Cap Single Screen, 1 in |
| 248216 | Q KIT, REPAIR, SUCTION HOSE |
| 243222 | Pressure Control Transducer Repair Kit |
| 117285 | PACKING, O-RING |
| 118494 | PACKING, O-RING |
| 116752 | SWITCH, ROCKER |
| 120059 | SWITCH, ROCKER |
| 15C766 | TUBE, DIFFUSION |
