Endurance Chromex

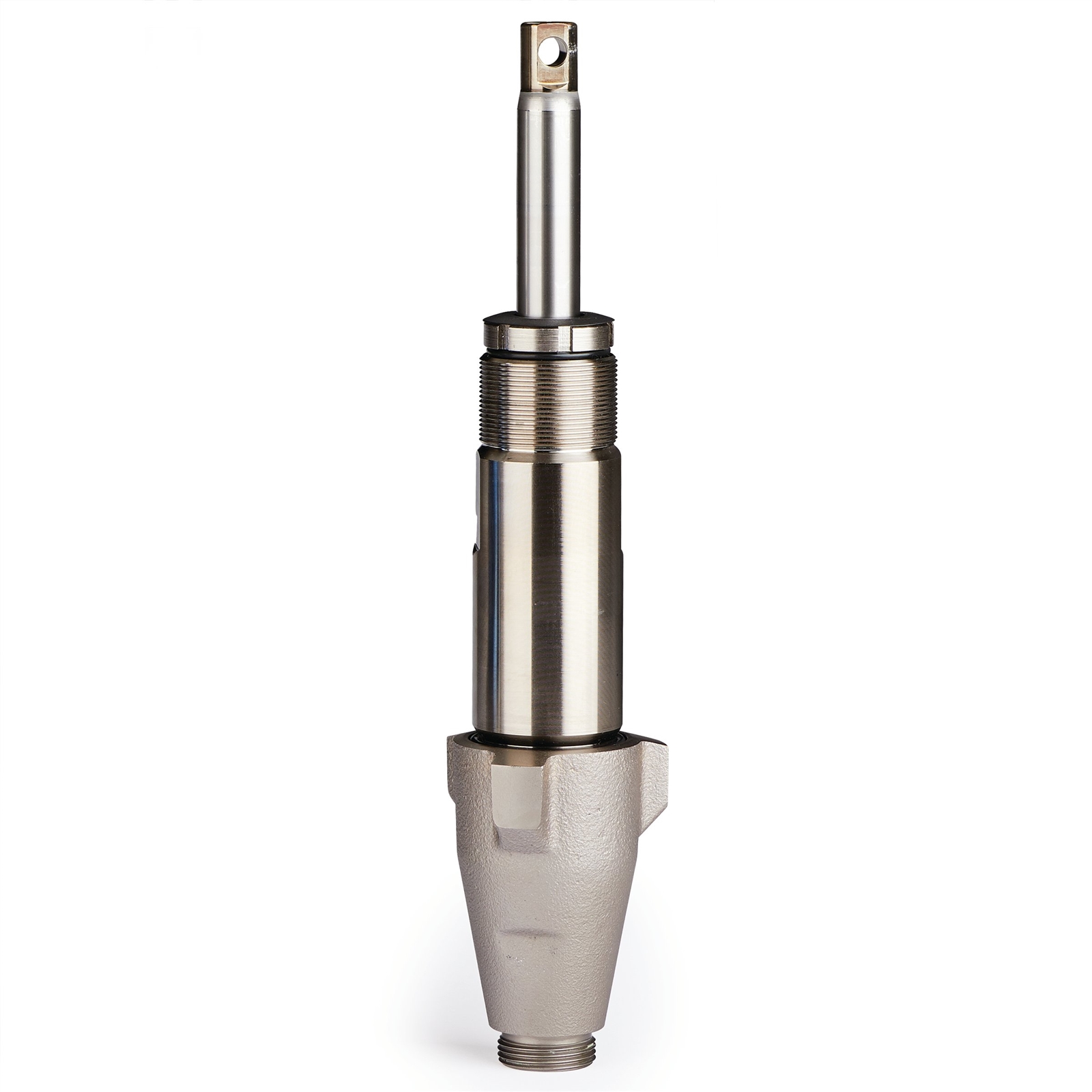

Endurance Chromex Piston Pump
Part Number: 16Y706
Endurance Chromex
Endurance Chromex Piston Pump
Part Number: 16Y706
Genuine Graco Endurance Pumps lead the industry in durability and ease of installation. Keep a spare on hand to minimize downtime in the field.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Genuine Graco Endurance Pumps lead the industry in durability and ease of installation. Keep a spare on hand to minimize downtime in the field.
Replacement pump for Ultra Max II 1095/1595 Standard Series and GMAX II 5900 Hi-Boy & Convertible Standard Series sprayers model year 2019 and newer.
- Lasts 2X Longer than competing pumps
- QuickChange pump design allows you to swap the pump easily on the job
- Repack the pump in minutes with the new QuikPak Cartridge System
- Faster cleaning with the QuikAccess intake foot valve
Specifications & Documents
Technical Specifications
Convert to Metric| Fluid Inlet Size (in) | 1 5/16 |
|---|---|
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | UN |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| For Use With | Ultra Max II 1095 Standard Series (2019 and newer), Ultra Max II 1595 Standard Series (2019 and newer), GMAX II 5900 Convertible Standard Series (2019 and newer), GMAX II 5900 Standard Series Hi-Boy (2019 and newer) |
| Maximum Working Pressure (psi) | 3300 |
| Model | Endurance |
| Series | Chromex |
| Type | Replacement Pump |
| Fluid Inlet Size (cm) | 3.33375 |
| Fluid Inlet Size (in) | 1 5/16 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | UN |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| For Use With | Ultra Max II 1095 Standard Series (2019 and newer), Ultra Max II 1595 Standard Series (2019 and newer), GMAX II 5900 Convertible Standard Series (2019 and newer), GMAX II 5900 Standard Series Hi-Boy (2019 and newer) |
| Maximum Working Pressure (psi) | 3300 |
| Model | Endurance |
| Series | Chromex |
| Type | Replacement Pump |
Product Manuals
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
Repair Parts
| Part No. | Description |
|---|---|
| 101947 | BALL, BEARING |
| 102972 | BALL, METALLIC |
| 193027 | GUIDE, BALL |
| 244199 | Q KIT, CARBIDE SEAT(1595/MARK V) |
| 243347 | Q KIT, REPAIR CYLINDER PUMP |
| 248207 | Q KIT, REPAIR, ROD, M3&4 |
| 248210 | Q KIT, REPAIR, SLEEVE |
| 24U993 | Q KIT, REPAIR, VALVE, PISTON |
| 248213 | Pump Packing Repair Kit |
| 193032 | NUT, PACKING |
