Contractor PC

Contractor PC Airless Spray Gun with RAC X 517 SwitchTip

Part Number: 17Y042

product image product image product image product image product image

Contractor PC

Contractor PC Airless Spray Gun with RAC X 517 SwitchTip

Part Number: 17Y042

The Contractor PC airless spray gun is the lightest, most comfortable spray gun ever built. Exclusive Graco innovations provide all-day comfort and control, fast on-the-job gun rebuild and the proven durability of a Graco Contractor spray gun.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

The Contractor PC airless spray gun is the lightest, most comfortable spray gun ever built. Exclusive Graco innovations provide all-day comfort and control, fast on-the-job gun rebuild and the proven durability of a Graco Contractor spray gun.

A custom fit with on-the-fly trigger adjustments to provide the flexibility for greater control to deliver an exceptional finish on every job, every time. The RAC X 517 SwitchTip provides a 10 inch spray pattern that is ideal for larger surfaces such as houses/buildings, walls and ceilings.

  • Benefits You’ll Appreciate on Every Job
    • Lightest weight gun in its class
    • Up to 50% lighter trigger pull force
    • E-Z Fit adjustable trigger length (Patent Pending)
    • Complete gun rebuild in seconds with ProConnect (Patent Pending)
  • Finish Jobs Faster with Less Fatigue
    • Delivers the most comfortable and lightest-weight spray experience ever
    • Lightest trigger pull force at all spray pressures
    • Lightest trigger hold force at all spray pressures
  • E-Z Fit Trigger Adjustment
    • Easily achieve your personal fit
    • Quickly customize trigger length to fit any hand size or situation
    • Choose 2, 4 or new 3-finger position
    • Easily extend your reach: simply drop the trigger down to paint hard-to-reach areas

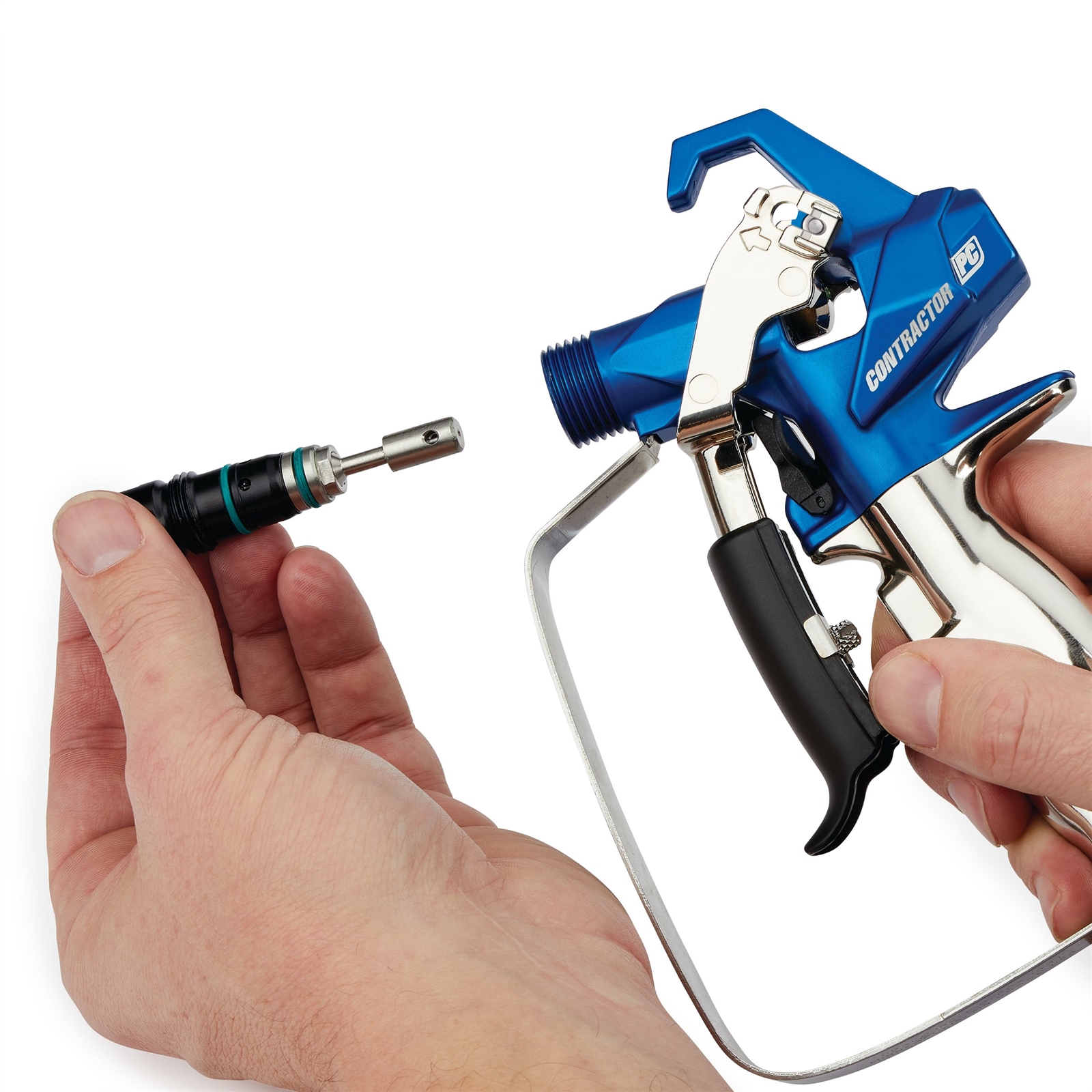

  • Exclusive ProConnect Replacement Cartridge
    • 1-part, on-the-job gun rebuild
    • Needle and all wear parts in one simple part
    • Simply replace cartridge — it's like getting a brand new gun
  • Easy one-finger, ambidextrous lock
  • Comfortable, contoured handle design
  • EasyGlide Swivel for effortless hose management

Specifications & Documents

Technical Specifications

Convert to Metric
Compatible Spray Guard RAC X
Compatible Spray Tip RAC X
Fluid Orifice Size (in) 0.120
Gun Weight (oz) 21.4
Includes RAC X 517 SwitchTip, RAC X Tip Guard
Maximum Fluid Pressure (MPa) 24.8
Maximum Fluid Pressure (psi) 3600
Maximum Fluid Temperature (°F) 120
Model Contractor
Series PC
Sound Power Level (dB(A)) 87
Sound Pressure Level (dB(A)) 78
Type Spray Gun
Compatible Spray Guard RAC X
Compatible Spray Tip RAC X
Fluid Orifice Size (cm) 0.305
Fluid Orifice Size (in) 0.120
Fluid Orifice Size (mm) 3.05
Gun Weight (oz) 21.4
Includes RAC X 517 SwitchTip, RAC X Tip Guard
Maximum Fluid Pressure (MPa) 24.8
Maximum Fluid Pressure (bar) 248
Maximum Fluid Pressure (kPa) 24800
Maximum Fluid Pressure (psi) 3600
Maximum Fluid Temperature (°C) 49
Model Contractor
Series PC
Sound Power Level (dB(A)) 87
Sound Pressure Level (dB(A)) 78
Type Spray Gun

What's Included

Part No. Description Qty Unit
LTX517 RAC X SwitchTip, 517 1 ea
246215 RAC X HandTite Tip Guard 1 ea
287032 Gun Filter, 60 mesh 1 ea
