Ultra Max II 1095

Ultra Max II 1095 ProContractor Series Electric Airless Sprayer

Part Number: 17E585

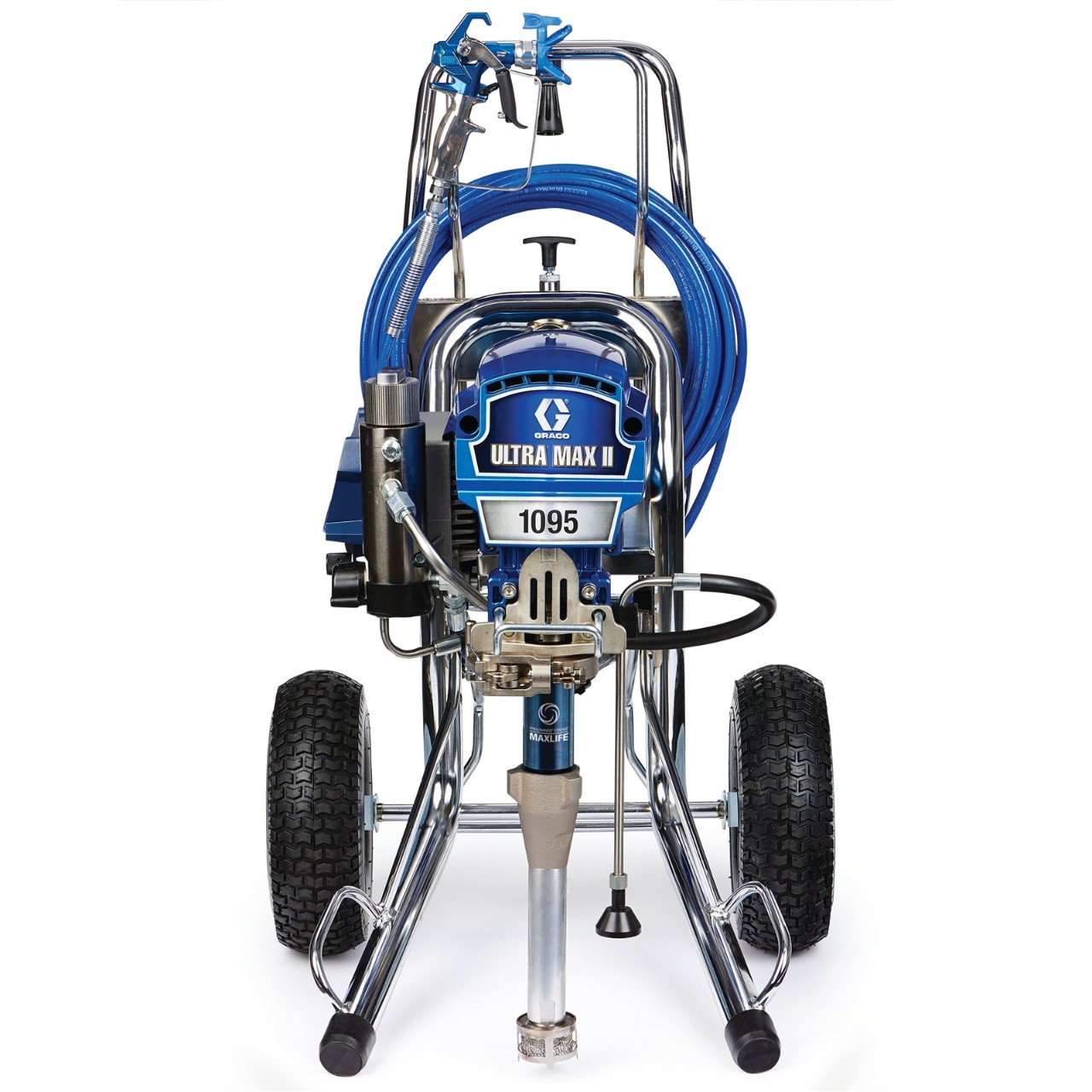

product image product image product image

Ultra Max II 1095

Ultra Max II 1095 ProContractor Series Electric Airless Sprayer

Part Number: 17E585

The Ultra Max II 1095 ProContractor Series provides higher performance with a powerful 2.4 hp brushless DC motor, Endurance Vortex MaxLife Pump and BlueLink Job & Sprayer Management System plus timesaving features like the ProConnect 2 Pump Replacement System and QuikReel Hose Management System.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The Ultra Max II 1095 ProContractor Series provides higher performance with a powerful 2.4 hp brushless DC motor, Endurance Vortex MaxLife Pump and BlueLink Job & Sprayer Management System plus timesaving features like the ProConnect 2 Pump Replacement System and QuikReel Hose Management System.

Work Smarter, Finish More Jobs. ProContractor Series electric airless sprayers are built specifically for professional remodeling and repainting contractors looking to increase the number of larger jobs they spray and the performance to spray a wide variety of coatings with a variety of tip sizes.

  • Endurance Vortex MaxLife Piston Pump
    • Superior pump life
    • Breakthrough Vortex rotating rod technology
    • Lasts 6X longer between repacks with innovative MaxLife technology
    • Oversized passages for high velocity flow to rotate piston for even wear
    • Repack pump in minutes with new QuikPak cartridge repair system
  • SmartControl 4.0 with ProGuard Protection System
    • Precision Pressure control at any pressure
    • ProGuard prevents electrical damage from extreme jobsite power conditions
    • WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
  • BlueLink Job & Sprayer Management System
    • Streamline Your Business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
  • QuikReel Hose Management System
    • Easy hose management
    • Deploy and rewind up to 300 feet (90 meters) of hose in seconds
    • No twisting, kinking, and coiling
    • Use only the hose you need — the rest stays on the reel
  • MaxPower Motor & Advantage Drive
    • Get more work done
    • Proven performance for all painting applications
    • High-torque brushless design with a Lifetime Warranty
    • The longest lasting drive
    • Hardened steel gears provide extremely quiet operation and a Lifetime Warranty
  • ProConnect 2 Pump Replacement System
    • Eliminate Costly Downtime
    • Exchange pump in minutes
    • Pin-less design needs no tools
  • FastFlush
    • Clean the pump 2X faster using 1/2 the water
    • High-velocity fluid flow delivered with 60% higher motor speed
  • Durable Filtration
    • Easy Out Filter provides easy maintenance and less clogging
    • Crushproof Inlet Strainer stands up to harsh impacts to maintain even flow
  • Additional Features
    • Heavy Duty Prime Valve
    • Rugged, Durable Cart Design with Kickstand
  • Contractor PC Spray Gun
    • All-day comfort & control
    • Lightest weight gun in its class
    • Up to 50% lighter trigger pull force
    • E-Z Fit adjustable trigger length
    • Complete gun rebuild in seconds with ProConnect cartridge
    • More info: graco.com/ContractorPC

Specifications & Documents

Technical Specifications

Convert to Metric
Amperage (A) 15
Compatible Material Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler, Dry Fall, Elastomerics
Construction Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Engine Size (HP) 2.4
Features Endurance Vortex MaxLife Pump, SmartControl 4.0, BlueLink System, QuikReel, MaxPower Brushless, Advantage Drive, ProConnect 2, FastFlush 2, Easy Out Filter, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun
Filter Mesh Size 60
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Frequency (Hz) 50/60
Hose Inlet Diameter (in) 1/4
Hose Reel Type QuikReel
Includes Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (GPM) 1.2
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.035
Maximum Tip Size 1 Gun (in) 0.035
Maximum Tip Size 2 Guns (in) 0.027
Maximum Tip Size 3 Guns (in) 0.021
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model Ultra Max II
Motor Type MaxPower
Number of Guns 3
Overall Height (in) 39
Overall Length (in) 28
Overall Width (in) 24
Power Rating (HP) 2.4
Power Rating (W) 1790
Power Rating (kW) 1.79
Power Source Electric
Pressure Control Type SmartControl 4.0
Product Series ProContractor
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Pump Type Endurance Vortex
Recommended Annual Usage Over 200 gallons per week
Series 1095
Type Airless Sprayer
Voltage (V) 120
Volume Per Cycle (cycles/gal) 123
Weight (lb) 131
Amperage (A) 15
Compatible Material Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler, Dry Fall, Elastomerics
Construction Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Features Endurance Vortex MaxLife Pump, SmartControl 4.0, BlueLink System, QuikReel, MaxPower Brushless, Advantage Drive, ProConnect 2, FastFlush 2, Easy Out Filter, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun
Filter Mesh Size 60
Fluid Outlet Size (in) 1/4
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Frequency (Hz) 50/60
Hose Inlet Diameter (cm) 0.635
Hose Inlet Diameter (in) 1/4
Hose Inlet Diameter (mm) 6.35
Hose Reel Type QuikReel
Includes Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (L/min) 4.5
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.035
Maximum Tip Size 1 Gun (in) 0.035
Maximum Tip Size 2 Guns (in) 0.027
Maximum Tip Size 3 Guns (in) 0.021
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model Ultra Max II
Motor Type MaxPower
Number of Guns 3
Overall Height (cm) 99
Overall Height (mm) 990
Overall Length (cm) 71
Overall Length (mm) 710
Overall Width (cm) 61
Overall Width (mm) 610
Power Rating (W) 1790
Power Rating (kW) 1.79
Power Source Electric
Pressure Control Type SmartControl 4.0
Product Series ProContractor
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Pump Type Endurance Vortex
Recommended Annual Usage Over 200 gallons per week
Series 1095
Type Airless Sprayer
Voltage (V) 120
Volume Per Cycle (cycles/gal) 123
Weight (kg) 59

What's Included

Part No. Description Qty Unit
246215 RAC X HandTite Tip Guard 1 ea
240794 BlueMax II Airless Hose, 1/4 in x 50 ft 1 ea
17Y043 Contractor PC Airless Spray Gun with RAC X LP 517 SwitchTip 1 ea
LP517 Low Pressure RAC X LP SwitchTip, 517 1 ea

Repair Parts

Part No. Description
244068 Easy Out Pump Manifold Filter, Long, 100 mesh
244069 Easy Out Pump Manifold Filter, Long, 200 mesh
244071 Easy Out Pump Manifold Filter, Long, 30 mesh
244067 Easy Out Pump Manifold Filter, Long, 60 mesh
240794 BlueMax II Airless Hose, 1/4 in x 50 ft
248215 KIT, REPAIR, INTAKE TUBE
257187 KIT, REPAIR, MOTOR, C104 1095
244240 KIT, REPAIR, RETURN LINE, HI
243222 Pressure Control Transducer Repair Kit
117285 PACKING, O-RING
118494 PACKING, O-RING
15V573 Crushproof Inlet Strainer for 695 XT, 795 XT & 1095 XT
116752 SWITCH, ROCKER
15C766 TUBE, DIFFUSION
24B156 HD Prime Valve
