Ultra Max II 1095

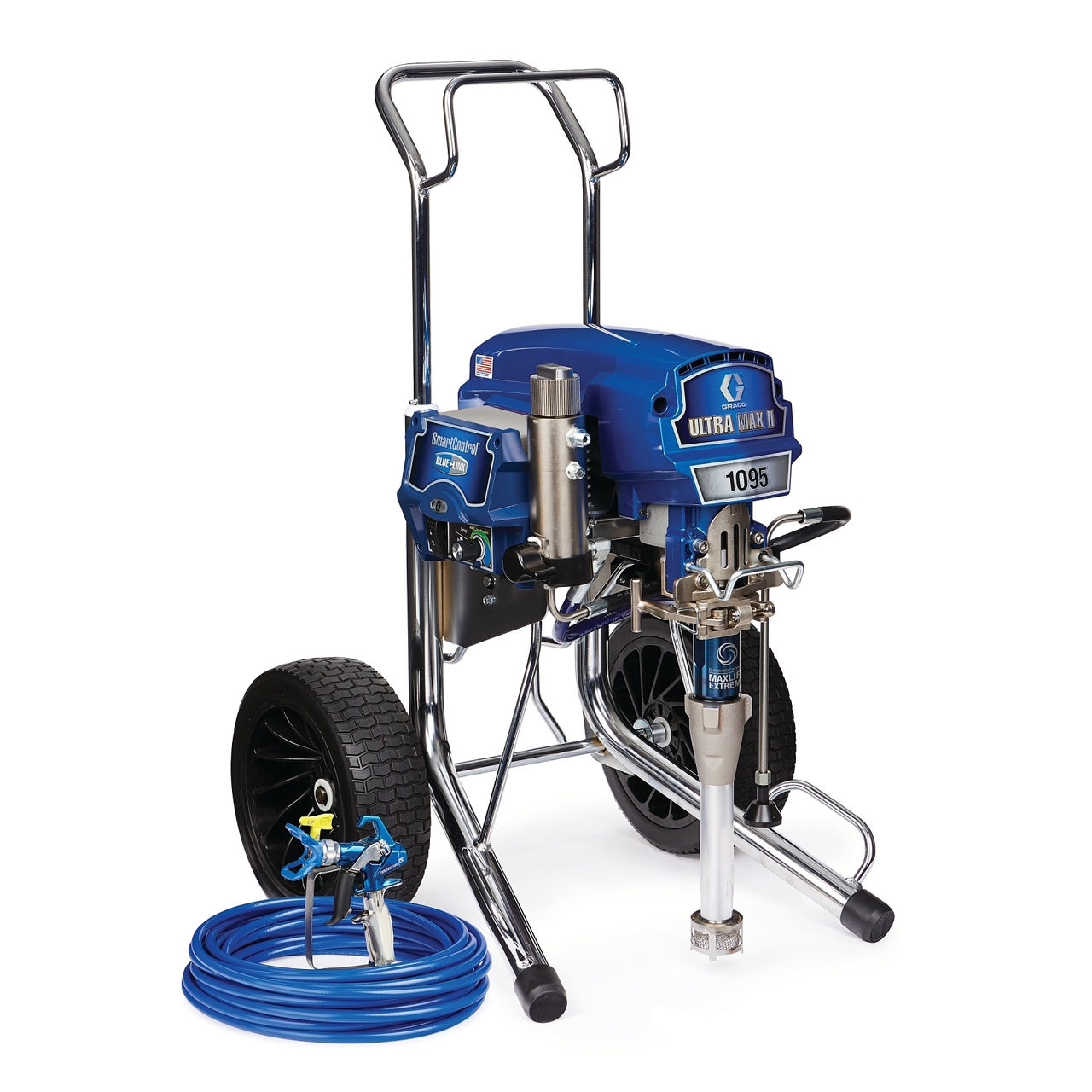

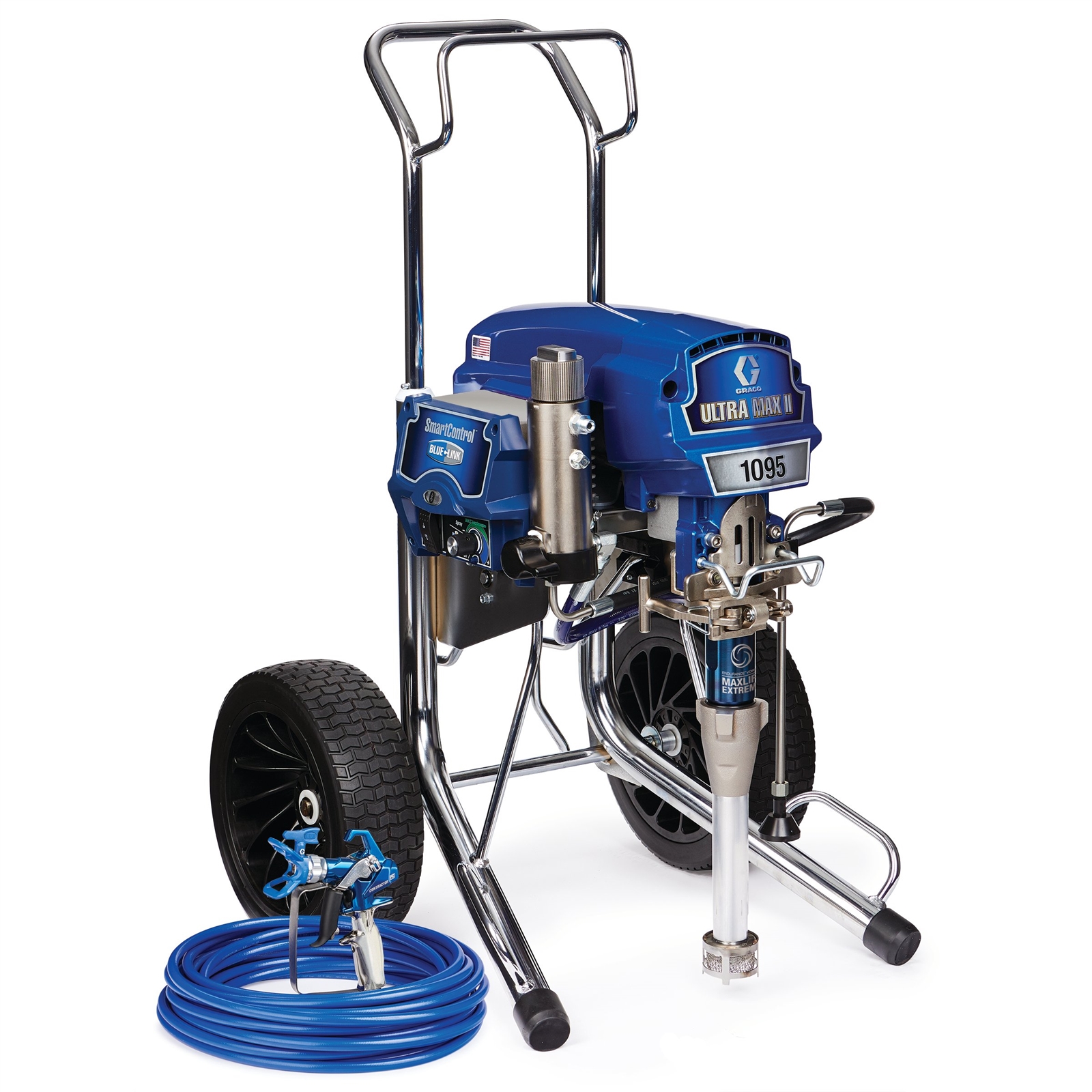

Ultra Max II 1095 IronMan Series Electric Airless Sprayer
Part Number: 17E586
Ultra Max II 1095
Ultra Max II 1095 IronMan Series Electric Airless Sprayer
Part Number: 17E586
The Ultra Max II 1095 IronMan Series provides superior performance with a powerful 2.4 hp brushless DC motor and BlueLink Job & Sprayer Management System plus unmatched durability with rugged features like the Endurance Vortex MaxLife Extreme Pump, Flat Proof tires and Crushproof Inlet Strainer.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Ultra Max II 1095 IronMan Series provides superior performance with a powerful 2.4 hp brushless DC motor and BlueLink Job & Sprayer Management System plus unmatched durability with rugged features like the Endurance Vortex MaxLife Extreme Pump, Flat Proof tires and Crushproof Inlet Strainer.
Beyond Jobsite Tough. IronMan Series electric airless sprayers are built to provide exceptional durability with additional features to routinely handle the daily demands and tough jobsite conditions found on large commercial and industrial jobs – day in and day out.
- Endurance Vortex MaxLife Extreme Piston Pump
- The Longest Life
- Breakthrough Vortex Rotating Rod Technology
- Graco exclusive abrasion-resistance composite delivers the most durable wear surface
- Extreme rod extends pump rod life by 3X
- Oversized passages for high velocity flow to rotate piston for even wear
- 6X more gallons sprayed between repacks
- Repack pump in minutes with QuikPak cartridge repair system
- SmartControl 4.0 with ProGuard Protection System
- Precision Pressure control at any pressure
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- BlueLink Job & Sprayer Management System
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- More info: graco.com/BlueLink
- Flat Proof Tires
- Never Have a Flat Again
- Tires can’t be punctured by nails, screws, or any sharp debris
- MaxPower Motor & Precision Advantage Drive
- Proven power and performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a Lifetime Warranty
- ProConnect 2 Pump Replacement System
- Eliminate costly downtime
- Exchange pump in minutes
- Pin-less design needs no tools
- FastFlush
- Clean the pump 2X faster using 1/2 the water
- High-velocity fluid flow delivered with 60% higher motor speed
- Durable Filtration
- Easy Out Filter provides easy maintenance and less clogging
- Crushproof Inlet Strainer stands up to harsh impacts to maintain even flow
- Additional Features
- Heavy Duty Prime Valve
- Rugged, Durable Cart Design
- Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 15 |
|---|---|
| Compatible Material | Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler, Dry Fall, Elastomerics |
| Construction | Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Engine Size (HP) | 2.4 |
| Features | Endurance Vortex MaxLife Extreme Pump, SmartControl 4.0, BlueLink System, Flat Proof Tires, MaxPower Brushless, Advantage Drive, ProConnect 2, FastFlush 2, Easy Out Filter, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (in) | 1/4 |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose |
| Maximum Flow Rate (GPM) | 1.2 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.035 |
| Maximum Tip Size 1 Gun (in) | 0.035 |
| Maximum Tip Size 2 Guns (in) | 0.027 |
| Maximum Tip Size 3 Guns (in) | 0.021 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | Ultra Max II |
| Motor Type | MaxPower |
| Number of Guns | 3 |
| Overall Height (in) | 38.5 |
| Overall Length (in) | 26 |
| Overall Width (in) | 24 |
| Power Rating (HP) | 2.4 |
| Power Rating (W) | 1790 |
| Power Rating (kW) | 1.79 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product Series | IronMan |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife Extreme |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance Vortex |
| Recommended Annual Usage | Over 200 gallons per week |
| Series | 1095 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 123 |
| Weight (lb) | 125 |
| Amperage (A) | 15 |
| Compatible Material | Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler, Dry Fall, Elastomerics |
| Construction | Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Features | Endurance Vortex MaxLife Extreme Pump, SmartControl 4.0, BlueLink System, Flat Proof Tires, MaxPower Brushless, Advantage Drive, ProConnect 2, FastFlush 2, Easy Out Filter, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose |
| Maximum Flow Rate (L/min) | 4.5 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.035 |
| Maximum Tip Size 1 Gun (in) | 0.035 |
| Maximum Tip Size 2 Guns (in) | 0.027 |
| Maximum Tip Size 3 Guns (in) | 0.021 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | Ultra Max II |
| Motor Type | MaxPower |
| Number of Guns | 3 |
| Overall Height (cm) | 97.8 |
| Overall Height (mm) | 978 |
| Overall Length (cm) | 66 |
| Overall Length (mm) | 660 |
| Overall Width (cm) | 61 |
| Overall Width (mm) | 610 |
| Power Rating (W) | 1790 |
| Power Rating (kW) | 1.79 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product Series | IronMan |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife Extreme |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance Vortex |
| Recommended Annual Usage | Over 200 gallons per week |
| Series | 1095 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 123 |
| Weight (kg) | 57 |
Product Manuals
Warranty
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 246215 | RAC X HandTite Tip Guard | 1 | ea |
| 240794 | BlueMax II Airless Hose, 1/4 in x 50 ft | 1 | ea |
| 17Y043 | Contractor PC Airless Spray Gun with RAC X LP 517 SwitchTip | 1 | ea |
| LP517 | Low Pressure RAC X LP SwitchTip, 517 | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
| 240794 | BlueMax II Airless Hose, 1/4 in x 50 ft |
| 248215 | KIT, REPAIR, INTAKE TUBE |
| 257187 | KIT, REPAIR, MOTOR, C104 1095 |
| 244240 | KIT, REPAIR, RETURN LINE, HI |
| 243222 | Pressure Control Transducer Repair Kit |
| 117285 | PACKING, O-RING |
| 118494 | PACKING, O-RING |
| 15V573 | Crushproof Inlet Strainer for 695 XT, 795 XT & 1095 XT |
| 116752 | SWITCH, ROCKER |
| 15C766 | TUBE, DIFFUSION |
| 24B156 | HD Prime Valve |
