Ultra Max II 695

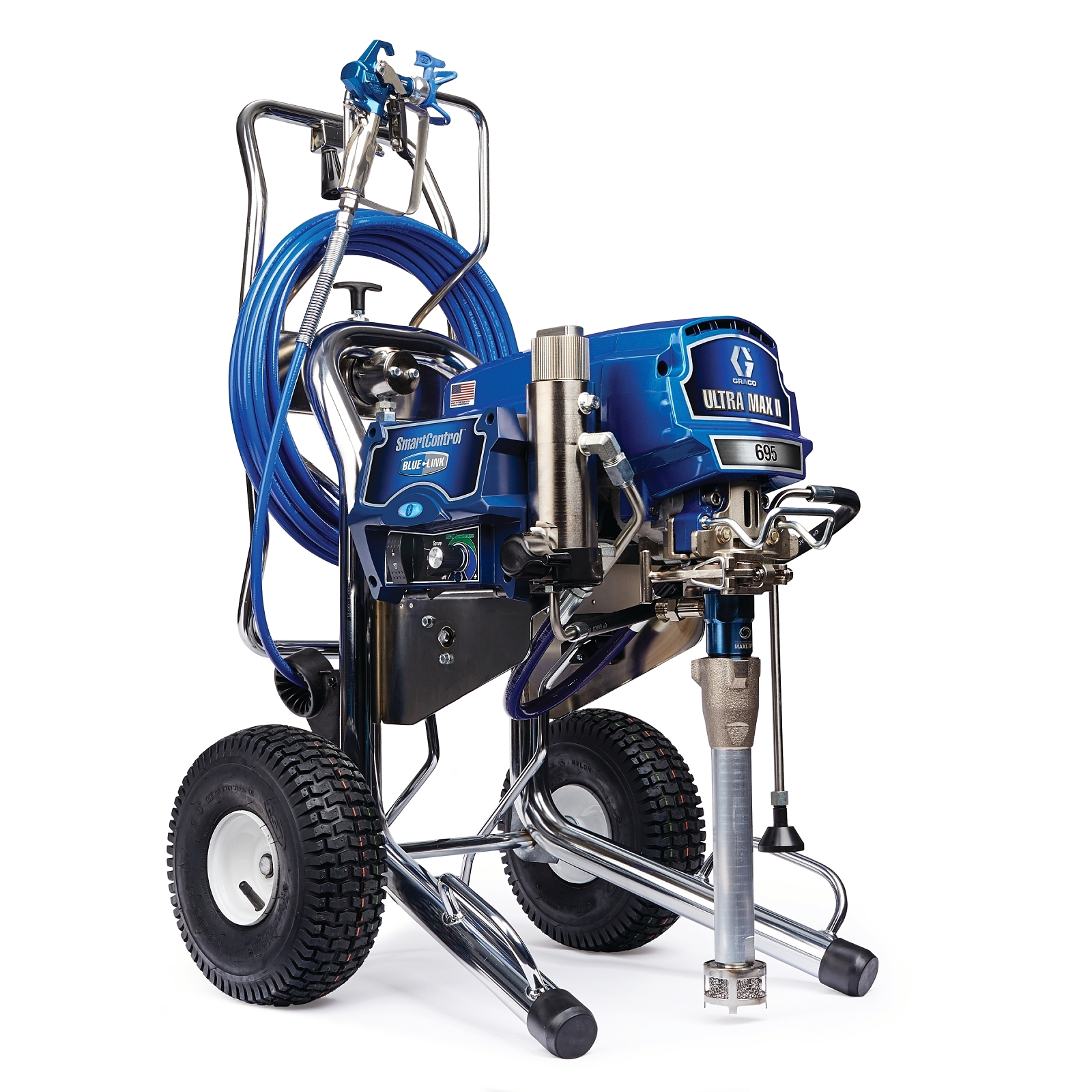

Ultra Max II 695 ProContractor Series Electric Airless Sprayer
Part Number: 17E577
Ultra Max II 695
Ultra Max II 695 ProContractor Series Electric Airless Sprayer
Part Number: 17E577
The Ultra Max II 695 ProContractor Series provides reliability and performance with a 2.0 hp brushless DC motor, Endurance Vortex MaxLife Pump and BlueLink Job & Sprayer Management System plus timesaving features like the ProConnect 2 Pump Replacement System and QuikReel Hose Management System.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Ultra Max II 695 ProContractor Series provides reliability and performance with a 2.0 hp brushless DC motor, Endurance Vortex MaxLife Pump and BlueLink Job & Sprayer Management System plus timesaving features like the ProConnect 2 Pump Replacement System and QuikReel Hose Management System.
Work Smarter, Finish More Jobs. ProContractor Series electric airless sprayers are built specifically for professional remodeling and repainting contractors looking to increase the number of larger jobs they spray and the performance to spray a wide variety of coatings with a variety of tip sizes.
- Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough Vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Repack pump in minutes with new QuikPak cartridge repair system
- SmartControl 4.0 with ProGuard Protection System
- Precision Pressure control at any pressure
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- BlueLink Job & Sprayer Management System
- Streamline Your Business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- MaxPower Motor & Advantage Drive
- Get more work done
- Proven performance for all painting applications
- High-torque brushless design
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
- Lifetime Warranty on motor and drive train
- ProConnect 2 Pump Replacement System
- Eliminate Costly Downtime
- Exchange pump in minutes
- Pin-less design needs no tools
- FastFlush
- Clean the pump 2X faster using 1/2 the water
- High-velocity fluid flow delivered with 60% higher motor speed
- Durable Filtration
- Easy Out Filter provides easy maintenance and less clogging
- Crushproof Inlet Strainer stands up to harsh impacts to maintain even flow
- Additional Features
- Heavy Duty Prime Valve
- Rugged, Durable Cart Design with Kickstand
- Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 15 |
|---|---|
| Compatible Material | Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler |
| Construction | Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Engine Size (HP) | 2 |
| Features | Endurance Vortex MaxLife Pump, SmartControl 4.0, BlueLink System, QuikReel, MaxPower Brushless, Advantage Drive, ProConnect 2, FastFlush 2, Easy Out Filter, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Reel Type | QuikReel |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose |
| Maximum Flow Rate (GPM) | 0.95 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.031 |
| Maximum Tip Size 1 Gun (in) | 0.031 |
| Maximum Tip Size 2 Guns (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | Ultra Max II |
| Motor Type | MaxPower |
| Number of Guns | 2 |
| Overall Height (in) | 38.75 |
| Overall Length (in) | 26 |
| Overall Width (in) | 22.5 |
| Power Rating (HP) | 2.0 |
| Power Rating (W) | 1491 |
| Power Rating (kW) | 1.49 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product Series | ProContractor |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance Vortex |
| Recommended Annual Usage | 100-200 gallons per week |
| Series | 695 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 226 |
| Weight (lb) | 94 |
| Amperage (A) | 15 |
| Compatible Material | Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler |
| Construction | Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Features | Endurance Vortex MaxLife Pump, SmartControl 4.0, BlueLink System, QuikReel, MaxPower Brushless, Advantage Drive, ProConnect 2, FastFlush 2, Easy Out Filter, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Hose Reel Type | QuikReel |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose |
| Maximum Flow Rate (L/min) | 3.6 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.031 |
| Maximum Tip Size 1 Gun (in) | 0.031 |
| Maximum Tip Size 2 Guns (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | Ultra Max II |
| Motor Type | MaxPower |
| Number of Guns | 2 |
| Overall Height (cm) | 98.4 |
| Overall Height (mm) | 984 |
| Overall Length (cm) | 66 |
| Overall Length (mm) | 660 |
| Overall Width (cm) | 57.2 |
| Overall Width (mm) | 572 |
| Power Rating (W) | 1491 |
| Power Rating (kW) | 1.49 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product Series | ProContractor |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance Vortex |
| Recommended Annual Usage | 100-200 gallons per week |
| Series | 695 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 226 |
| Weight (kg) | 43 |
Product Manuals
Warranty
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 246215 | RAC X HandTite Tip Guard | 1 | ea |
| 240794 | BlueMax II Airless Hose, 1/4 in x 50 ft | 1 | ea |
| 17Y043 | Contractor PC Airless Spray Gun with RAC X LP 517 SwitchTip | 1 | ea |
| LP517 | Low Pressure RAC X LP SwitchTip, 517 | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
| 240794 | BlueMax II Airless Hose, 1/4 in x 50 ft |
| 248214 | KIT, REPAIR, INTAKE TUBE |
| 257185 | KIT, REPAIR, MOTOR, C104 695 |
| 244240 | KIT, REPAIR, RETURN LINE, HI |
| 243222 | Pressure Control Transducer Repair Kit |
| 117285 | PACKING, O-RING |
| 15V573 | Crushproof Inlet Strainer for 695 XT, 795 XT & 1095 XT |
| 116752 | SWITCH, ROCKER |
| 24B156 | HD Prime Valve |
