New

Ultra 1095 XT

Ultra 1095 XT ProContractor Series Electric Airless Sprayer, Hi-Boy

Part Number: 19F548

product image product image product image product image
New

Ultra 1095 XT

Ultra 1095 XT ProContractor Series Electric Airless Sprayer, Hi-Boy

Part Number: 19F548

The Ultra 1095 XT ProContractor Series delivers an airless spray experience like no other. Featuring a 2.7 HP Xtreme Torque motor, Next Generation Rapid-Response Pressure Control, and an Endurance Vortex MAXLIFE EXTREME pump, the Ultra 1095 XT ProContractor is guaranteed to last!
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The Ultra 1095 XT ProContractor Series delivers an airless spray experience like no other. Featuring a 2.7 HP Xtreme Torque motor, Next Generation Rapid-Response Pressure Control, and an Endurance Vortex MAXLIFE EXTREME pump, the Ultra 1095 XT ProContractor is guaranteed to last!

Xtreme Production & Reliability. XT ProContractor Series electric airless sprayers are built specifically for professional contractors looking to increase production on the industry's most silent spraying platform. Complete with numerous time saving features and the industry's longest life pumps, an XT ProContractor will keep you out of the shop, and on the job.

  • Xtreme Torque Motor Technology
    • 15X more torque than traditional motors
    • 8X more magnets provide unmatched power and performance
    • 90% lower running speeds extend motors life
    • Up to 10X quieter
  • Rapid-Response Pressure Control
    • Instantly responds to deliver the best finish quality
    • More performance across its full tip size range
    • Industry's largest operating pressure range (50-3,300 psi)
  • Selectable Performance Modes
    • Two selectable spray modes offer unique performance levels to boost efficiency on every job
    • Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 - 2,000 psi)
    • Use High Pressure Mode for Xtreme Performance (500 – 3,300 psi)
  • SmartDisplay XT
    • Compatible with Contractor PowerShot XT Gun
    • LED Digital Display visible in even the toughest spraying conditions

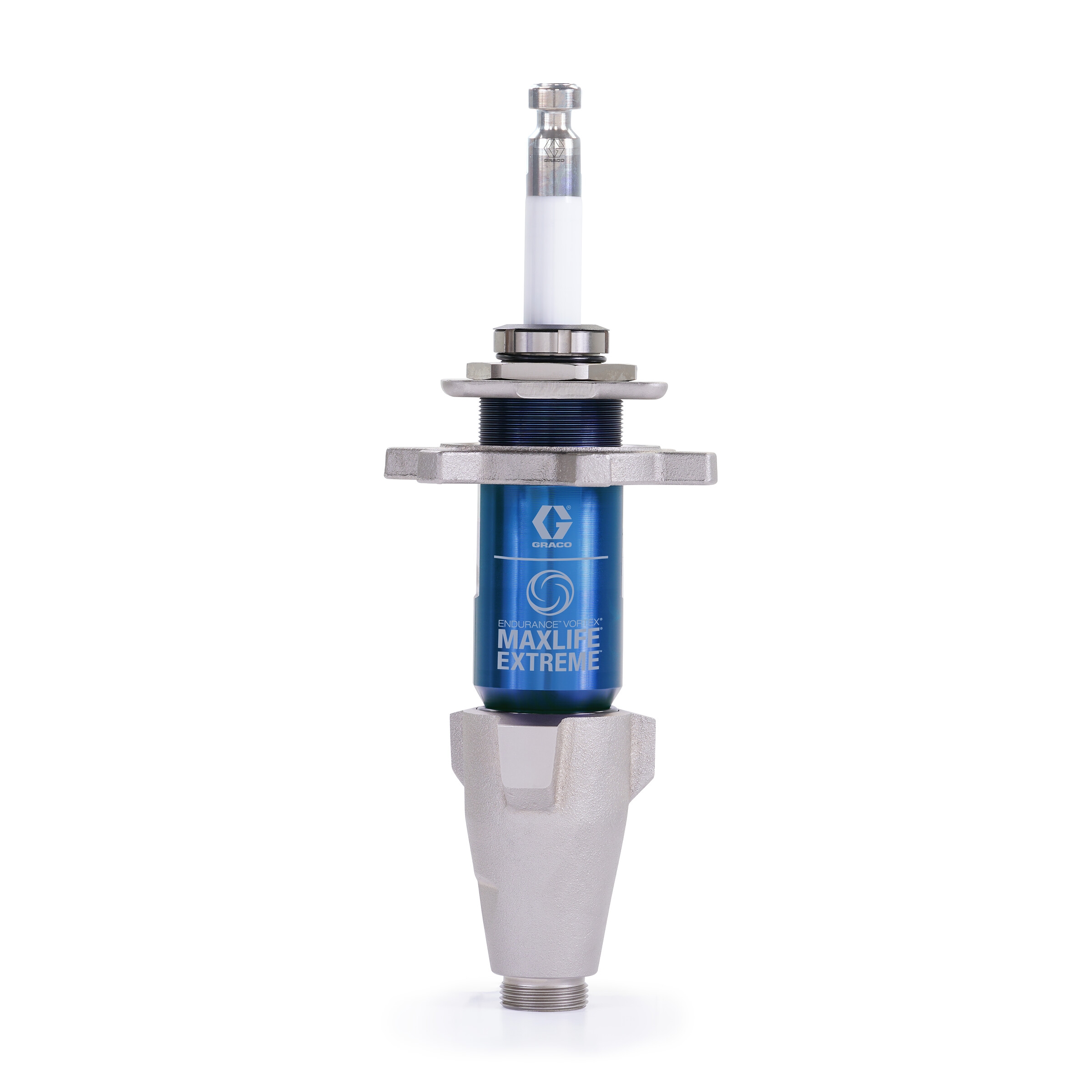

  • Endurance Vortex MAXLIFE EXTREME Piston Pump with ProConnect
    • Endurance Vortex MAXLIFE EXTREME Rod lasts 6X longer than the closest competitor
    • ProConnect Pump Removal for fast on-the-job service
    • 25% longer pump stroke for longer life before repacking
  • QuikReel Hose Management System
    • Easy hose management
    • Deploy and rewind up to 300 feet (90 meters) of hose in seconds
    • No twisting, kinking, and coiling
    • Use only the hose you need — the rest stays on the reel
  • TurboClean Cleaning System
    • Industry’s fastest pump cleaning system
    • Delivers 3X faster cleaning with 1/2 the water
    • Convenient location
  • BlueLink Job & Sprayer Management System
    • Streamline your business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
  • WatchDog Pump Protection
    • Prevents damage by shutting off pump when it's time to refill
  • Gun, Hose and Tip Included
    • Contractor PC Gun & RAC X LP 517 SwitchTip

Specifications & Documents

Technical Specifications

Convert to Metric
Frame Configuration Hi-Boy
Maximum Flow Rate (GPM) 1.3
Maximum Tip Size (in) .037
Maximum Working Pressure (psi) 3300
Minimum Working Pressure (psi) 50
Model Ultra
Product Series ProContractor
Series 1095 XT
Type Airless Sprayer
Voltage (V) 120
Weight (lb) 146
Frame Configuration Hi-Boy
Maximum Tip Size (in) .037
Maximum Working Pressure (psi) 3300
Minimum Working Pressure (psi) 50
Model Ultra
Product Series ProContractor
Series 1095 XT
Type Airless Sprayer
Voltage (V) 120

Repair Parts

Part No. Description
257031 Q KIT, CYLINDER,HD
17K162 Pump Packing Repair Kit
17H842 QuikPak Cartridge Repair System
