RAC X WR LP SwitchTip

Low Pressure Wide RAC X LP SwitchTip, 1231

Part Number: WRLP1231

product image product image
New

RAC X WR LP SwitchTip

Low Pressure Wide RAC X LP SwitchTip, 1231

Part Number: WRLP1231

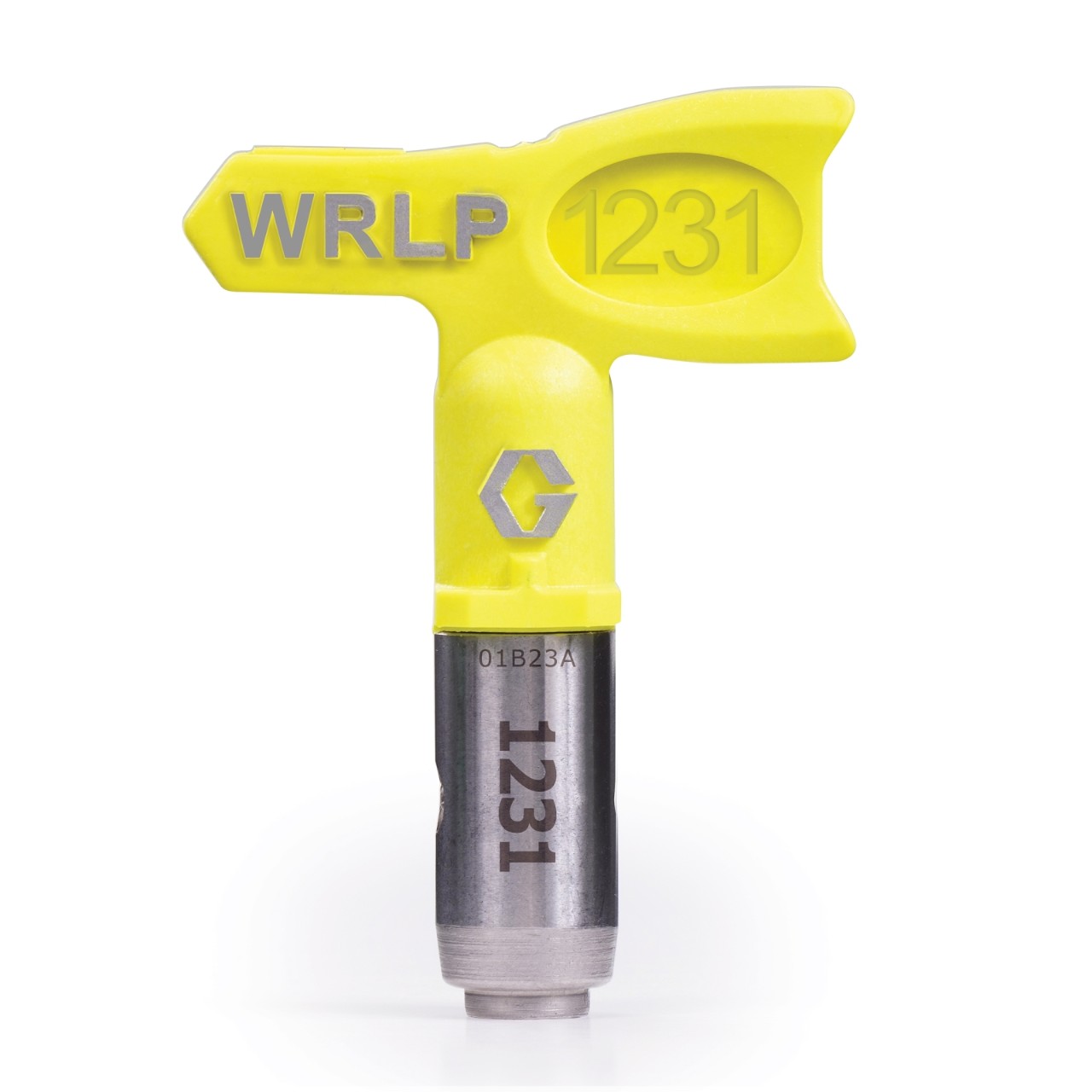

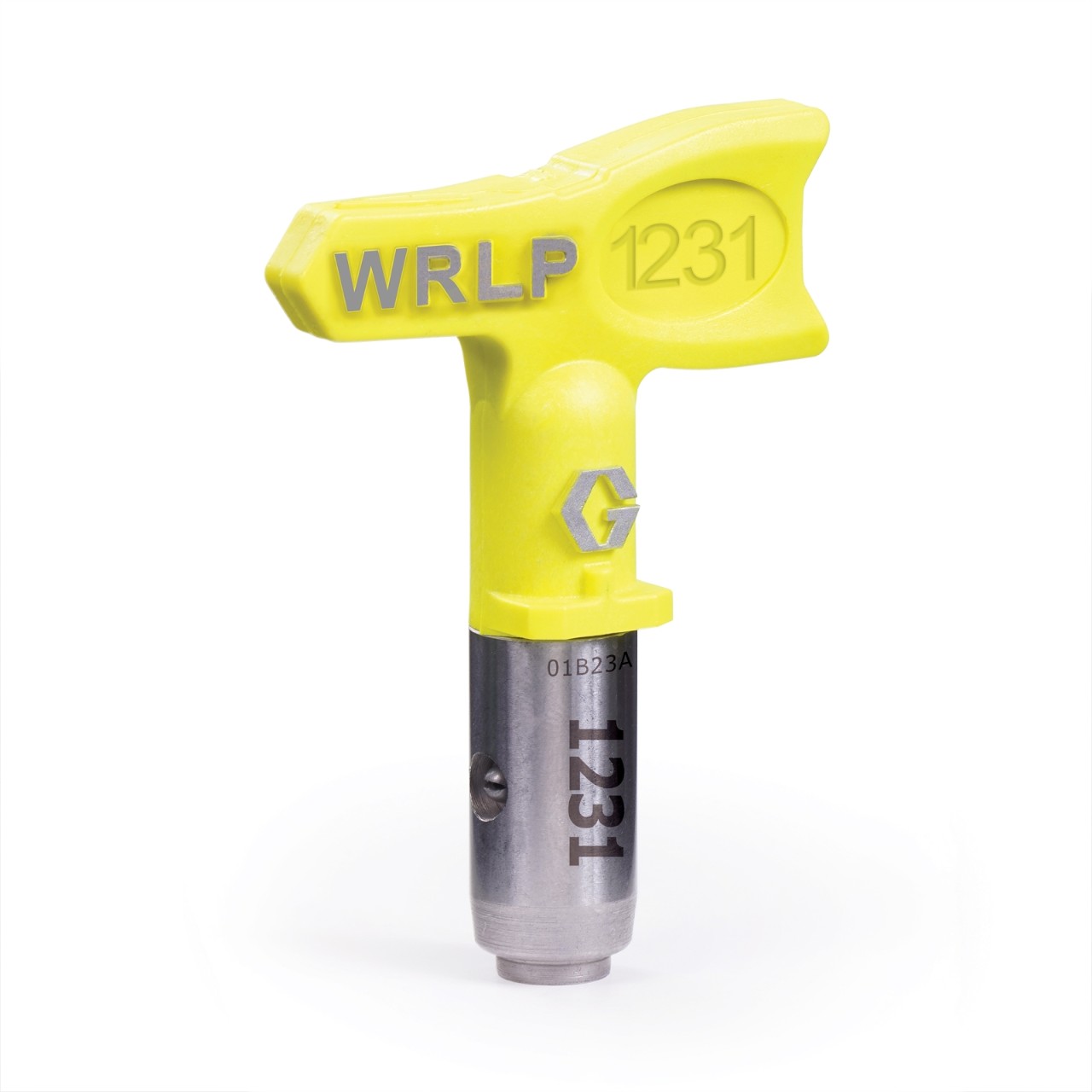

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 1231 Wide Low Pressure (WRLP) RAC X SwitchTip. This low pressure, high production tip produces a 24 - 26 inch fan pattern and has a 0.031 inch orifice. Reverse the SwitchTip to easily clear clogs.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 1231 Wide Low Pressure (WRLP) RAC X SwitchTip. This low pressure, high production tip produces a 24 - 26 inch fan pattern and has a 0.031 inch orifice. Reverse the SwitchTip to easily clear clogs.

For all residential, commercial, interior and exterior high volume applications

  • Largest Industry Spray Pattern
    • 24 Inch spray pattern
  • More Productivity
    • Deliver 2X more productivity with less spray passes
  • Less Prep & Cleanup Time
    • Less mess with less overspray
    • Put the paint where you want it
  • Easiest Pattern Overlap
    • Softer spray fan pattern
    • Easy to apply any material to any surfance
    • Consistent blended finish quality
  • Extended Life
    • Spraying at half pressure doubles tip life
    • Reduced sprayer maintenance – up to 2X life
  • SmartTip Technology
    • Exclusive internal tip geometry
    • Reduces energy required to atomize paints, stains, and other materials
    • Delivers a superior finish with less pressure
    • Works with SmartControl on select Graco sprayers
  • Best Tip on the Market
    • Works with any airless sprayer
    • Longest lasting fan pattern
    • Highest quality finish with a consistent spray pattern
  • Easy to Identify Tip Size
    • Large raised tip size numbers are always legible – even when covered with paint
  • Superior Tip Design
    • Locking tab ensures tip stays securely in guard
    • Snaps tip in spray or reverse position
    • OneSeal tip gasket installs with no tools
    • Solvent seal available when using extremely hot solvents

Specifications & Documents

Technical Specifications

Convert to Metric
Maximum Fan Width (in) 24
Model RAC X
Orifice Diameter (in) 0.031
Series WR LP SwitchTip
Type Spray Tip
Maximum Fan Width (cm) 60
Maximum Fan Width (in) 24
Model RAC X
Orifice Diameter (in) 0.031
Series WR LP SwitchTip
Type Spray Tip
