BlueMax II Whip Hose

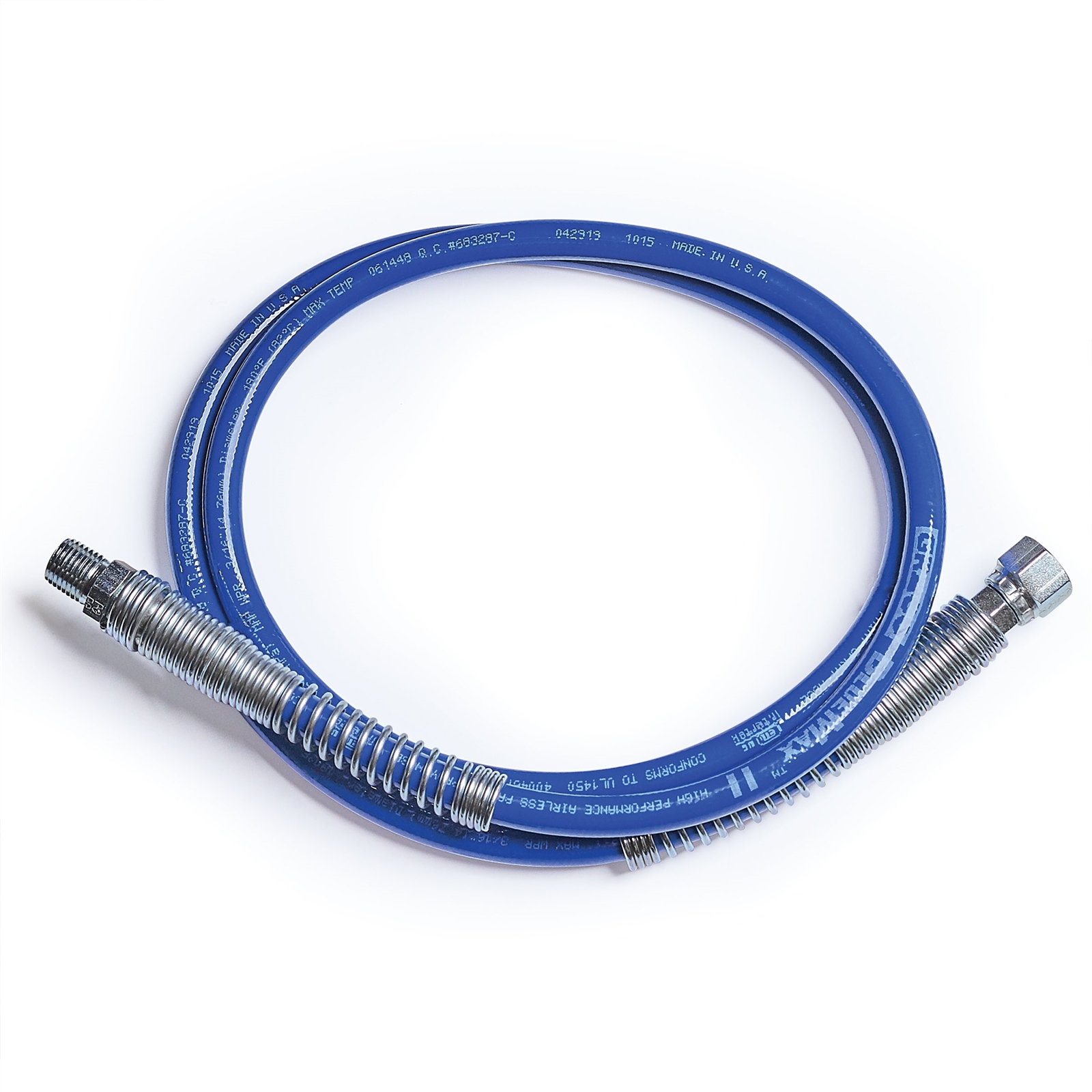

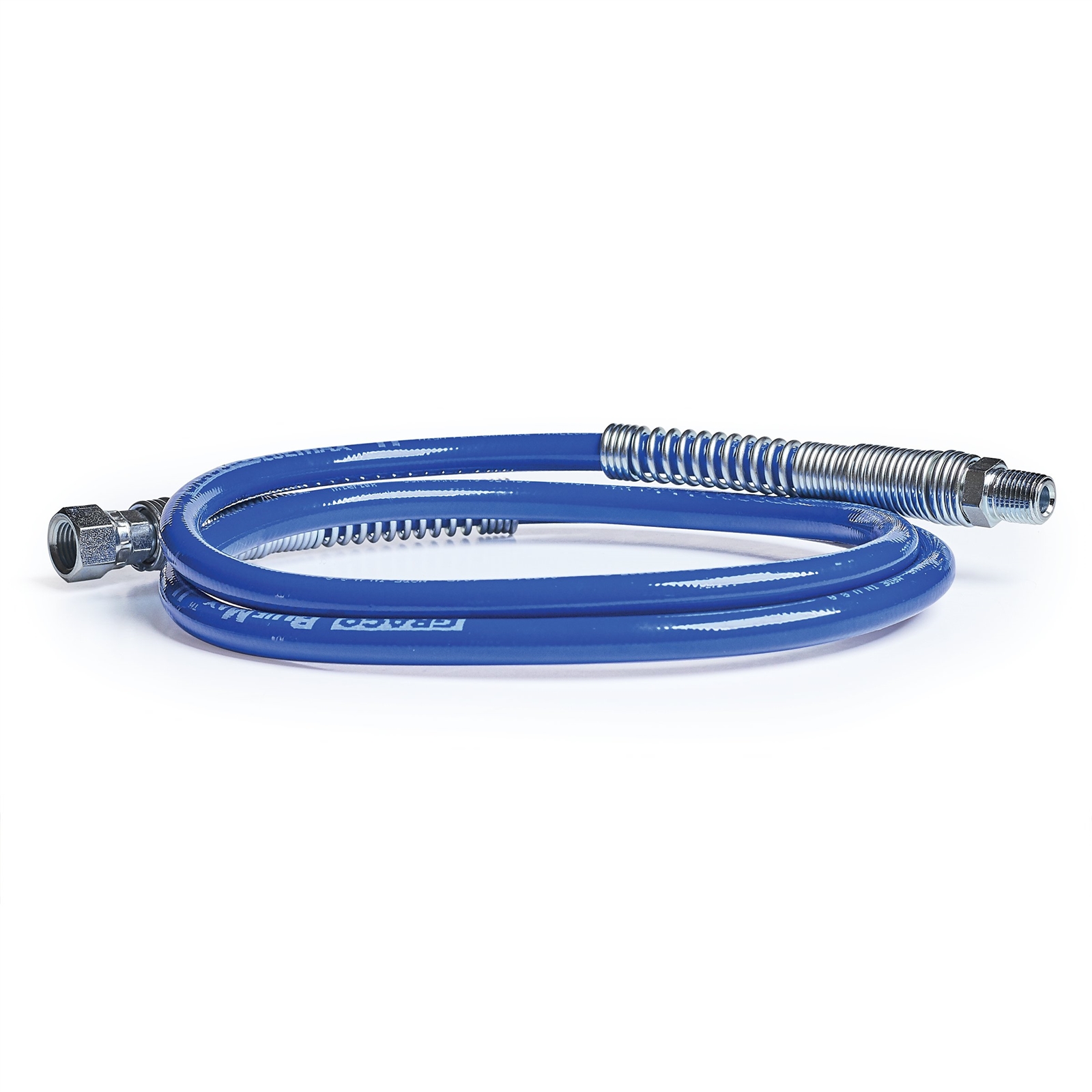

BlueMax II Airless Whip Hose, 3/16 in x 4.5 ft (1.4 m)

Part Number: 238959

product image product image

BlueMax II Whip Hose

BlueMax II Airless Whip Hose, 3/16 in x 4.5 ft (1.4 m)

Part Number: 238959

The BlueMax II Whip Hose provides more flexibility and increased operator control at the gun. This BlueMax II Whip Hose has a 3/16 inch diameter and is 4.5 feet long.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The BlueMax II Whip Hose provides more flexibility and increased operator control at the gun. This BlueMax II Whip Hose has a 3/16 inch diameter and is 4.5 feet long.
  • Lighter Weight
    • Over 10% lighter weight and increased hose flexibility improves under pressure
  • Highest Safety Standards
    • Conductive core meets the highest worldwide safety standards unlike competitive ground wire hose designs
  • Minimal Hose Coil Memory
    • BlueMax II Hose has superior flexibility and reduced coil memory providing ease of use during coiling and uncoiling
  • Corrosion Resistant
    • Plated spring guards are more corrosion resistant

Specifications & Documents

Technical Specifications

Convert to Metric
Connection Type Male x Female
Hose Diameter (in) 3/16
Hose Length (ft) 4.5
Hose Length (in) 54
Inside Diameter (in) 3/16
Material Nylon
Maximum Working Pressure (MPa) 20.7
Maximum Working Pressure (psi) 3300
Model BlueMax II
Series Whip Hose
Type Coupled Hose
Connection Type Male x Female
Hose Diameter (in) 3/16
Hose Length (cm) 137
Hose Length (in) 54
Hose Length (m) 1.4
Hose Length (mm) 1368
Inside Diameter (cm) 0.4763
Inside Diameter (in) 3/16
Inside Diameter (mm) 4.7625
Material Nylon
Maximum Working Pressure (MPa) 20.7
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20700
Maximum Working Pressure (psi) 3300
Model BlueMax II
Series Whip Hose
Type Coupled Hose
