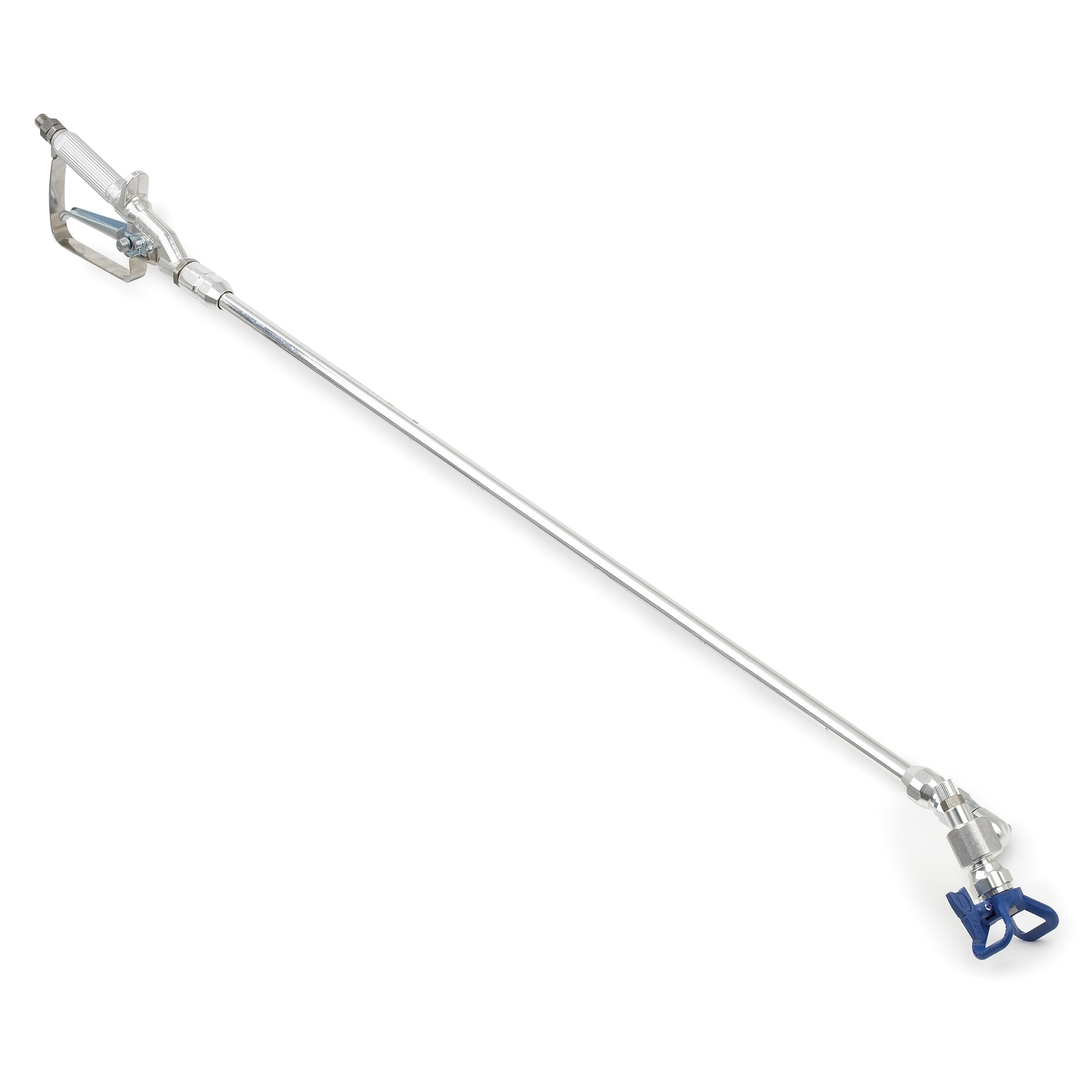

Graco Pole Gun

Pole Gun, 3 ft

Part Number: 287023

product image

Graco Pole Gun

Pole Gun, 3 ft

Part Number: 287023

Extend your range and spray more efficiently without ladders or scaffolding with the 3 foot Pole Gun.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Extend your range and spray more efficiently without ladders or scaffolding with the 3 foot Pole Gun.
  • Heavy-duty extensions are ideal for high-pressure spraying or pressure roller applications.

  • Airless Tip Extensions can be attached directly to an airless gun making them ideal for spraying ceilings, overhangs and decks.

  • CleanShot Valve can be attached directly to any extension and provides a clean fluid shutoff at the tip – no spitting.

Specifications & Documents

Technical Specifications

Convert to Metric
Bleed Type Bleeder
Compatible Material Water-Based Paint
Component A Inlet Size (in) 1/4
Component A Inlet Thread Type NPSM
Component Type Single Component
Fluid Orifice Size (in) 0.090
For Use With Electric Airless Sprayer
Gun Activation Manual
Gun Type Pole Gun
Gun Weight (lb) 2.76
Includes Cleanshot Shut-off Valve, Contractor In-line Valve
Maximum Fluid Pressure (MPa) 24.8
Maximum Fluid Pressure (psi) 3600
Model Graco
Purge Method Liquid
Series Pole Gun
Trigger Lock Locking
Trigger Type Four-Finger
Type Spray Gun
Bleed Type Bleeder
Compatible Material Water-Based Paint
Component A Inlet Size (in) 1/4
Component A Inlet Thread Type NPSM
Component Type Single Component
Fluid Orifice Size (cm) 0.229
Fluid Orifice Size (in) 0.090
Fluid Orifice Size (mm) 2.29
For Use With Electric Airless Sprayer
Gun Activation Manual
Gun Type Pole Gun
Gun Weight (kg) 0.1253
Includes Cleanshot Shut-off Valve, Contractor In-line Valve
Maximum Fluid Pressure (MPa) 24.8
Maximum Fluid Pressure (bar) 248
Maximum Fluid Pressure (kPa) 24800
Maximum Fluid Pressure (psi) 3600
Model Graco
Purge Method Liquid
Series Pole Gun
Trigger Lock Locking
Trigger Type Four-Finger
Type Spray Gun

Repair Parts

Part No. Description
24A955 50 ft (15.2 m) Bundled Air and Fluid Hose, 3300 psig (228 bar)
LTX517 RAC X SwitchTip, 517
