Ultra IV XT
Mark IV XT HD 3-in-1 ProContractor Series Electric Airless Sprayer, Hi-Boy
Part Number: 19F551
Ultra IV XT
Mark IV XT HD 3-in-1 ProContractor Series Electric Airless Sprayer, Hi-Boy
Part Number: 19F551
The Mark IV XT ProContractor Series delivers an airless spray experience like no other. Featuring a 2.3 HP Xtreme Torque motor, Next Generation Rapid-Response Pressure Control, and an Endurance Vortex MAXLIFE pump, the Mark IV XT ProContractor is guaranteed to last!
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Mark IV XT ProContractor Series delivers an airless spray experience like no other. Featuring a 2.3 HP Xtreme Torque motor, Next Generation Rapid-Response Pressure Control, and an Endurance Vortex MAXLIFE pump, the Mark IV XT ProContractor is guaranteed to last!
Xtreme Production & Reliability. XT ProContractor Series electric airless sprayers are built specifically for professional contractors looking to increase production on the industry's most silent spraying platform. Complete with numerous time saving features and the industry's longest life pumps, an XT ProContractor will keep you out of the shop, and on the job.
- Xtreme Torque Motor Technology
- 15X more torque than traditional motors
- 8X more magnets provide unmatched power and performance
- 90% lower running speeds extend motors life
- Up to 10X quieter
- Rapid-Response Pressure Control
- Instantly responds to deliver the best finish quality
- More performance across its full tip size range
- Industry's largest operating pressure range (50-3,300 psi)
- Selectable Performance Modes
- Two selectable spray modes offer unique performance levels to boost efficiency on every job
- Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 - 2,000 psi)
- Use High Pressure Mode for Xtreme Performance (500 – 3,300 psi)
- Easy-to-Read LED Digital Display
- Visible in even the toughest spraying conditions

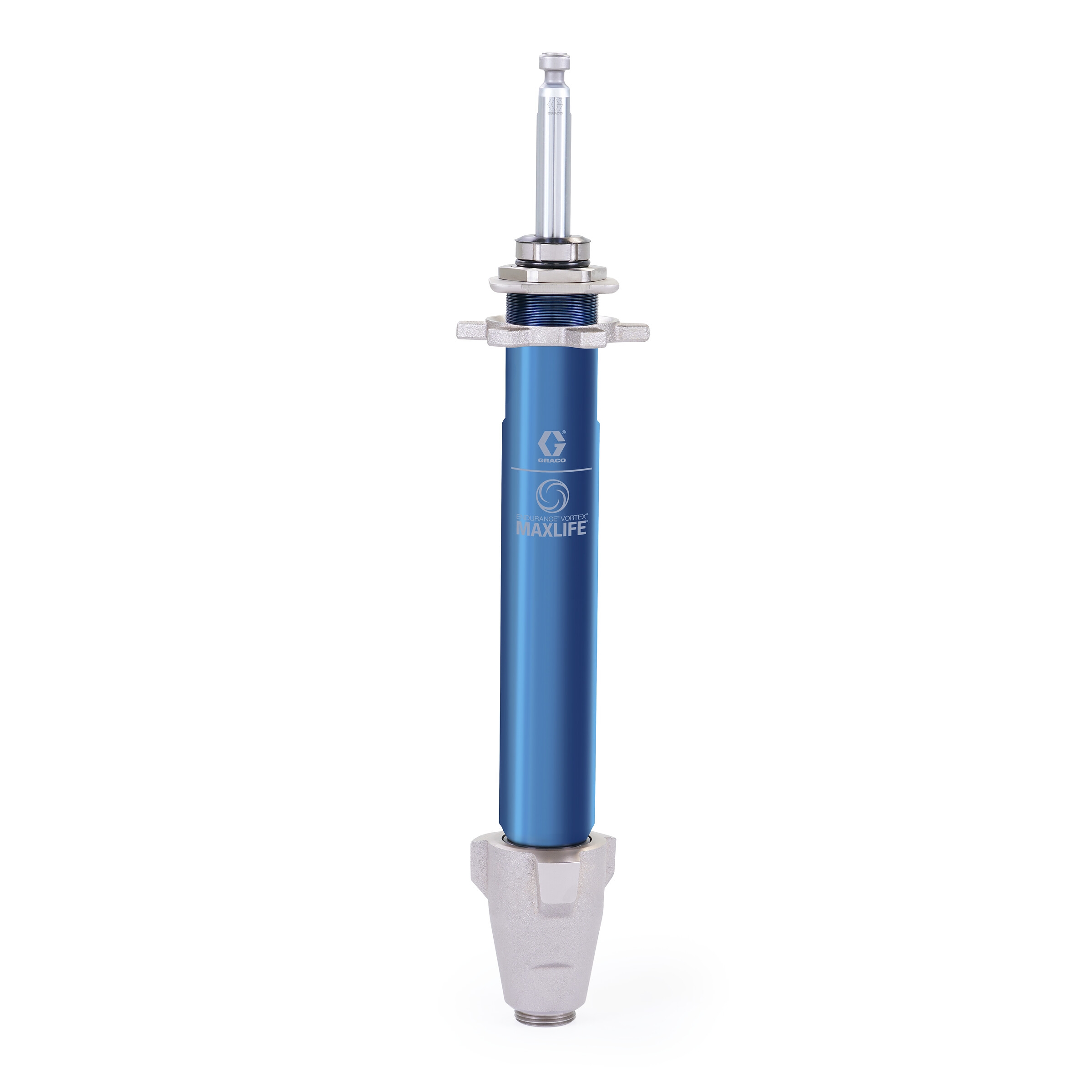

- Endurance Vortex MAXLIFE Piston Pump with ProConnect
- Endurance Vortex MAXLIFE Rod lasts 6X longer than the closest competitor
- ProConnect Pump Removal for fast on-the-job service
- 25% longer pump stroke for longer life before repacking
- QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- TurboClean Cleaning System
- Industry’s fastest pump cleaning system
- Delivers 3X faster cleaning with 1/2 the water
- Convenient location
- BlueLink Job & Sprayer Management System
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- WatchDog Pump Protection
- Prevents damage by shutting off pump when it's time to refill
- Additional Feature:
- CrushProof Inlet Strainer
- FlatProof Tires
- Flex Plus Gun & RAC X LTX SwitchTip
Specifications & Documents
Technical Specifications
Convert to MetricFrame Configuration | Hi-Boy |
---|---|
Maximum Flow Rate (GPM) | 1.2 |
Maximum Tip Size (in) | .033 |
Maximum Working Pressure (psi) | 3300 |
Minimum Working Pressure (psi) | 50 |
Model | Ultra |
Product Series | ProContractor |
Series | IV XT |
Type | Airless Sprayer |
Voltage (V) | 120 |
Weight (lb) | 122 |
Frame Configuration | Hi-Boy |
Maximum Tip Size (in) | .033 |
Maximum Working Pressure (psi) | 3300 |
Minimum Working Pressure (psi) | 50 |
Model | Ultra |
Product Series | ProContractor |
Series | IV XT |
Type | Airless Sprayer |
Voltage (V) | 120 |
Product Manuals
Sales Literature
Repair Parts
Part No. | Description |
---|---|
17H849 | QuikPak Cartridge Repair System |
