ThermoLazer 200TC

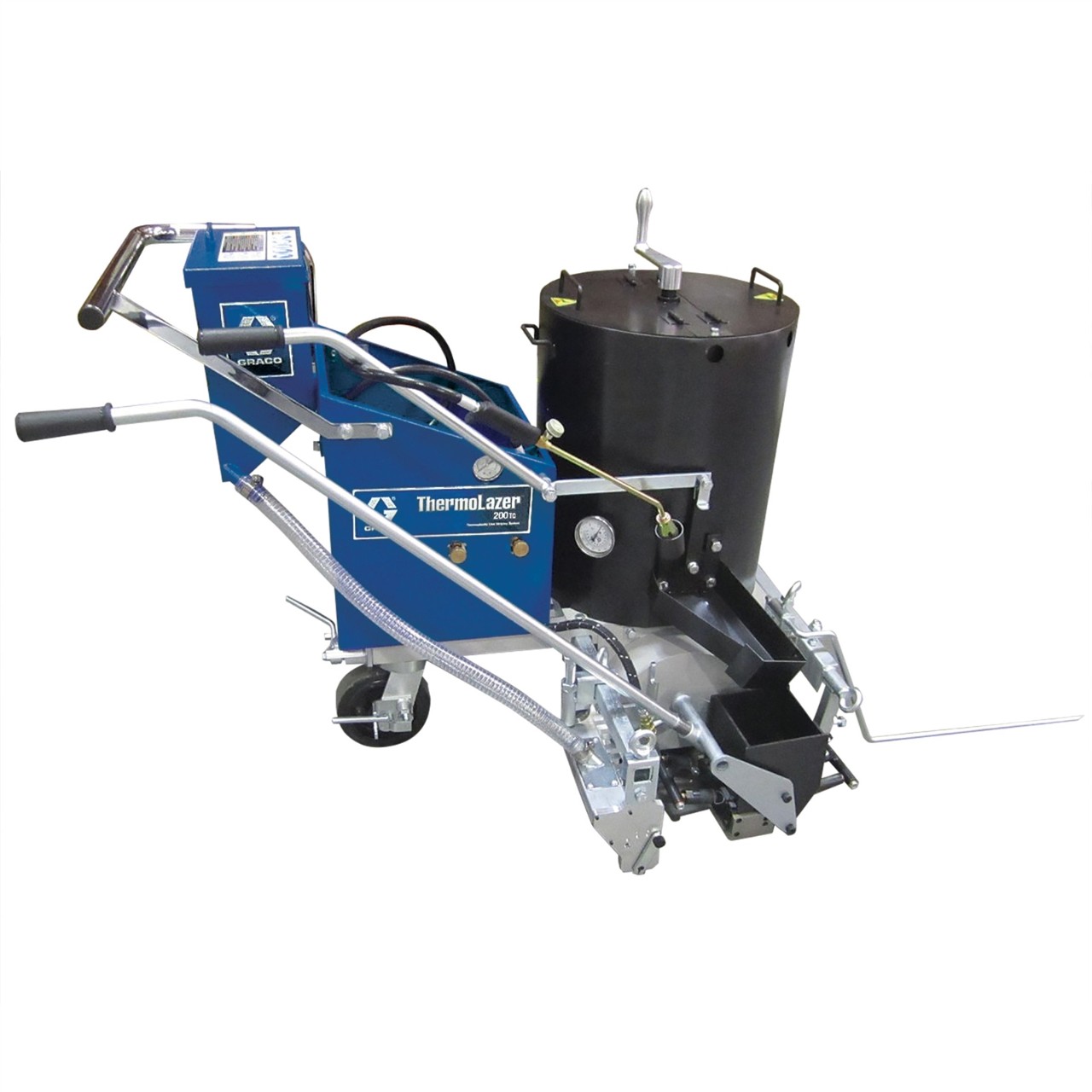

ThermoLazer 200TC Thermoplastic Striping System, 6 in FlexDie

Part Number: 17A335

product image

ThermoLazer 200TC

ThermoLazer 200TC Thermoplastic Striping System, 6 in FlexDie

Part Number: 17A335

The ThermoLazer 200TC is the premiere solution for smaller thermoplastic striping jobs. The FlexDie is built with the same precision and functionality as its big brother, the SmartDie II. Solid steel construction, built-in die adjustment and direct flames will give you great lines every time.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The ThermoLazer 200TC is the premiere solution for smaller thermoplastic striping jobs. The FlexDie is built with the same precision and functionality as its big brother, the SmartDie II. Solid steel construction, built-in die adjustment and direct flames will give you great lines every time.

The smaller, more portable ThermoLazer 200TC is ideal for striping contractors who already have premelt kettle systems.

  • FlexDie
    • Delivers excellent line quality with exclusive deep-die, all steel construction and a no-tools change out design
  • 200 lb Material Kettle
    • Easy-to-fill cylindrical kettle allows for precise heating of thermoplastic material, and its no-tool change-out design lets you switch colors fast
  • 40 lb Bead Hopper
    • Perfectly matched to the material kettle with a superior flow design
  • Direct Heat System
    • Direct flames and an on-board hand torch deliver maximum heat, resulting in maximum material flow
  • Tri-Wheel System
    • Dual solid front and single solid rear wheels provide smooth, quiet operation
  • Adjustable Operator Handle
    • Handle easily adjusts to multiple heights
  • Adjustable Front Pointer
    • Easily adjusts for all size dies for following all marks and creating straight lines

Specifications & Documents

Technical Specifications

Convert to Metric
Bead System Gravity Bead System
Compatible Material Thermoplastics
Compatible Surfaces Pavement
Includes 6 in FlexDie
Maximum Working Pressure (psi) 250
Model ThermoLazer
Number of Colors One Color
Number of Hoppers 1
Series 200TC
Type Walk-Behind Line Striper
Bead System Gravity Bead System
Compatible Material Thermoplastics
Compatible Surfaces Pavement
Includes 6 in FlexDie
Maximum Working Pressure (bar) 17.24
Maximum Working Pressure (kPa) 172.4
Maximum Working Pressure (psi) 250
Model ThermoLazer
Number of Colors One Color
Number of Hoppers 1
Series 200TC
Type Walk-Behind Line Striper
