Mark HD X

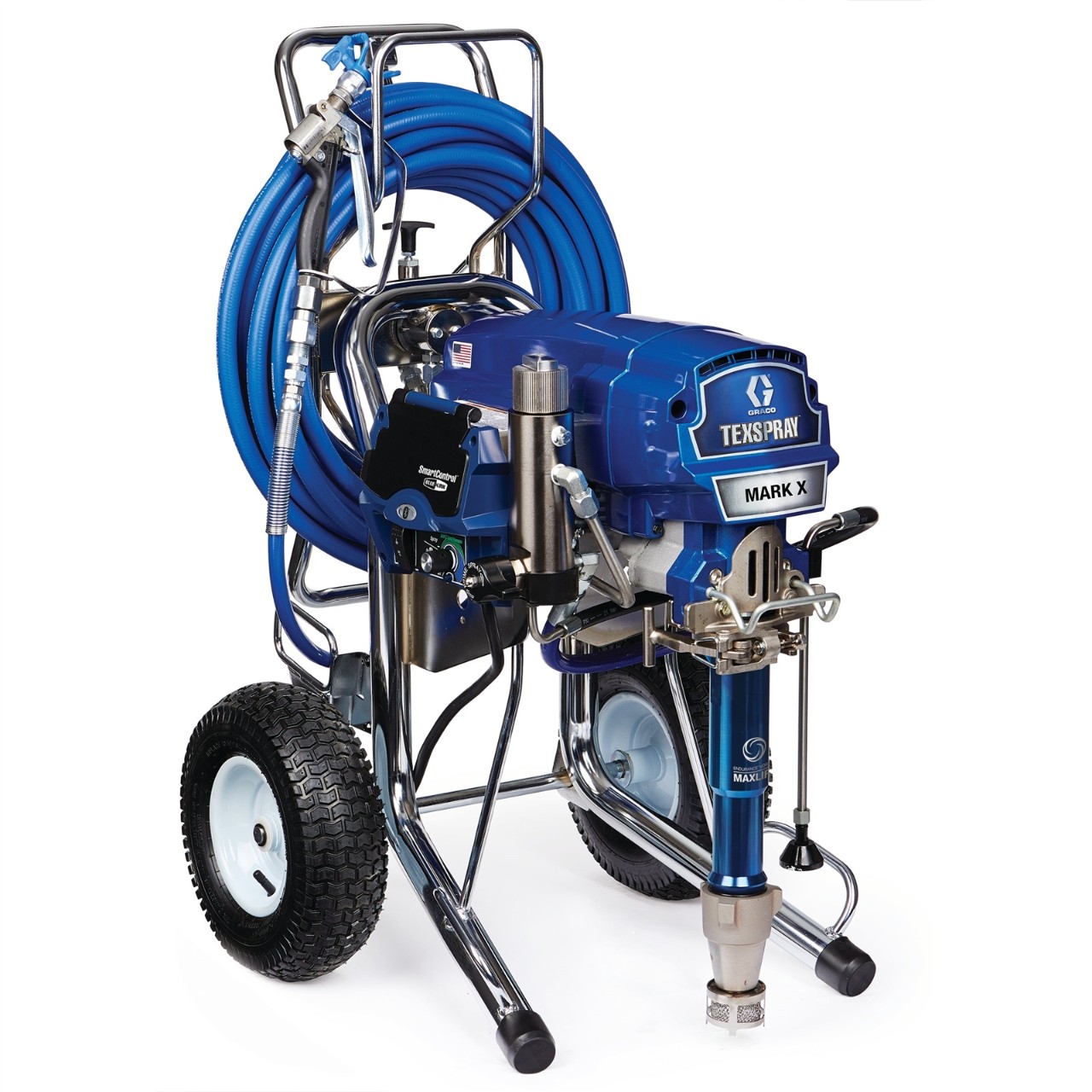

Mark X HD ProContractor Series Electric Airless Sprayer, 230V, IT - DK - CH
Part Number: 17E672
Mark HD X
Mark X HD ProContractor Series Electric Airless Sprayer, 230V, IT - DK - CH
Part Number: 17E672
THE most powerful electric airless texture sprayer. The Mark X HD 230 volt is the sprayer of choice for serious professional contractors with nearly double the output of the Mark V. It easily sprays skim coat in a Q4 finish, multiple texture finishes and the all primers and paints.
Features
Product Brochure
THE most powerful electric airless texture sprayer. The Mark X HD 230 volt is the sprayer of choice for serious professional contractors with nearly double the output of the Mark V. It easily sprays skim coat in a Q4 finish, multiple texture finishes and the all primers and paints.
Work Smarter, Finish More Jobs. Mark HD ProContractor Series electric airless texture sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits.
- Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Longest life packings and piston rod Long life ceramic and stainless steel balls included for maximum versatility
- MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimised fluid passageways for the heaviest coatings
- BlueLink Job & Sprayer Management System
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximise uptime: Set maintenance schedules, alerts, & jobsite notes
- SmartControl 4.0 with ProGuard Protection System
- Precision Pressure Control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 90 metres (300 ft) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 90 metres (300 ft) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- Crushproof Inlet Strainer
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
- Worry-Free MaxPower Motor
- Get more work done
- Proven performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- Use longer cords, regardless of voltage fluctuations
- Precision Advantage Drive
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
- Lifetime Warranty
- Additional Features:
- WatchDog Pump Protection System
- Easy Out Filter Manifold
- Heavy-Duty Prime Valve
- Rugged, Durable Cart Design
Specifications & Documents
Technical Specifications
Convert to Imperial| Compatible Material | Stains, Glass, Oil, Lacquer, Primers, Fillers, Acrylics, Interior emulsions, Exterior emulsions, Latex, Plaster, Anti-corrosive paints, Fire-retardant paint, Intumescent, Heavy duty coatings |
|---|---|
| Compatible Replacement Pump | 17H835 |
| Convertible | Non-Convertible |
| Cycles per Gallon | 70 |
| Engine Size (HP) | 4.0 Brushless DC |
| Engine Size (kW) | 3 |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/2 |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50 |
| Hose Inlet Diameter (in) | 1/2 |
| Hose Reel Type | Hose rack |
| Includes | All units shipped complete and ready to spray: with 245820 HD Inline Texture gun, HDA 531 + 541 Tip, 246215 RAC X™ Guard, 278499 BlueMax™ II Hose (1/2 in. x 15 m), 191239 BlueMax™ II Whip Hose (3/8 in. x 3.5 m),15F446 Gun Tool, 111733 adjustable wrench, 238049 TSL™ (118 ml). |
| Inlet Paint Strainer | Heavy-duty rock catcher |
| Maximum Flow Rate (GPM) | 2.2 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (ft) | 200 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.051 |
| Maximum Tip Size 1 Gun (in) | 0.051 |
| Maximum Working Pressure (MPa) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Minimum generator power (kW) | 0 |
| Model | Mark HD |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 39 |
| Overall Length (in) | 30 |
| Overall Width (in) | 24 |
| Phase | 1 |
| Power Rating (HP) | 4.0 |
| Power Rating (kW) | 3.0 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product series | ProContractor |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance Vortex |
| Series | X |
| Spray Gun Type | HD-inline texture gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Volume per Cycle (cycles/gal) | 70 |
| Weight (lb) | 178 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten Carbide, PEEK, Brass |
| Compatible Material | Stains, Glass, Oil, Lacquer, Primers, Fillers, Acrylics, Interior emulsions, Exterior emulsions, Latex, Plaster, Anti-corrosive paints, Fire-retardant paint, Intumescent, Heavy duty coatings |
| Compatible Replacement Pump | 17H835 |
| Convertible | Non-Convertible |
| Cycles per Gallon | 70 |
| Engine Size (kW) | 3 |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/2 |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Size (mm) | 12.7 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50 |
| Hose Inlet Diameter (cm) | 1.27 |
| Hose Inlet Diameter (in) | 1/2 |
| Hose Inlet Diameter (mm) | 12.7 |
| Hose Reel Type | Hose rack |
| Includes | All units shipped complete and ready to spray: with 245820 HD Inline Texture gun, HDA 531 + 541 Tip, 246215 RAC X™ Guard, 278499 BlueMax™ II Hose (1/2 in. x 15 m), 191239 BlueMax™ II Whip Hose (3/8 in. x 3.5 m),15F446 Gun Tool, 111733 adjustable wrench, 238049 TSL™ (118 ml). |
| Inlet Paint Strainer | Heavy-duty rock catcher |
| Maximum Flow Rate (L/min) | 8.3 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (m) | 60 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.051 |
| Maximum Tip Size 1 Gun (in) | 0.051 |
| Maximum Working Pressure (MPa) | 22.7 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 22700 |
| Maximum Working Pressure (kg/cm²) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Minimum generator power (kW) | 0 |
| Model | Mark HD |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 99 |
| Overall Height (mm) | 990.6000 |
| Overall Length (cm) | 75 |
| Overall Length (mm) | 762 |
| Overall Width (cm) | 61 |
| Overall Width (mm) | 609.6000 |
| Phase | 1 |
| Power Rating (kW) | 3.0 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product series | ProContractor |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance Vortex |
| Series | X |
| Spray Gun Type | HD-inline texture gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Volume per Cycle (cycles/gal) | 70 |
| Weight (kg) | 81 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten Carbide, PEEK, Brass |
Product Manuals
Sales Literature
Repair Parts
| Part No. | Description |
|---|---|
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
| 278499 | HOSE, CPLD, 1/2 IN X 50 FT |
| 245103 | Q KIT REPAIR, DRAIN VALVE |
| 258909 | KIT, REPAIR, MOTOR |
| 243222 | Q KIT, REPAIR, TRANSDUCER |
| 16Y496 | KIT,DISPLAY, GMAX, PREMIUM |
| 24V029 | KIT,REPAIR,HOSE,COUPLED, 1/2" |
| 117285 | PACKING, O-RING |
| 15D527 | SWITCH, ROCKER, 240V |
| 15C766 | TUBE, DIFFUSION |
