Mark HD V

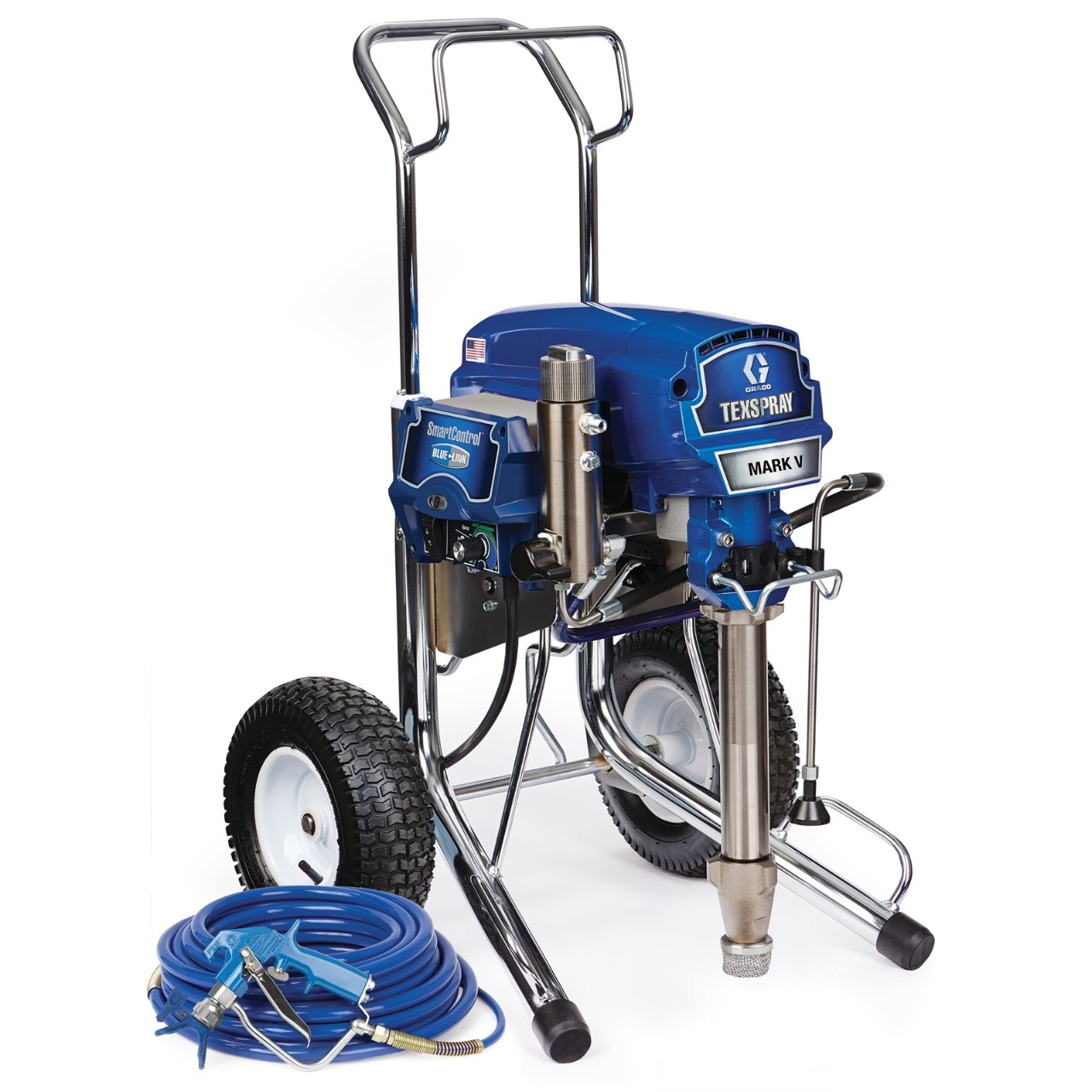

Mark V HD Standard Series Electric Airless Sprayer, 110V, UK
Part Number: 17E659
Mark HD V
Mark V HD Standard Series Electric Airless Sprayer, 110V, UK
Part Number: 17E659
The Mark V HD delivers a higher flow rate to complete jobs more quickly. Providing 20% more productivity than the Mark IV, this unit comes with an upgraded Heavy-Duty Texture Gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint.
Features
Product Brochure
The Mark V HD delivers a higher flow rate to complete jobs more quickly. Providing 20% more productivity than the Mark IV, this unit comes with an upgraded Heavy-Duty Texture Gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint.
Everyday Reliability. Mark HD Standard Series electric airless texture sprayers provide unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.
- Endurance Chromex Piston Pump
- The most reliable pump
- Lasts 2X longer than the next leading brand
- Long life ceramic and stainless steel balls included for maximum versatility
- Faster cleaning with the QuikAccess intake foot valve
- MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimised fluid passageways for the heaviest coatings
- BlueLink Job & Sprayer Management System
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximise uptime: Set maintenance schedules, alerts, & jobsite notes
- SmartControl 4.0 with ProGuard Protection System
- Precision pressure control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- Prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if the material supply is too low
- FastFlush 2 System
- Fast cleaning now even FASTER
- Clean the pump 6X faster using ½ the water
- High-velocity fluid flow delivered with 60% higher motor speed
- MaxPower DC Motor & Advantage Drive
- Maintenance-Free Power
- Field proven brushless design
- The Longest Lasting Drive
- Improved jobsite conditions with extremely quiet operation
- WatchDog Pump Protection System
- Prevents dry pumping damage
- Automatically shuts pump down when if the material supply is too low
- Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
- Heavy-Duty Prime Valve
- Maintenance-free high-pressure dumping capability
- Rugged, Durable Cart Design
- Rugged and easy-to-move
- Withstands tough jobsite conditions while absorbing impacts and vibrations
- Easy hose storage with integrated hose wrap and telescoping handle
- Easy loading with built-in lift handles
Specifications & Documents
Technical Specifications
Convert to Imperial| Compatible Material | Stains, Glass, Oil, Lacquer, Primers, Fillers, Acrylics, Interior emulsions, Exterior emulsions, Latex, Plaster, Anti-corrosive paints, Fire-retardant paint, Intumescent |
|---|---|
| Compatible Replacement Pump | 17H829 |
| Convertible | Non-Convertible |
| Cycles per Gallon | 110 |
| Engine Size (HP) | 2.2 Brushless DC |
| Engine Size (kW) | 1.65 |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 3/8 |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 60 |
| Hose Inlet Diameter (in) | 3/8 |
| Hose Reel Type | Hose rack |
| Includes | All units shipped complete and ready to spray: with 289605 HD Blue Texture gun, PAA427 + HDA531 Tip, 246215 RAC X™ Guard, 240797 BlueMax™ II Hose (3/8 in. x 15 m), 277249 BlueMax™ II Whip Hose (1/4 in. x 0.9 m),15F446 Gun Tool, 111733 adjustable wrench, 238049 TSL™ (118 ml). |
| Maximum Flow Rate (GPM) | 1.35 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (ft) | 100 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.041 |
| Maximum Tip Size 1 Gun (in) | 0.041 |
| Maximum Working Pressure (MPa) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Minimum generator power (kW) | 0 |
| Model | Mark HD |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 29.5 |
| Overall Length (in) | 26 |
| Overall Width (in) | 24 |
| Phase | 1 |
| Power Rating (HP) | 2.2 |
| Power Rating (kW) | 1.65 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product series | Standard |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Hard Chrome |
| Pump Sleeve Material | Hard Chrome |
| Pump Type | Endurance |
| Series | V |
| Spray Gun Type | HD blue texture gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 110 |
| Volume per Cycle (cycles/gal) | 110 |
| Weight (lb) | 130 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten Carbide, PEEK, Brass |
| Compatible Material | Stains, Glass, Oil, Lacquer, Primers, Fillers, Acrylics, Interior emulsions, Exterior emulsions, Latex, Plaster, Anti-corrosive paints, Fire-retardant paint, Intumescent |
| Compatible Replacement Pump | 17H829 |
| Convertible | Non-Convertible |
| Cycles per Gallon | 110 |
| Engine Size (kW) | 1.65 |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 3/8 |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Size (mm) | 9.525 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 60 |
| Hose Inlet Diameter (cm) | 0.9525 |
| Hose Inlet Diameter (in) | 3/8 |
| Hose Inlet Diameter (mm) | 9.525 |
| Hose Reel Type | Hose rack |
| Includes | All units shipped complete and ready to spray: with 289605 HD Blue Texture gun, PAA427 + HDA531 Tip, 246215 RAC X™ Guard, 240797 BlueMax™ II Hose (3/8 in. x 15 m), 277249 BlueMax™ II Whip Hose (1/4 in. x 0.9 m),15F446 Gun Tool, 111733 adjustable wrench, 238049 TSL™ (118 ml). |
| Maximum Flow Rate (L/min) | 5.1 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (m) | 30 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.041 |
| Maximum Tip Size 1 Gun (in) | 0.041 |
| Maximum Working Pressure (MPa) | 22.7 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 22700 |
| Maximum Working Pressure (kg/cm²) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Minimum generator power (kW) | 0 |
| Model | Mark HD |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 74.9 |
| Overall Height (mm) | 749.3000 |
| Overall Length (cm) | 66 |
| Overall Length (mm) | 660.4 |
| Overall Width (cm) | 61 |
| Overall Width (mm) | 609.6000 |
| Phase | 1 |
| Power Rating (kW) | 1.65 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product series | Standard |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Hard Chrome |
| Pump Sleeve Material | Hard Chrome |
| Pump Type | Endurance |
| Series | V |
| Spray Gun Type | HD blue texture gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 110 |
| Volume per Cycle (cycles/gal) | 110 |
| Weight (kg) | 59 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten Carbide, PEEK, Brass |
Product Manuals
Sales Literature
Repair Parts
| Part No. | Description |
|---|---|
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
| 17Y043 | Contractor PC Airless Spray Gun with RAC X LP 517 SwitchTip |
| 245103 | Q KIT REPAIR, DRAIN VALVE |
| 257188 | KIT, REPAIR, MOTOR, C104 1595 |
| 244240 | KIT, REPAIR, RETURN LINE, HI |
| 189920 | Inlet Strainer, SST Cap Single Screen, 25.4 mm (1 in.) |
| 243222 | Q KIT, REPAIR, TRANSDUCER |
| 117285 | PACKING, O-RING |
| 116752 | SWITCH, ROCKER |
