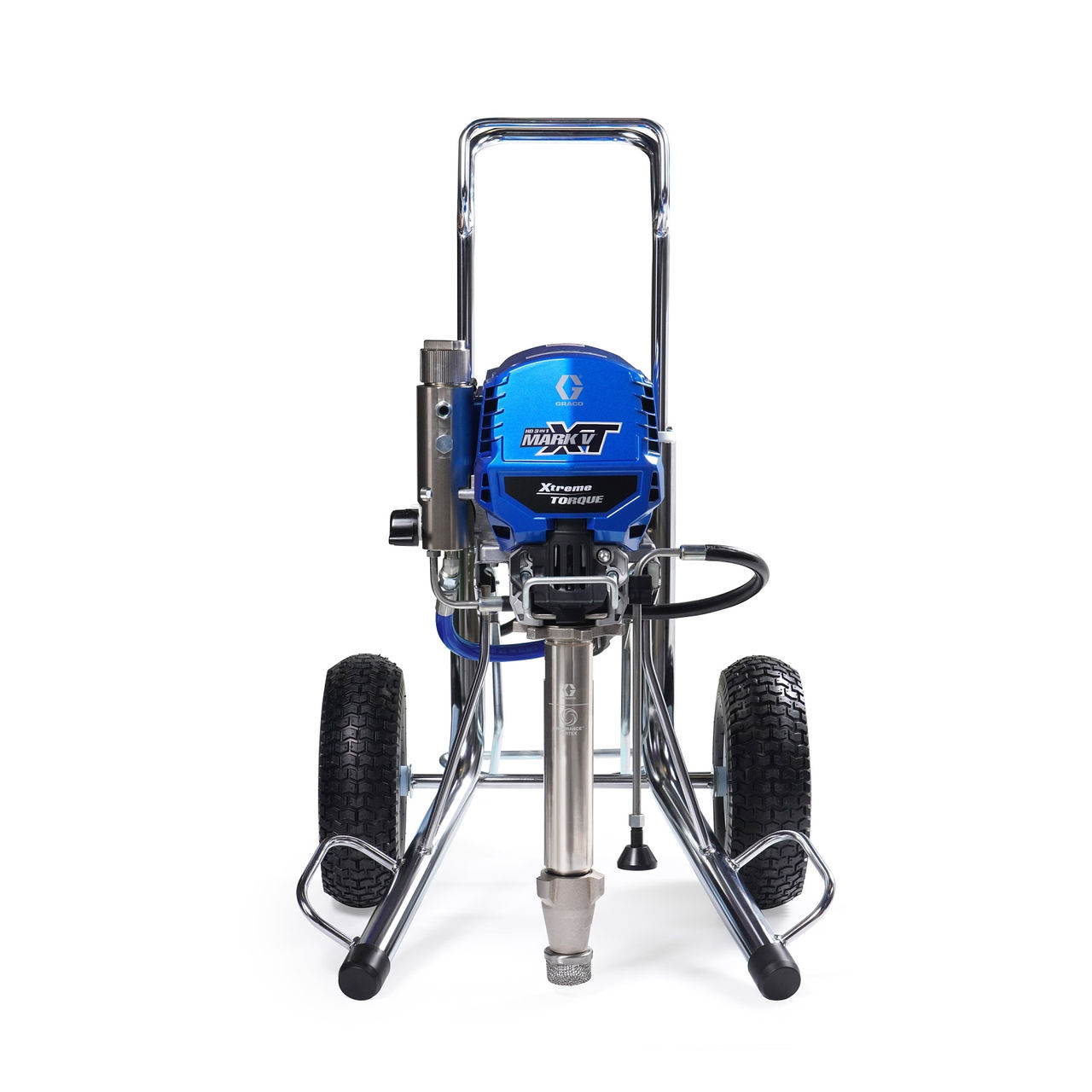

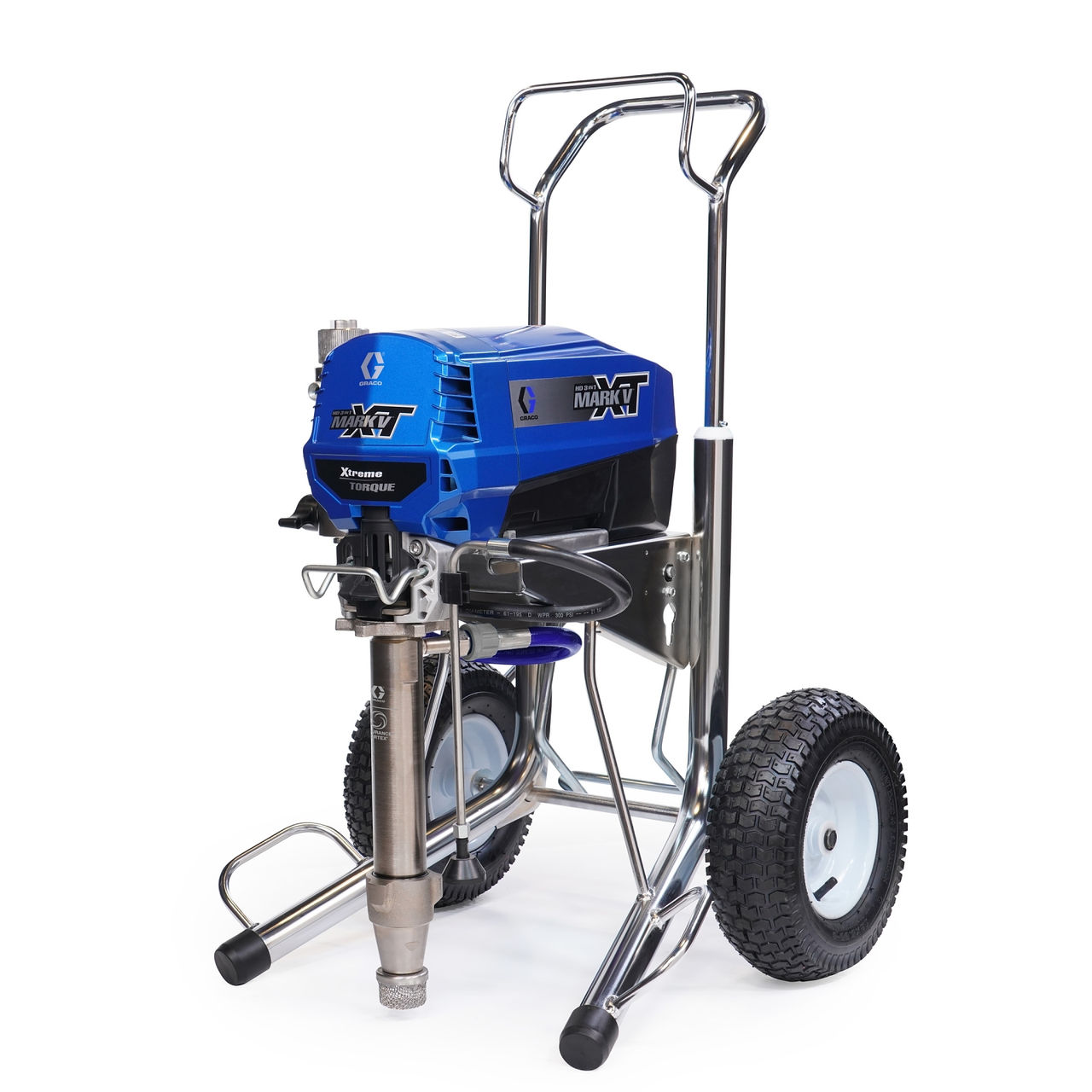

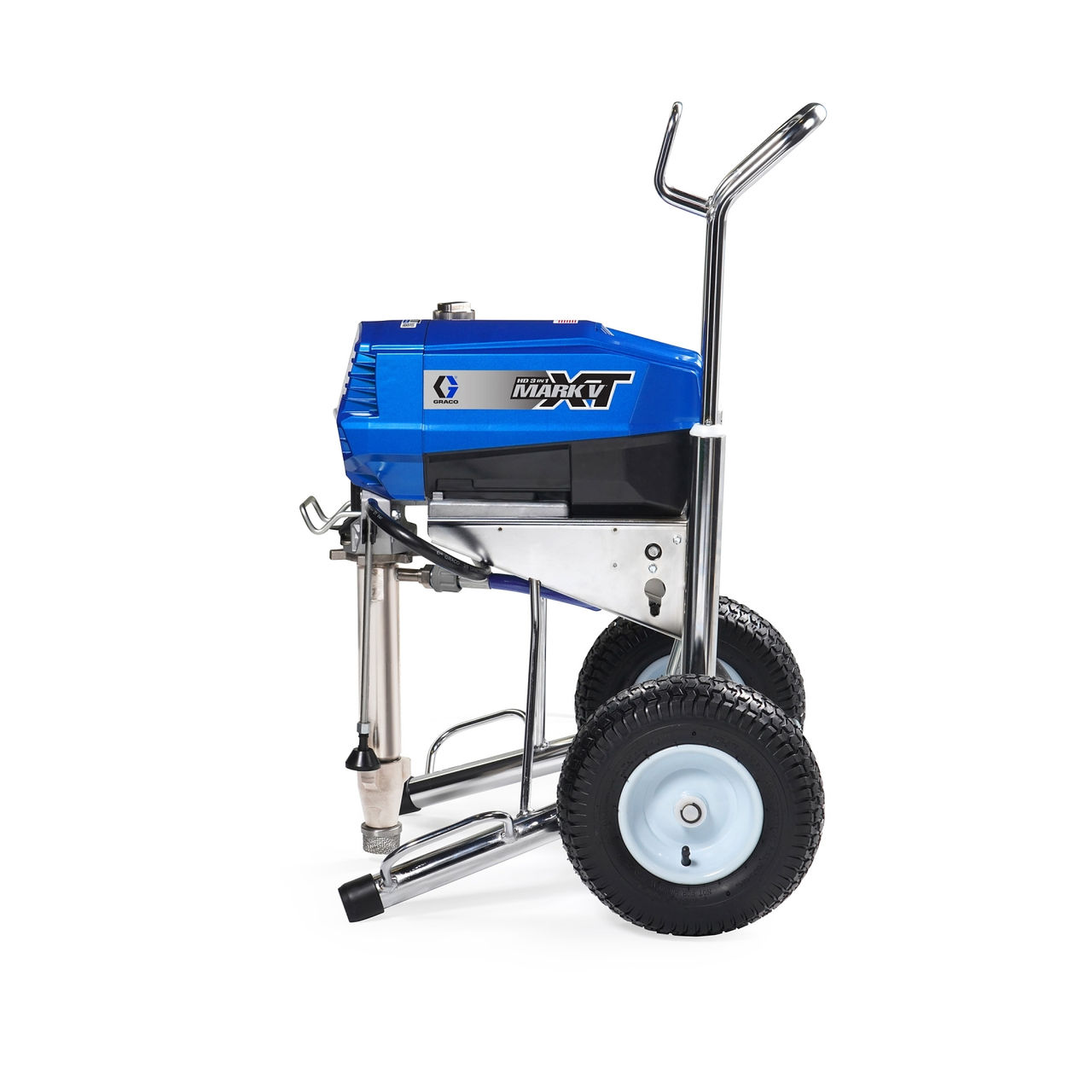

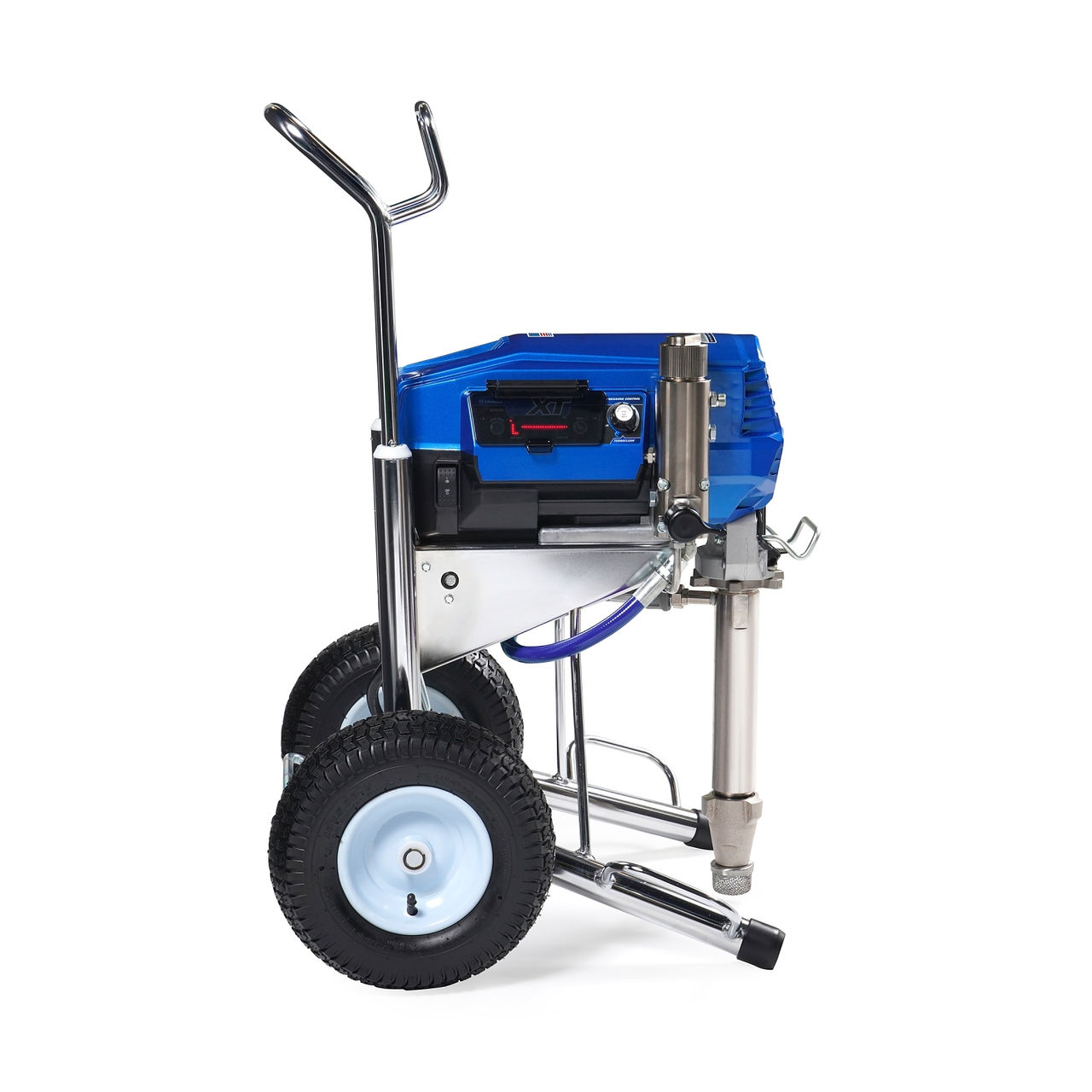

Mark V XT HD 3-in-1 Standard Series Electric Airless Sprayer, Hi-Boy

Part Number: 19F550

product image product image product image product image product image
New

Ultra V XT

Mark V XT HD 3-in-1 Standard Series Electric Airless Sprayer, Hi-Boy

Part Number: 19F550

The Mark V XT Standard Series delivers an airless spray experience like no other. Featuring a 2.9 HP Xtreme Torque motor, Next Generation Rapid-Response Pressure Control, and the longest life pump in its class, the Mark V XT Standard is sure to change the way you spray.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The Mark V XT Standard Series delivers an airless spray experience like no other. Featuring a 2.9 HP Xtreme Torque motor, Next Generation Rapid-Response Pressure Control, and the longest life pump in its class, the Mark V XT Standard is sure to change the way you spray.

Xtreme Reliability. The all new XT Standard Series large electric sprayers are the most reliable pumps for contractors looking for proven performance on the industry's most silent spraying platform. Upgrade to an XT ProContractor for more profit-saving features, or upgrade later with ALL NEW Modular Accessory Kits!

  • Xtreme Torque Motor Technology
    • 15X more torque than traditional motors
    • 8X more magnets provide unmatched power and performance
    • 90% lower running speeds extend motors life
    • Up to 10X quieter
  • Rapid-Response Pressure Control
    • Instantly responds to deliver the best finish quality
    • More performance across its full tip size range
    • Industry's largest operating pressure range (50-3,300 psi)
  • Selectable Performance Modes
    • Two selectable spray modes offer unique performance levels to boost efficiency on every job
    • Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 - 2,000 psi)
    • Use High Pressure Mode for Xtreme Performance (500 – 3,300 psi)
  • Easy-to-Read LED Digital Display
    • Visible in even the toughest spraying conditions

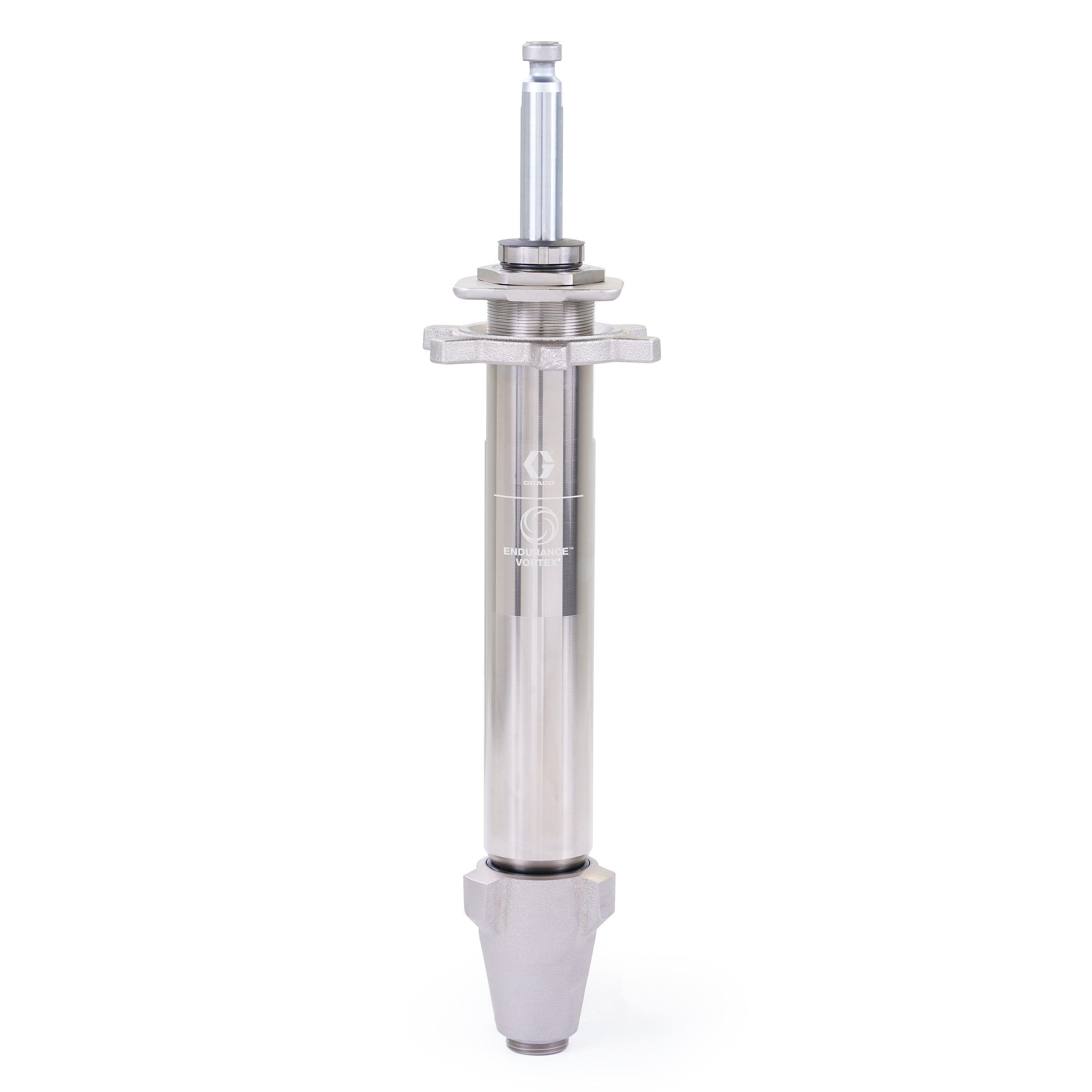

  • Endurance Vortex Piston Pump with ProConnect
    • Endurance Vortex Rod lasts 3X longer than the closest competitor
    • ProConnect Pump Removal for fast on-the-job service
    • 25% longer pump stroke for longer life before repacking
  • TurboClean Cleaning System
    • Industry’s fastest pump cleaning system
    • Delivers 3X faster cleaning with 1/2 the water
    • Convenient location
  • WatchDog Pump Protection
    • Prevents damage by shutting off pump when it's time to refill
  • Durable Filtration
    • Easy Out Filter provides easy maintenance and less clogging
  • Upgrades with Modular Accessories

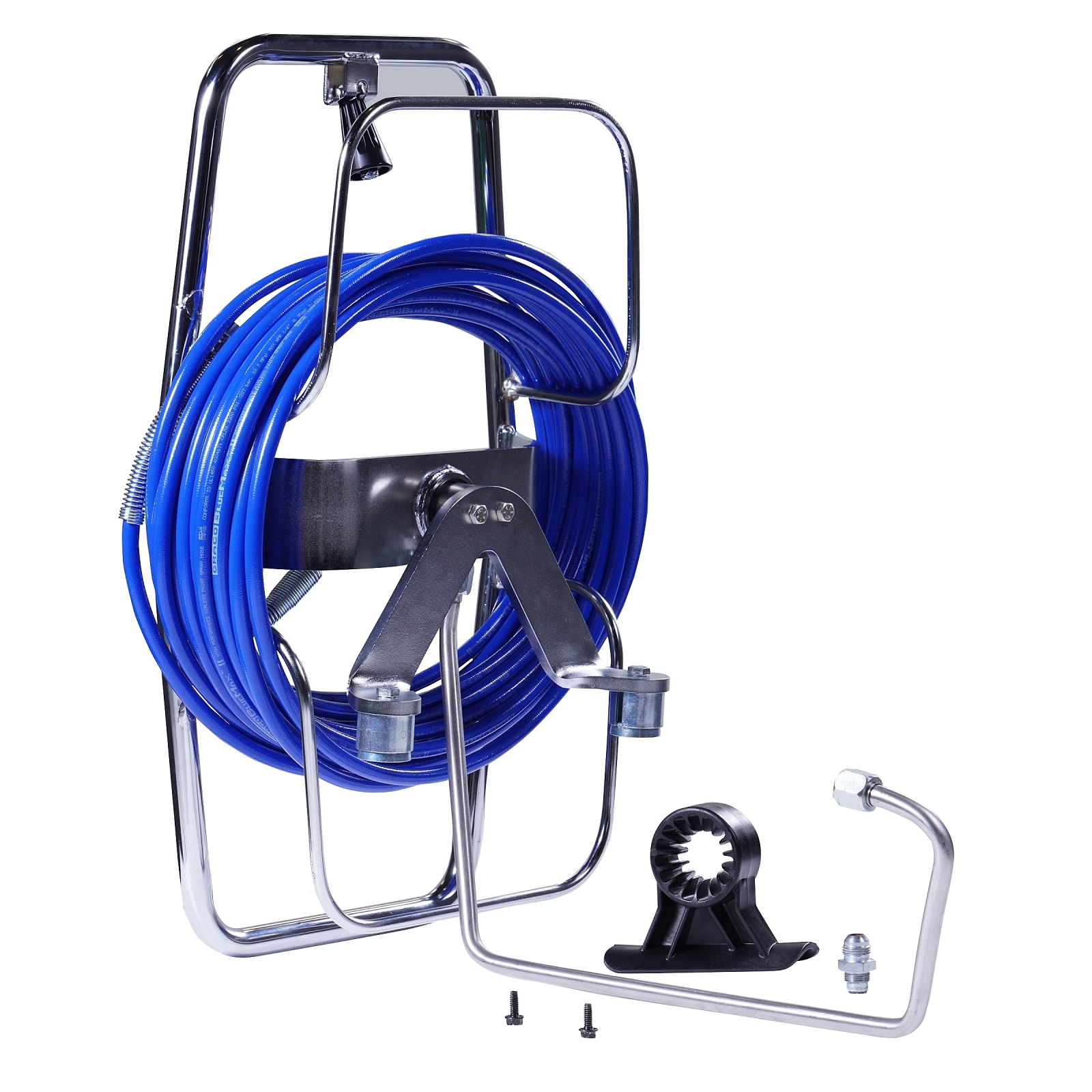

    • QuickReel hose management
    • SmartDisplay XT compatible with BlueLink
    • Endurance Vortex MAXLIFE EXTREME Pump
    • CrushProof Inlet Strainer
    • Rugged FlatProof tires
  • Heavy-Duty Blue Texture Gun & RAC X LTX SwitchTip

Specifications & Documents

Technical Specifications

Convert to Metric
Frame Configuration Hi-Boy
Maximum Flow Rate (GPM) 1.5
Maximum Tip Size (in) .039
Maximum Working Pressure (psi) 3300
Minimum Working Pressure (psi) 50
Model Ultra
Product Series Standard
Series V XT
Type Airless Sprayer
Voltage (V) 120
Weight (lb) 130
Frame Configuration Hi-Boy
Maximum Tip Size (in) .039
Maximum Working Pressure (psi) 3300
Minimum Working Pressure (psi) 50
Model Ultra
Product Series Standard
Series V XT
Type Airless Sprayer
Voltage (V) 120

Repair Parts

Part No. Description
248210 Q KIT, REPAIR, SLEEVE
249189 Graco Pump Repair Kit with Ceramic Check Balls
17H846 QuikPak Cartridge Repair System
