Ultra IV XT

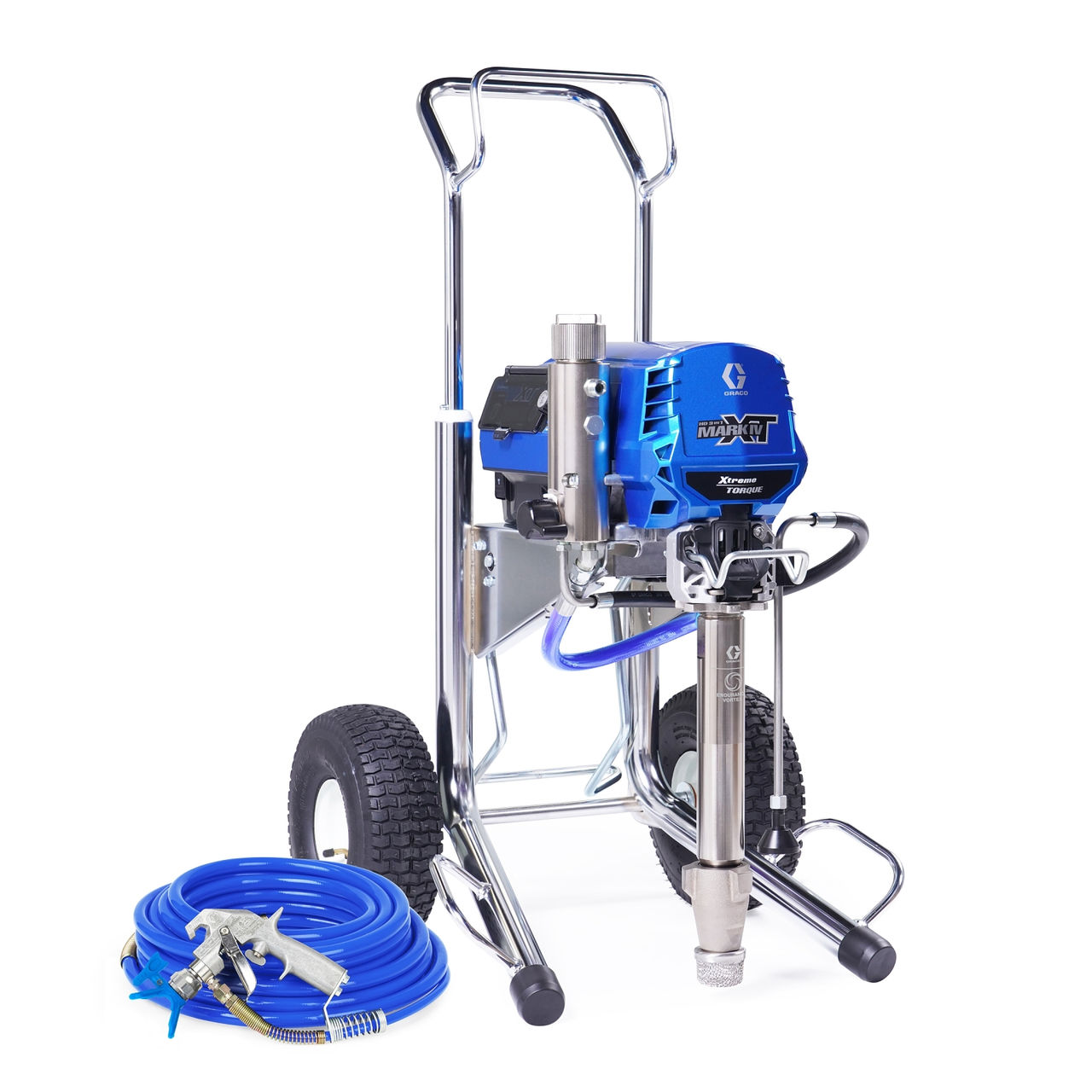

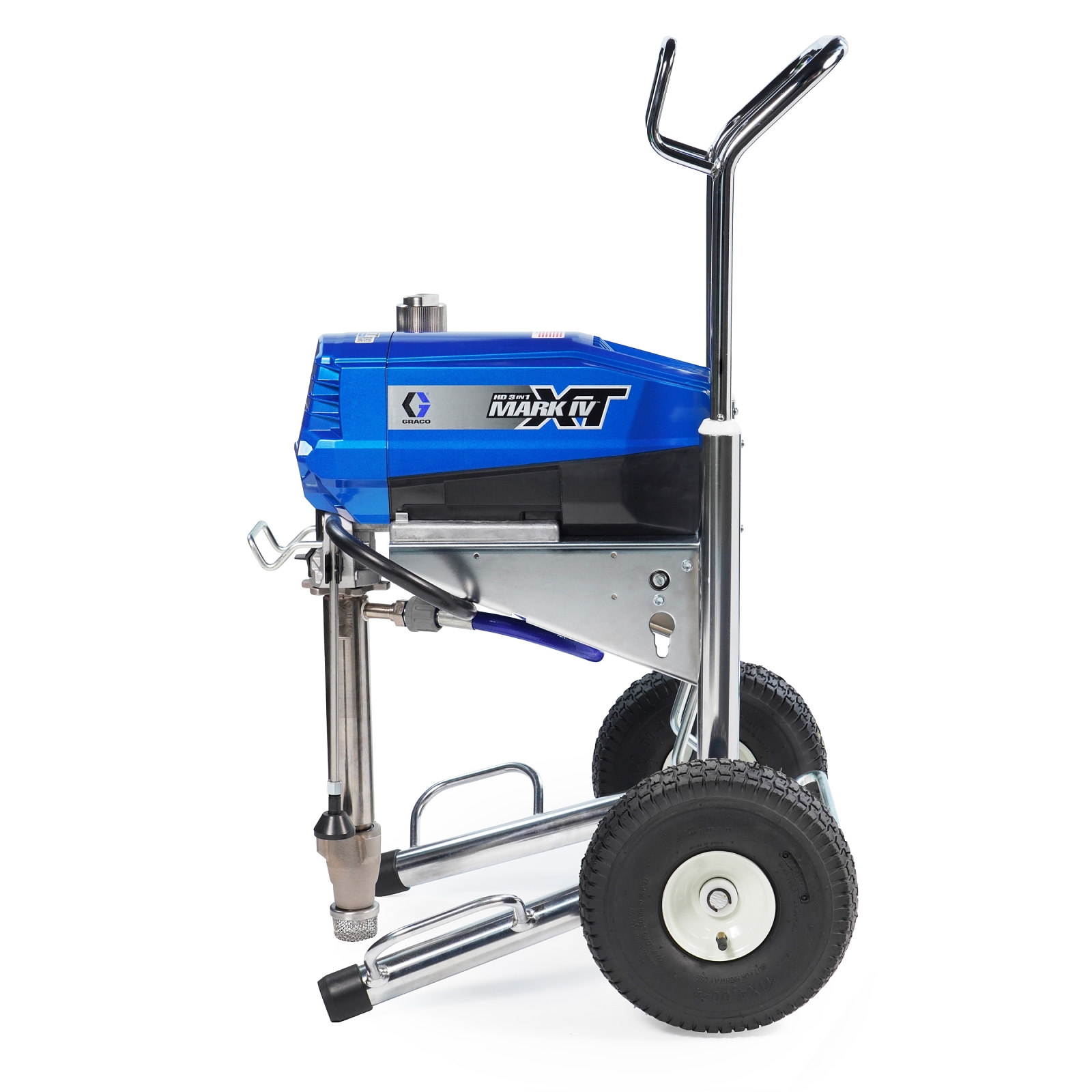

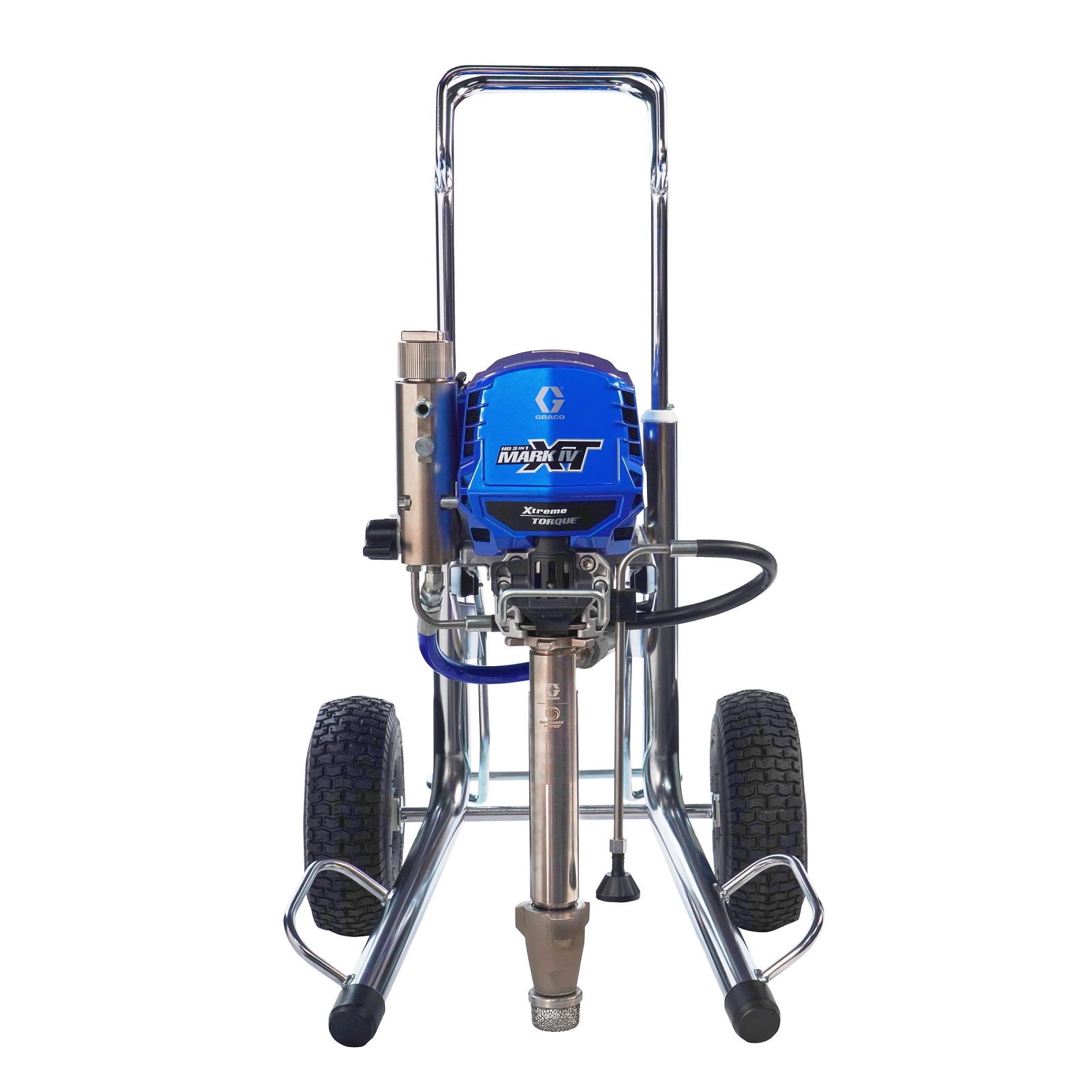

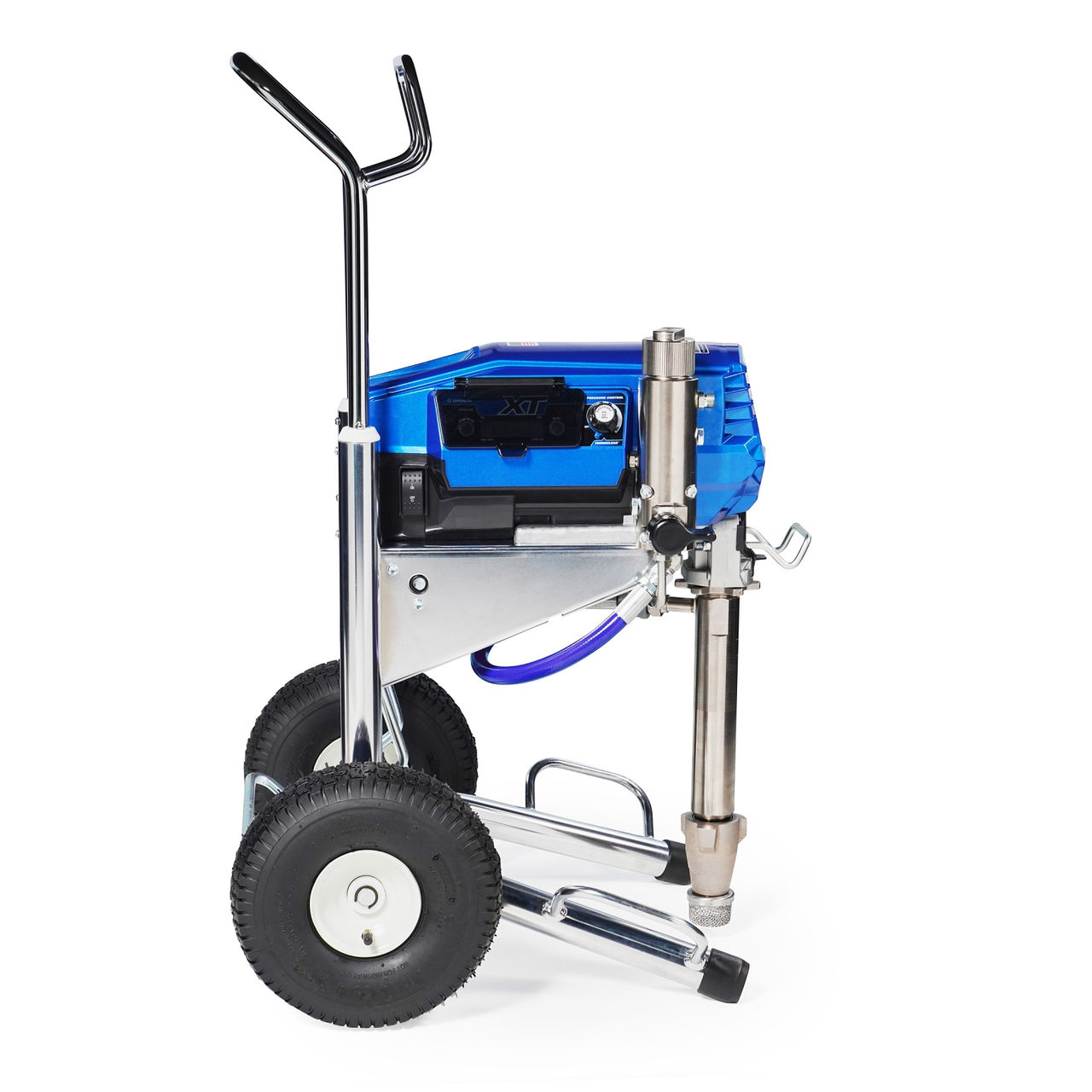

Mark IV XT HD 3-in-1 Standard Series Electric Airless Sprayer, Hi-Boy
Part Number: 19F549
Ultra IV XT
Mark IV XT HD 3-in-1 Standard Series Electric Airless Sprayer, Hi-Boy
Part Number: 19F549
The Mark IV XT Standard Series delivers an airless spray experience like no other. Featuring a 2.3 HP Xtreme Torque motor, Next Generation Rapid-Response Pressure Control, and the longest life pump in its class, the Mark IV XT Standard is sure to change the way you spray.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Mark IV XT Standard Series delivers an airless spray experience like no other. Featuring a 2.3 HP Xtreme Torque motor, Next Generation Rapid-Response Pressure Control, and the longest life pump in its class, the Mark IV XT Standard is sure to change the way you spray.
Xtreme Reliability. The all new XT Standard Series large electric sprayers are the most reliable pumps for contractors looking for proven performance on the industry's most silent spraying platform. Upgrade to an XT ProContractor for more profit-saving features, or upgrade later with ALL NEW Modular Accessory Kits!
- Xtreme Torque Motor Technology
- 15X more torque than traditional motors
- 8X more magnets provide unmatched power and performance
- 90% lower running speeds extend motors life
- Up to 10X quieter
- Rapid-Response Pressure Control
- Instantly responds to deliver the best finish quality
- More performance across its full tip size range
- Industry's largest operating pressure range (50-3,300 psi)
- Selectable Performance Modes
- Two selectable spray modes offer unique performance levels to boost efficiency on every job
- Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 - 2,000 psi)
- Use High Pressure Mode for Xtreme Performance (500 – 3,300 psi)
- Easy-to-Read LED Digital Display
- Visible in even the toughest spraying conditions

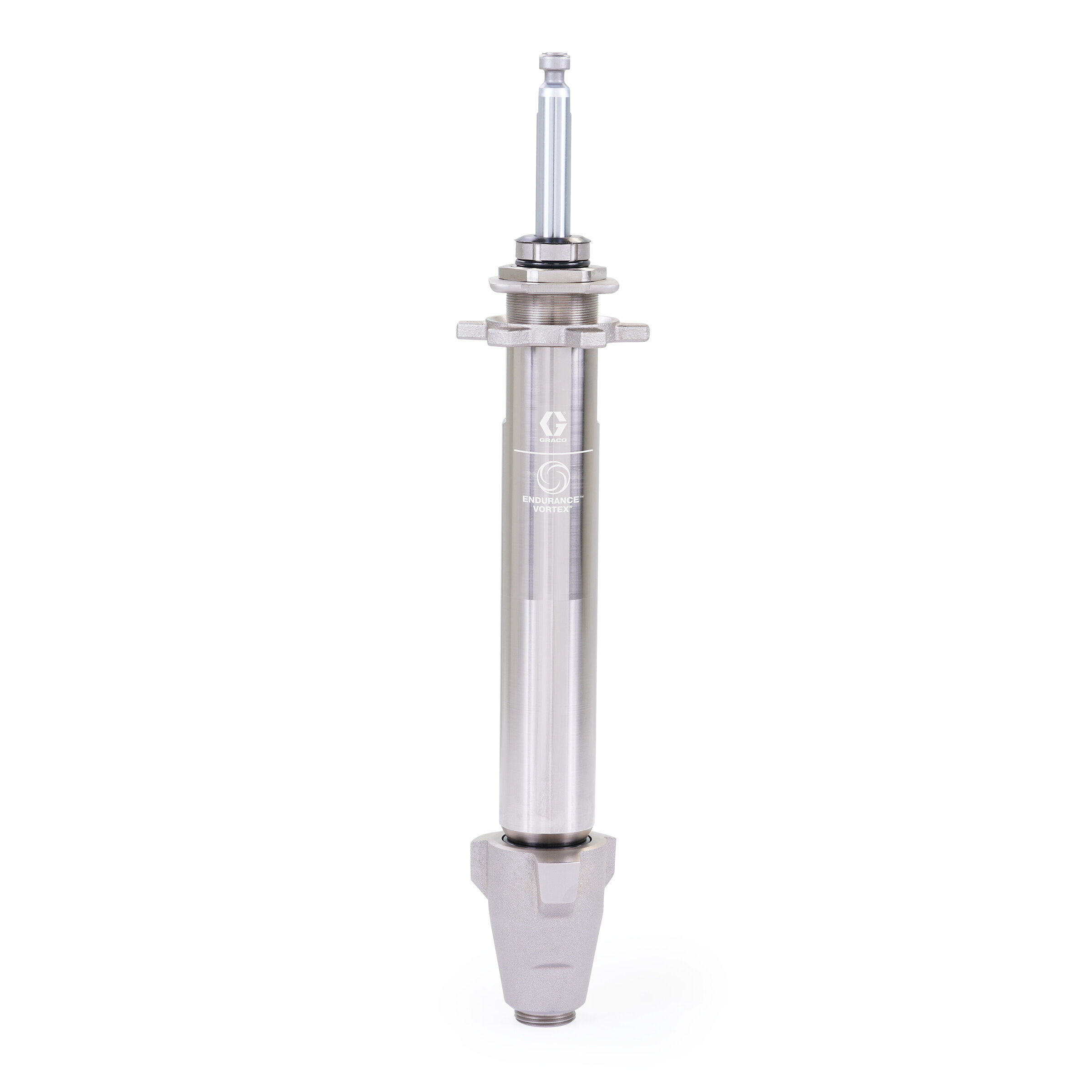

- Endurance Vortex Piston Pump with ProConnect
- Endurance Vortex Rod lasts 3X longer than the closest competitor
- ProConnect Pump Removal for fast on-the-job service
- 25% longer pump stroke for longer life before repacking
- TurboClean Cleaning System
- Industry’s fastest pump cleaning system
- Delivers 3X faster cleaning with 1/2 the water
- Convenient location
- WatchDog Pump Protection
- Prevents damage by shutting off pump when it's time to refill
- Durable Filtration
- Easy Out Filter provides easy maintenance and less clogging
- Upgrades with Modular Accessories
- QuickReel hose management
- SmartDisplay XT compatible with BlueLink
- Endurance Vortex MAXLIFE EXTREME Pump
- CrushProof Inlet Strainer
- Rugged FlatProof tires
- Flex Plus Gun & RAC X LTX SwitchTip
Specifications & Documents
Technical Specifications
Convert to MetricFrame Configuration | Hi-Boy |
---|---|
Maximum Flow Rate (GPM) | 1.2 |
Maximum Tip Size (in) | .033 |
Maximum Working Pressure (psi) | 3300 |
Minimum Working Pressure (psi) | 50 |
Model | Ultra |
Product Series | Standard |
Series | IV XT |
Type | Airless Sprayer |
Voltage (V) | 120 |
Weight (lb) | 106 |
Frame Configuration | Hi-Boy |
Maximum Tip Size (in) | .033 |
Maximum Working Pressure (psi) | 3300 |
Minimum Working Pressure (psi) | 50 |
Model | Ultra |
Product Series | Standard |
Series | IV XT |
Type | Airless Sprayer |
Voltage (V) | 120 |
