LineLazer V 200DC

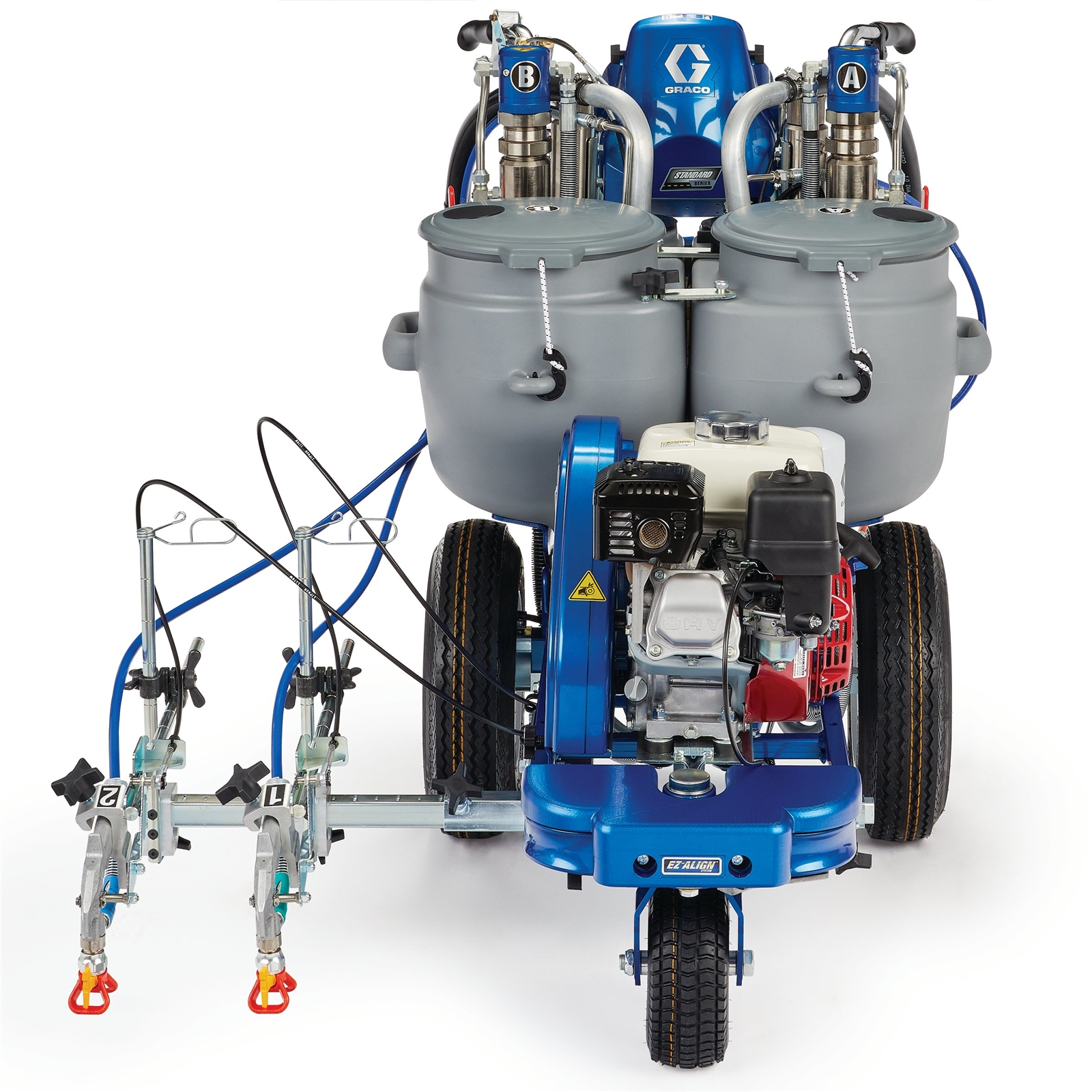

LineLazer V 200DC Standard Series Airless Line Striper, 2 Manual Guns

Part Number: 17Y231

product image product image product image product image product image

LineLazer V 200DC

LineLazer V 200DC Standard Series Airless Line Striper, 2 Manual Guns

Part Number: 17Y231

The LineLazer V 200DC Standard Series provides a cost-effective dual color striping solution for smaller applications. Maximize productivity with systems that provide quick and easy adjustments, including the EasyMark Gun Adjustment System, EZ Align Wheel Adjustment System and more.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The LineLazer V 200DC Standard Series provides a cost-effective dual color striping solution for smaller applications. Maximize productivity with systems that provide quick and easy adjustments, including the EasyMark Gun Adjustment System, EZ Align Wheel Adjustment System and more.

The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing larger re-striping jobs and considering jobs with basic pattern applications requiring a single-color, single or dual gun striping solution.

  • Dual Color Capable
    • Two Units in One
    • No need for separate “yellow” and “white” machines
  • Large, Dual 10-Gallon Hopper
    • Less refilling
  • Dual High-Efficiency Hydraulic Motors
    • Uninterrupted Performance
    • No-Stall design
  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • Honda GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • DualComfort Handle Bar System
    • Easy Handlebar Adjustment
  • Endurance Chromex Pump
    • Reliable, Long-Life Pump
    • Industry-best pump performance — field-proven design
    • Handle the most demanding materials with long-life rod treatment
    • 4X harder than ordinary chrome
  • Additional Features
    • High-Capacity Cooling System
    • QuikSelect Gun Selector
    • Easy Out Pump Filter

Specifications & Documents

Technical Specifications

Convert to Metric
Attachments None
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX200
Fuel Tank Capacity (gal) 0.95
Gun Activation 2 Manual
Hopper Volume Capacity (gal) 10
Includes Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft BlueMax II Airless Hose (2), 3/8 in x 3 ft BlueMax II Airless Whip Hose (2), TSL, 4 oz
Maximum Flow Rate (GPM) 2.15
Maximum Sound Pressure Level (dB(A)) 85.5
Maximum Tip Size (in) 0.033
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors Two Colors
Number of Guns 2
Number of Hoppers 2
Number of Pumps 2
Overall Height (in) 44.5
Overall Length (in) 68.75
Overall Width (in) 34.25
Power Rating (HP) 6.5
Power Rating (kW) 4.85
Power Source Gas Hydraulic
Product Series Standard
Pump Type Endurance
Series 200DC
Type Walk-Behind Line Striper
Weight (lb) 381
Attachments None
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX200
Fuel Tank Capacity (L) 3.6
Gun Activation 2 Manual
Hopper Volume Capacity (L) 38
Includes Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft BlueMax II Airless Hose (2), 3/8 in x 3 ft BlueMax II Airless Whip Hose (2), TSL, 4 oz
Maximum Flow Rate (L/min) 8.14
Maximum Sound Pressure Level (dB(A)) 85.5
Maximum Tip Size (cm) 0.0838
Maximum Tip Size (in) 0.033
Maximum Tip Size (mm) 1.194
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors Two Colors
Number of Guns 2
Number of Hoppers 2
Number of Pumps 2
Overall Height (cm) 113.03
Overall Height (mm) 1130.3
Overall Length (cm) 174.63
Overall Length (mm) 1746.25
Overall Width (cm) 87.0
Overall Width (mm) 870
Power Rating (kW) 4.85
Power Source Gas Hydraulic
Product Series Standard
Pump Type Endurance
Series 200DC
Type Walk-Behind Line Striper
Weight (kg) 173

What's Included

Part No. Description Qty Unit
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 2 ea
LL5319 LineLazer RAC 5 SwitchTip, 319 2 ea
LL5421 LineLazer RAC 5 SwitchTip, 421 2 ea
243161 RAC 5 HandTite Tip Guard 2 ea
245226 HOSE, CPLD, 3/8" X 3' 2 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea

Repair Parts

Part No. Description
124884 HOSE, CPLD, 3/8" X 22'
245103 Q KIT REPAIR, DRAIN VALVE
288754 KIT, REPAIR, GH200 TRIP/PISTON/
248021 KIT, REPAIR, HYDR. MOTOR
117285 PACKING, O-RING
181072 Inlet Strainer, SST Cap Double Screen, 1 in
128855 SWITCH, ROCKER, SPST
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer
