LineLazer V 250DC

LineLazer V 250DC HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns

Part Number: 17H471

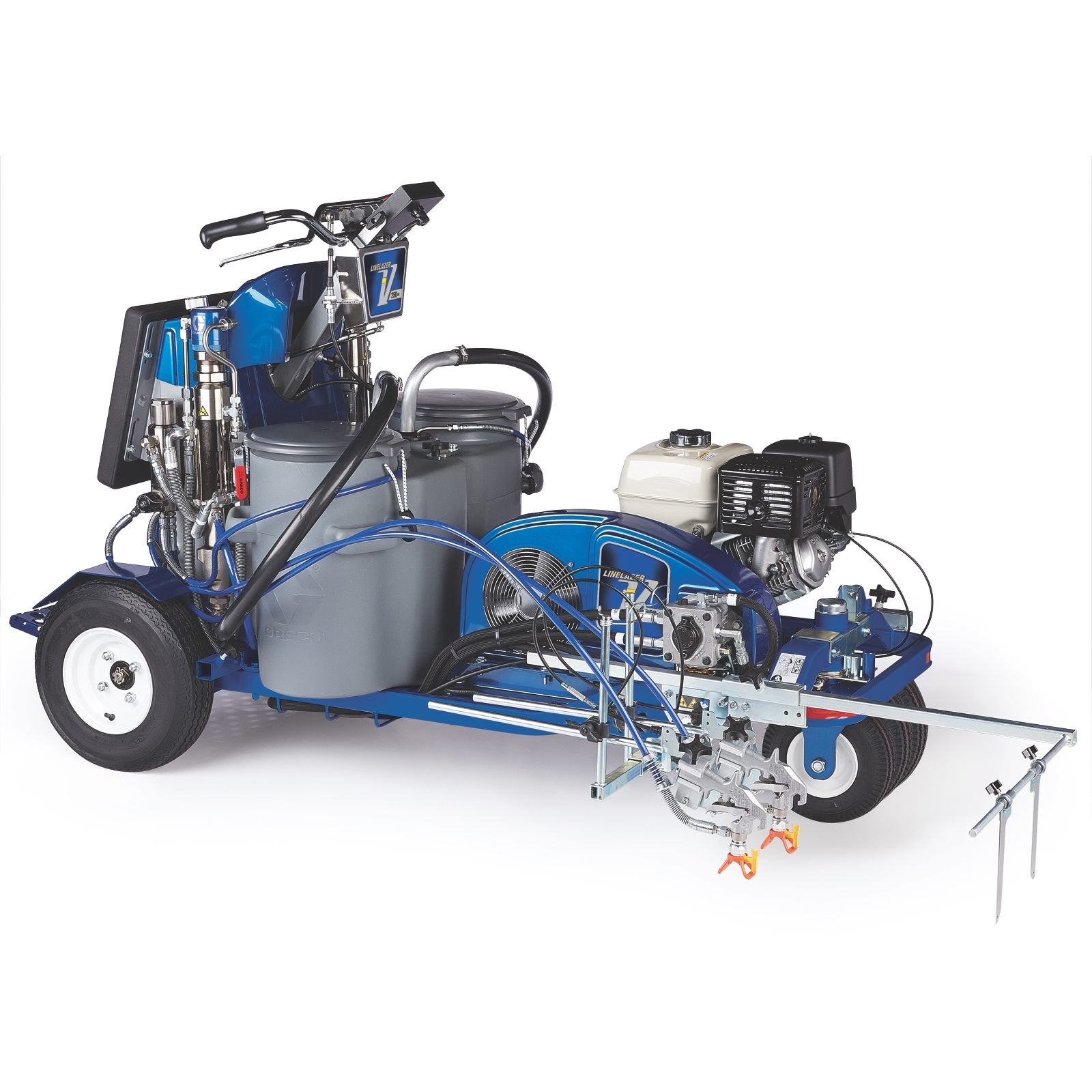

product image

LineLazer V 250DC

LineLazer V 250DC HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns

Part Number: 17H471

By spraying two colors simultaneously or independently, the LineLazer V 250DC HP Automatic Series provides high-production dual color striping capability that is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
By spraying two colors simultaneously or independently, the LineLazer V 250DC HP Automatic Series provides high-production dual color striping capability that is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes.

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Dual High-Efficiency Hydraulic Motors
    • Uninterrupted Performance
    • No-Stall design
  • Dual Endurance Chromex Pumps
    • Precise Material Flow
    • Consistency with a wide range of striping materials
  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • Remote Mount Control Box

    • Striping Information At-A-Glance
    • Simple to use and easy to see in all conditions
  • Dual 15-Gallon Paint Hoppers
    • Less refilling
    • Simultaneously spray two colors and refill less often
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Electric Start
    • Fast starting
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • Front or Rear Gun Mount
    • Straighter long lines
    • Use up to six guns
  • Additional Features
    • Self-Centering Front Wheel
    • Easy Handlebar Adjustment
    • High-Capacity Cooling System
    • Easy Out Pump Filter

Specifications & Documents

Technical Specifications

Convert to Metric
Attachments None
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX390
Fuel Tank Capacity (gal) 1.4
Gun Activation 2 Automatic
Hopper Volume Capacity (gal) 30
Includes Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose (2), 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose (2), TSL, 4 oz (118 ml)
Maximum Flow Rate (GPM) 2.5
Maximum Operating Speed (mph) 10
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Speed (RPM) 3600
Maximum Tip Size (in) 0.039
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors Two Colors
Number of Guns 2
Number of Hoppers 2
Number of Pumps 2
Overall Height (in) 50.5
Overall Length (in) 73.5
Overall Width (in) 33
Power Rating (HP) 13
Power Rating (kW) 9.69
Power Source Gas Hydraulic
Product Series HP Automatic
Pump Type Endurance
Series 250DC
Type Self-Propelled Line Striper
Weight (lb) 752
Attachments None
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX390
Fuel Tank Capacity (L) 5.3
Gun Activation 2 Automatic
Hopper Volume Capacity (L) 114
Includes Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose (2), 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose (2), TSL, 4 oz (118 ml)
Maximum Flow Rate (L/min) 9.5
Maximum Operating Speed (km/h) 16.1
Maximum Operating Speed (mph) 10
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Speed (RPM) 3600
Maximum Tip Size (cm) 0.0991
Maximum Tip Size (in) 0.039
Maximum Tip Size (mm) 0.9906
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors Two Colors
Number of Guns 2
Number of Hoppers 2
Number of Pumps 2
Overall Height (cm) 128.3
Overall Height (mm) 1282.7
Overall Length (cm) 186.7
Overall Length (mm) 1866.9
Overall Width (cm) 83.8
Overall Width (mm) 838
Power Rating (kW) 9.69
Power Source Gas Hydraulic
Product Series HP Automatic
Pump Type Endurance
Series 250DC
Type Self-Propelled Line Striper

What's Included

Part No. Description Qty Unit
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 2 ea
LL5321 LineLazer RAC 5 SwitchTip, 321 2 ea
LL5425 LineLazer RAC 5 SwitchTip, 425 2 ea
LL5627 LineLazer RAC 5 SwitchTip, 627 2 ea
243161 RAC 5 HandTite Tip Guard 2 ea
245226 HOSE, CPLD, 3/8" X 3' 2 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea

Repair Parts

Part No. Description
245103 Q KIT REPAIR, DRAIN VALVE
277068 Q GB KIT, REPAIR, PUMP
17C063 SWITCH,ROCKER, SPST
