GX FF

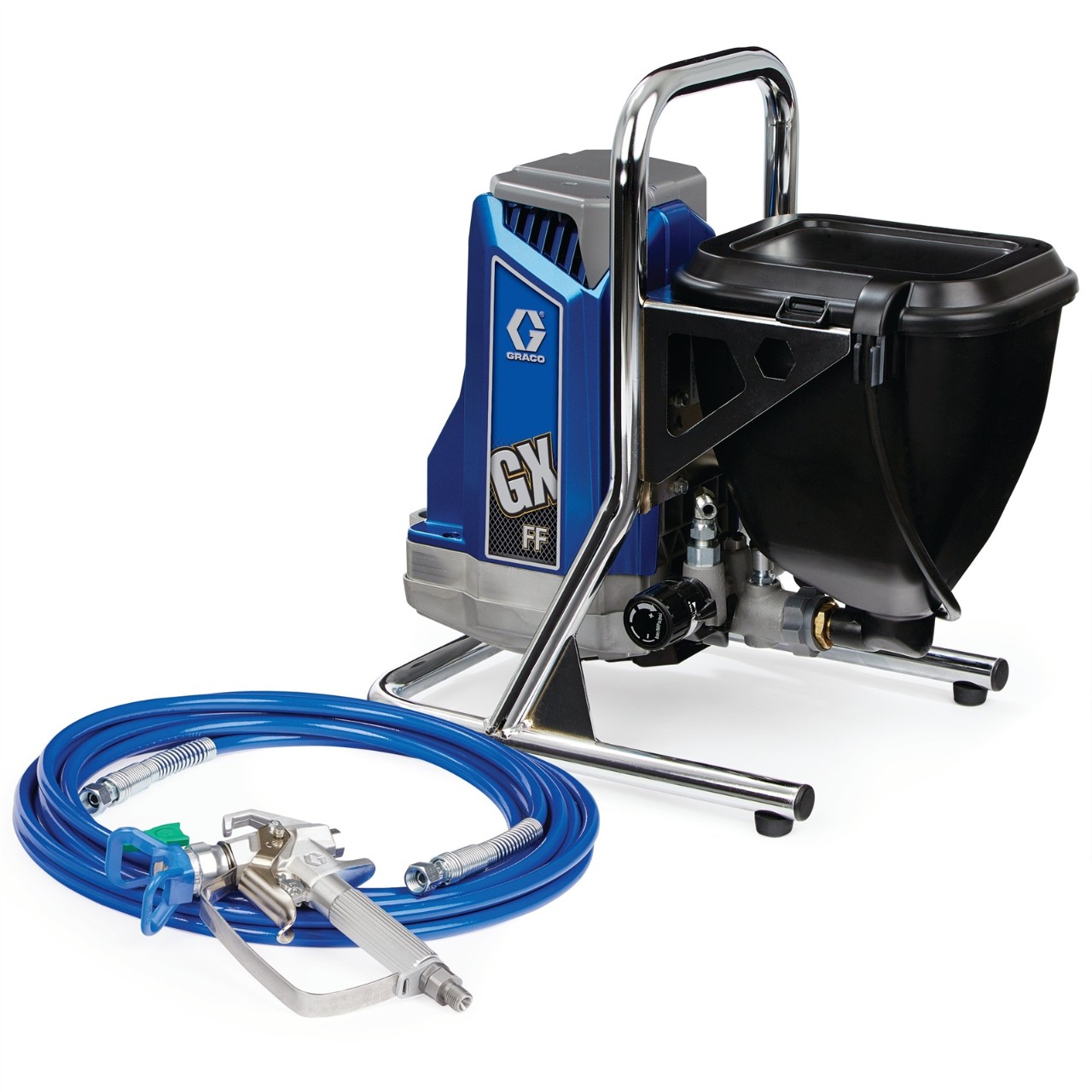

GX FF Electric Airless Sprayer, 230V, Multi
Part Number: 17H222
GX FF
GX FF Electric Airless Sprayer, 230V, Multi
Part Number: 17H222
The GX FF is the fast, portable and affordable solution for small finishing jobs every finishing contractor encounters. Graco's proven piston pump and RAC X FF SwitchTip quickly lay down a smooth finish. The ProXChange Pump provides fast on-the-job pump replacement – no tools required.
Features
Product Brochure
The GX FF is the fast, portable and affordable solution for small finishing jobs every finishing contractor encounters. Graco's proven piston pump and RAC X FF SwitchTip quickly lay down a smooth finish. The ProXChange Pump provides fast on-the-job pump replacement – no tools required.
- Extremely Portable
- Lighter than any competitive system
- Easy Carry Handle makes transportation easy
- Lid prevents splashes and spills while carrying
- 5.7 Litre Hopper
- Ideal for spraying small amounts of material
- Smooth inside surface cleans up fast
- Lid included for spill-proof portability
- Hopper easily attaches to sprayer without tools for easy cleaning
- ProX Power-Piston Pump featuring ProXChange
- Small deadband pressure ensures the finest finish possible
- Exceptional durability and long life piston pump
- Exclusive lifetime lubricated wiper pad for maintenance free operation
- Modular pump components for easy maintenance
- Fast and easy on-the-job pump replacement—no tools needed
- Eliminate labour costs and downtime expenses
- FTx-E Spray Gun
- Form fitted handle provides maximum control and comfort
- 100-mesh gun filter included to minimise tip clogs and protect finish
- EasyGlide Swivel provides maximum flexibility for effortless hose management
Specifications & Documents
Technical Specifications
Convert to Imperial| Compatible Material | Stains, Varnish, Enamel, Solventborne Paints |
|---|---|
| Compatible Replacement Pump | 24Y472 |
| Convertible | Non-Convertible |
| Engine Size (HP) | 0.500 |
| Filter Mesh Size | 100 |
| Fluid Hose Inside Diameter (in) | 3/16 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hopper |
| Frequency (Hz) | 50 |
| Gun Included | 1 |
| Hose Diameter (in) | 3/16 |
| Hose Inlet Diameter (in) | 3/16 |
| Includes | FTx-E Spray Gun with Two-Finger Trigger, RAC X SwitchTip and FFLP210 Guard, 100-Mesh Gun Filter, 3/16 in x 7.5 m BlueMax II Hose, Fluid Pressure Gauge |
| Maximum Flow Rate (GPM) | 0.38 |
| Maximum Fluid Working Pressure (psi) | 3000 |
| Maximum Hose Length (ft) | 25 |
| Maximum Operating Temperature (°F) | 115 |
| Maximum Sound Pressure Level (dB(A)) | 83 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Tip Size 1 Gun (in) | 0.019 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 1500 |
| Minimum Operating Temperature (°F) | 40 |
| Minimum generator power (kW) | 1.5 |
| Model | GX |
| Motor Type | Electric |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 19.6 |
| Overall Length (in) | 20.2 |
| Overall Width (in) | 13.5 |
| Phase | 1 |
| Power Source | Electric |
| Product Type | Spray Package |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Carbon Steel |
| Pump Type | ProX Piston Pump |
| Series | FF |
| Spray Gun Type | FTX-E |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Weight (lb) | 31 |
| Wetted Material | Stainless Steel, Brass, Leather, UHMWPE, Carbide, Nylon, Aluminium, PVC, Polypropylene, Fluoroelastomer |
| Compatible Material | Stains, Varnish, Enamel, Solventborne Paints |
| Compatible Replacement Pump | 24Y472 |
| Convertible | Non-Convertible |
| Filter Mesh Size | 100 |
| Fluid Hose Inside Diameter (in) | 3/16 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hopper |
| Frequency (Hz) | 50 |
| Gun Included | 1 |
| Hose Diameter (in) | 3/16 |
| Hose Inlet Diameter (cm) | 0.47625 |
| Hose Inlet Diameter (in) | 3/16 |
| Hose Inlet Diameter (mm) | 4.7625 |
| Includes | FTx-E Spray Gun with Two-Finger Trigger, RAC X SwitchTip and FFLP210 Guard, 100-Mesh Gun Filter, 3/16 in x 7.5 m BlueMax II Hose, Fluid Pressure Gauge |
| Maximum Flow Rate (L/min) | 1.4 |
| Maximum Fluid Working Pressure (psi) | 3000 |
| Maximum Hose Length (m) | 7.5 |
| Maximum Operating Temperature (°C) | 46 |
| Maximum Sound Pressure Level (dB(A)) | 83 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Tip Size 1 Gun (in) | 0.019 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (kg/cm²) | 210.9 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 1500 |
| Minimum Operating Temperature (°C) | 4 |
| Minimum generator power (kW) | 1.5 |
| Model | GX |
| Motor Type | Electric |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 49.8 |
| Overall Height (mm) | 497.8400 |
| Overall Length (cm) | 51.3 |
| Overall Length (mm) | 513.08 |
| Overall Width (cm) | 34.3 |
| Overall Width (mm) | 342.9000 |
| Phase | 1 |
| Power Source | Electric |
| Product Type | Spray Package |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Carbon Steel |
| Pump Type | ProX Piston Pump |
| Region plug type | IT, DK, CH region (type L, K & J plug) |
| Series | FF |
| Spray Gun Type | FTX-E |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Weight (kg) | 14 |
| Wetted Material | Stainless Steel, Brass, Leather, UHMWPE, Carbide, Nylon, Aluminium, PVC, Polypropylene, Fluoroelastomer |
Product Manuals
Sales Literature
Repair Parts
| Part No. | Description |
|---|---|
| 17J405 | CORD,POWER |
| 214698 | BlueMax II Airless Hose, 3/16 in. x 7.5 m |
| 17J909 | KIT, COMPLETE, PUMP, HOPPER |
| 17J927 | KIT, CONTROL, PRESSURE, 3000 PSI |
| 16X980 | KIT, REPAIR, MOTOR FAN, 240V |
| 17J925 | KIT, VALVE, PRIME, GX |
| 17J885 | KIT,BOARD, CONTROL, 230V |
| 17F758 | KIT,REPAIR,MOTOR,CF,240V |
