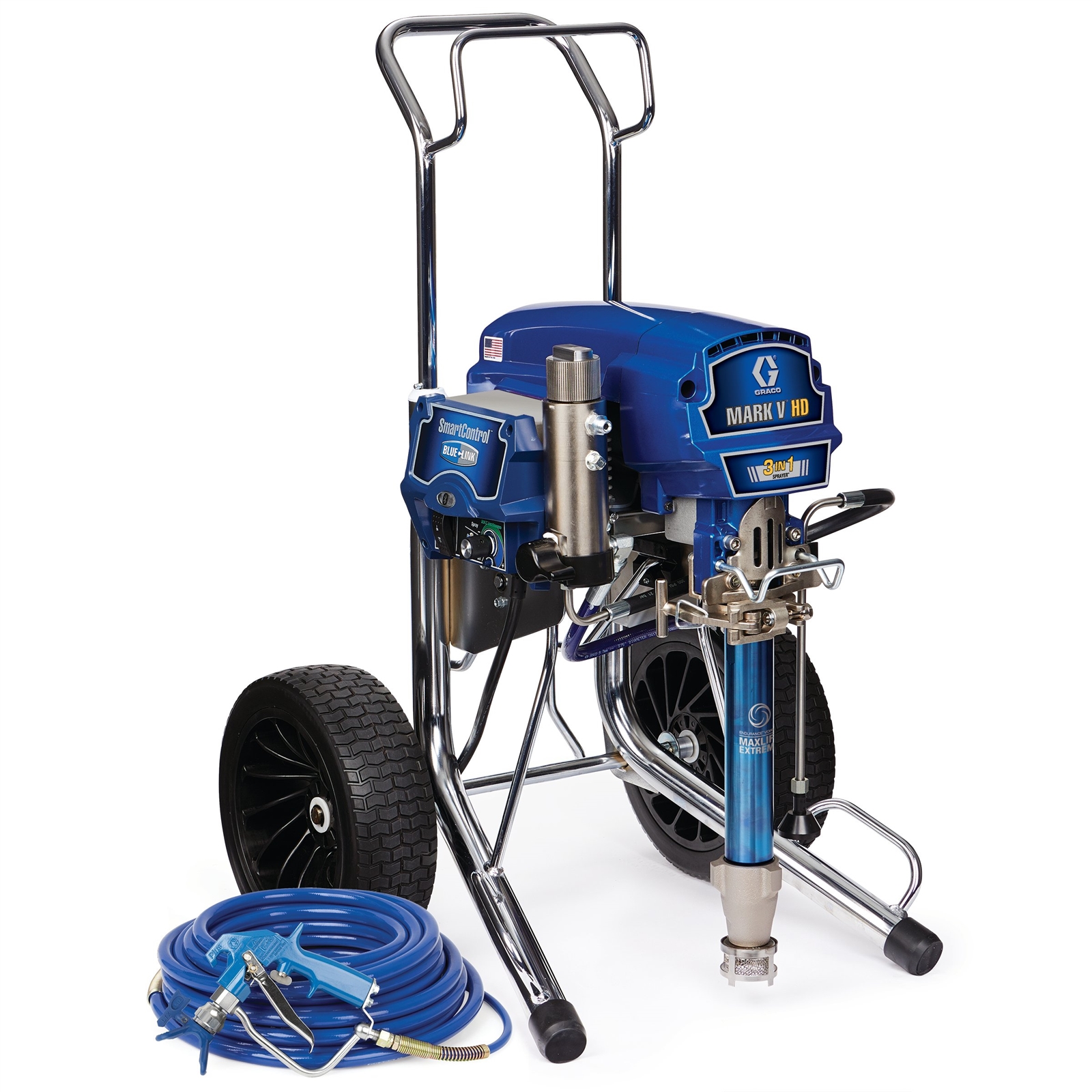

Mark V HD 3-in-1 IronMan Series Electric Airless Sprayer

Part Number: 17E607

Mark HD V

Mark V HD 3-in-1 IronMan Series Electric Airless Sprayer

Part Number: 17E607

The Mark V HD delivers a higher flow rate to complete jobs faster. Providing 20% more productivity than the Mark IV HD, this unit comes with an upgraded Heavy-Duty Texture Gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The Mark V HD delivers a higher flow rate to complete jobs faster. Providing 20% more productivity than the Mark IV HD, this unit comes with an upgraded Heavy-Duty Texture Gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint.

Beyond Jobsite Tough. Mark HD IronMan Series electric airless texture sprayers are built to routinely handle the rugged demands of large commercial and industrial jobs – day in and day out.

  • Endurance Vortex MaxLife Extreme Piston Pump
    • The longest durability & life
    • Breakthrough Vortex Rotating Piston Technology
    • Longest-life packings and piston rod 3X pump rod life
    • Maximum versatility no matter what you’re spraying Long Life ceramic and stainless steel balls included for maximum versatility
  • MaxFlo 2 with Pack-Out Protection
    • Less pack-out, more productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • BlueLink Job & Sprayer Management System
    • Streamline your business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
  • SmartControl 4.0 with ProGuard Protection System
    • Precision pressure control
    • Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
    • ProGuard prevents electrical damage from extreme jobsite power conditions
    • WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
  • Flat Proof Tires
    • Never have a flat again
    • Tires can’t be punctured by nails, screws, or any sharp debris
  • ProConnect 2 Pump Replacement System
    • Eliminate costly downtime
    • Exchange pump in minutes
    • No tools, pins or parts to lose
  • FastFlush 2 System
    • Fast cleaning now even FASTER
    • Clean the pump 6X faster using ½ the water
    • High-velocity fluid flow delivered with 60% higher motor speed
  • Crushproof Inlet Strainer
    • Durable filtration
    • Stands up to harsh impacts to maintain even flow through filter
  • MaxPower Motor & Precision Advantage Drive
    • Proven power and performance for all painting applications
    • High-torque brushless design with a Lifetime Warranty
    • The longest lasting drive
    • Hardened steel gears provide extremely quiet operation and a lifetime warranty
  • Additional Features:
    • WatchDog Pump Protection System
    • Easy Out Filter Manifold
    • Heavy-Duty Prime Valve
    • Rugged, Durable Cart Design

Specifications & Documents

Technical Specifications

Convert to Metric
Amperage (A) 20
Compatible Replacement Pump 17H836
Construction Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
Convertible Non-Convertible
Engine Size (HP) 2.8
Features Endurance Vortex MaxLife Extreme Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, Flat Proof Tires, ProConnect 2, FastFlush 2, Crushproof Inlet Strainer, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Frequency (Hz) 50/60
Includes Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Maximum Flow Rate (GPM) 1.35
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.039
Maximum Tip Size 1 Gun (in) 0.039
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model Mark HD
Motor Type MaxPower
Number of Guns 1
Overall Height (in) 40.2
Overall Length (in) 29.9
Overall Width (in) 24.4
Power Rating (HP) 2.8
Power Rating (W) 2088
Power Rating (kW) 2.09
Power Source Electric
Pressure Control Type SmartControl 4.0
Product Series IronMan
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife Extreme
Pump Sleeve Material MaxLife
Recommended Annual Usage 100-200 gallons per week
Series V
Type Airless Sprayer
Voltage (V) 120
Volume Per Cycle (cycles/gal) 110
Weight (lb) 137
Amperage (A) 20
Compatible Replacement Pump 17H836
Construction Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
Convertible Non-Convertible
Features Endurance Vortex MaxLife Extreme Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, Flat Proof Tires, ProConnect 2, FastFlush 2, Crushproof Inlet Strainer, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve
Fluid Outlet Size (in) 3/8
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Frequency (Hz) 50/60
Includes Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Maximum Flow Rate (L/min) 5.1
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.039
Maximum Tip Size 1 Gun (in) 0.039
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model Mark HD
Motor Type MaxPower
Number of Guns 1
Overall Height (cm) 102
Overall Height (mm) 1020
Overall Length (cm) 76
Overall Length (mm) 760
Overall Width (cm) 62
Overall Width (mm) 620
Power Rating (W) 2088
Power Rating (kW) 2.09
Power Source Electric
Pressure Control Type SmartControl 4.0
Product Series IronMan
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife Extreme
Pump Sleeve Material MaxLife
Recommended Annual Usage 100-200 gallons per week
Series V
Type Airless Sprayer
Voltage (V) 120
Volume Per Cycle (cycles/gal) 110
Weight (kg) 62

What's Included

Part No. Description Qty Unit
241705 Heavy-Duty Blue Texture Airless Spray Gun, 4 Finger Trigger, RAC X 1 ea
LTX427 RAC X SwitchTip, 427 1 ea
LTX531 RAC X SwitchTip, 531 1 ea
246215 RAC X HandTite Tip Guard 1 ea
240797 BlueMax II Airless Hose, 3/8 in x 50 ft 1 ea

Repair Parts

Part No. Description
244068 Easy Out Pump Manifold Filter, Long, 100 mesh
244069 Easy Out Pump Manifold Filter, Long, 200 mesh
244067 Easy Out Pump Manifold Filter, Long, 60 mesh
248215 KIT, REPAIR, INTAKE TUBE
257188 KIT, REPAIR, MOTOR, C104 1595
189920 Inlet Strainer, SST Cap Single Screen, 1 in
243222 Pressure Control Transducer Repair Kit
24V029 KIT,REPAIR,HOSE,COUPLED, 1/2"
117285 PACKING, O-RING
116752 SWITCH, ROCKER
15C766 TUBE, DIFFUSION
24B156 HD Prime Valve
241705 Heavy-Duty Blue Texture Airless Spray Gun, 4 Finger Trigger, RAC X
