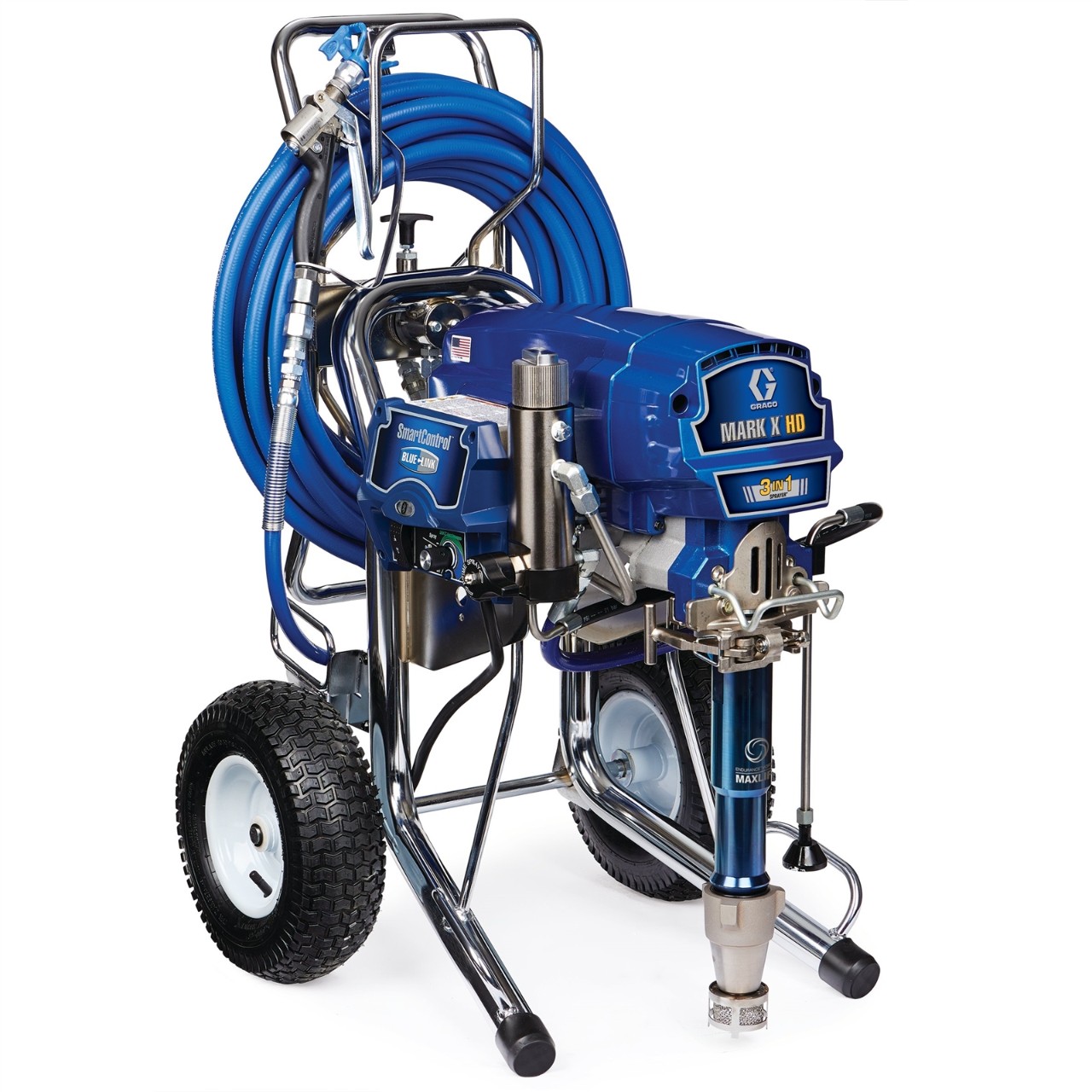

Mark X HD 3-in-1 ProContractor Series Electric Airless Sprayer
Part Number: 17E609
Mark HD X
Mark X HD 3-in-1 ProContractor Series Electric Airless Sprayer
Part Number: 17E609
THE most powerful electric airless texture sprayer. The Mark X HD 240 volt is the sprayer of choice for serious professional contractors with nearly double the output of the Mark V HD. It easily sprays skim coat in a Level 5 finish, multiple texture finishes and the all primers and paints.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
THE most powerful electric airless texture sprayer. The Mark X HD 240 volt is the sprayer of choice for serious professional contractors with nearly double the output of the Mark V HD. It easily sprays skim coat in a Level 5 finish, multiple texture finishes and the all primers and paints.
Work Smarter, Finish More Jobs. Mark HD ProContractor Series electric airless texture sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits.
- Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Longest life packings and piston rod Long life ceramic and stainless steel balls included for maximum versatility
- MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- BlueLink Job & Sprayer Management System
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- SmartControl 4.0 with ProGuard Protection System
- Precision Pressure Control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- ProConnect 2 Pump Replacement System
- Eliminate costly downtime
- Exchange pump in minutes
- No tools, pins or parts to lose
- Crushproof Inlet Strainer
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
- Worry-Free MaxPower Motor
- Get more work done
- Proven performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- Use longer cords, regardless of voltage fluctuations
- Precision Advantage Drive
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
- Lifetime Warranty
- Additional Features:
- WatchDog Pump Protection System
- Easy Out Filter Manifold
- Heavy-Duty Prime Valve
- Rugged, Durable Cart Design with Kickstand
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 16 |
|---|---|
| Compatible Replacement Pump | 17H835 |
| Construction | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass |
| Convertible | Non-Convertible |
| Engine Size (HP) | 4 |
| Features | Endurance Vortex MaxLife Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, QuikReel, ProConnect 2, Crushproof Inlet Strainer, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Reel Type | QuikReel |
| Includes | Inline Heavy-Duty Texture Gun, RAC X LTX 531 Spray Tip, RAC X LTX 541 Spray Tip, RAC X Guard, 1/2 in x 50 ft BlueMax II Airless Hose, 3/8 in x 11 ft 10 in Airless Whip Hose |
| Maximum Flow Rate (GPM) | 2.1 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.045 |
| Maximum Tip Size 1 Gun (in) | 0.045 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | Mark HD |
| Motor Type | MaxPower |
| Number of Guns | 1 |
| Overall Height (in) | 39 |
| Overall Length (in) | 30 |
| Overall Width (in) | 24 |
| Power Rating (HP) | 4.0 |
| Power Rating (W) | 2983 |
| Power Rating (kW) | 2.98 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product Series | ProContractor |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife |
| Series | X |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Volume Per Cycle (cycles/gal) | 70 |
| Weight (lb) | 178 |
| Amperage (A) | 16 |
| Compatible Replacement Pump | 17H835 |
| Construction | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass |
| Convertible | Non-Convertible |
| Features | Endurance Vortex MaxLife Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, QuikReel, ProConnect 2, Crushproof Inlet Strainer, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Size (mm) | 12.7 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Reel Type | QuikReel |
| Includes | Inline Heavy-Duty Texture Gun, RAC X LTX 531 Spray Tip, RAC X LTX 541 Spray Tip, RAC X Guard, 1/2 in x 50 ft BlueMax II Airless Hose, 3/8 in x 11 ft 10 in Airless Whip Hose |
| Maximum Flow Rate (L/min) | 8.0 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.045 |
| Maximum Tip Size 1 Gun (in) | 0.045 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | Mark HD |
| Motor Type | MaxPower |
| Number of Guns | 1 |
| Overall Height (cm) | 99 |
| Overall Height (mm) | 990 |
| Overall Length (cm) | 75 |
| Overall Length (mm) | 750 |
| Overall Width (cm) | 61 |
| Overall Width (mm) | 610 |
| Power Rating (W) | 2983 |
| Power Rating (kW) | 2.98 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Product Series | ProContractor |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife |
| Series | X |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Volume Per Cycle (cycles/gal) | 70 |
| Weight (kg) | 81 |
Product Manuals
Warranty
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 245820 | Inline Heavy-Duty Texture Airless Spray Gun, 4 Finger Trigger | 1 | ea |
| LTX531 | RAC X SwitchTip, 531 | 1 | ea |
| LTX541 | RAC X SwitchTip, 541 | 1 | ea |
| 246215 | RAC X HandTite Tip Guard | 1 | ea |
| 278499 | HOSE, CPLD, 1/2 IN X 50 FT | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
| 278499 | HOSE, CPLD, 1/2 IN X 50 FT |
| 245103 | Q KIT REPAIR, DRAIN VALVE |
| 258909 | KIT, REPAIR, MOTOR |
| 244240 | KIT, REPAIR, RETURN LINE, HI |
| 243222 | Pressure Control Transducer Repair Kit |
| 24V029 | KIT,REPAIR,HOSE,COUPLED, 1/2" |
| 15V573 | Crushproof Inlet Strainer for 695 XT, 795 XT & 1095 XT |
| 15D527 | SWITCH, ROCKER, 240V |
| 126029 | SWITCH,ROCKER |
| 16T483 | PLUG, HOLE, SWITCH |
| 245820 | Inline Heavy-Duty Texture Airless Spray Gun, 4 Finger Trigger |
