New

Ultra 495 XT

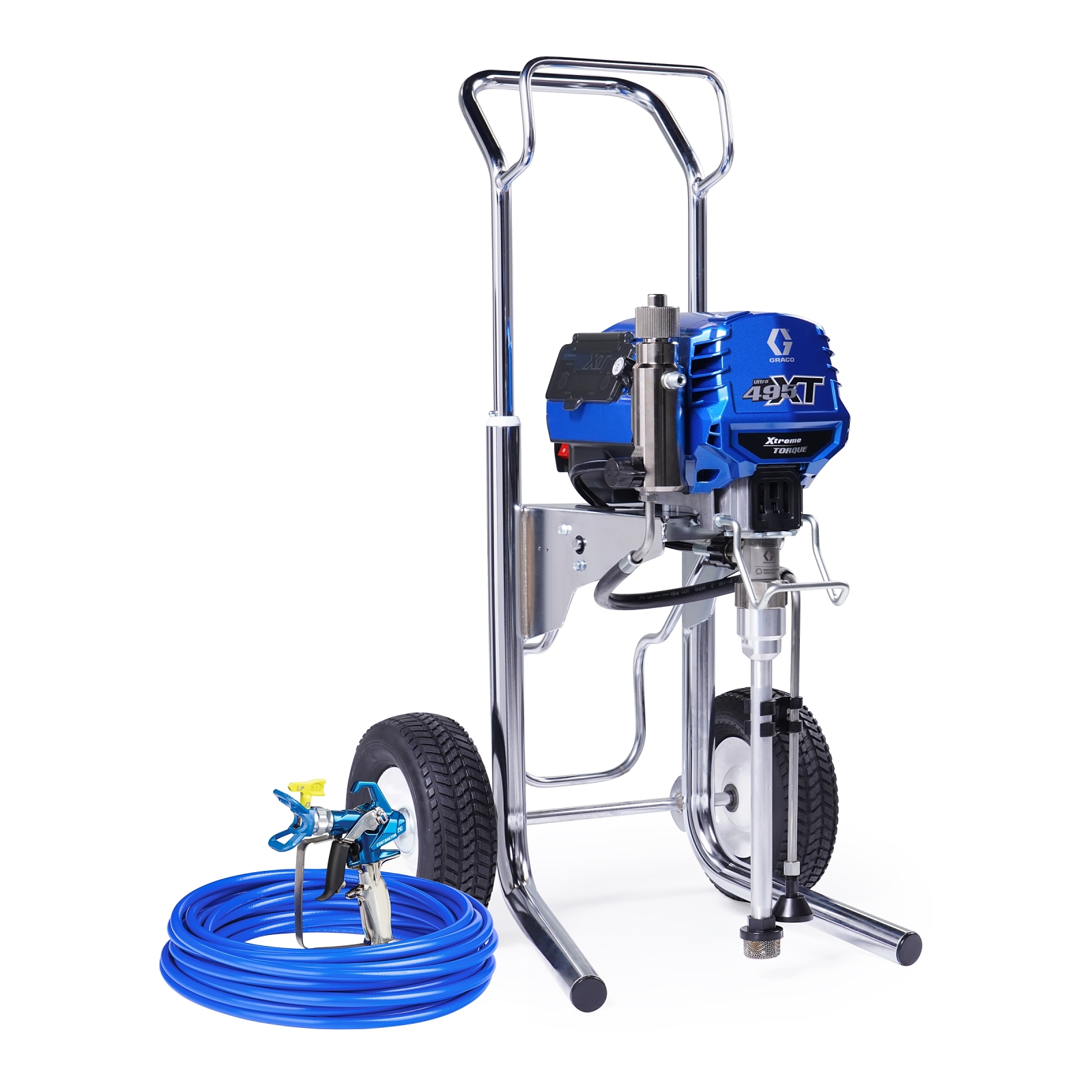

Ultra 495 XT Electric Airless Sprayer, Hi-Boy, 110V, UK

Part Number: 19D530

product image
New

Ultra 495 XT

Ultra 495 XT Electric Airless Sprayer, Hi-Boy, 110V, UK

Part Number: 19D530

The Ultra 495 XT delivers an airless spray experience like no other. Featuring a 1.7 HP Xtreme Torque motor, next generation rapid-response pressure control, elevated performance, and the longest life pump in its class, the Ultra 495 XT is sure to become a staple in your fleet.
Questions about this product?

Evaluating our products and need advice
before you buy?

Contact Us

Features

Product Brochure
The Ultra 495 XT delivers an airless spray experience like no other. Featuring a 1.7 HP Xtreme Torque motor, next generation rapid-response pressure control, elevated performance, and the longest life pump in its class, the Ultra 495 XT is sure to become a staple in your fleet.

Xtreme Productivity. Xtreme Reliability. Graco's Xtreme Torque midsized electric sprayers make it easier to get more work done in a day with increased flow and production rates.

  • Xtreme Torque motor technology
    • 15 times more torque than traditional motors
    • 8 times more magnets provide unmatched power and performance
    • 90% lower running speeds extend the motor’s life
    • Up to 10 times quieter
  • Rapid-response pressure control
    • Instantly responds to deliver the best finish quality
    • More performance across its full tip size range
    • Industry's largest operating pressure range (3-227 bar)
  • Selectable performance modes
    • Two selectable spray modes offer unique performance levels to boost efficiency on every job
    • Bring on the savings and achieve Xtreme control with low pressure mode (3–140 bar)
    • Use high pressure mode for Xtreme performance (35–227 bar)
  • Easy-to-read LED digital display
    • Visible in even the toughest spraying conditions
  • Endurance Vortex piston pump with ProConnect
    • Endurance Vortex rod lasts 3 times longer than its closest competitor
    • ProConnect pump removal for fast on-the-job service
  • TurboClean cleaning system
    • The industry’s fastest pump cleaning system
    • Delivers 3 times faster cleaning with half the water
    • Convenient location
  • WatchDog pump protection
    • Prevents damage by shutting off the pump when it's time to refill
  • Durable filtration
    • Easy out filter provides easy maintenance and less clogging
  • Easy transport
    • Stand weighs just 15.4 kg (31 lb)
  • Gun, hose and tip included
    • Contractor PC Gun & RAC X LP 517 SwitchTip

Specifications & Documents

Technical Specifications

Convert to Imperial
Frame Configuration Hi-Boy
Maximum Flow Rate (GPM) 0.7
Maximum Tip Size (in) .027
Maximum Working Pressure (psi) 3300
Minimum Working Pressure (psi) 50
Model Ultra
Series 495 XT
Type Airless Sprayer
Voltage (V) 110
Weight (lb) 66
Frame Configuration Hi-Boy
Maximum Flow Rate (L/min) 3.0
Maximum Tip Size (in) .027
Maximum Working Pressure (bar) 227
Maximum Working Pressure (psi) 3300
Minimum Working Pressure (bar) 3
Minimum Working Pressure (psi) 50
Model Ultra
Series 495 XT
Type Airless Sprayer
Voltage (V) 110
Weight (kg) 30
