QUANTM i80

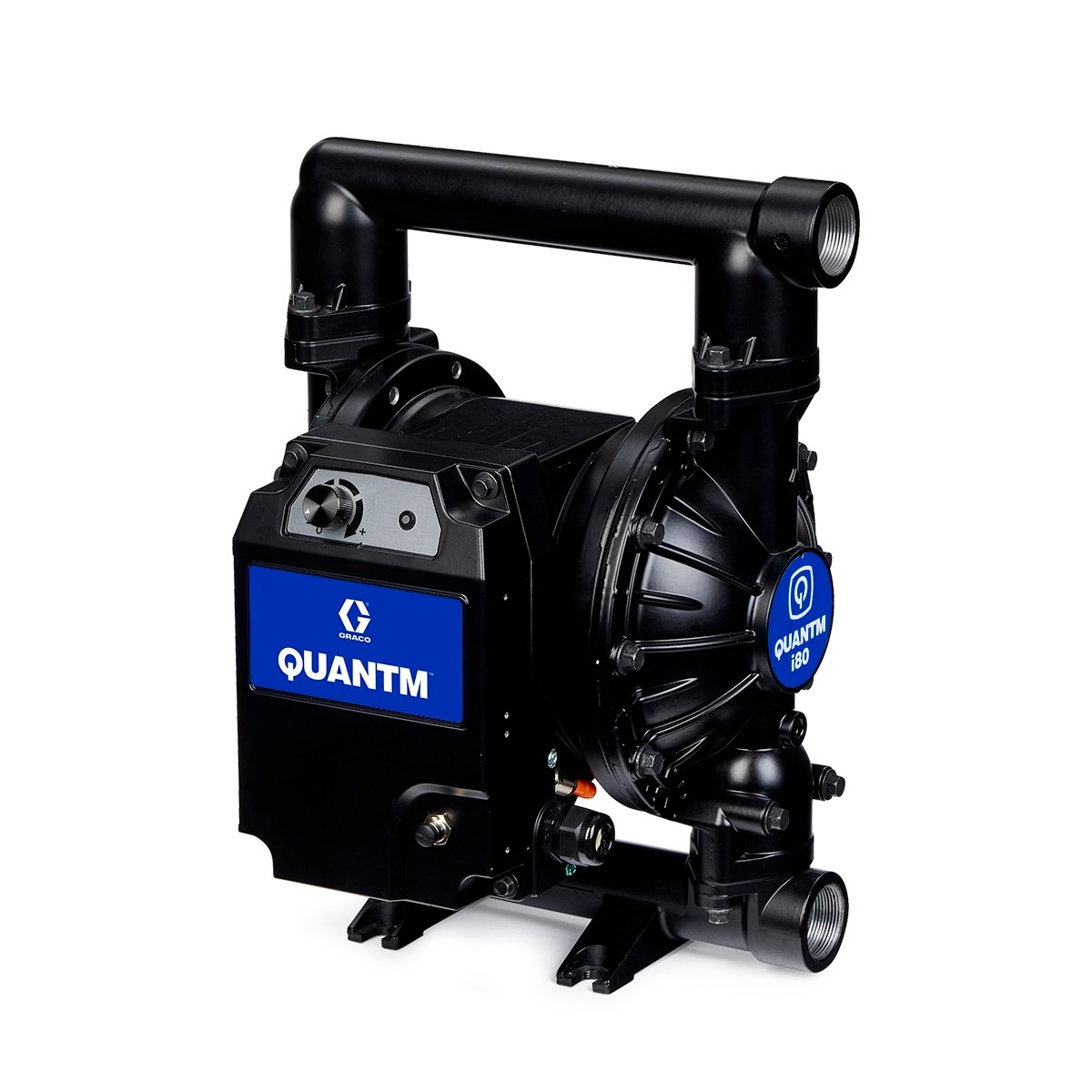

QUANTM i80 Double Diaphragm Pumps

product image

QUANTM i80

QUANTM i80 Double Diaphragm Pumps

The QUANTM i80 with 1 1/2 IN (38.1 MM) port is Graco’s revolutionary new electric-operated double diaphragm (EODD) pump. With a lighter weight and smaller footprint than other electric options, it provides the ideal solution for factories or manufacturing plants focused on meeting sustainability goa... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The QUANTM i80 with 1 1/2 IN (38.1 MM) port is Graco’s revolutionary new electric-operated double diaphragm (EODD) pump. With a lighter weight and smaller footprint than other electric options, it provides the ideal solution for factories or manufacturing plants focused on meeting sustainability goals by reducing their largest variable cost: energy. An i80 pump could pay for itself in 12 months or less with up to 50% manufacturing cost reduction while helping achieve compliance with increasingly tight regulations and earning significant rebates along the way.

Upgrade your existing air-operated pumps with a reliable new QUANTM i80 electric pump or spec it as part of a greenfield facility initiative. With a 1 1/2 IN (38.1 MM) port and maximum flow rate of 80 gallons per minute and a powerful new electric motor and drive that provides up to 8x more continuous torque at low speeds than conventional motors, the i80 is capable of handling most fluid transfer jobs to be the efficient workhorse you need on your production lines. Plus, the fast and easy plug-and-play installation — you simply plug it into any 240V outlet — allows you to easily replace existing pumps without additional investment or infrastructure rework.

  • Wide operating range and materials compatibility—it handles abrasives, solids, aggressive chemicals, and shear-sensitive materials
  • Up to 80% more efficient than AODD, 50% more efficient compared to competitive electric technologies—displacing fossil fuel, hydraulics and air power
  • Unique high-torque density design displaces gears, belts, and chains to minimize weight/size and replaces copper “rat’s nest” with a simple, low-resistance circular coil and steel stator to drive efficiencies and reduce maintenance complexity
  • Electric drive control module includes a simple knob that adjusts pump speed, LED indicating status and trouble codes, and software required for pump operation
  • Similar size to existing AODD, the removal of the gearbox reduces footprint compared to other electric options
  • Self-priming and seal-less design that minimizes maintenance and spare parts costs
  • The only electric diaphragm pump on the market that stalls under pressure, eliminating the need for pressure sensors and additional controllers and reducing downtime by preventing pump failures caused by clogged lines or closed valves
  • Leak Sensor (optional)
