T-Max 6912

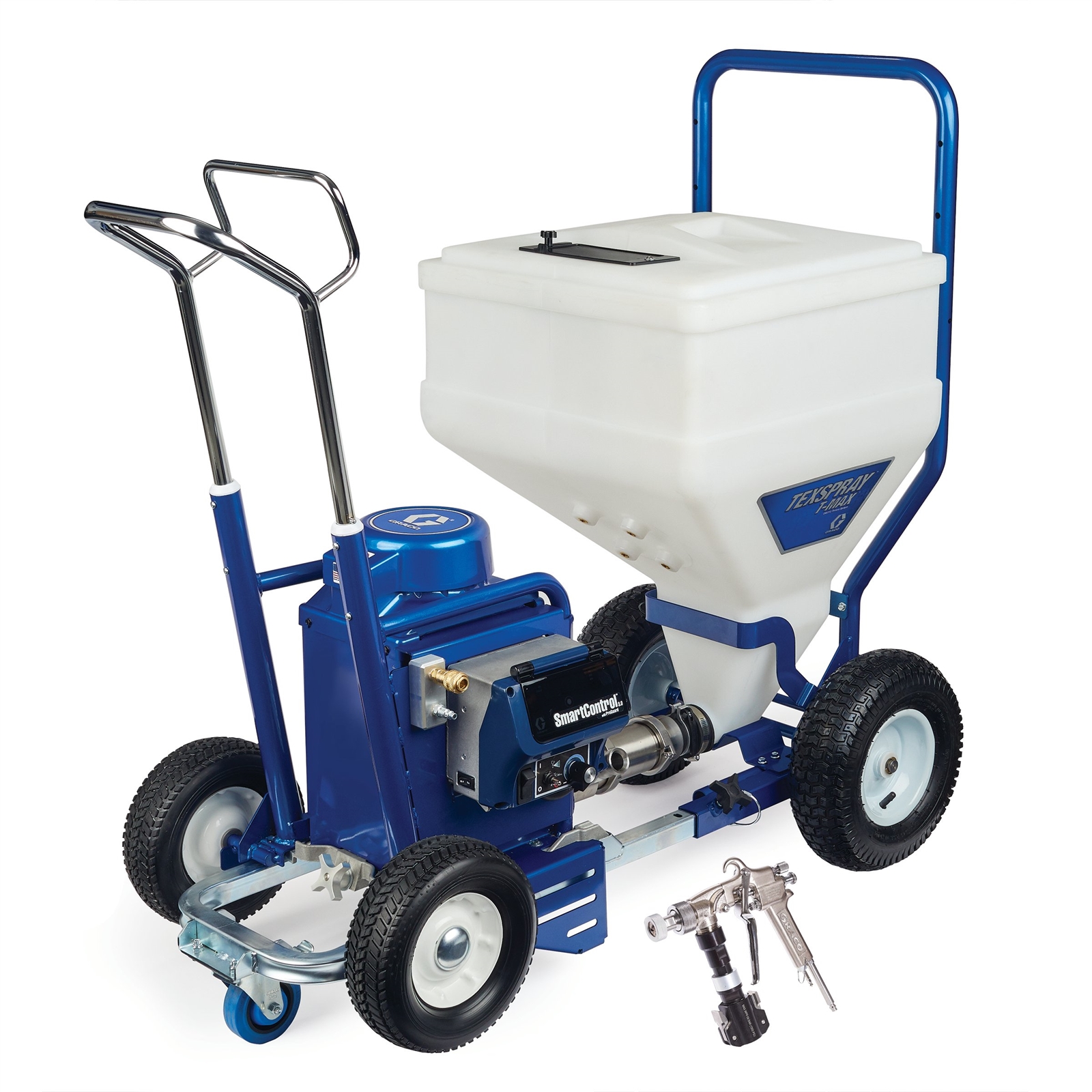

TexSpray T-MAX 6912 Electric Texture Sprayer, STX Gun, 50 ft Hose
Part Number: 17Z283
T-Max 6912
TexSpray T-MAX 6912 Electric Texture Sprayer, STX Gun, 50 ft Hose
Part Number: 17Z283
The Graco T-MAX 6912 provides the capability and performance to spray almost all interior and exterior texture applications – whether you're spraying smooth compounds for interior skim coats and decorative finishes or aggregate-based materials for exterior jobs.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Graco T-MAX 6912 provides the capability and performance to spray almost all interior and exterior texture applications – whether you're spraying smooth compounds for interior skim coats and decorative finishes or aggregate-based materials for exterior jobs.
Superior versatility to spray nearly all your texture applications & materials with even material flow and minimal pack-out. Airless spraying to easily apply skimcoats and decorative finishes. Air-Assisted spraying to spray heavy aggregates up to 2mm (separate air compressor required).
- 120V MaxPower DC Motor
- Use with standard 15/20 amp circuits
- No-maintenance, brushless design keeps debris out
- Lifetime Guaranteed Drivetrain
- SmartControl 3.0
- Delivers smooth, consistent material flow
- Provides Airless or Flow mode
- LED Display shows pressure, gallons, and more
- Heavy-Duty Modular Frame
- Steel construction withstands jobsite abuse
- Easy, no-tools connect and disconnect
- Small, compact and balanced design for easy maneuvering – even when full
- Locking front swivel caster wheel
- Oversized Hopper with Lid
- 6 Bags
- 25 Gallons (90 Liters) for less refilling
- Steep-sided design keeps material flowing
- Innovative STX Gun
- Sequential shut-off stops pump first, then air, for less pack-out
- Forgiving soft start operation eliminates material bursts to deliver smooth finishes
- Perfect for decorative finishes with smooth or aggregate materials up to 2 mm
- Industry-Proven Endurance Pump
- Lasts 2X longer than competing pumps
- 1000 psi (69 bar) and 3.2 gpm (12 lpm)
- Quick-Access design: access any part of the pump in seconds without tools, even with a full hopper of material
- Precision Advantage Drive
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
- Lifetime Warranty
- Hoses & Applicators
- Flexible hose sets available in various lengths
- Choose between Inline Lance for airless application, or STX and Pole applicators for air-assisted decorative finishes
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 15 |
|---|---|
| Engine Size (HP) | 2 |
| Frame Configuration | Cart |
| Hose Inlet Diameter (in) | 1 |
| Includes | STX Air-Assist Texture Trigger Gun, 4 mm Round Nozzle, 6 mm Round Nozzle, 8 mm Round Nozzle, 10 mm Round Nozzle, 12 mm Round Nozzle, 4 mm WideTex Tip, 6 mm WideTex Tip, 8 mm WideTex Tip, 10 mm WideTex Tip, 12 mm WideTex Tip, XL WideTex Tip, WideTex Adapter, 1 in x 50 ft Material Hose, 3/4 in x 10 ft Material Whip Hose, 25 Gallon Hopper |
| Maximum Flow Rate (GPM) | 3.2 |
| Maximum Tip Size (in) | 0.071 |
| Maximum Tip Size 1 Gun (in) | 0.071 |
| Maximum Working Pressure (MPa) | 6.9 |
| Maximum Working Pressure (psi) | 1000 |
| Model | T-Max |
| Number of Guns | 1 |
| Power Rating (HP) | 2 |
| Power Source | Electric |
| Series | 6912 |
| Type | Air-Assisted Airless Sprayer |
| Voltage (V) | 120 |
| Amperage (A) | 15 |
| Frame Configuration | Cart |
| Hose Inlet Diameter (cm) | 2.54 |
| Hose Inlet Diameter (in) | 1 |
| Hose Inlet Diameter (mm) | 25.4 |
| Includes | STX Air-Assist Texture Trigger Gun, 4 mm Round Nozzle, 6 mm Round Nozzle, 8 mm Round Nozzle, 10 mm Round Nozzle, 12 mm Round Nozzle, 4 mm WideTex Tip, 6 mm WideTex Tip, 8 mm WideTex Tip, 10 mm WideTex Tip, 12 mm WideTex Tip, XL WideTex Tip, WideTex Adapter, 1 in x 50 ft Material Hose, 3/4 in x 10 ft Material Whip Hose, 25 Gallon Hopper |
| Maximum Flow Rate (L/min) | 12 |
| Maximum Tip Size (cm) | 0.18 |
| Maximum Tip Size (in) | 0.071 |
| Maximum Tip Size (mm) | 1.8 |
| Maximum Tip Size 1 Gun (cm) | 0.18 |
| Maximum Tip Size 1 Gun (in) | 0.071 |
| Maximum Tip Size 1 Gun (mm) | 1.8 |
| Maximum Working Pressure (MPa) | 6.9 |
| Maximum Working Pressure (bar) | 69 |
| Maximum Working Pressure (kPa) | 6900 |
| Maximum Working Pressure (psi) | 1000 |
| Model | T-Max |
| Number of Guns | 1 |
| Power Source | Electric |
| Series | 6912 |
| Type | Air-Assisted Airless Sprayer |
| Voltage (V) | 120 |
Product Manuals
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
