T-Max 6912

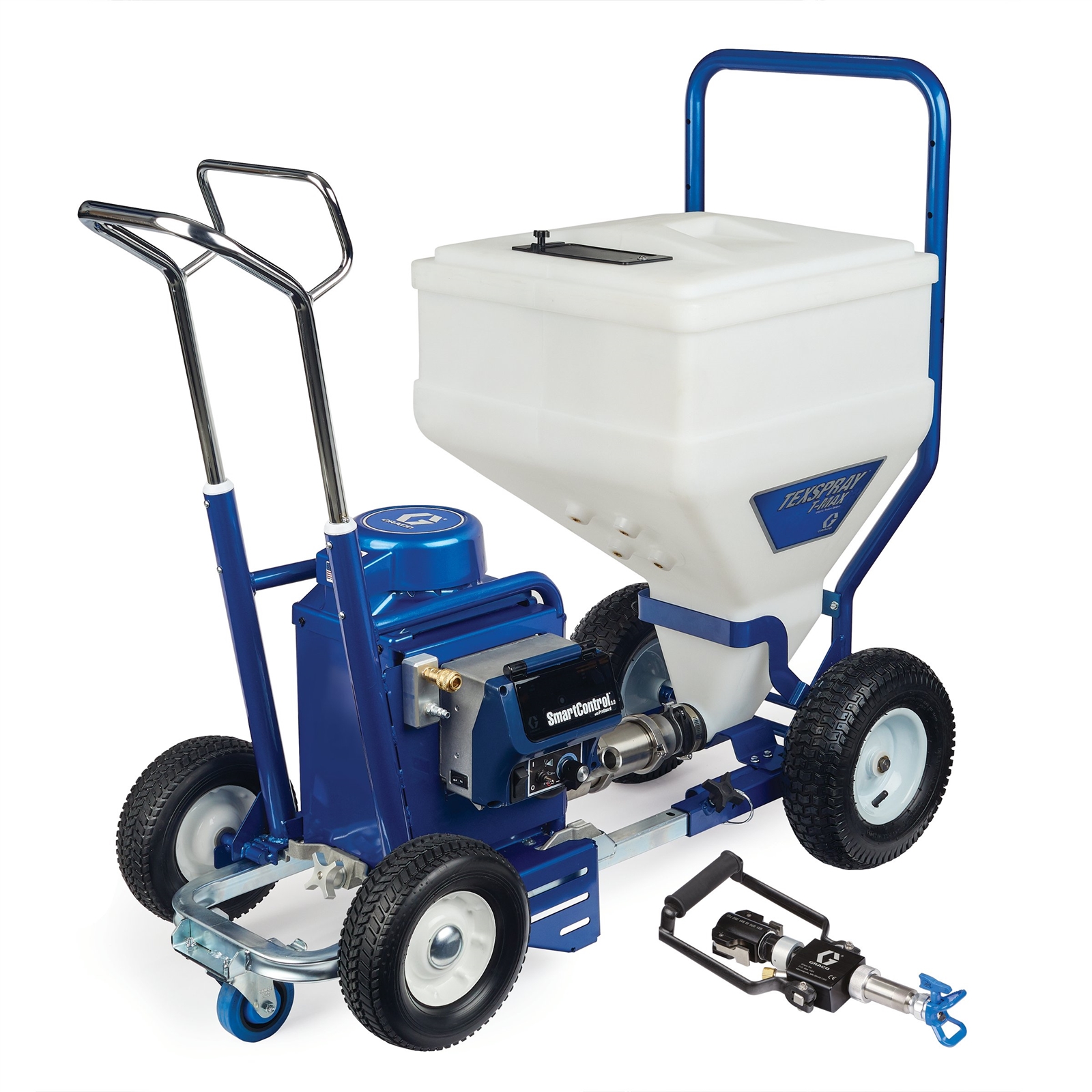

TexSpray T-MAX 6912 Electric Texture Sprayer, Lance Gun, 50 ft (15 m) Hose

Part Number: 17X989

product image

T-Max 6912

TexSpray T-MAX 6912 Electric Texture Sprayer, Lance Gun, 50 ft (15 m) Hose

Part Number: 17X989

The Graco T-MAX 6912 provides the capability and performance to spray almost all interior and exterior texture applications – whether you're spraying smooth compounds for interior skim coats and decorative finishes or aggregate-based materials for exterior jobs.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The Graco T-MAX 6912 provides the capability and performance to spray almost all interior and exterior texture applications – whether you're spraying smooth compounds for interior skim coats and decorative finishes or aggregate-based materials for exterior jobs.

Superior versatility to spray nearly all your texture applications & materials with even material flow and minimal pack-out. Airless spraying to easily apply skimcoats and decorative finishes. Air-Assisted spraying to spray heavy aggregates up to 2mm (separate air compressor required).

  • 120V MaxPower DC Motor
    • Use with standard 15/20 amp circuits
    • No-maintenance, brushless design keeps debris out
    • Lifetime Guaranteed Drivetrain
  • SmartControl 3.0
    • Delivers smooth, consistent material flow
    • Provides Airless or Flow mode
    • LED Display shows pressure, gallons, and more
  • Heavy-Duty Modular Frame
    • Steel construction withstands jobsite abuse
    • Easy, no-tools connect and disconnect
    • Small, compact and balanced design for easy maneuvering – even when full
    • Locking front swivel caster wheel
  • Oversized Hopper with Lid
    • 6 Bags
    • 25 Gallons (90 Liters) for less refilling
    • Steep-sided design keeps material flowing
  • T-Max Lance Gun
    • Ergonomic design for more comfort
    • Oversized passages & live swivel
    • “Stay-Open” design allows effortless spray with less fatigue
    • Proven construction withstands jobsite abuse
  • Industry-Proven Endurance Pump
    • Lasts 2X longer than competing pumps
    • 1000 psi (69 bar) and 3.2 gpm (12 lpm)
    • Quick-Access design: access any part of the pump in seconds without tools, even with a full hopper of material
  • Precision Advantage Drive
    • The longest lasting drive
    • Improved jobsite conditions with extremely quiet operation
    • Lifetime Warranty
  • Hoses & Applicators
    • Flexible hose sets available in various lengths
    • Choose between Inline Lance for airless application, or STX and Pole applicators for air-assisted decorative finishes

Specifications & Documents

Technical Specifications

Convert to Metric
Convertible Non-Convertible
Engine Size (HP) 2
Frame Configuration Cart
Hose Diameter (in) 1
Hose Inlet Diameter (in) 1
Includes 25 Gallon Hopper, Heavy-Duty Inline Lance, 1 in x 50 ft Material Hose, 3/4 in x 10 ft Whip Hose, (5) Round Nozzles, WideTex Adapter with (5) Hardened Wide Tips
Maximum Flow Rate (GPM) 3.2
Maximum Tip Size (in) 0.071
Maximum Tip Size 1 Gun (in) 0.071
Maximum Working Pressure (MPa) 6.9
Maximum Working Pressure (psi) 1000
Model T-Max
Number of Guns 1
Power Rating (HP) 2.0
Power Rating (W) 1491
Power Rating (kW) 1.49
Power Source Electric
Pump Type Piston
Series 6912
Type Airless Sprayer
Voltage (V) 120
Convertible Non-Convertible
Frame Configuration Cart
Hose Diameter (in) 1
Hose Inlet Diameter (cm) 2.54
Hose Inlet Diameter (in) 1
Hose Inlet Diameter (mm) 25.4
Includes 25 Gallon Hopper, Heavy-Duty Inline Lance, 1 in x 50 ft Material Hose, 3/4 in x 10 ft Whip Hose, (5) Round Nozzles, WideTex Adapter with (5) Hardened Wide Tips
Maximum Flow Rate (L/min) 12
Maximum Tip Size (in) 0.071
Maximum Tip Size 1 Gun (in) 0.071
Maximum Working Pressure (MPa) 6.9
Maximum Working Pressure (bar) 69
Maximum Working Pressure (kPa) 6900
Maximum Working Pressure (psi) 1000
Model T-Max
Number of Guns 1
Power Rating (W) 1491
Power Rating (kW) 1.49
Power Source Electric
Pump Type Piston
Series 6912
Type Airless Sprayer
Voltage (V) 120

Repair Parts

Part No. Description
17D888 KIT, REPLACEMENT, POTENTIOMETER
15C979 SWITCH, ROCKER
289672 TRANSDUCER, PRESSURE CONTROL
