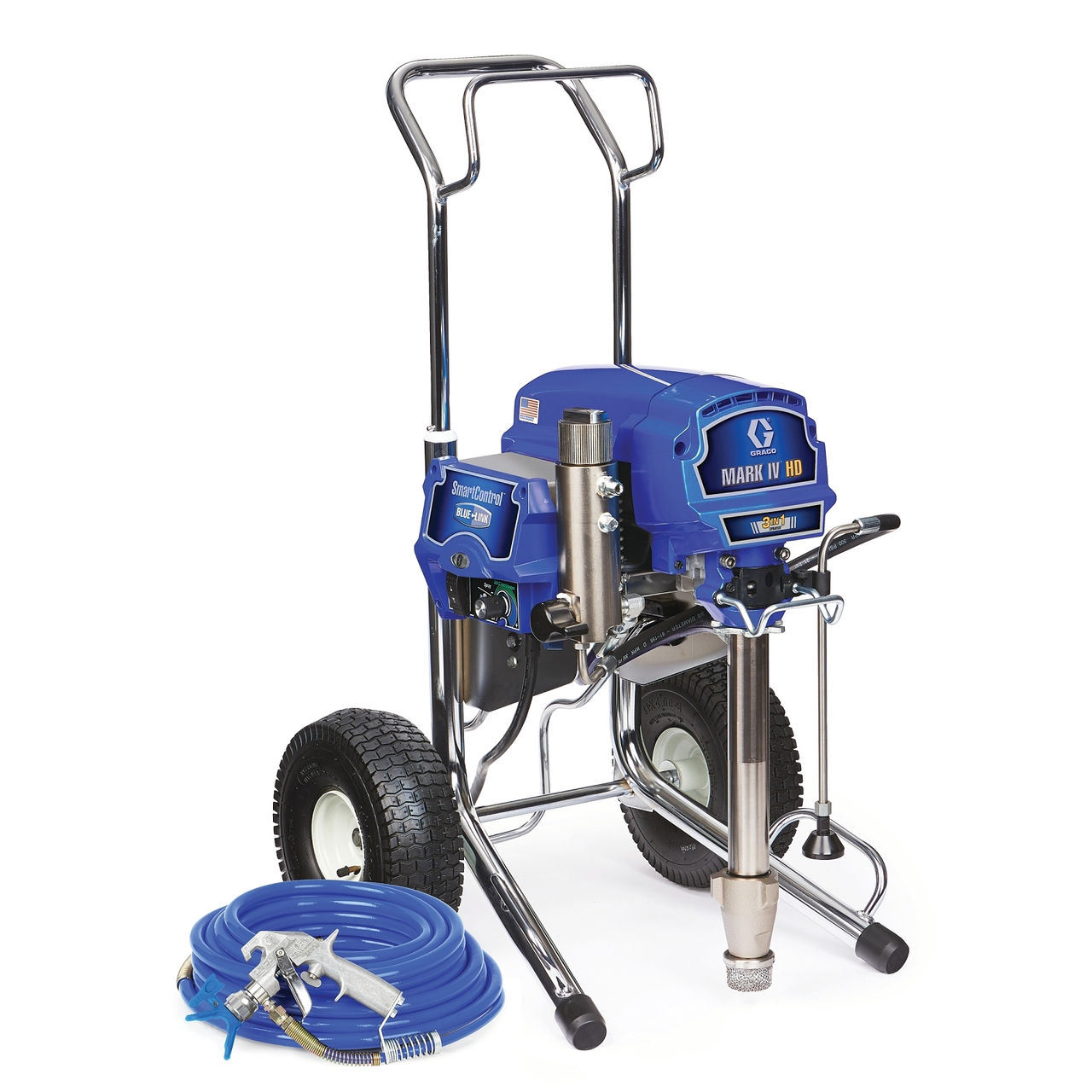

Mark IV HD 3-in-1 Standard Series Electric Airless Sprayer

Part Number: 17E603

product image
Video Player is loading.
Current Time 0:00
Duration 0:00
Loaded: 0%
Stream Type LIVE
Remaining Time 0:00

1x
  • Chapters
  • descriptions off, selected
  • captions off, selected

    Mark HD IV

    Mark IV HD 3-in-1 Standard Series Electric Airless Sprayer

    Part Number: 17E603

    Mark IV HD 3-in-1 Standard Series Electric Airless Sprayer
    The Mark IV HD is designed to save time and money by allowing you to spray more square footage in a day. Built for serious professional contractors, this unit includes must-have features to increase your productivity with all texture finishes, including the wide range of primers and paint.
    Questions About this Product?

    If you’re not finding the information you need, ask one of our experts.

    Ask an Expert

    Features

    Product Brochure
    The Mark IV HD is designed to save time and money by allowing you to spray more square footage in a day. Built for serious professional contractors, this unit includes must-have features to increase your productivity with all texture finishes, including the wide range of primers and paint.

    Everyday Reliability. Mark HD Standard Series electric airless texture sprayers provide unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.

    • Endurance Chromex Piston Pump
      • The most reliable pump
      • Lasts 2X longer than the next leading brand
      • Long life ceramic and stainless steel balls included for maximum versatility
      • Faster cleaning with the QuikAccess intake foot valve
    • MaxFlo 2 with Pack-Out Protection
      • Less pack-out, more productivity
      • Self-cleaning Vibra-Seal Technology eliminates material build-up
      • Continuous spraying with True Pack-Out Protection for more productivity
      • Optimized fluid passageways for the heaviest coatings
    • BlueLink Job & Sprayer Management System
      • Streamline your business
      • Track every sprayer: Exact location & hourly productivity
      • Know job progress: On demand productivity facts and reporting from anywhere
      • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
    • SmartControl 4.0 with ProGuard Protection System
      • Precision pressure control
      • Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
      • Prevents electrical damage from extreme jobsite power conditions
      • WatchDog Pump Protection System automatically prevents pump damage if the material supply is too low
    • FastFlush 2 System
      • Fast cleaning now even FASTER
      • Clean the pump 6X faster using ½ the water
      • High-velocity fluid flow delivered with 60% higher motor speed
    • MaxPower DC Motor & Advantage Drive
      • Maintenance-Free Power
      • Field proven brushless design
      • The Longest Lasting Drive
      • Improved jobsite conditions with extremely quiet operation
    • WatchDog Pump Protection System
      • Prevents dry pumping damage
      • Automatically shuts pump down when if the material supply is too low
    • Easy Out Pump Filter
      • Easy Pump Maintenance & Less Clogging
      • Inside-out design means less mess with fewer tip clogs
    • Heavy-Duty Prime Valve
      • Maintenance-free high-pressure dumping capability
    • Rugged, Durable Cart Design
      • Rugged and easy-to-move
      • Withstands tough jobsite conditions while absorbing impacts and vibrations
      • Easy hose storage with integrated hose wrap and telescoping handle
      • Easy loading with built-in lift handles

    Specifications & Documents

    Technical Specifications

    Convert to Metric
    Amperage (A) 15
    Compatible Replacement Pump 17H828
    Construction Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
    Convertible Non-Convertible
    Engine Size (HP) 2.2
    Features Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, FastFlush 2, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve
    Fluid Outlet Size (in) 3/8
    Fluid Outlet Thread Type NPSM
    Frame Configuration Hi-Boy
    Frequency (Hz) 50/60
    Includes FlexPlus Gun, RAC X LTX 425 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
    Maximum Flow Rate (GPM) 1.1
    Maximum Sound Pressure Level (dB(A)) 82
    Maximum Tip Size (in) 0.033
    Maximum Tip Size 1 Gun (in) 0.033
    Maximum Working Pressure (MPa) 22.8
    Maximum Working Pressure (psi) 3300
    Minimum Generator Power (W) 5000
    Model Mark HD
    Motor Type MaxPower
    Number of Guns 1
    Overall Height (in) 38.75
    Overall Length (in) 26
    Overall Width (in) 22.5
    Power Rating (HP) 2.2
    Power Rating (W) 1641
    Power Rating (kW) 1.64
    Power Source Electric
    Pressure Control Type SmartControl 4.0
    Product Series Standard
    Pump Mount Type QuikChange
    Pump Rod Type Chromex
    Pump Sleeve Material Stainless Steel
    Recommended Annual Usage 100-200 gallons per week
    Series IV
    Type Airless Sprayer
    Voltage (V) 120
    Volume Per Cycle (cycles/gal) 195
    Weight (lb) 98
    Amperage (A) 15
    Compatible Replacement Pump 17H828
    Construction Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
    Convertible Non-Convertible
    Features Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, FastFlush 2, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve
    Fluid Outlet Size (in) 3/8
    Fluid Outlet Size (mm) 9.525
    Fluid Outlet Thread Type NPSM
    Frame Configuration Hi-Boy
    Frequency (Hz) 50/60
    Includes FlexPlus Gun, RAC X LTX 425 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
    Maximum Flow Rate (L/min) 4.1
    Maximum Sound Pressure Level (dB(A)) 82
    Maximum Tip Size (in) 0.033
    Maximum Tip Size 1 Gun (in) 0.033
    Maximum Working Pressure (MPa) 22.8
    Maximum Working Pressure (bar) 228
    Maximum Working Pressure (kPa) 22800
    Maximum Working Pressure (psi) 3300
    Minimum Generator Power (W) 5000
    Model Mark HD
    Motor Type MaxPower
    Number of Guns 1
    Overall Height (cm) 98.4
    Overall Height (mm) 984
    Overall Length (cm) 66
    Overall Length (mm) 660
    Overall Width (cm) 57.2
    Overall Width (mm) 572
    Power Rating (W) 1641
    Power Rating (kW) 1.64
    Power Source Electric
    Pressure Control Type SmartControl 4.0
    Product Series Standard
    Pump Mount Type QuikChange
    Pump Rod Type Chromex
    Pump Sleeve Material Stainless Steel
    Recommended Annual Usage 100-200 gallons per week
    Series IV
    Type Airless Sprayer
    Voltage (V) 120
    Volume Per Cycle (cycles/gal) 195
    Weight (kg) 45

    What's Included

    Part No. Description Qty Unit
    246468 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC X 1 ea
    LTX427 RAC X SwitchTip, 427 1 ea
    240797 BlueMax II Airless Hose, 3/8 in x 50 ft 1 ea
    246215 RAC X HandTite Tip Guard 1 ea

    Repair Parts

    Part No. Description
    244068 Easy Out Pump Manifold Filter, Long, 100 mesh
    244069 Easy Out Pump Manifold Filter, Long, 200 mesh
    244071 Easy Out Pump Manifold Filter, Long, 30 mesh
    244067 Easy Out Pump Manifold Filter, Long, 60 mesh
    246468 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC X
    248214 KIT, REPAIR, INTAKE TUBE
    257186 KIT, REPAIR, MOTOR, C104 795
    244240 KIT, REPAIR, RETURN LINE, HI
    189920 Inlet Strainer, SST Cap Single Screen, 1 in
    243222 Pressure Control Transducer Repair Kit
    117285 PACKING, O-RING
    116752 SWITCH, ROCKER
    24B156 HD Prime Valve
