LineLazer V 250SPS

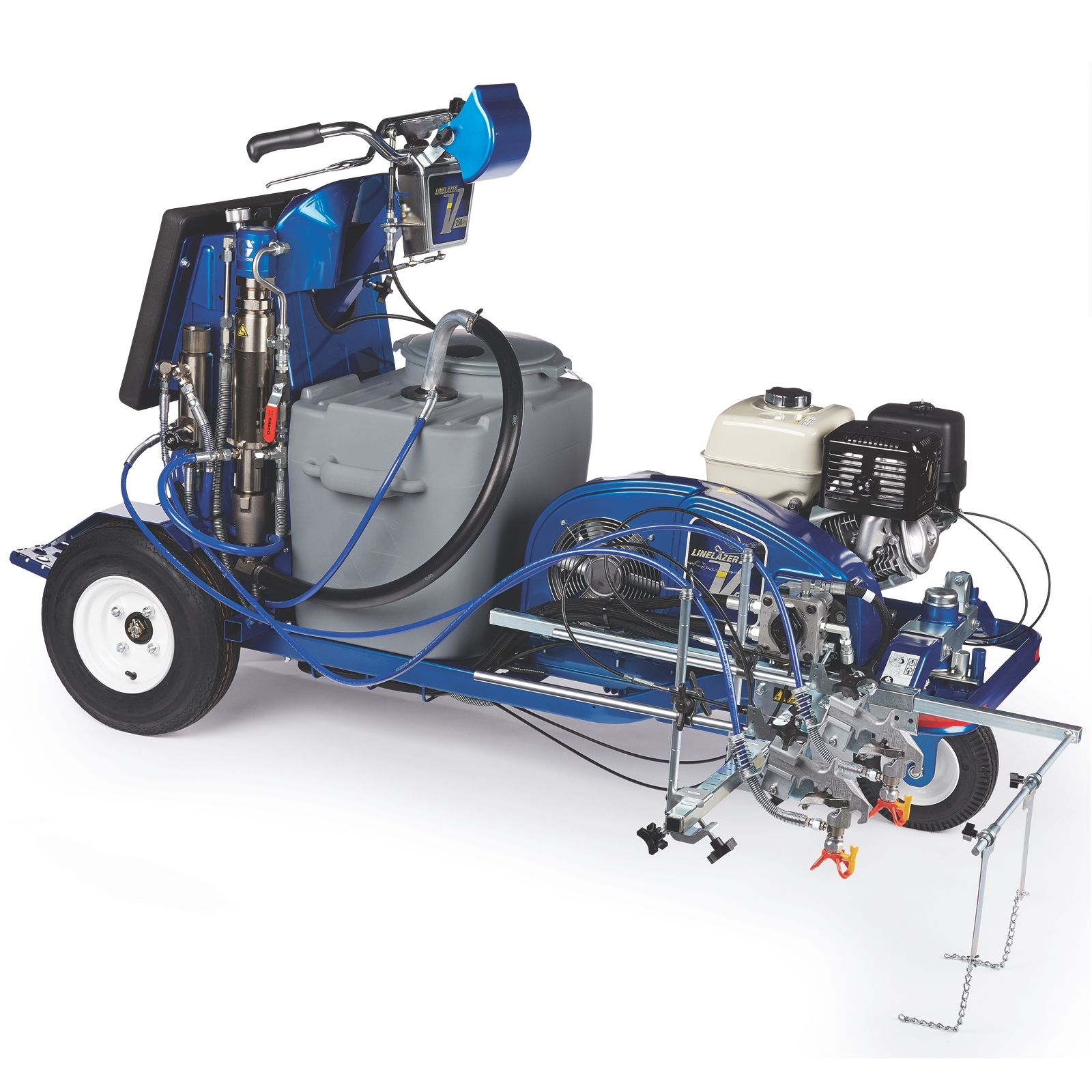

LineLazer V 250SPS HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns
Part Number: 17H467
LineLazer V 250SPS
LineLazer V 250SPS HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns
Part Number: 17H467
With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS HP Automatic Series is a self-propelled system that is ideal for large, heavy-duty line striping jobs including parking lots and road jobs.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS HP Automatic Series is a self-propelled system that is ideal for large, heavy-duty line striping jobs including parking lots and road jobs.
The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
- Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
- Remote Mount Control Box
- Striping Information At-A-Glance
- Simple to use and easy to see in all conditions
- 25-Gallon Paint Hopper
- Less Refilling
- Extended striping time with large capacity hopper
- Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Electric Start
- Fast starting
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- Front or Rear Gun Mount
- Straighter long lines
- Use up to six guns
- Self-Centering Front Wheel
- Simple operation
- Foam-filled, three-wheel design for stability
- Easy Handlebar Adjustment
- Additional Features
- Endurance Chromex Pump
- High-Efficiency Hydraulic Motor
- High-Capacity Cooling System
- Easy Out Pump Filter
- Flex Plus Guns
Specifications & Documents
Technical Specifications
Convert to MetricAttachments | None |
---|---|
Compatible Material | Road-Marking Paint |
Compatible Surfaces | Pavement, Turf |
Engine Brand | Honda |
Engine Model | GX390 |
Fuel Tank Capacity (gal) | 1.4 |
Gun Activation | 2 Automatic |
Hopper Volume Capacity (gal) | 25 |
Includes | Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose, 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 mL) |
Maximum Flow Rate (GPM) | 2.5 |
Maximum Operating Speed (mph) | 10 |
Maximum Sound Pressure Level (dB(A)) | 89.1 |
Maximum Speed (RPM) | 3600 |
Maximum Tip Size (in) | 0.039 |
Maximum Working Pressure (psi) | 3300 |
Model | LineLazer V |
Number of Colors | One Color |
Number of Guns | 2 |
Number of Hoppers | 1 |
Number of Pumps | 1 |
Overall Height (in) | 50.5 |
Overall Length (in) | 73.5 |
Overall Width (in) | 33 |
Power Rating (HP) | 13 |
Power Rating (kW) | 9.69 |
Power Source | Gas Hydraulic |
Product Series | HP Automatic |
Pump Type | Endurance |
Series | 250SPS |
Type | Self-Propelled Line Striper |
Weight (lb) | 666 |
Attachments | None |
Compatible Material | Road-Marking Paint |
Compatible Surfaces | Pavement, Turf |
Engine Brand | Honda |
Engine Model | GX390 |
Fuel Tank Capacity (L) | 5.3 |
Gun Activation | 2 Automatic |
Hopper Volume Capacity (L) | 95 |
Includes | Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose, 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 mL) |
Maximum Flow Rate (L/min) | 9.5 |
Maximum Operating Speed (km/h) | 16.1 |
Maximum Operating Speed (mph) | 10 |
Maximum Sound Pressure Level (dB(A)) | 89.1 |
Maximum Speed (RPM) | 3600 |
Maximum Tip Size (cm) | 0.0991 |
Maximum Tip Size (in) | 0.039 |
Maximum Tip Size (mm) | 0.9906 |
Maximum Working Pressure (bar) | 227 |
Maximum Working Pressure (kPa) | 2270 |
Maximum Working Pressure (psi) | 3300 |
Model | LineLazer V |
Number of Colors | One Color |
Number of Guns | 2 |
Number of Hoppers | 1 |
Number of Pumps | 1 |
Overall Height (cm) | 128.3 |
Overall Height (mm) | 1282.7 |
Overall Length (cm) | 186.7 |
Overall Length (mm) | 1866.9 |
Overall Width (cm) | 83.8 |
Overall Width (mm) | 838 |
Power Rating (kW) | 9.69 |
Power Source | Gas Hydraulic |
Product Series | HP Automatic |
Pump Type | Endurance |
Series | 250SPS |
Type | Self-Propelled Line Striper |
Weight (kg) | 302 |
Product Manuals
Warranty
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
Part No. | Description | Qty | Unit |
---|---|---|---|
248157 | Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer | 2 | ea |
LL5321 | LineLazer RAC 5 SwitchTip, 321 | 2 | ea |
LL5425 | LineLazer RAC 5 SwitchTip, 425 | 2 | ea |
LL5627 | LineLazer RAC 5 SwitchTip, 627 | 2 | ea |
243161 | RAC 5 HandTite Tip Guard | 2 | ea |
245226 | HOSE, CPLD, 3/8" X 3' | 1 | ea |
238049 | TSL Throat Seal Liquid, 4 oz | 1 | ea |
