LineLazer V 250SPS

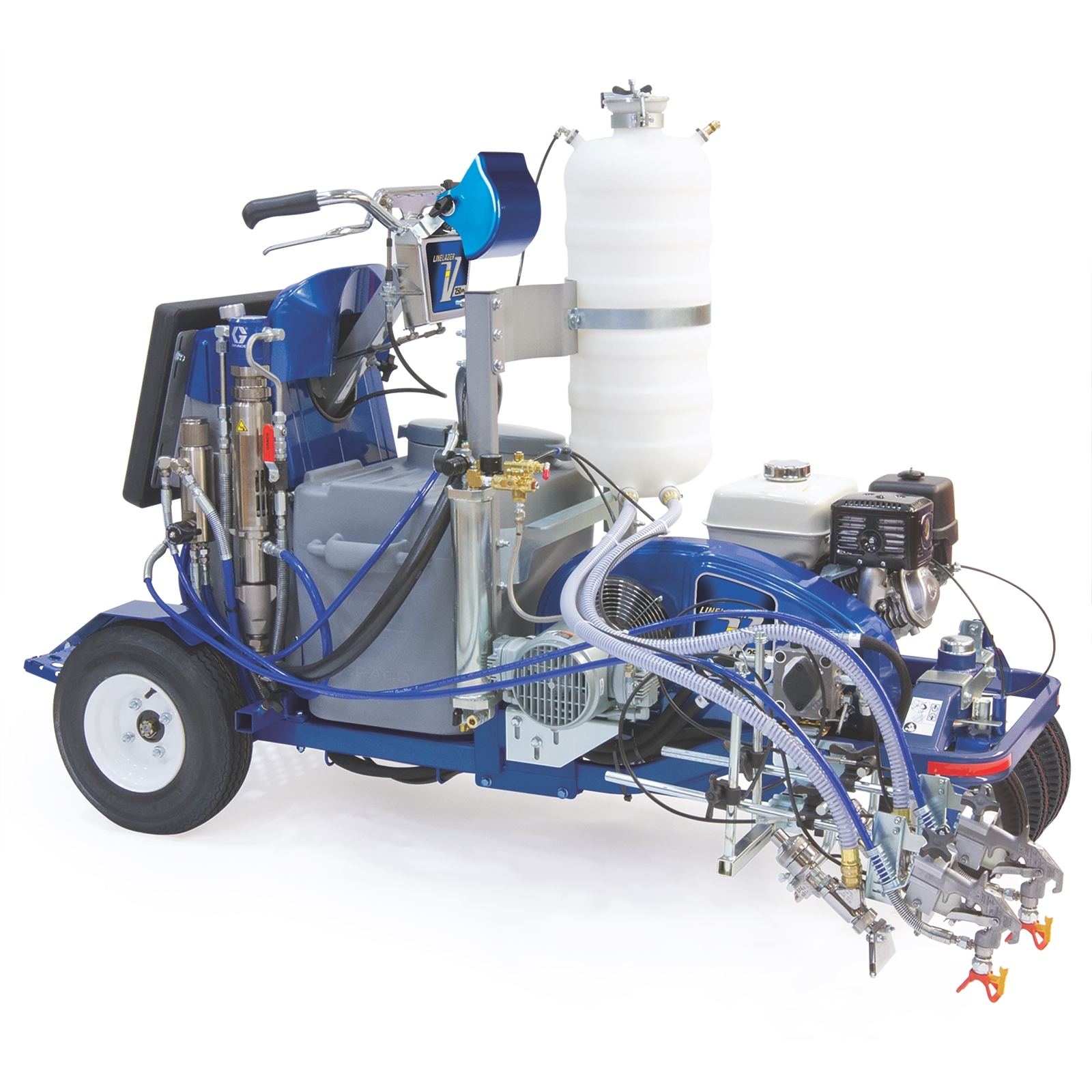

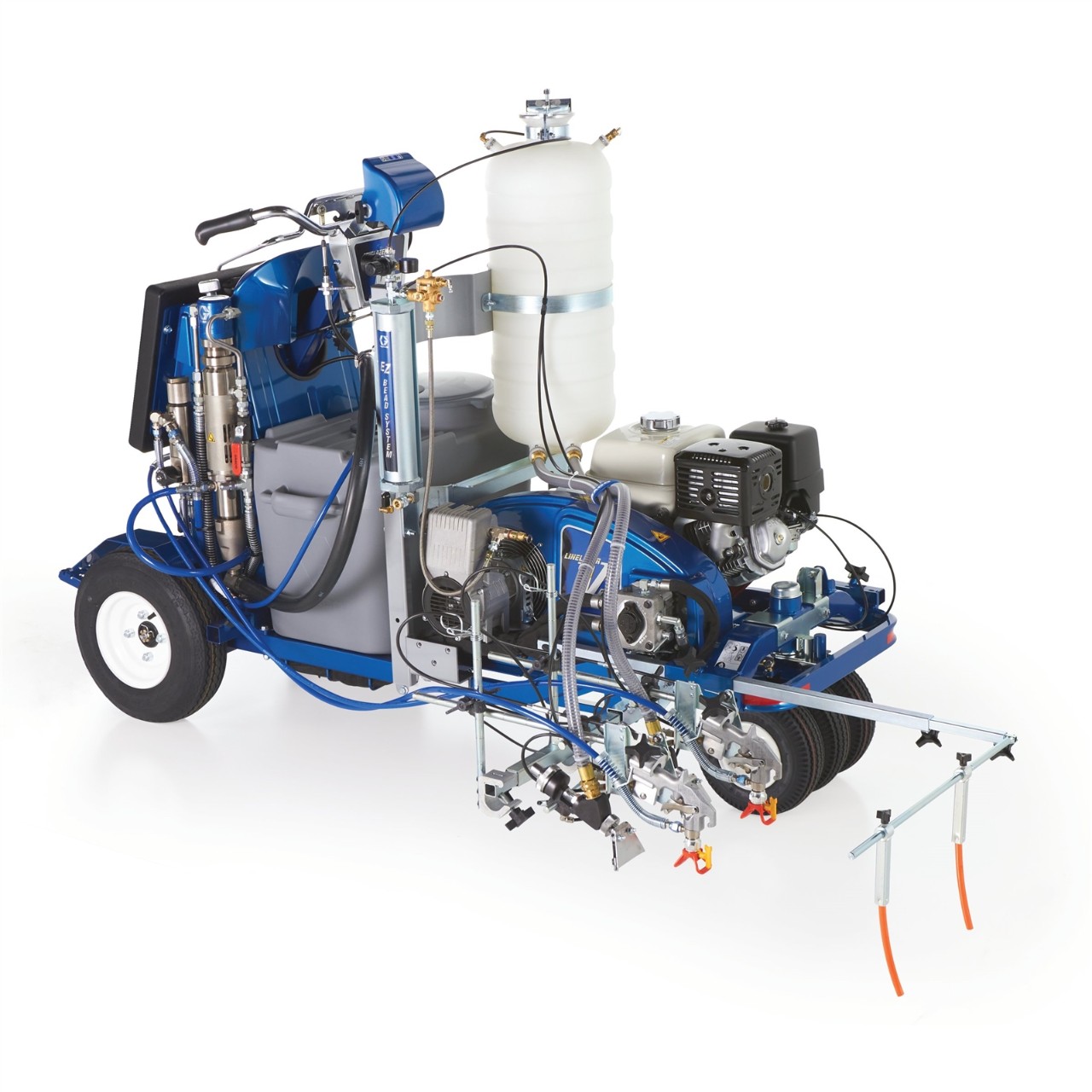

LineLazer V 250SPS HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns, 1 Tank

Part Number: 17J951

product image product image product image product image

LineLazer V 250SPS

LineLazer V 250SPS HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns, 1 Tank

Part Number: 17J951

With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS HP Reflective Series is a self-propelled system with reflective bead capability designed for large, heavy-duty line striping jobs including parking lots and road jobs.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS HP Reflective Series is a self-propelled system with reflective bead capability designed for large, heavy-duty line striping jobs including parking lots and road jobs.

The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Pressurized EZ Bead System
    • Superior Bead Application Performance
    • Ensures proper bead flow and paint penetration
    • Dual bead tanks hold up to 120 lbs each
  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • Remote Mount Control Box
    • Striping Information At-A-Glance
    • Simple to use and easy to see in all conditions
  • 25-Gallon Paint Hopper
    • Less Refilling
    • Extended striping time with large capacity hopper
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Electric Start
    • Fast starting
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • Front or Rear Gun Mount
    • Straighter long lines
    • Use up to six guns
  • Self-Centering Front Wheel
    • Simple operation
    • Foam-filled, three-wheel design for stability
  • Additional Features
    • Easy Handlebar Adjustment
    • Endurance Chromex Pump
    • High-Efficiency Hydraulic Motor
    • High-Capacity Cooling System
    • Easy Out Pump Filter

Specifications & Documents

Technical Specifications

Convert to Metric
Attachments None
Bead Tank Size (lb) 120
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX390
Fuel Tank Capacity (gal) 1.4
Gun Activation 2 Automatic
Hopper Volume Capacity (gal) 25
Includes Pressurized Bead System (1 Bead Tank), Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose, 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 mL)
Maximum Flow Rate (GPM) 2.5
Maximum Operating Speed (mph) 10
Maximum Sound Pressure Level (dB(A)) 89.1
Maximum Speed (RPM) 3600
Maximum Tip Size (in) 0.039
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Hoppers 1
Number of Pumps 1
Overall Height (in) 50.5
Overall Length (in) 73.5
Overall Width (in) 33
Power Rating (HP) 13
Power Rating (kW) 9.69
Power Source Gas Hydraulic
Product Series HP Reflective
Pump Type Endurance
Series 250SPS
Type Self-Propelled Line Striper
Weight (lb) 778
Attachments None
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX390
Fuel Tank Capacity (L) 5.3
Gun Activation 2 Automatic
Hopper Volume Capacity (L) 95
Includes Pressurized Bead System (1 Bead Tank), Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose, 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 mL)
Maximum Flow Rate (L/min) 9.5
Maximum Operating Speed (km/h) 16.1
Maximum Operating Speed (mph) 10
Maximum Sound Pressure Level (dB(A)) 89.1
Maximum Speed (RPM) 3600
Maximum Tip Size (cm) 0.0991
Maximum Tip Size (in) 0.039
Maximum Tip Size (mm) 0.9906
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Hoppers 1
Number of Pumps 1
Overall Height (cm) 128.3
Overall Height (mm) 1282.7
Overall Length (cm) 186.7
Overall Length (mm) 1866.9
Overall Width (cm) 83.8
Overall Width (mm) 838
Power Rating (kW) 9.69
Power Source Gas Hydraulic
Product Series HP Reflective
Pump Type Endurance
Series 250SPS
Type Self-Propelled Line Striper
Weight (kg) 352

Product Manuals


What's Included

Part No. Description Qty Unit
16R962 GB KIT, ACCESSORY, BEAD SYS LL250 1 ea
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 2 ea
LL5321 LineLazer RAC 5 SwitchTip, 321 2 ea
LL5425 LineLazer RAC 5 SwitchTip, 425 2 ea
LL5627 LineLazer RAC 5 SwitchTip, 627 2 ea
243161 RAC 5 HandTite Tip Guard 2 ea
245226 HOSE, CPLD, 3/8" X 3' 1 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea

Repair Parts

Part No. Description
245103 Q KIT REPAIR, DRAIN VALVE
277068 Q GB KIT, REPAIR, PUMP
