Reactor 2 E-30
Reactor 2 E-30 Proportioner, 10 kW
Part Number: 272010
Reactor 2 E-30
Reactor 2 E-30 Proportioner, 10 kW
Part Number: 272010
Each feature in the Reactor 2 was strategically designed to help your business, with innovations that help your operation run smoothly. Software and hardware enhancements for better spray performance. And new technologies that add to your bottom line.
Features
Product Brochure
Each feature in the Reactor 2 was strategically designed to help your business, with innovations that help your operation run smoothly. Software and hardware enhancements for better spray performance. And new technologies that add to your bottom line.

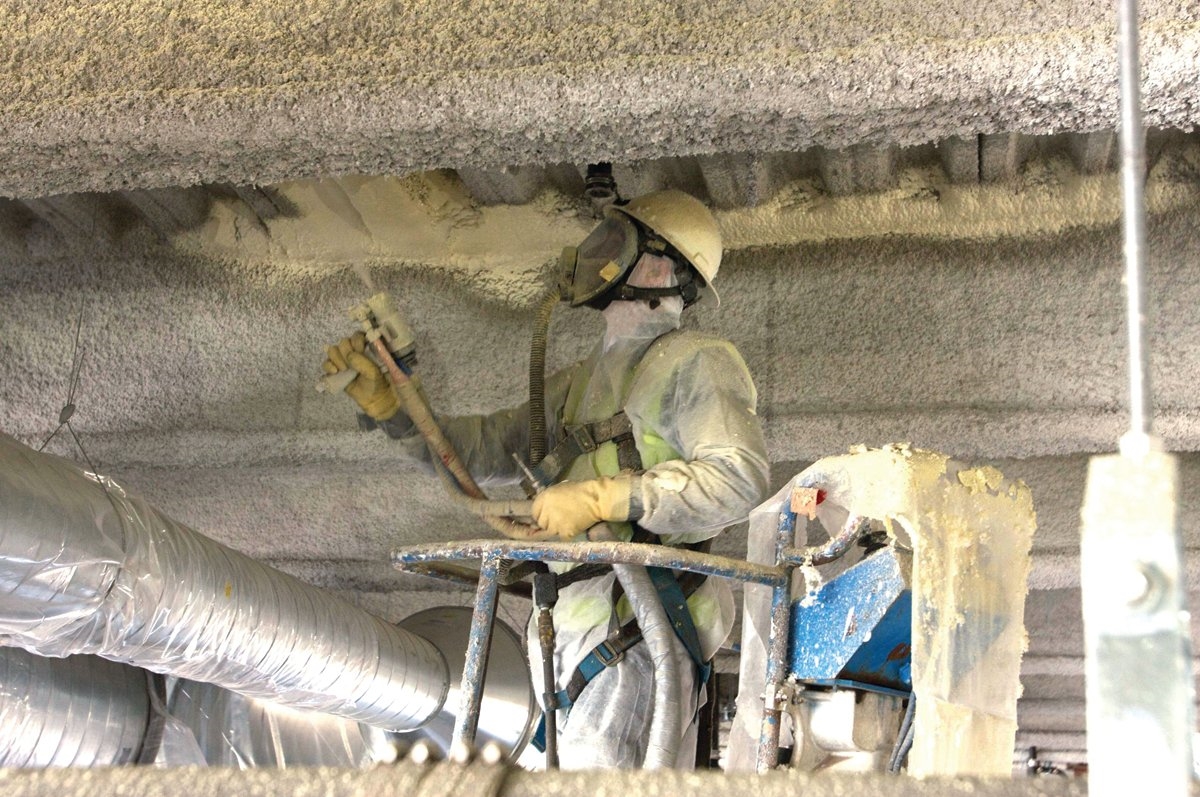

Next generation technology for spray foam insulation and polyurea.
Reactor 2 E-30 gives you:

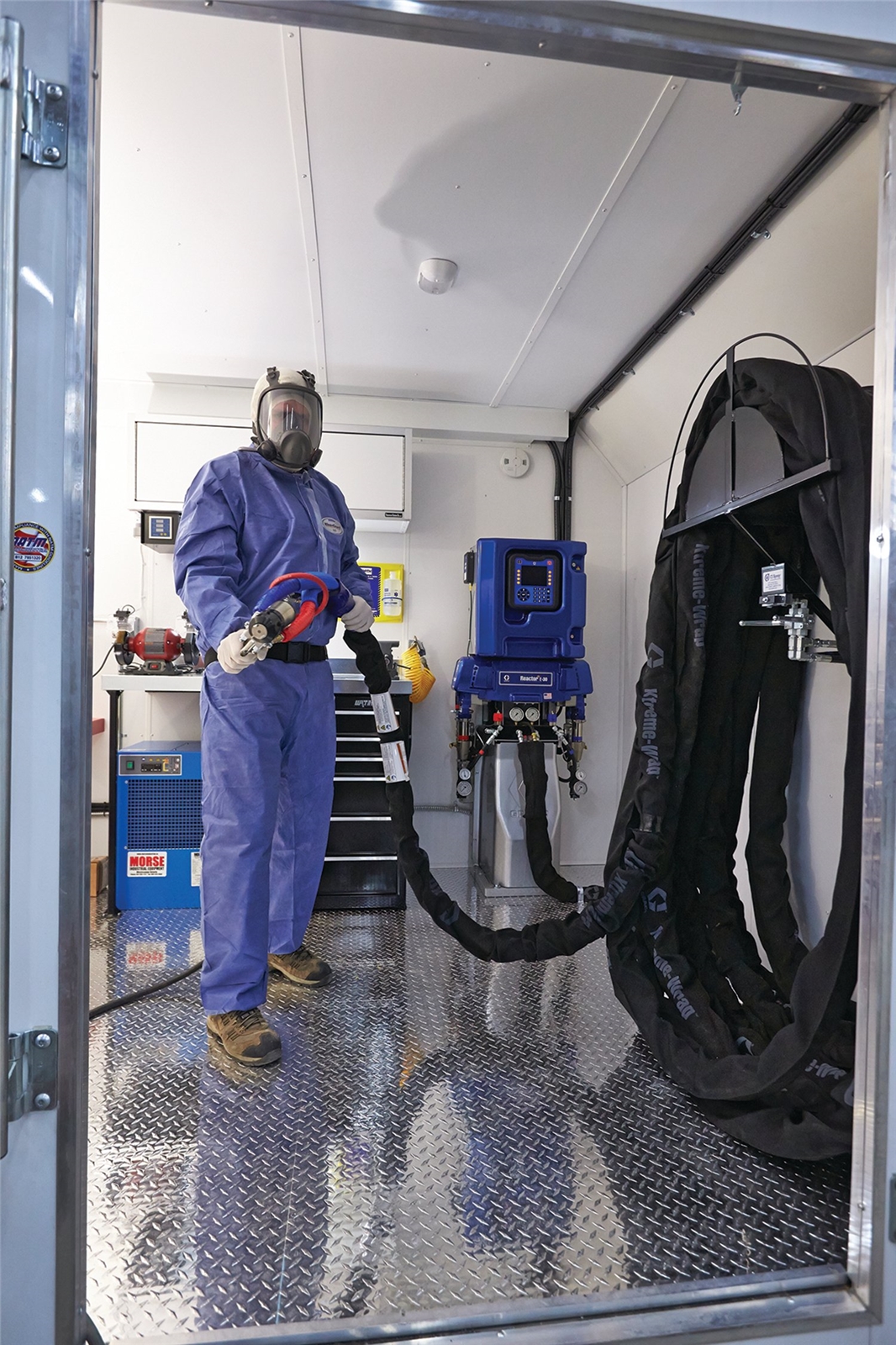

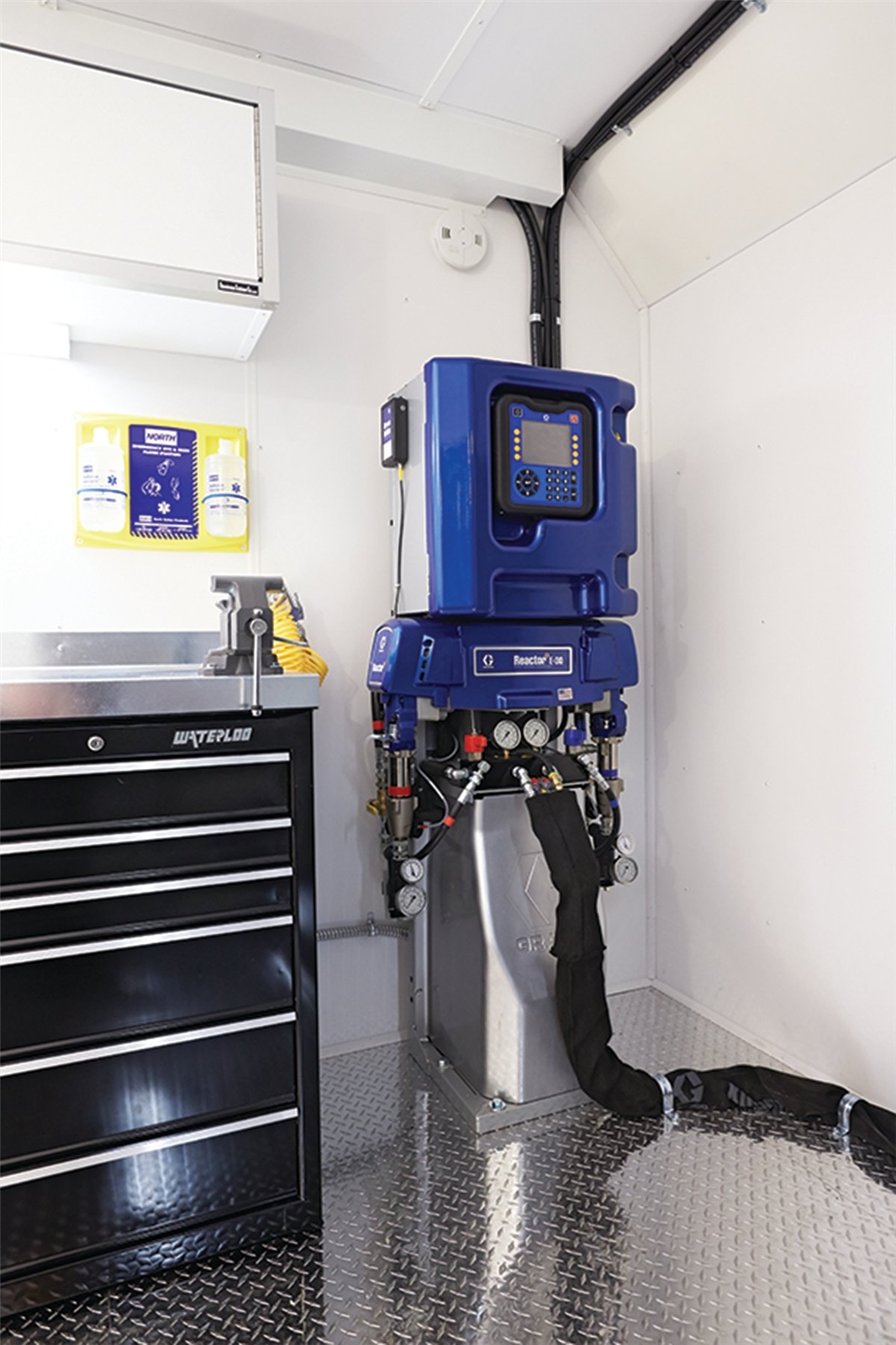

- Compact footprint - more room in your spray rig
- Ergonomic design - easier to service
- Advanced control modules
- Better spraying performance compared to traditional electric Reactor systems
- Troubleshooting made quick and easy with QR codes
Reactor Connect : Communication and Control at your Fingertips
- Control your Reactor using your phone
- Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
- Monitor your rigs/crews using the multi-system dashboard
- Troubleshoot an issue quickly using real-time data
- Provide documentation to a customer
- Use reports to better manage your business
- Saves all your spray data to the cloud
- Utilize account management to better manage your equipment and crews
- Reactor Connect comes standard with all Reactor 2 models
Advanced control technology
- Tracks, monitors and saves project data
- Data can be saved and downloaded onto a USB drive
- Stores up to 24 chemical recipes
- Drum level indicators
Quick and easy troubleshooting thanks to QR code shortcuts
- Results in less downtime
Easy to reach, conveniently-placed electronics
Advanced control modules
- Handles power fluctuations
Sacrificial surge protector
- Protects your electronics against excessive power spikes
Smooth, consistent spray performance - similar to hydraulic systems
Three-year warranty
- Covers user display module, control modules and electric motor
- One of the best in the industry
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 34 @ 350 to 415 V ac (3-Phase WYE), 50 @ 200 to 240 V ac (3-Phase Delta), 78 @ 200 to 240 V ac (1-Phase) |
|---|---|
| Application | Spray Foam |
| Applicator Type | Manual |
| Compatible Material | Plural Components |
| Component Type | Two Component |
| Construction | Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Chemically Resistant O-Rings, PTFE, UHMWPE |
| Flush Type | Solvent |
| Frequency (Hz) | 50/60 |
| Gun Type | No Gun |
| Hose Package | No Hose |
| Material Application | Polyurethane Foam |
| Maximum Flow Rate (lb/min) | 30 |
| Maximum Fluid Temperature (°F) | 190 |
| Maximum Hose Length (ft) | 310 |
| Maximum Mix Ratio | 1:1 |
| Maximum Working Pressure (MPa) | 13.8 |
| Maximum Working Pressure (psi) | 2000 |
| Model | Reactor 2 |
| Overall Depth (in) | 15 |
| Overall Height (in) | 63 |
| Overall Width (in) | 26.3 |
| Power Rating (HP) | 13.68 |
| Power Rating (W) | 10200 |
| Power Rating (kW) | 10 |
| Power Source | Electric |
| Pressure Type | High Pressure |
| Product Series | Non-Elite |
| Product Type | Plural Component |
| Resin Inlet Size (in) | 3/4 |
| Resin Inlet Thread Gender | Female |
| Resin Inlet Thread Type | NPSM |
| Series | E-30 |
| Sound Pressure Level (dB(A)) | 87.3 |
| Type | Proportioner Package |
| Voltage (V) | 230, 400 |
| Weight (lb) | 355 |
| Amperage (A) | 34 @ 350 to 415 V ac (3-Phase WYE), 50 @ 200 to 240 V ac (3-Phase Delta), 78 @ 200 to 240 V ac (1-Phase) |
| Application | Spray Foam |
| Applicator Type | Manual |
| Compatible Material | Plural Components |
| Component Type | Two Component |
| Construction | Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Chemically Resistant O-Rings, PTFE, UHMWPE |
| Flush Type | Solvent |
| Frequency (Hz) | 50/60 |
| Gun Type | No Gun |
| Hose Package | No Hose |
| Material Application | Polyurethane Foam |
| Maximum Flow Rate (kg/min) | 13.61 |
| Maximum Fluid Temperature (°C) | 88 |
| Maximum Hose Length (m) | 94.5 |
| Maximum Mix Ratio | 1:1 |
| Maximum Working Pressure (MPa) | 13.8 |
| Maximum Working Pressure (bar) | 138 |
| Maximum Working Pressure (kPa) | 13800 |
| Maximum Working Pressure (psi) | 2000 |
| Model | Reactor 2 |
| Overall Depth (cm) | 38.1 |
| Overall Depth (mm) | 381 |
| Overall Height (cm) | 160 |
| Overall Height (mm) | 1600 |
| Overall Width (cm) | 66.8 |
| Overall Width (mm) | 668 |
| Power Rating (W) | 10200 |
| Power Rating (kW) | 10 |
| Power Source | Electric |
| Pressure Type | High Pressure |
| Product Series | Non-Elite |
| Product Type | Plural Component |
| Resin Inlet Size (cm) | 1.905 |
| Resin Inlet Size (in) | 3/4 |
| Resin Inlet Size (mm) | 19.05 |
| Resin Inlet Thread Gender | Female |
| Resin Inlet Thread Type | NPSM |
| Series | E-30 |
| Sound Pressure Level (dB(A)) | 87.3 |
| Type | Proportioner Package |
| Voltage (V) | 230, 400 |
| Weight (kg) | 161 |
