Fusion PC Round
Fusion ProConnect Gun with Round 02 Mix Chamber and 0.052 in (1.3 mm) Orifice Size
Part Number: 25P589
![product image](/content/dam/pim/graco/aftd/hpcf/fusion-pc-3qtr-left.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)

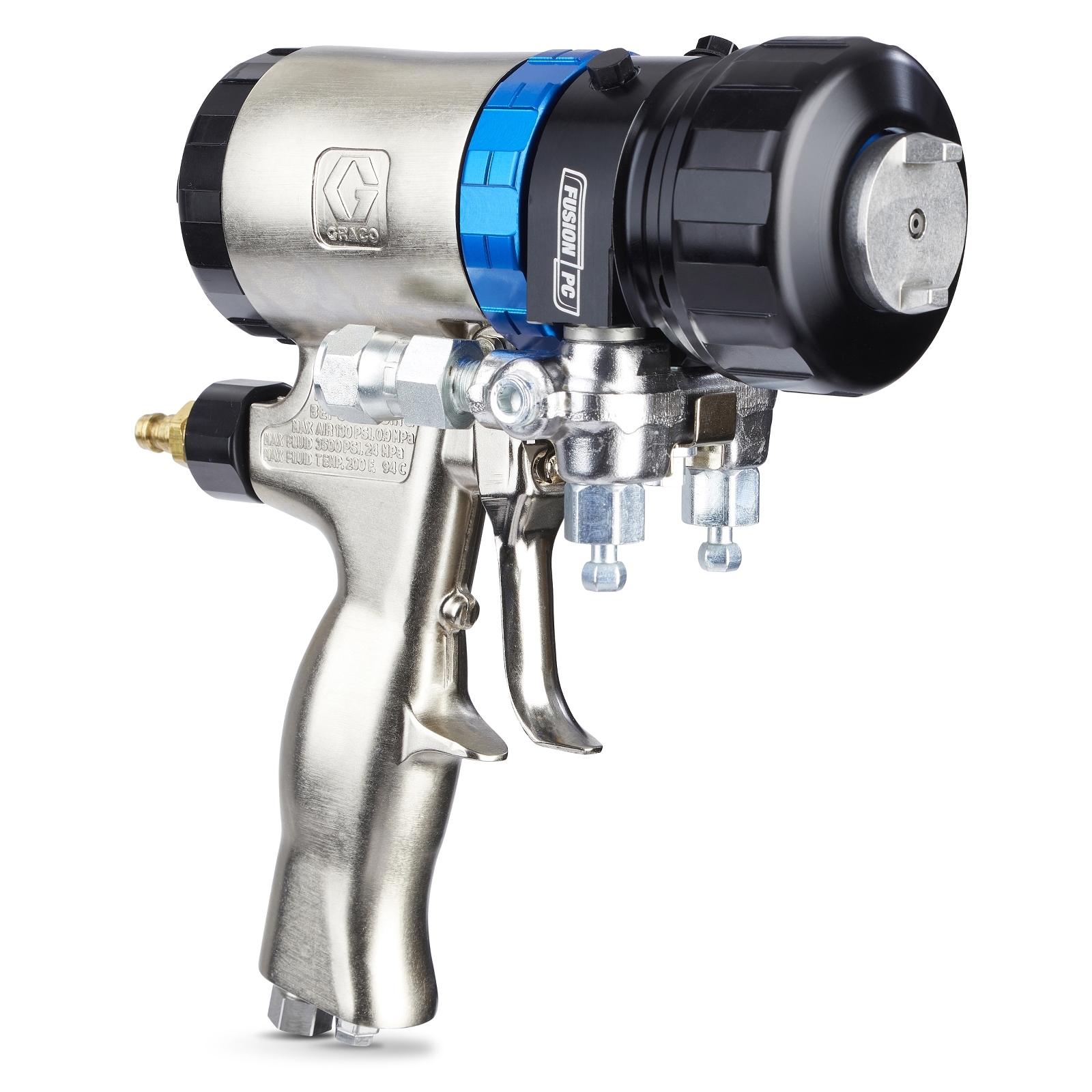

![product image](/content/dam/pim/graco/aftd/hpcf/fusion-pc-3qtr-right.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)

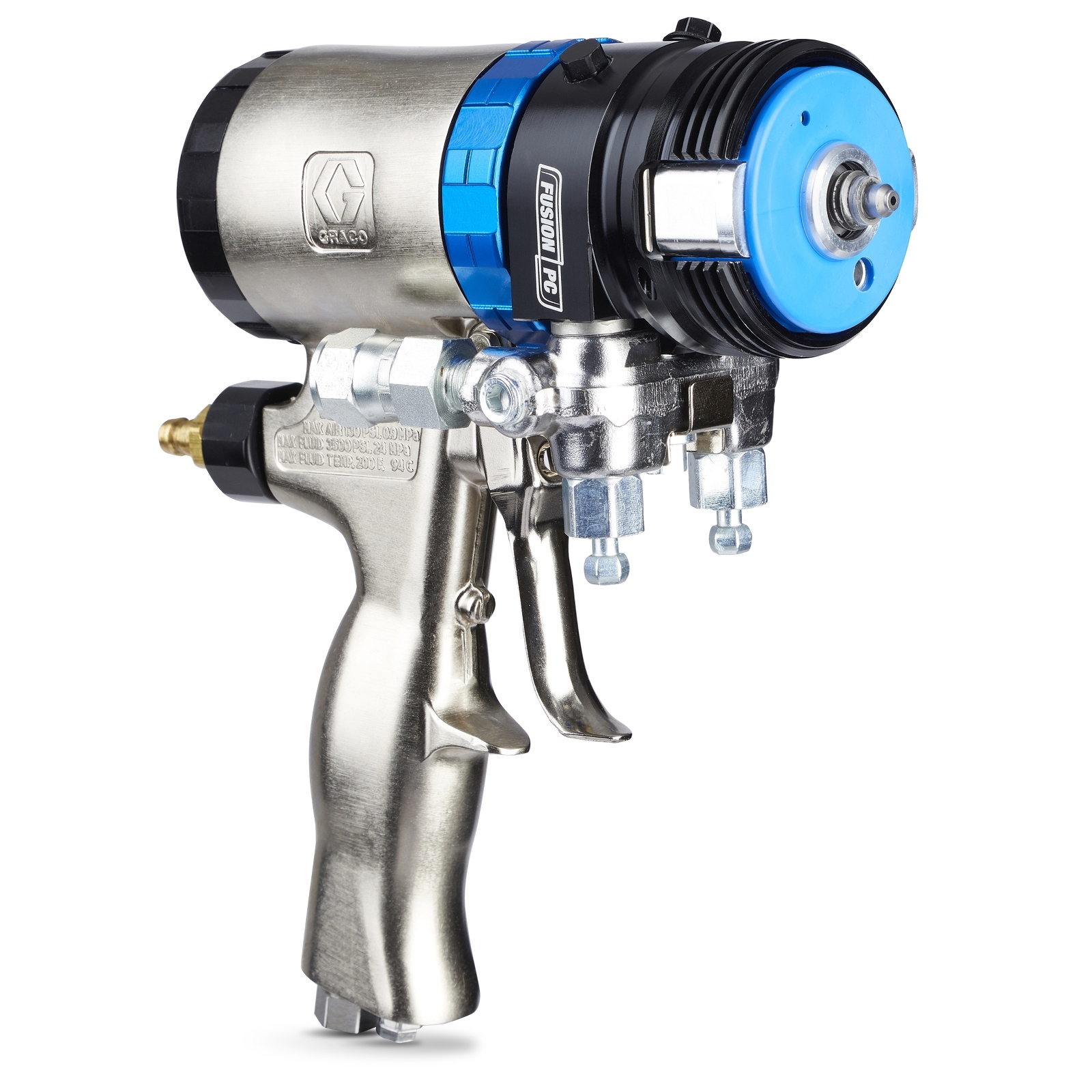

![product image](/content/dam/pim/graco/aftd/hpcf/fusion-pc-3qtr-right-cover-off.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
Fusion PC Round
Fusion ProConnect Gun with Round 02 Mix Chamber and 0.052 in (1.3 mm) Orifice Size
Part Number: 25P589
A perfect rebuild in seconds is now possible with the revolutionary Fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consum...
More Info
Features
Product Brochure
A perfect rebuild in seconds is now possible with the revolutionary Fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime.
Unlike any other spray foam gun available
- A single cartridge replaces the entire fluid section in seconds
- Built on top of the time-tested Fusion Air Purge platform, the PC gun sprays exactly like a Fusion AP
- Integrated check valves for cross-over containment
- 13 parts are replaced by a single ProConnect cartridge
- Eliminates the need to purchase fluid section o-rings
- Spare ProConnect cartridges can replace your back-up guns
- Retrofit Kit available to convert existing Fusion AP guns
Specifications & Documents
Technical Specifications
Convert to MetricAir Inlet Size (in) | 1/4 |
---|---|
Air Inlet Thread Type | NPT |
Applicator Type | Manual |
Compatible Material | Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam |
Component A Inlet Size (in) | 1/2-20 |
Component A Inlet Thread Type | UNF |
Component B Inlet Size (in) | 9/16-18 |
Component B Inlet Thread Type | UNF |
Component Type | Plural-Component |
Fluid Orifice Size (in) | .052 |
For Use With | Non-Flammable Foam and Polyurea |
Gun Activation | Manual |
Gun Included | 1 |
Gun Type | Air Purge Gun |
Gun Weight (lb) | 2.95 |
Gun Weight (oz) | 47 |
Impingement Port Size (in) | 0.052 |
Includes | PC52RD Mix Chamber Tip |
Maximum Air Inlet Pressure (MPa) | 0.9 |
Maximum Air Inlet Pressure (psi) | 130 |
Maximum Air Pressure (MPa) | 0.9 |
Maximum Air Pressure (psi) | 130 |
Maximum Flow Rate @ PSI (lb/min) | 50 |
Maximum Fluid Pressure (MPa) | 24.1 |
Maximum Fluid Pressure (psi) | 3500 |
Maximum Fluid Temperature (°F) | 200 |
Maximum Fluid Working Pressure (MPa) | 24.5 |
Maximum Fluid Working Pressure (psi) | 3500 |
Minimum Air Inlet Pressure (MPa) | 0.55 |
Minimum Air Inlet Pressure (psi) | 80 |
Mix Chamber | 02 (.052) |
Model | Fusion PC |
Overall Height (in) | 8.1 |
Overall Length (in) | 8 |
Overall Width (in) | 3.3 |
Pattern Size (in) | 12 in @ 24 in from target |
Product Type | Spray Gun |
Purge Method | Air |
Series | Round |
Sound Power Level (dB(A)) | 91 |
Sound Pressure Level (dB(A)) | 81.1 |
Spray Gun Mix Type | Impingement |
Spray Pattern | Round |
Trigger Lock | Locking |
Trigger Type | Two-Finger |
Type | Spray Gun |
Wetted Parts | Aluminum, Stainless Steel, Carbon Steel, Carbide, Chemically Resistant O-Rings |
Air Inlet Size (cm) | 0.635 |
Air Inlet Size (in) | 1/4 |
Air Inlet Size (mm) | 6.35 |
Air Inlet Thread Type | NPT |
Applicator Type | Manual |
Compatible Material | Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam |
Component A Inlet Size (cm) | 1.27 |
Component A Inlet Size (in) | 1/2-20 |
Component A Inlet Size (mm) | 12.7 |
Component A Inlet Thread Type | UNF |
Component B Inlet Size (cm) | 1.42875 |
Component B Inlet Size (in) | 9/16-18 |
Component B Inlet Size (mm) | 14.2875 |
Component B Inlet Thread Type | UNF |
Component Type | Plural-Component |
Fluid Orifice Size (cm) | 0.107 |
Fluid Orifice Size (in) | .052 |
Fluid Orifice Size (mm) | 1.07 |
For Use With | Non-Flammable Foam and Polyurea |
Gun Activation | Manual |
Gun Included | 1 |
Gun Type | Air Purge Gun |
Gun Weight (g) | 1338 |
Gun Weight (kg) | 1.3 |
Gun Weight (oz) | 47 |
Impingement Port Size (in) | 0.052 |
Impingement Port Size (mm) | 1.32 |
Includes | PC52RD Mix Chamber Tip |
Maximum Air Inlet Pressure (MPa) | 0.9 |
Maximum Air Inlet Pressure (bar) | 9 |
Maximum Air Inlet Pressure (kPa) | 900 |
Maximum Air Inlet Pressure (psi) | 130 |
Maximum Air Pressure (MPa) | 0.9 |
Maximum Air Pressure (bar) | 9 |
Maximum Air Pressure (kPa) | 900 |
Maximum Air Pressure (psi) | 130 |
Maximum Fluid Pressure (MPa) | 24.1 |
Maximum Fluid Pressure (bar) | 241 |
Maximum Fluid Pressure (kPa) | 24100 |
Maximum Fluid Pressure (psi) | 3500 |
Maximum Fluid Temperature (°C) | 93 |
Maximum Fluid Working Pressure (MPa) | 24.5 |
Maximum Fluid Working Pressure (bar) | 245 |
Maximum Fluid Working Pressure (psi) | 3500 |
Minimum Air Inlet Pressure (MPa) | 0.55 |
Minimum Air Inlet Pressure (bar) | 5.5 |
Minimum Air Inlet Pressure (kPa) | 550 |
Minimum Air Inlet Pressure (psi) | 80 |
Mix Chamber | 02 (.052) |
Model | Fusion PC |
Overall Height (cm) | 20.6 |
Overall Height (mm) | 206 |
Overall Length (cm) | 20.3 |
Overall Length (mm) | 203 |
Overall Width (cm) | 8.4 |
Overall Width (mm) | 84 |
Pattern Size (mm) | 305 |
Product Type | Spray Gun |
Purge Method | Air |
Series | Round |
Sound Power Level (dB(A)) | 91 |
Sound Pressure Level (dB(A)) | 81.1 |
Spray Gun Mix Type | Impingement |
Spray Pattern | Round |
Trigger Lock | Locking |
Trigger Type | Two-Finger |
Type | Spray Gun |
Wetted Parts | Aluminum, Stainless Steel, Carbon Steel, Carbide, Chemically Resistant O-Rings |
