LineLazer V 3900

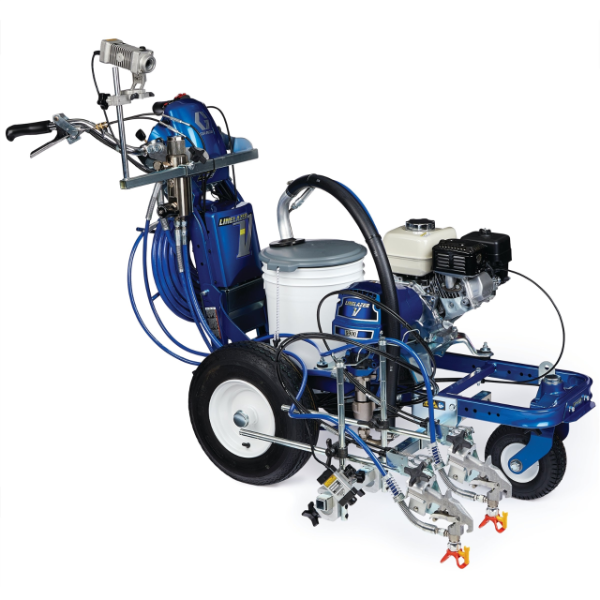

LineLazer V 3900 HP Automatic Series Gas Airless Line Striper, 1 Auto Gun, 1 Manual Gun, LazerGuide 2000
Part Number: 17U804
![product image](/content/dam/pim/graco/ced/pavement/17U804_LineLazer_V_3900_HP_Automatic_2Gun_190604_Main.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
![product image](/content/dam/pim/graco/ced/pavement/17U804_LineLazer_V_3900_HP_Automatic_2Gun_190604_Alt_1.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
![llhpautomaticbadge200x80.jpg](/content/dam/pim/graco/ced/pavement/llhpautomaticbadge200x80.jpg)
LineLazer V 3900
LineLazer V 3900 HP Automatic Series Gas Airless Line Striper, 1 Auto Gun, 1 Manual Gun, LazerGuide 2000
Part Number: 17U804
For those advanced striping jobs that require layout work or skip lines, the LineLazer V 3900 HP Automatic Series line striper includes additional features to help you work smarter, finish jobs faster and increase your profitability.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
For those advanced striping jobs that require layout work or skip lines, the LineLazer V 3900 HP Automatic Series line striper includes additional features to help you work smarter, finish jobs faster and increase your profitability.
The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
- Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
- Auto-Layout II
- Simplify Parking Lot Layout
- SmartControl measures while you walk and puts down pre-marks
- No need for measuring tape, string lines or aerosol cans
- Cuts your layout time in half
- LazerGuide 2000 Laser-Guided Layout System
- Improve productivity with less set-up time for higher profits
- Easy, one-person laser-quality line production
- Eliminate the need for tape measures, string or chalk
- LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- J-Log System with USB Download
- Valuable Job Information
- Proof of job = More striping opportunities.
- USB download capability allows you to capture and save all job data
- Honda GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- DualComfort Handlebar System
- Easy Handlebar Adjustment
- Additional Features
- Endurance Chromex Pump
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
Specifications & Documents
Technical Specifications
Convert to MetricAttachments | LazerGuide 2000, LazerGuide 1700 |
---|---|
Bead System | Optional |
Compatible Material | Road-Marking Paint |
Compatible Surfaces | Pavement, Turf |
Engine Brand | Honda |
Engine Model | GX120 |
Features | SmartControl |
Fuel Tank Capacity (gal) | 0.66 |
Gun Activation | 1 Automatic & 1 Manual |
Includes | LazerGuide 2000, LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz |
Maximum Flow Rate (GPM) | 1.25 |
Maximum Tip Size (in) | 0.036 |
Maximum Working Pressure (psi) | 3300 |
Model | LineLazer V |
Number of Colors | One Color |
Number of Guns | 2 |
Number of Pumps | 1 |
Power Rating (HP) | 4 |
Power Rating (W) | 2980 |
Power Rating (kW) | 2.98 |
Power Source | Gas |
Product Series | HP Automatic |
Pump Type | Endurance |
Series | 3900 |
Type | Walk-Behind Line Striper |
Weight (lb) | 240 |
Attachments | LazerGuide 2000, LazerGuide 1700 |
Bead System | Optional |
Compatible Material | Road-Marking Paint |
Compatible Surfaces | Pavement, Turf |
Engine Brand | Honda |
Engine Model | GX120 |
Features | SmartControl |
Fuel Tank Capacity (L) | 2.5 |
Gun Activation | 1 Automatic & 1 Manual |
Includes | LazerGuide 2000, LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz |
Maximum Flow Rate (L/min) | 4.73 |
Maximum Tip Size (cm) | 0.0914 |
Maximum Tip Size (in) | 0.036 |
Maximum Tip Size (mm) | 0.914 |
Maximum Working Pressure (bar) | 227 |
Maximum Working Pressure (kPa) | 2270 |
Maximum Working Pressure (psi) | 3300 |
Model | LineLazer V |
Number of Colors | One Color |
Number of Guns | 2 |
Number of Pumps | 1 |
Power Rating (W) | 2980 |
Power Rating (kW) | 2.98 |
Power Source | Gas |
Product Series | HP Automatic |
Pump Type | Endurance |
Series | 3900 |
Type | Walk-Behind Line Striper |
Weight (kg) | 109 |
Product Manuals
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
Part No. | Description | Qty | Unit |
---|---|---|---|
17T540 | KIT, LL V, HP, AUTO, LG 2000 | 1 | ea |
25A530 | KIT, ACCESSORY, LAZERGUIDE 1700 | 1 | ea |
248157 | Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer | 2 | ea |
LL5319 | LineLazer RAC 5 SwitchTip, 319 | 2 | ea |
LL5421 | LineLazer RAC 5 SwitchTip, 421 | 2 | ea |
243161 | RAC 5 HandTite Tip Guard | 2 | ea |
245226 | HOSE, CPLD, 3/8" X 3' | 1 | ea |
238049 | TSL Throat Seal Liquid, 4 oz | 1 | ea |
