LineLazer V 250DC

LineLazer V 250DC HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns, 2 Tanks

Part Number: 17H473

product image product image product image product image product image

LineLazer V 250DC

LineLazer V 250DC HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns, 2 Tanks

Part Number: 17H473

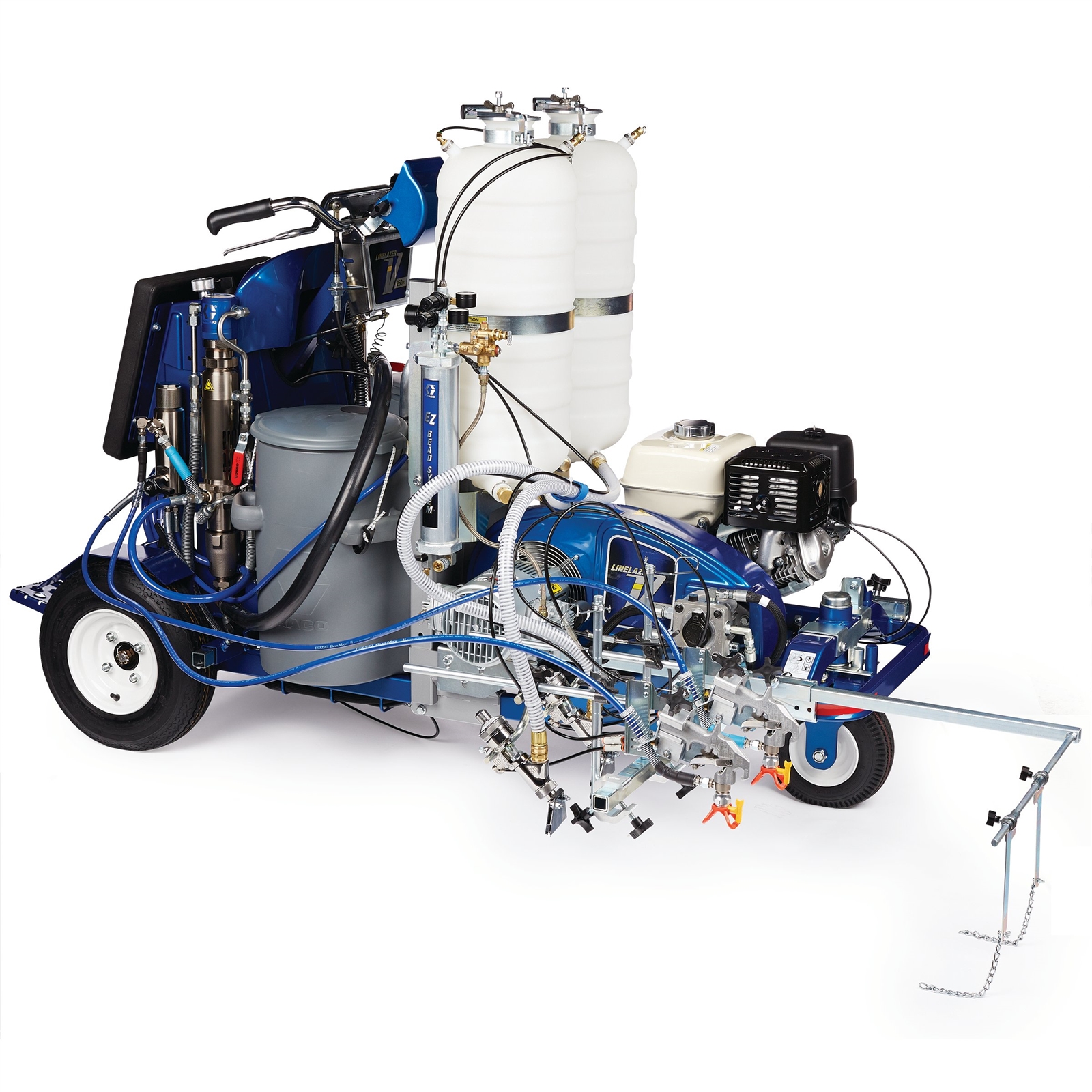

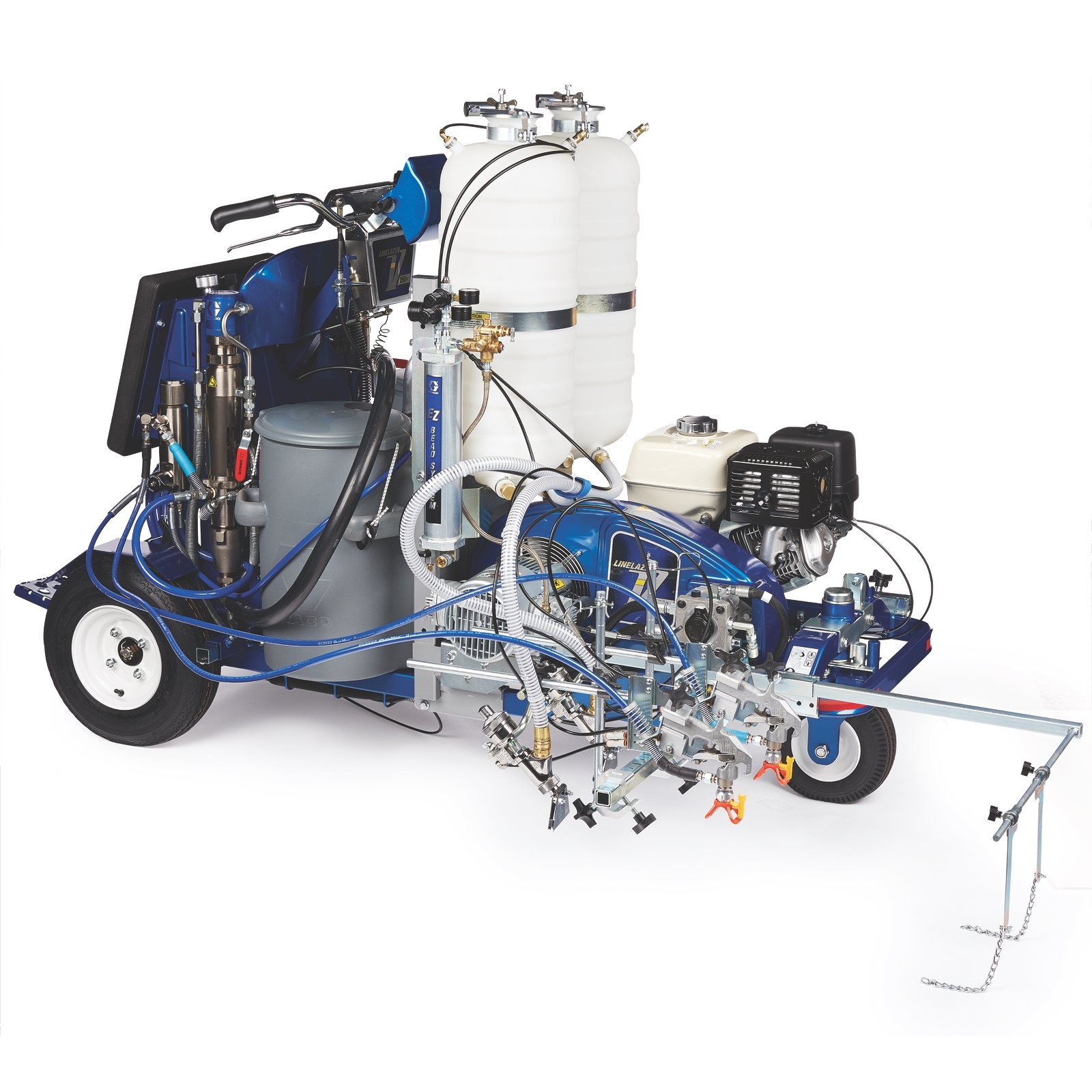

The LineLazer V 250DC HP Reflective Series provides high-production dual color striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes with reflective beads.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The LineLazer V 250DC HP Reflective Series provides high-production dual color striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes with reflective beads.

The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Pressurized EZ Bead System
    • Superior Bead Application Performance
    • Ensures proper bead flow and paint penetration
    • Dual bead tanks hold up to 120 lbs each
  • Dual High-Efficiency Hydraulic Motors
    • Uninterrupted Performance
    • No-Stall design
  • Dual Endurance Chromex Pumps
    • Precise Material Flow
    • Consistency with a wide range of striping materials
  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • Remote Mount Control Box
    • Striping Information At-A-Glance
    • Simple to use and easy to see in all conditions
  • Dual 15-Gallon Paint Hoppers
    • Less Refilling
    • Simultaneously spray two colors and refill less often
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Electric Start
    • Fast starting
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector



  • Additional Features
    • Front or Rear Gun Mount
    • Self-Centering Front Wheel
    • Easy Handlebar Adjustment
    • High-Capacity Cooling System
    • Easy Out Pump Filter

Specifications & Documents

Technical Specifications

Convert to Metric
Attachments None
Bead Tank Size (lb) 240
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX390
Fuel Tank Capacity (gal) 1.4
Gun Activation 2 Automatic
Hopper Volume Capacity (gal) 30
Includes Pressurized Bead System (2 Tanks), Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose (2), 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose (2), TSL, 4 oz (118 ml)
Maximum Flow Rate (GPM) 2.5
Maximum Operating Speed (mph) 10
Maximum Sound Pressure Level (dB(A)) 89.1
Maximum Speed (RPM) 3600
Maximum Tip Size (in) 0.039
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors Two Colors
Number of Guns 2
Number of Hoppers 2
Number of Pumps 2
Overall Height (in) 55.7
Overall Length (in) 73.5
Overall Width (in) 33
Power Rating (HP) 13
Power Rating (kW) 9.69
Power Source Gas Hydraulic
Product Series HP Reflective
Pump Type Endurance
Series 250DC
Type Self-Propelled Line Striper
Weight (lb) 864
Attachments None
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX390
Fuel Tank Capacity (L) 5.3
Gun Activation 2 Automatic
Hopper Volume Capacity (L) 114
Includes Pressurized Bead System (2 Tanks), Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose (2), 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose (2), TSL, 4 oz (118 ml)
Maximum Flow Rate (L/min) 9.5
Maximum Operating Speed (km/h) 16.1
Maximum Operating Speed (mph) 10
Maximum Sound Pressure Level (dB(A)) 89.1
Maximum Speed (RPM) 3600
Maximum Tip Size (cm) 0.0991
Maximum Tip Size (in) 0.039
Maximum Tip Size (mm) 0.9906
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors Two Colors
Number of Guns 2
Number of Hoppers 2
Number of Pumps 2
Overall Height (cm) 141.5
Overall Height (mm) 1414.8
Overall Length (cm) 186.7
Overall Length (mm) 1866.9
Overall Width (cm) 83.8
Overall Width (mm) 838
Power Rating (kW) 9.69
Power Source Gas Hydraulic
Product Series HP Reflective
Pump Type Endurance
Series 250DC
Type Self-Propelled Line Striper
Weight (kg) 392

Product Manuals


What's Included

Part No. Description Qty Unit
16R962 GB KIT, ACCESSORY, BEAD SYS LL250 1 ea
16U439 GB KIT, ACCESSORY, BEAD TANK 1 ea
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 2 ea
LL5321 LineLazer RAC 5 SwitchTip, 321 2 ea
LL5425 LineLazer RAC 5 SwitchTip, 425 2 ea
LL5627 LineLazer RAC 5 SwitchTip, 627 2 ea
243161 RAC 5 HandTite Tip Guard 2 ea
245226 HOSE, CPLD, 3/8" X 3' 2 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea

Repair Parts

Part No. Description
245103 Q KIT REPAIR, DRAIN VALVE
277068 Q GB KIT, REPAIR, PUMP
17C063 SWITCH,ROCKER, SPST
