GH 933ES

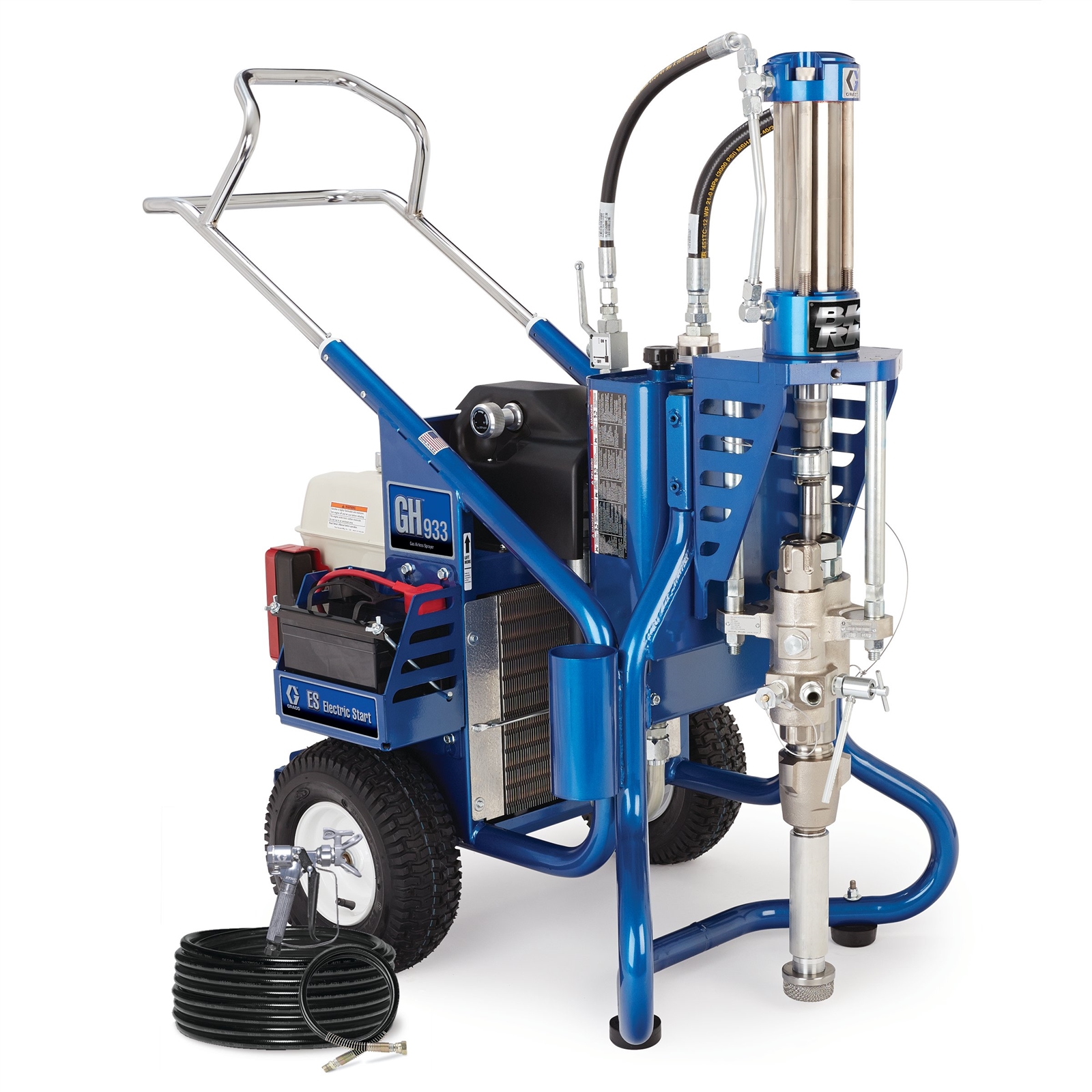

GH 933ES Big Rig Gas Hydraulic Sprayer, Complete
Part Number: 16U286
GH 933ES
GH 933ES Big Rig Gas Hydraulic Sprayer, Complete
Part Number: 16U286
For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 933ES can get the job done.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 933ES can get the job done.
- Honda® Engine with Electric Start
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Back-up Pull Start
- High-capacity, 12 Volt 18 Amp Charging System
- Heavy-Duty Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Heavy-Duty Cooling System
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
- Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing – corrosion protection
- Multi-function design converts to skid mount in seconds
- Xtreme Pump
- QuikChange pump section
- Time-tested durability and performance
- Long-life XtremeSeal and leather packings
- Heavy-duty piston rod for long life
- QuickAccess intake valve removes easily for fast repairs
- Ready-To-Spray Complete System
- Configured with 50 feet of pressure-rated hose, gun, tips, and all the fittings you will need
- Additional Features
- Lockable pressure control knob
- Grounding wire for safety with solvent materials
- Large diameter siphon hose
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Acrylics, Block Filler, Coal Tar, Contact Cement, Enamel, Elastomerics, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Intumescent, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Primer, Polyester, Polyurethane, Texture Mud, Waterproofing |
|---|---|
| Compatible Replacement Pump | 16U755 |
| Construction | Carbide, Leather, Nitralloy, PTFE, Polyethylene, Stainless Steel, Tungsten |
| Control Type | N/A |
| Engine Brand | Honda |
| Engine Size (HP) | 13 |
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Thread Type | MNPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Type | NPSF |
| Frame Configuration | Cart |
| Includes | XTR-7 Airless Spray Gun, XHD RAC 519 Spray Tip, XHD RAC Guard, 3/8 in x 50 ft Xtreme-Duty Airless Hose, 1/4 in x 6 ft Xtreme-Duty Airless Whip Hose |
| Material Application | Paints, Primers |
| Maximum Flow Rate (GPM) | 2.5 |
| Maximum Hose Length (ft) | 50 |
| Maximum Sound Pressure Level (dB(A)) | 91 |
| Maximum Tip Size (in) | 0.065 |
| Maximum Tip Size 1 Gun (in) | 0.053 |
| Maximum Working Pressure (MPa) | 50 |
| Maximum Working Pressure (psi) | 7250 |
| Model | GH |
| Motor Type | Hydraulic Motor |
| Number of Guns | 1 |
| Outlet Paint Filter | Easy Out |
| Power Rating (HP) | 13.0 |
| Power Rating (W) | 9694 |
| Power Rating (kW) | 9.69 |
| Power Source | Gas Hydraulic |
| Pressure Control Type | Pressure Control Knob |
| Product Type | Single Leg |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Type | Xtreme |
| Series | 933ES |
| Type | Airless Sprayer |
| Weight (lb) | 438 |
| Compatible Material | Acrylics, Block Filler, Coal Tar, Contact Cement, Enamel, Elastomerics, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Intumescent, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Primer, Polyester, Polyurethane, Texture Mud, Waterproofing |
| Compatible Replacement Pump | 16U755 |
| Construction | Carbide, Leather, Nitralloy, PTFE, Polyethylene, Stainless Steel, Tungsten |
| Control Type | N/A |
| Engine Brand | Honda |
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Size (mm) | 31.75 |
| Fluid Inlet Thread Type | MNPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Size (mm) | 19.05 |
| Fluid Outlet Thread Type | NPSF |
| Frame Configuration | Cart |
| Includes | XTR-7 Airless Spray Gun, XHD RAC 519 Spray Tip, XHD RAC Guard, 3/8 in x 50 ft Xtreme-Duty Airless Hose, 1/4 in x 6 ft Xtreme-Duty Airless Whip Hose |
| Material Application | Paints, Primers |
| Maximum Flow Rate (L/min) | 9.5 |
| Maximum Hose Length (m) | 15 |
| Maximum Sound Pressure Level (dB(A)) | 91 |
| Maximum Tip Size (in) | 0.065 |
| Maximum Tip Size 1 Gun (in) | 0.053 |
| Maximum Working Pressure (MPa) | 50 |
| Maximum Working Pressure (bar) | 500 |
| Maximum Working Pressure (kPa) | 50000 |
| Maximum Working Pressure (psi) | 7250 |
| Model | GH |
| Motor Type | Hydraulic Motor |
| Number of Guns | 1 |
| Outlet Paint Filter | Easy Out |
| Power Rating (W) | 9694 |
| Power Rating (cc) | 390 |
| Power Rating (kW) | 9.69 |
| Power Source | Gas Hydraulic |
| Pressure Control Type | Pressure Control Knob |
| Product Type | Single Leg |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Type | Xtreme |
| Series | 933ES |
| Type | Airless Sprayer |
| Weight (kg) | 199 |
