Classic 390 PC

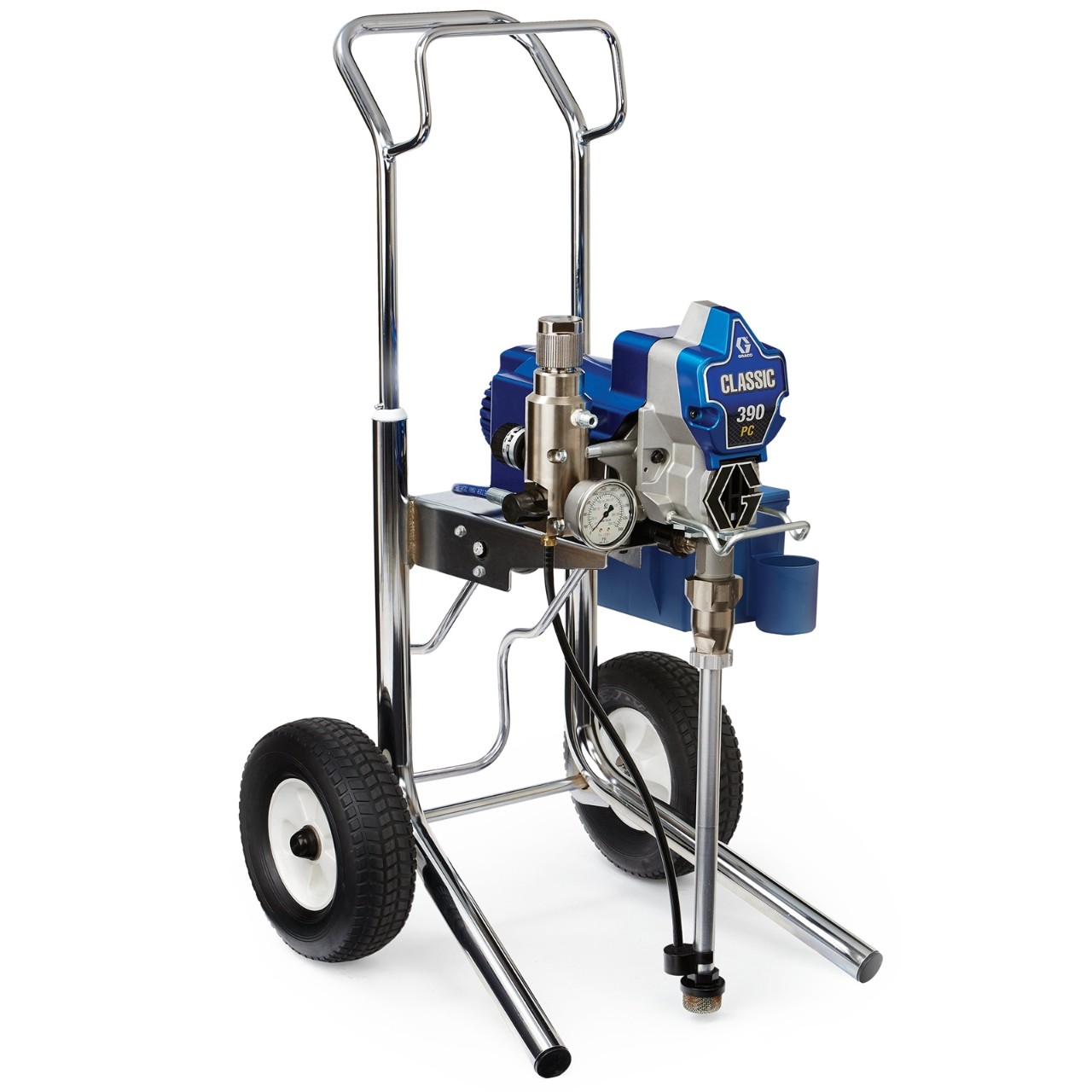

Classic 390 PC Electric Airless Sprayer, Hi-Boy, 230V, CE
Part Number: 17C349
Classic 390 PC
Classic 390 PC Electric Airless Sprayer, Hi-Boy, 230V, CE
Part Number: 17C349
The CLASSIC 390 PC Hi-Boy is a solid workhorse built for the professional just “starting out.” Durable and portable, it's easy to move on and off the jobsite. The CLASSIC 390 PC is the ideal sprayer for residential jobs, and is the best value in small electric sprayers.
Features
Product Brochure
The CLASSIC 390 PC Hi-Boy is a solid workhorse built for the professional just “starting out.” Durable and portable, it's easy to move on and off the jobsite. The CLASSIC 390 PC is the ideal sprayer for residential jobs, and is the best value in small electric sprayers.
The ideal sprayer for residential jobs and the best value in small electric sprayers.
- Durable Endurance Chromex Piston Pump
- Lasts 2X longer than the next leading brand
- Long Life V-Max Blue Packings, Chromex rod and hardened stainless steel cylinder
- Faster cleaning with the QuikAccess intake valve
- Advantage Drive
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation .y
- ProConnect One-Part Pump Replacement System
- Eliminate costly downtime
- Pump swaps in minutes – no tools, pins or parts to lose
- Easy Out Pump Filter
- Easy maintenance & less clogging
- Exclusive inside-out filtering process ensures a quality finish
- Rugged Steel Frame
- Thick chrome over steel withstands rugged environments
- Heavy-duty handles and semi-pneumatic wheels roll easily over rough terrain
- Variable Pressure Control
- Position indicator allows repeatable setting
- Durable Cart Design
- Withstands rugged environments
- Design allows for easy, one-person bucket changes
- Retractable handle doubles as hose storage
- Proguard
- Sprayer Protection System
- Guards against bad or extreme job site power conditions
- 230V models only
- Optional
- Hopper
- A convenient 5.7 litre hopper, compatible with all Classic & STMAX units
- Avoid pollution of material, extending pump life
- Delivering increased pump efficiency by material gravity
- Optional
- All Units Ship Complete And Ready To Spray
- FTX-E 4-Finger Airless Spray Gun
- RAC X 517 Spray Tip and Guard
- 1/4 in. x 15 m BlueMax II Airless Hose
Specifications & Documents
Technical Specifications
Convert to Imperial| Compatible Material | Primers, Stains, Acrylics, Enamel, Latex, Interior Paint, Exterior Paint |
|---|---|
| Compatible Replacement Pump | 17C489 |
| Convertible | Non-Convertible |
| Engine Size (HP) | 0.625 |
| Engine Size (kW) | 0.47 |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50 |
| Hose Diameter (in) | 1/4 |
| Hose Inlet Diameter (in) | 1/4 |
| Includes | FTX-E 4-Finger Gun, Filters (Gun + Manifold), BlueMax II Hose 1/4 in. x 15 m, RAC X Tip and Guard |
| Maximum Flow Rate (GPM) | 0.47 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (ft) | 50 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Tip Size 1 Gun (in) | 0.021 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 3000 |
| Minimum generator power (kW) | 0 |
| Model | Classic |
| Motor Type | TEFC DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 28.25 |
| Overall Length (in) | 23.25 |
| Overall Width (in) | 20.5 |
| Phase | 1 |
| Power Rating (HP) | 0.625 |
| Power Rating (kW) | 0.46 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 1.0 |
| Pump Mount Type | ProConnect |
| Pump Type | Endurance |
| Series | 390 PC |
| Spray Gun Type | FTX gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Volume per Cycle (cycles/gal) | 700 |
| Weight (lb) | 69 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane |
| Compatible Material | Primers, Stains, Acrylics, Enamel, Latex, Interior Paint, Exterior Paint |
| Compatible Replacement Pump | 17C489 |
| Convertible | Non-Convertible |
| Engine Size (kW) | 0.47 |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50 |
| Hose Diameter (in) | 1/4 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | FTX-E 4-Finger Gun, Filters (Gun + Manifold), BlueMax II Hose 1/4 in. x 15 m, RAC X Tip and Guard |
| Maximum Flow Rate (L/min) | 1.8 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (m) | 15 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Tip Size 1 Gun (in) | 0.021 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (kg/cm²) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 3000 |
| Minimum generator power (kW) | 0 |
| Model | Classic |
| Motor Type | TEFC DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 72 |
| Overall Height (mm) | 717.5500 |
| Overall Length (cm) | 59 |
| Overall Length (mm) | 590.55 |
| Overall Width (cm) | 52 |
| Overall Width (mm) | 520.7000 |
| Phase | 1 |
| Power Rating (kW) | 0.46 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 1.0 |
| Pump Mount Type | ProConnect |
| Pump Type | Endurance |
| Region plug type | EU region (type C, E & F plug) |
| Series | 390 PC |
| Spray Gun Type | FTX gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Volume per Cycle (cycles/gal) | 700 |
| Weight (kg) | 31 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane |
Product Manuals
Sales Literature
Certifications
Repair Parts
| Part No. | Description |
|---|---|
| 119688 | FUSE, 10 AMP, TIME LAG, 5 X 20 |
| 288438 | GUN, FTX, LP (517), PACKAGED |
| 240794 | BlueMax II Airless Hose, 1/4 in. x 15 m (50 ft) |
| 24X290 | KIT, CONTROL, PRESSURE, 230V, 3300PSI |
| 253369 | KIT, REPAIR, CORD, POWER, CEE |
| 246382 | Easy Out Pump Manifold Filter, Short, 100 mesh |
| 246425 | Easy Out Pump Manifold Filter, Short, 30 mesh |
| 17C799 | KIT, REPAIR, ST MOT, 240V, W/FAN |
| 235004 | Inlet Strainer, Nylon Cap, 3/4 inch |
| 16X295 | KIT,REPAIR,BOARD,CONTROL,230V |
| 17C795 | KIT,REPAIR,FAN,ROLLER CLUTCH |
| 246383 | Easy Out Pump Manifold Filter, Short, 200 mesh |
| 17C949 | TUBE, SUCTION, INTAKE |
