Triton 308
Triton Alum Spray Package, Cart, 60 psi Regulator, Suction, Air & Fluid Hoses, Stellair Compliant Gun .055 in (1.4 mm) Nozzle for Metal
Part Number: 234915
Video Player is loading.
Video Player is loading.

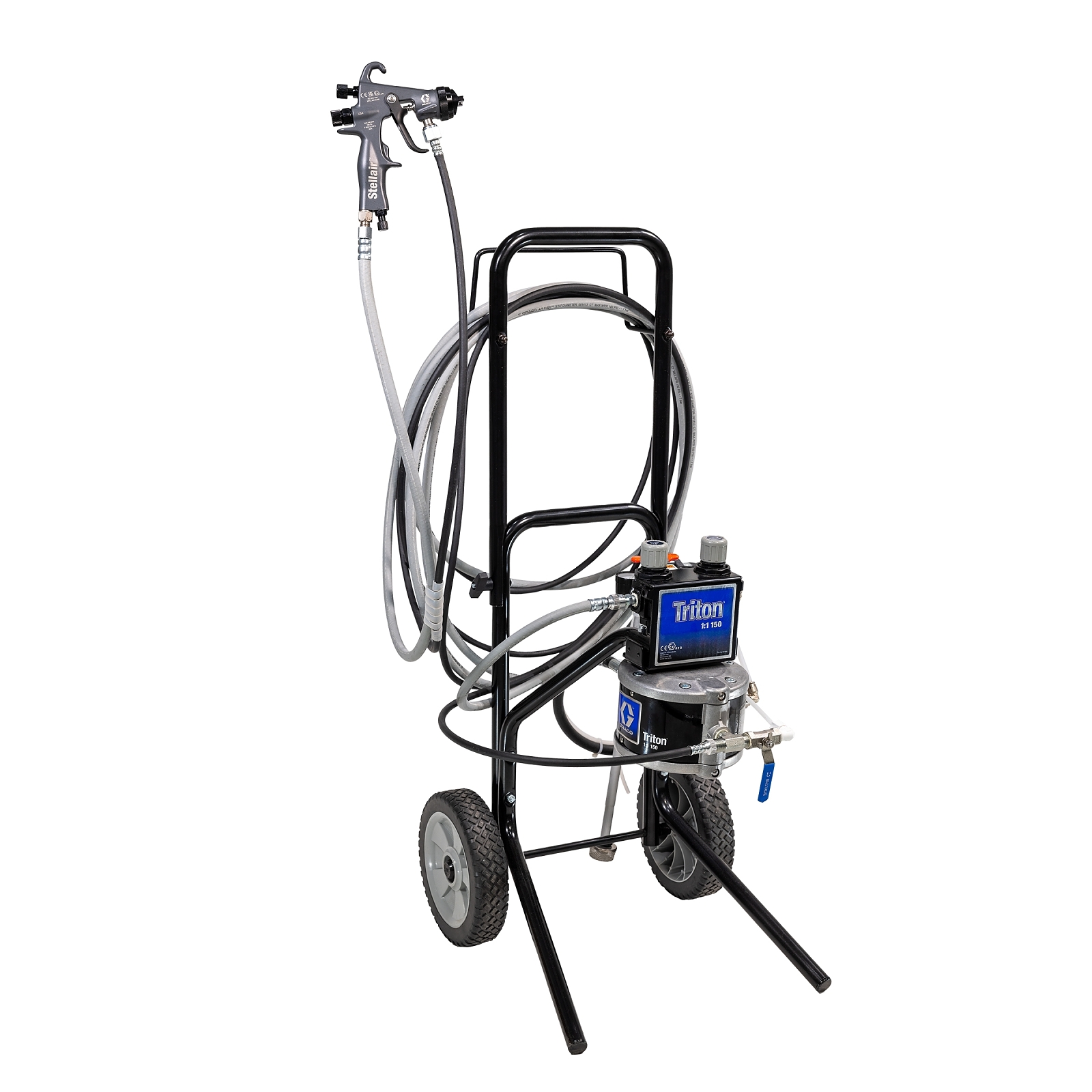

Image is for illustrative purposes only.
Triton 308
Triton Alum Spray Package, Cart, 60 psi Regulator, Suction, Air & Fluid Hoses, Stellair Compliant Gun .055 in (1.4 mm) Nozzle for Metal
Part Number: 234915
Triton air operated diaphragm pump with Stellair air spray gun brings affordable, fine finish spraying to wood and metal applications.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Triton air operated diaphragm pump with Stellair air spray gun brings affordable, fine finish spraying to wood and metal applications.
- Effective alternative to traditional pressure pots and standard diaphragm pumps saves material and time during flushing, priming and color changes.
- Triton® air operated pump produces 30 percent more pumping power and 50 percent less pressure pulsation than standard diaphragm pumps.
- Rugged, aluminum pump handles a wide variety of fluids.
- Delivers a consistent spray pattern and uniform film thickness
- Compliant air spray reduces bounce back and overspray, while delivering high finish quality and transfer efficiency.
Specifications & Documents
Technical Specifications
Convert to Metric| Application | Metal |
|---|---|
| Compatible Material | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers |
| Feed Type | Suction Hose |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | Stellair |
| Gun Technology | Compliant |
| Gun Type | Air Spray |
| Includes | 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Working Pressure (psi) | 100 |
| Model | Triton |
| Mount Location | Cart Mount |
| Mount Type | Cart Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Air-Powered |
| Sprayer Type | Air Spray |
| Technology Type | Compliant |
| Type | Air-Powered Sprayer |
| Weight (lb) | 29.98 |
| Application | Metal |
| Compatible Material | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers |
| Feed Type | Suction Hose |
| Fluid Inlet Size (cm) | 1.905 |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Size (mm) | 19.05 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 0.9525 |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Size (mm) | 9.525 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | Stellair |
| Gun Technology | Compliant |
| Gun Type | Air Spray |
| Includes | 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (L/min) | 32 |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (kPa) | 700 |
| Maximum Working Pressure (kg/cm²) | 7.03 |
| Maximum Working Pressure (psi) | 100 |
| Model | Triton |
| Mount Location | Cart Mount |
| Mount Type | Cart Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Air-Powered |
| Sprayer Type | Air Spray |
| Technology Type | Compliant |
| Type | Air-Powered Sprayer |
| Weight (kg) | 13.6 |
Product Manuals
CAD Drawings
233480-3D-EN.zip
(8 MB)
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
Repair Parts
| Part No. | Description |
|---|---|
| 233501 | Triton Air-Operated Diaphragm Pump, Bare, SST, NPT |
| 233500 | Triton Air-Operated Diaphragm Pump, Bare, Aluminum, NPT |
| 245081 | SST Pail Agitator Kit for Triton Packages |
| 24A155 | Shaft and Bearing Repair Kit- for Triton 308 Diaphragm Pumps |
| 245067 | Triton 3D 150 Acetal Balls and Stainless Seats Kit |
| 245083 | Suction Hose, Stainless Steel, 4 ft (1.2 m), for 5 Gallon (18.9 L) Pail |
| 245082 | Suction Hose, Aluminum, 4 ft (1.2 m), for 5 Gallon (18.9 L) Pail |
| 245084 | Suction Hose, Aluminum, 6 ft (1.8 m), with acetal bung adapter for 55 gal (200 l) drum |
| 245066 | Triton 3D 150 Air Valve Repair Kit |
| 245065 | PTFE Diaphragm Repair Kit for Triton 308 |
| 245085 | Suction Hose, Stainless Steel, 6 ft (1.8 m), with acetal bung adapter for 55 gal (200 l) drum |
