GX 21 Cordless
GX 21 Cordless Airless Sprayer, 230V, CEE
Part Number: 25T967
GX 21 Cordless
GX 21 Cordless Airless Sprayer, 230V, CEE
Part Number: 25T967
The GX 21 cordless is an airless sprayer for professional residential repainting, new-build and small fine-finish jobs. This compact and lightweight unit can handle both water-based and solvent-based materials. Cordless means efficiency and flexibility - no more searching for a power outlet and one ...
More Info
Features
Product Brochure
The GX 21 cordless is an airless sprayer for professional residential repainting, new-build and small fine-finish jobs. This compact and lightweight unit can handle both water-based and solvent-based materials. Cordless means efficiency and flexibility - no more searching for a power outlet and one less cable on the floor. Arrive at the site, take the unit out, fill it with paint and start spraying.
The FIRST high-performance cordless paint sprayer - up to 207 bar/3000 psi with 0.021 inch max tip. Sprays up to 11.5 litres on a single battery charge — two batteries included for all day spraying. Expanded application capability to spray anywhere!
- Benefits you’ll appreciate on every job
- Set up where you want, instead of where the power is located
- Consistent, all-day spraying power without power fluctuations
- Deliver perfect airless finishes with extended runtime and RAC X Low Pressure SwitchTips
- Eliminate competing for power with other trades
- Stop wasting time dealing with long extension cords
- Lightest weight makes it easier to move and transport
- Experience quiet job sites with battery power instead of using noisy generators
- Powered by DEWALT®

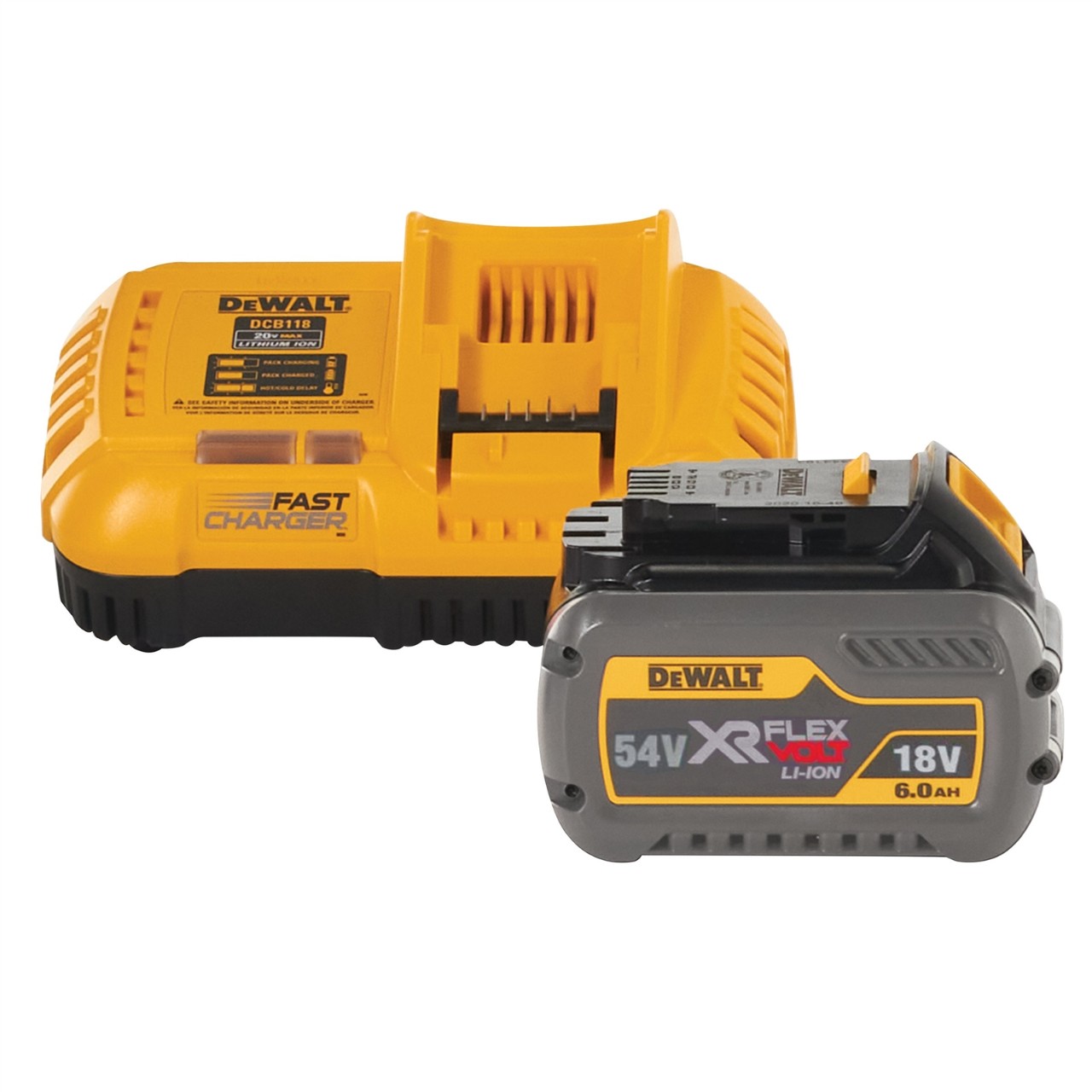

- high-capacity 6ah FLEXVOLT batteries - spray up to 11.5 litres per battery charge
- Delivered complete with two batteries
- Fan-cooled fast charger - recharges battery in under 60 minutes
- Brushless DC motor
- Powerful brushless DC motor provides extended battery run time
- Lightweight, compact design allows for increased portability
- Extremely Portable
- Lighter than any competitive system
- Easy Carry Handle makes transportation easy
- Lid prevents splashes and spills while carrying
- Direct immersion design
- Draws paint directly from paint buckets
- Flexible, clear suction set is easy to use and clean.
- Spray water-based or solvent-based paints directly from containers from 1 - 30 litres.
- ProX Power Piston Pump featuring ProXChange
- Small deadband pressure ensures the finest finish possible
- Exceptional durability and long-life piston pump
- Exclusive lifetime lubricated wiper pad for maintenance free operation
- Modular pump components for easy maintenance
- Fast and easy on-the-job pump replacement - no tools needed
- Eliminate labour costs and downtime expenses
- Professional SG3 Gun
- Includes 2 RAC X tips, 15 m hose
- RAC X Low Pressure (LP) SwitchTip
- Spray at lower pressure for extended battery runtime, less overspray, longest tip life
Specifications & Documents
Technical Specifications
Convert to Imperial| Battery Capacity (Ah) | 6 |
|---|---|
| Battery Chemistry | Lithium-ion |
| Battery Voltage (V) | 54 |
| Compatible Material | Primer, Stains, Water-Based Paint, Acrylics, Enamel, Latex |
| Compatible Replacement Pump | 24Y472 |
| Convertible | Non-Convertible |
| Engine Size (HP) | 0.500 |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | DI stand |
| Frequency (Hz) | 50 |
| Gun Included | 1 |
| Hose Diameter (in) | 1/4 |
| Hose Inlet Diameter (in) | 1/4 |
| Includes | SG3 spray gun with four-finger trigger, 60-mesh gun filter, RAC X LP 515 and FFLP 310 spray tip, RAC X guard, 1/4 in x 15 m Duraflex hose, 2 - DEWALT 18V/54V MAX FLEXVOLT 6ah lithium-ion batteries, DEWALT fan-cooled fast charger |
| Maximum Flow Rate (GPM) | 0.47 |
| Maximum Fluid Working Pressure (psi) | 3000 |
| Maximum Hose Length (ft) | 50 |
| Maximum Operating Temperature (°F) | 115 |
| Maximum Sound Pressure Level (dB(A)) | 83 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Tip Size 1 Gun (in) | 0.021 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Operating Temperature (°F) | 40 |
| Model | GX |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 22 |
| Overall Length (in) | 18.4 |
| Overall Width (in) | 12 |
| Phase | 1 |
| Power Source | Battery-Powered |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Carbon Steel |
| Pump Type | ProX Piston Pump |
| Series | 21 Cordless |
| Spray Gun Type | SG3 - spray gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Weight (lb) | 28 |
| Wetted Material | Stainless Steel, Brass, Leather, UHMWPE, Carbide, Nylon, Aluminium, PVC, Polypropylene, Fluoroelastomer |
| Battery Capacity (Ah) | 6 |
| Battery Chemistry | Lithium-ion |
| Battery Voltage (V) | 54 |
| Compatible Material | Primer, Stains, Water-Based Paint, Acrylics, Enamel, Latex |
| Compatible Replacement Pump | 24Y472 |
| Convertible | Non-Convertible |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | DI stand |
| Frequency (Hz) | 50 |
| Gun Included | 1 |
| Hose Diameter (in) | 1/4 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | SG3 spray gun with four-finger trigger, 60-mesh gun filter, RAC X LP 515 and FFLP 310 spray tip, RAC X guard, 1/4 in x 15 m Duraflex hose, 2 - DEWALT 18V/54V MAX FLEXVOLT 6ah lithium-ion batteries, DEWALT fan-cooled fast charger |
| Maximum Flow Rate (L/min) | 1.8 |
| Maximum Fluid Working Pressure (psi) | 3000 |
| Maximum Hose Length (m) | 15 |
| Maximum Operating Temperature (°C) | 46 |
| Maximum Sound Pressure Level (dB(A)) | 83 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Tip Size 1 Gun (in) | 0.021 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (kg/cm²) | 210.9 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Operating Temperature (°C) | 4 |
| Model | GX |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 55.9 |
| Overall Height (mm) | 558.8000 |
| Overall Length (cm) | 46.7 |
| Overall Length (mm) | 467.36 |
| Overall Width (cm) | 30.5 |
| Overall Width (mm) | 304.8000 |
| Phase | 1 |
| Power Source | Battery-Powered |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Carbon Steel |
| Pump Type | ProX Piston Pump |
| Region plug type | EU region (type C, E & F plug) |
| Series | 21 Cordless |
| Spray Gun Type | SG3 - spray gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Weight (kg) | 12.8 |
| Wetted Material | Stainless Steel, Brass, Leather, UHMWPE, Carbide, Nylon, Aluminium, PVC, Polypropylene, Fluoroelastomer |
Product Manuals
3A8429B, GX19, GX FF, GX21 Cordless Electric Airless Sprayers, Operation, Parts, English
(237 KB)
(English Only)
