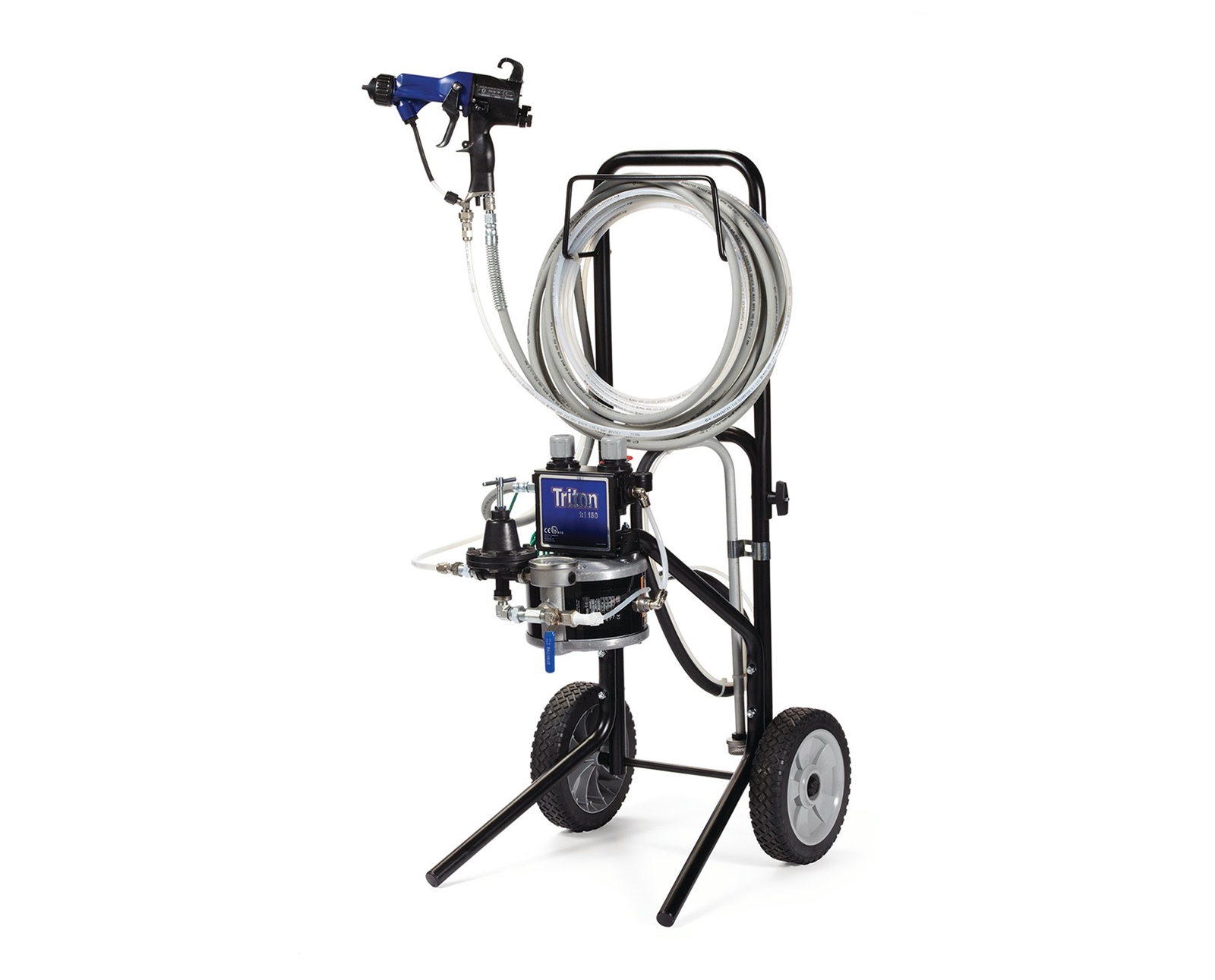

Triton 308
Triton Alum Spray Package, Cart, 60 psi Fluid Regulator, Pro Xp60 Electrostatic Gun, Suction, Air & Fluid Hoses
Part Number: 233747
Image is for illustrative purposes only.
Triton 308
Triton Alum Spray Package, Cart, 60 psi Fluid Regulator, Pro Xp60 Electrostatic Gun, Suction, Air & Fluid Hoses
Part Number: 233747
Triton® air operated diaphragm pump with Pro XpTM electrostatic air spray gun brings affordable, fine finish spraying to wood and metal applications.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Triton® air operated diaphragm pump with Pro XpTM electrostatic air spray gun brings affordable, fine finish spraying to wood and metal applications.
- Effective alternative to traditional pressure pots and standard diaphragm pumps saves material and time during flushing, priming and color changes.
- Triton® air operated pump produces 30 percent more pumping power and 50 percent less pressure pulsation than standard diaphragm pumps.
- Rugged, aluminum pump handles a wide variety of fluids.

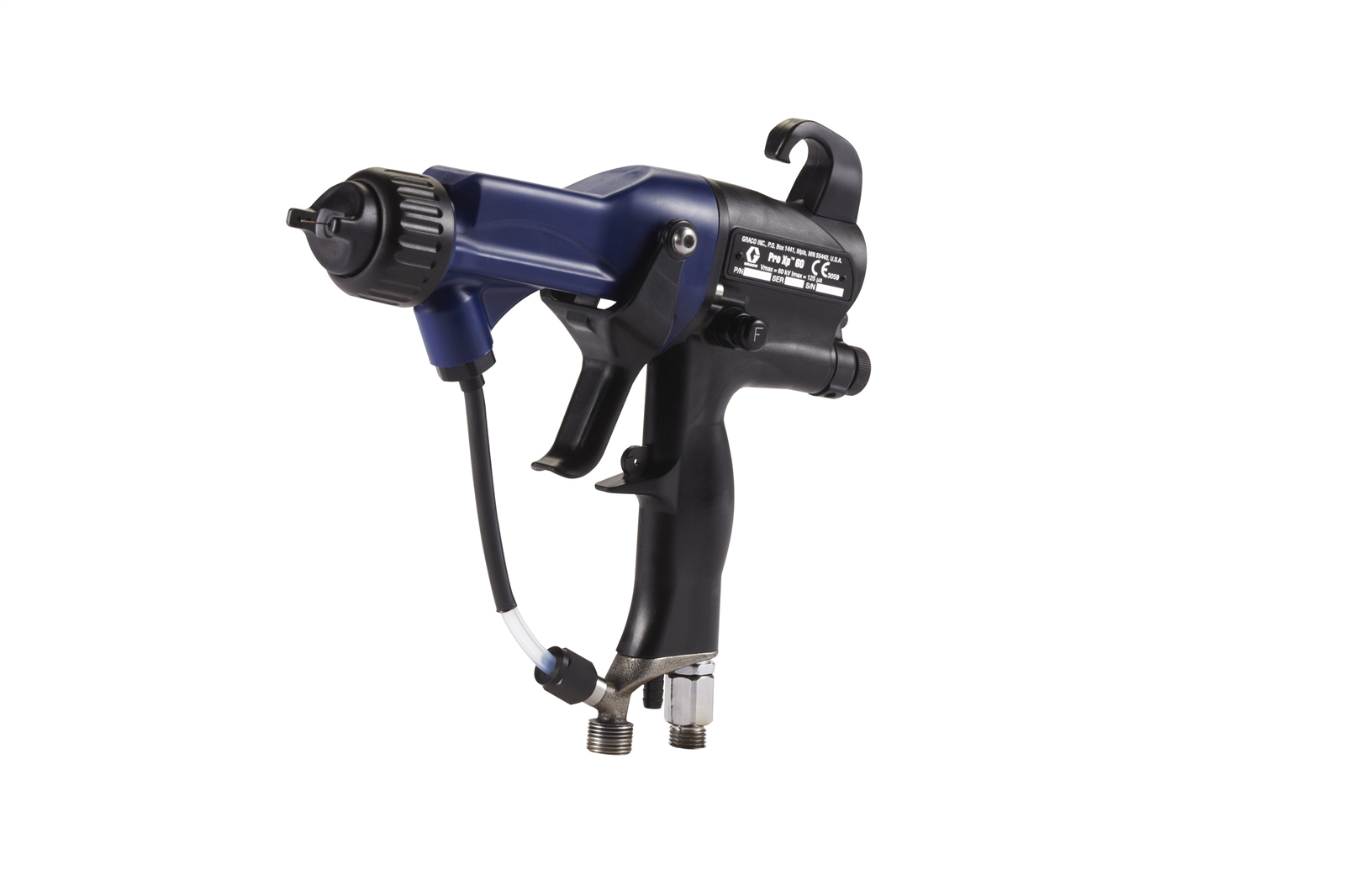

- Pro Xp electrostatic air spray gun delivers high transfer efficiency when spraying standard or specialty coatings.
- With a maximum voltage output of 60 kV, the electrostatic applicator meets strict requirements for spray pattern, mechanical and electrical performance.
Specifications & Documents
Technical Specifications
Convert to Metric| Application | Metal |
|---|---|
| Compatible Material | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers |
| Feed Type | Suction Hose |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | Pro Xp 60 kV Standard |
| Gun Technology | Electrostatic |
| Gun Type | Electrostatic |
| Includes | 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Working Pressure (psi) | 100 |
| Model | Triton |
| Mount Location | Cart Mount |
| Mount Type | Cart Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Electrostatic |
| Sprayer Type | Air Spray Electrostatic |
| Technology Type | Air Spray |
| Type | Air-Powered Sprayer |
| Weight (lb) | 29.98 |
| Application | Metal |
| Compatible Material | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers |
| Feed Type | Suction Hose |
| Fluid Inlet Size (cm) | 1.905 |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Size (mm) | 19.05 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 0.9525 |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Size (mm) | 9.525 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | Pro Xp 60 kV Standard |
| Gun Technology | Electrostatic |
| Gun Type | Electrostatic |
| Includes | 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (L/min) | 32 |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (kPa) | 700 |
| Maximum Working Pressure (kg/cm²) | 7.03 |
| Maximum Working Pressure (psi) | 100 |
| Model | Triton |
| Mount Location | Cart Mount |
| Mount Type | Cart Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Electrostatic |
| Sprayer Type | Air Spray Electrostatic |
| Technology Type | Air Spray |
| Type | Air-Powered Sprayer |
| Weight (kg) | 13.6 |
Product Manuals
CAD Drawings
233480-3D-EN.zip
(8 MB)
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
Repair Parts
| Part No. | Description |
|---|---|
| 233500 | Triton Air-Operated Diaphragm Pump, Bare, Aluminum, NPT |
| 245066 | Triton 3D 150 Air Valve Repair Kit |
| 245083 | Suction Hose, Stainless Steel, 4 ft (1.2 m), for 5 Gallon (18.9 L) Pail |
| 245084 | Suction Hose, Aluminum, 6 ft (1.8 m), with acetal bung adapter for 55 gal (200 l) drum |
| 233501 | Triton Air-Operated Diaphragm Pump, Bare, SST, NPT |
| 245082 | Suction Hose, Aluminum, 4 ft (1.2 m), for 5 Gallon (18.9 L) Pail |
| 245085 | Suction Hose, Stainless Steel, 6 ft (1.8 m), with acetal bung adapter for 55 gal (200 l) drum |
| 24A155 | Shaft and Bearing Repair Kit- for Triton 308 Diaphragm Pumps |
| 245065 | PTFE Diaphragm Repair Kit for Triton 308 |
| 245067 | Triton 3D 150 Acetal Balls and Stainless Seats Kit |
| 245081 | SST Pail Agitator Kit for Triton Packages |
