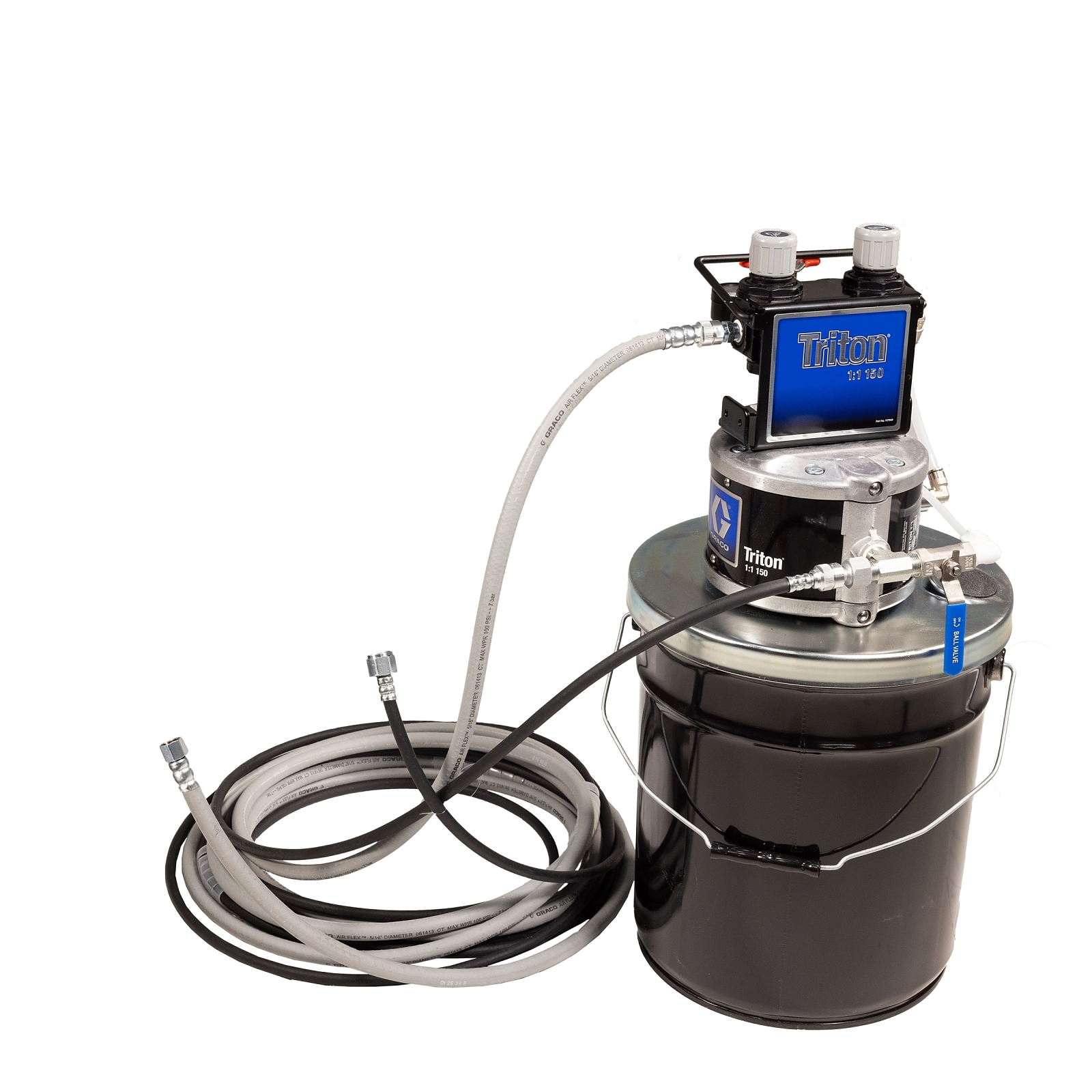

Triton 308
Triton Stainless Steel Pump Package, pail mount with suction hose. Does not include applicator.
Part Number: 233467
Image is for illustrative purposes only.
Triton 308
Triton Stainless Steel Pump Package, pail mount with suction hose. Does not include applicator.
Part Number: 233467
Air operated diaphragm spray package brings affordable, fine finish spraying to wood and metal applications.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Air operated diaphragm spray package brings affordable, fine finish spraying to wood and metal applications.
- Effective alternative to traditional pressure pots and standard diaphragm pumps saves material and time during flushing, priming and color changes.
- Triton® air operated pump produces 30 percent more pumping power and 50 percent less pressure pulsation than standard diaphragm pumps.
- Rugged, stainless steel pump handles a wide variety of fluids.
- Delivers a consistent spray pattern and uniform film thickness
- Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers, Waterborne |
|---|---|
| Feed Type | Suction Hose |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 0 |
| Gun Model | No Applicator |
| Gun Technology | Bare Package |
| Gun Type | No Applicator |
| Includes | Suction Hose |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Working Pressure (psi) | 100 |
| Model | Triton |
| Mount Location | Pail Mount |
| Mount Type | Pail Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Bare Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Air-Powered |
| Sprayer Type | Air Spray |
| Type | Air-Powered Sprayer |
| Weight (lb) | 28 |
| Compatible Material | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers, Waterborne |
| Feed Type | Suction Hose |
| Fluid Inlet Size (cm) | 1.905 |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Size (mm) | 19.05 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 0.9525 |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Size (mm) | 9.525 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 0 |
| Gun Model | No Applicator |
| Gun Technology | Bare Package |
| Gun Type | No Applicator |
| Includes | Suction Hose |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (L/min) | 32 |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (kPa) | 700 |
| Maximum Working Pressure (psi) | 100 |
| Model | Triton |
| Mount Location | Pail Mount |
| Mount Type | Pail Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Bare Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Air-Powered |
| Sprayer Type | Air Spray |
| Type | Air-Powered Sprayer |
| Weight (kg) | 12.7 |
Product Manuals
CAD Drawings
233466-3D-EN.zip
(3 MB)
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
