WB100

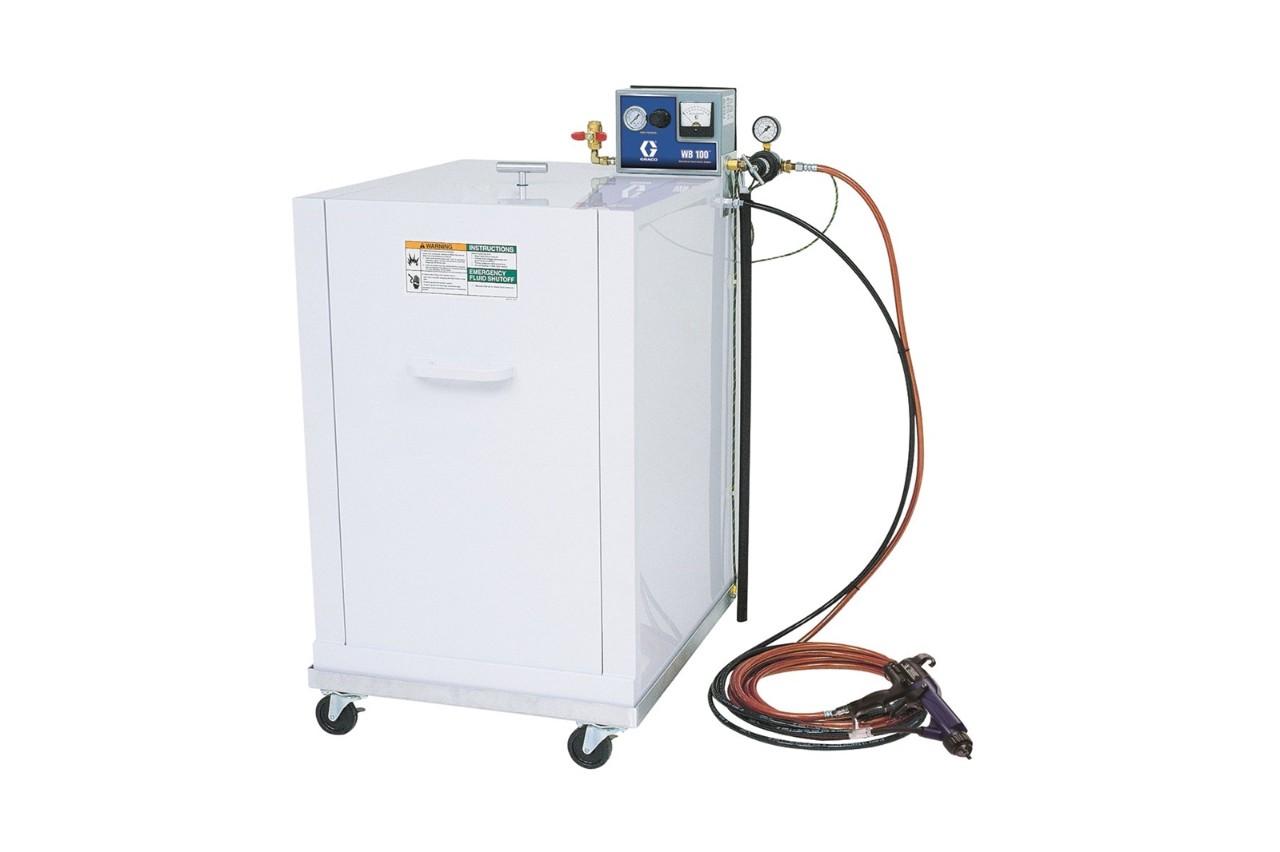

WB100 Waterborne Iso Enclosure, Pro Xp60 WB ES AS Gun, Grounded Air/Shielded WB Fluid Hoses, FM Approved
Part Number: 24N580
Image is for illustrative purposes only.
WB100
WB100 Waterborne Iso Enclosure, Pro Xp60 WB ES AS Gun, Grounded Air/Shielded WB Fluid Hoses, FM Approved
Part Number: 24N580
The Graco WB100 is the dependable way to isolate waterborne coatings when spraying with electrostatic equipment. Ideal for spray booth systems.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Graco WB100 is the dependable way to isolate waterborne coatings when spraying with electrostatic equipment. Ideal for spray booth systems.

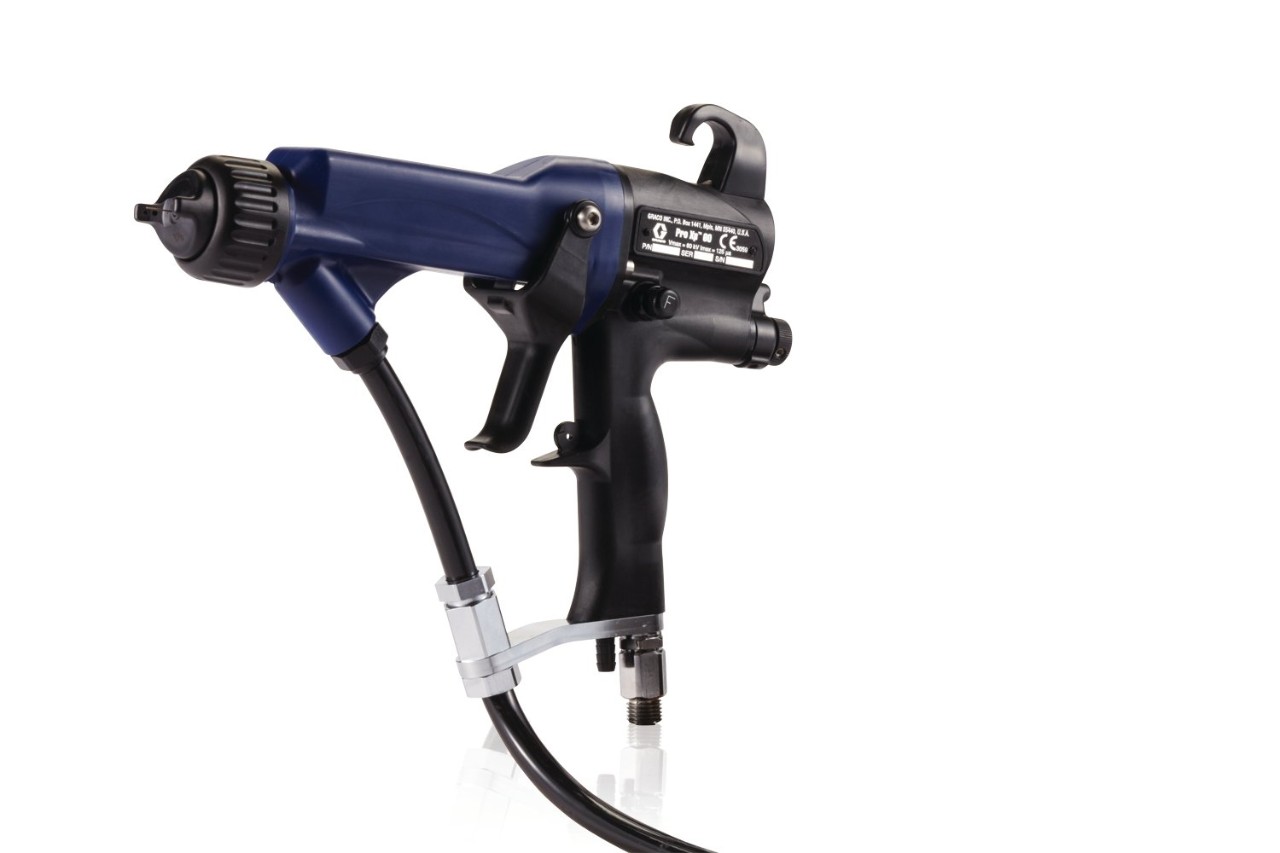

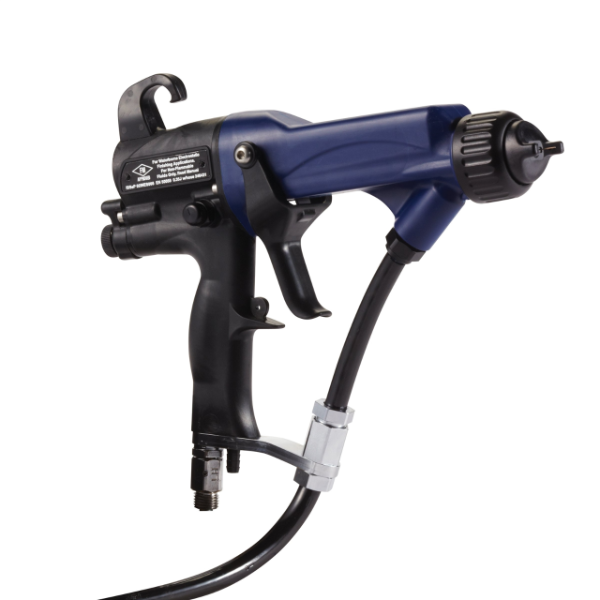

- Ideal for low pressure waterborne material spraying with the Pro Xp60 WB gun for a superior finish quality and operator comfort
- Triton 1:1 150 Series pump delivers a consistent spray pattern and uniform film thickness
- Standard voltage display allows for easy monitoring of voltage for overall performance
- Simple 5 gallon (19 l) pail design is easy to color change and flush the system
- Electrostatic gun Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier
- Portable cabinet increases mobility for a wide variety of applications
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Waterborne, Single Components |
|---|---|
| Construction | Stainless Steel, Nylon, Acetal, UHMWPE, Fluoroelastomer, PEEK, Tungsten, Polyethylene, PTFE |
| Feed Type | Suction Hose |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | Waterborne |
| Gun Technology | Electrostatic |
| Gun Type | Electrostatic |
| Includes | Standard Electrostatic Air Spray Gun, Shielded Waterborne Fluid Hose |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Hose Length (ft) | 100 |
| Maximum Working Pressure (psi) | 100 |
| Model | WB100 |
| Mount Location | Cart Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Spray Type | Air Spray |
| Sprayer Type | Air Spray |
| Technology Type | Air Spray |
| Type | Air-Powered Sprayer |
| Compatible Material | Waterborne, Single Components |
| Construction | Stainless Steel, Nylon, Acetal, UHMWPE, Fluoroelastomer, PEEK, Tungsten, Polyethylene, PTFE |
| Feed Type | Suction Hose |
| Fluid Inlet Size (cm) | 1.905 |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Size (mm) | 19.05 |
| Fluid Inlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | Waterborne |
| Gun Technology | Electrostatic |
| Gun Type | Electrostatic |
| Includes | Standard Electrostatic Air Spray Gun, Shielded Waterborne Fluid Hose |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (L/min) | 32 |
| Maximum Hose Length (m) | 30.0 |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (kPa) | 700 |
| Maximum Working Pressure (psi) | 100 |
| Model | WB100 |
| Mount Location | Cart Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Spray Type | Air Spray |
| Sprayer Type | Air Spray |
| Technology Type | Air Spray |
| Type | Air-Powered Sprayer |
Product Manuals
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
Repair Parts
| Part No. | Description |
|---|---|
| 24N790 | Fluid Seal Repair Kit |
| 24N633 | Plastic Trigger Kit |
| 24N664 | Turbine Assembly Kit |
| 24N789 | Air Seal Repair Kit |
| 24N727 | Air Cap Assembly Kit for Pro Xp Air-Assisted Gun |
| 24N706 | Bearing Replacement Kit for Pro Xp™ Electrostatic Air Spray Gun |
| 24N756 | Smart Module Assembly Kit |
| 24N655 | 85 kV Packing Rod Assembly |
