DutyMax HD GH 230

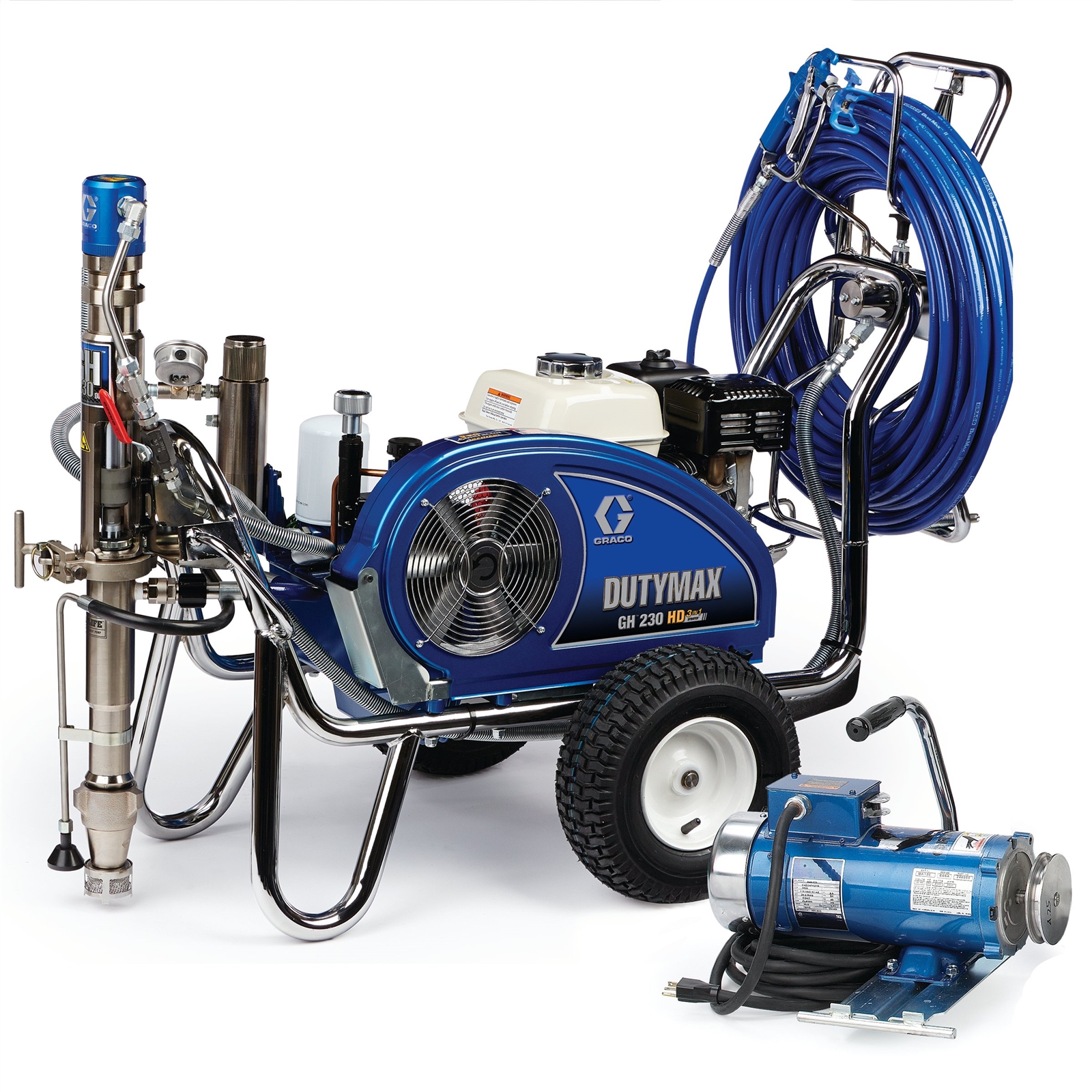

DutyMax GH 230 HD 3-in-1 ProContractor Series Convertible Gas Hydraulic Airless Sprayer with Electric Motor Kit
Part Number: 24W963
DutyMax HD GH 230
DutyMax GH 230 HD 3-in-1 ProContractor Series Convertible Gas Hydraulic Airless Sprayer with Electric Motor Kit
Part Number: 24W963
When your job requires maximum productivity and versatility, turn to the DutyMax GH 230 HD sprayer to get the job done—fast! Equipped with a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
When your job requires maximum productivity and versatility, turn to the DutyMax GH 230 HD sprayer to get the job done—fast! Equipped with a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.
With features that enable you to work more efficiently and finish jobs faster, DutyMax HD ProContractor Series gas hydraulic airless sprayers spray a wide range of materials – from latex and acrylics to more heavy duty materials like plasters, elastomerics, fire retardants and liquid roofing solutions.
- Extreme-Duty Endurance MaxLife Pump
- Lasts 6X longer between repacks
- Better spraying performance and fast cleaning
- Long Life ceramic and stainless steel balls included for maximum versatility
- MaxFlo 2 with Pack-Out Protection
- Less Pack-Out, More Productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- High-Efficiency Hydraulic Motor
- Finish Jobs Faster
- Fast, responsive changeover
- Less maintenance and longer life with fewer moving parts
- 100% O-ring sealed fittings prevent leaks
- High-Capacity Cooling System
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently with extremely quiet operation
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
- Honda® GX Engine
- Reliable, Powerful & Easy-to-Start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- ProConnect 2 One-Part Pump Replacement System
- Eliminate Costly Downtime
- Swap your pump in less than 1 minute – with no tools, pins or parts to lose
- QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- Crushproof Inlet Strainer
- Improved Filtration
- Stands up to harsh impacts
- Electric Motor Kit
- Indoor & Outdoor Use
- Quickly swap the gas engine for an electric motor in seconds, without tools
- Additional Features
- Easy Out Pump Filter
- Heavy-Duty Prime Valve
- Durable Cart Design
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Electric Motor Kits | 248949, 248950 (CSA) |
|---|---|
| Compatible Material | Acrylics, Coating, Drywall Mud, Elastomer, Enamel, Epoxies, Latex |
| Construction | Acetal, Aluminum, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Convertible | Yes |
| Engine Brand | Honda |
| Engine Size (HP) | 6.5 |
| Features | Extreme-Duty MaxLife Pump, MaxFlo 2, High-Capacity Cooling System, Honda Engine, ProConnect 2, QuikReel, Crushproof Inlet Strainer, Convertible, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design |
| Fluid Inlet Size (in) | 1-5/16 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Frame Configuration | Cart |
| Hose Reel Type | QuikReel |
| Includes | Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 100 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose, Electric Motor Kit, TSL 4 oz |
| Material Application | Paints, Primers |
| Maximum Flow Rate (GPM) | 2.35 |
| Maximum Hose Length (ft) | 100 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Tip Size (in) | 0.053 |
| Maximum Tip Size 1 Gun (in) | 0.053 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Model | DutyMax HD |
| Motor Type | Electric |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 39 |
| Overall Length (in) | 52 |
| Overall Width (in) | 26.5 |
| Power Rating (HP) | 6.5 |
| Power Rating (W) | 4847 |
| Power Rating (kW) | 4.85 |
| Power Source | Gas Hydraulic, Electric |
| Pressure Control Type | Pressure Control Knob |
| Product Series | ProContractor |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | Hard Chrome |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance |
| Recommended Annual Usage | 100-200 gallons per week |
| Series | GH 230 |
| Type | Airless Sprayer |
| Volume Per Cycle (cycles/gal) | 80 |
| Weight (lb) | 199 |
| Compatible Electric Motor Kits | 248949, 248950 (CSA) |
| Compatible Material | Acrylics, Coating, Drywall Mud, Elastomer, Enamel, Epoxies, Latex |
| Construction | Acetal, Aluminum, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Convertible | Yes |
| Engine Brand | Honda |
| Features | Extreme-Duty MaxLife Pump, MaxFlo 2, High-Capacity Cooling System, Honda Engine, ProConnect 2, QuikReel, Crushproof Inlet Strainer, Convertible, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design |
| Fluid Inlet Size (in) | 1-5/16 |
| Fluid Inlet Size (mm) | 33.34 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Size (mm) | 3.75 |
| Fluid Outlet Thread Type | NPT |
| Frame Configuration | Cart |
| Hose Reel Type | QuikReel |
| Includes | Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 100 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose, Electric Motor Kit, TSL 4 oz |
| Material Application | Paints, Primers |
| Maximum Flow Rate (L/min) | 8.9 |
| Maximum Hose Length (m) | 30 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Tip Size (in) | 0.053 |
| Maximum Tip Size 1 Gun (in) | 0.053 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Maximum Working Pressure (psi) | 3300 |
| Model | DutyMax HD |
| Motor Type | Electric |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 99 |
| Overall Height (mm) | 990 |
| Overall Length (cm) | 132 |
| Overall Length (mm) | 1320 |
| Overall Width (cm) | 67 |
| Overall Width (mm) | 670 |
| Power Rating (W) | 4847 |
| Power Rating (cc) | 200 |
| Power Rating (kW) | 4.85 |
| Power Source | Gas Hydraulic, Electric |
| Pressure Control Type | Pressure Control Knob |
| Product Series | ProContractor |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | Hard Chrome |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance |
| Recommended Annual Usage | 100-200 gallons per week |
| Series | GH 230 |
| Type | Airless Sprayer |
| Volume Per Cycle (cycles/gal) | 80 |
| Weight (kg) | 90 |
Product Manuals
334654D, GH 130/200/230/300 and DutyMax GH/EH 230/300 Displacement Pump, Repair English
(5 MB)
(English Only)
Warranty
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 241705 | Heavy-Duty Blue Texture Airless Spray Gun, 4 Finger Trigger, RAC X | 1 | ea |
| LTX427 | RAC X SwitchTip, 427 | 1 | ea |
| LTX531 | RAC X SwitchTip, 531 | 1 | ea |
| 246215 | RAC X HandTite Tip Guard | 1 | ea |
| 240797 | BlueMax II Airless Hose, 3/8 in x 50 ft | 2 | ea |
| 248949 | Electric Motor Kit | 1 | ea |
| 238049 | TSL Throat Seal Liquid, 4 oz | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 24X001 | KIT,REPAIR,PUMP,DM230/300,PRO |
