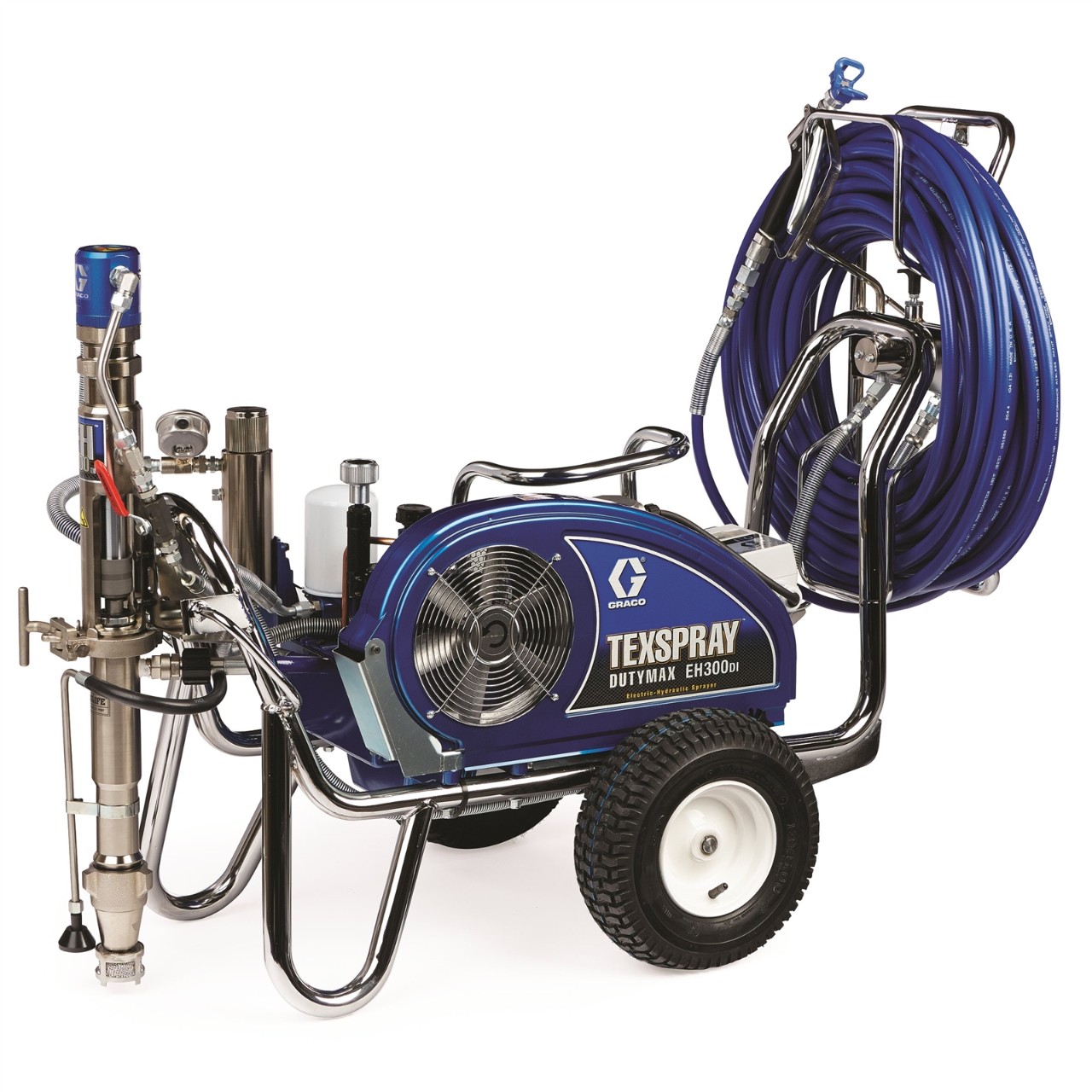

TexSpray DutyMax EH 300DI
DutyMax EH300 HD ProContractor Series Electric Hydraulic Airless Sprayer
Part Number: 24W966
TexSpray DutyMax EH 300DI
DutyMax EH300 HD ProContractor Series Electric Hydraulic Airless Sprayer
Part Number: 24W966
When your job requires maximum productivity and versatility, turn to the DutyMax EH300 HD sprayer to get the job done quickly! Equipped with more power, a long stroke and a direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.
Features
Product Brochure
When your job requires maximum productivity and versatility, turn to the DutyMax EH300 HD sprayer to get the job done quickly! Equipped with more power, a long stroke and a direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.
With features that enable you to work more efficiently and finish jobs faster, the DutyMax HD ProContractor Series Electric Hydraulic airless sprayers spray a wide range of materials, from latex and acrylics to more heavy-duty materials like plasters, elastomerics, fire retardants and liquid roofing solutions.
- Endurance Chromex Pump
- Industry-best, reliable pump performance with field-proven, long-life design
- Exclusive MaxLife™ sleeve for longer lifetime
- Handle the most demanding materials with long-life rod treatment
- Long-life ceramic and stainless steel balls included for maximum versatility
- MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Self-cleaning vibra-seal technology eliminates material build-up
- Continuous spraying with true pack-out protection for more productivity
- Optimised fluid passageways for the heaviest coatings
- High-Efficiency Hydraulic Motor
- Finish jobs faster
- Fast, responsive changeover
- O-ring sealed fittings prevent leaks
- Less maintenance and longer life with fewer moving parts
- High-Capacity Cooling System
- Reduced downtime
- Innovative design allows the pump to run cooler and more efficiently with extremely quiet operation
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
- ProConnect™ 2 One-Part Pump Replacement System
- Eliminate costly downtime by swapping your pump in less than 1 minute with no tools, pins or parts to lose
- QuikReel™ Hose Management System
- Easy hose management with no twisting, kinking and coiling
- Deploy and rewind up to 90 metres of hose in seconds
- Crushproof Inlet Strainer
- Improved filtration
- Stands up to harsh impacts
- Easy Out Pump Filter
- Easy pump maintenance and less clogging
- Inside-out design means less mess with fewer tip clogs ensuring a quality finish
- Heavy-Duty Prime Valve
- High-pressure dumping capability
- Maintenance-free design
- Durable Cart Design
- Rugged and easy-to-manoeuvre
- Withstands tough jobsite conditions while absorbing impacts and vibrations
- Retractable handle doubles as coiled hose storage
Specifications & Documents
Technical Specifications
Convert to Imperial| Compatible Material | Primer, Water-Based Paint, Acrylics, Latex, Solventborne Paints, Block Filler, Drywall Mud, Elastomeric Coating |
|---|---|
| Control Type | N/A |
| Convertible | Yes |
| Engine Size (HP) | 7.5 |
| Engine Size (kW) | 5.5 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Type | NPT |
| Frame Configuration | Cart |
| Hose Inlet Diameter (in) | 1/2 |
| Hose Reel Type | QuikReel |
| Material Application | Paints, Primers |
| Maximum Flow Rate (GPM) | 3.0 |
| Maximum Sound Pressure Level (dB(A)) | 80 |
| Maximum Tip Size (in) | 0.057 |
| Maximum Working Pressure (psi) | 3300 |
| Model | TexSpray |
| Number of Guns | 1 |
| Overall Height (in) | 39 |
| Overall Length (in) | 52 |
| Overall Width (in) | 26.5 |
| Phase | 3 |
| Power Rating (HP) | 7.5 |
| Power Rating (kW) | 5.5 |
| Power Source | Gas, Electric |
| Product Type | Single Leg |
| Product series | ProContractor |
| Series | DutyMax EH 300DI |
| Type | Airless Sprayer |
| Volume per Cycle (cycles/gal) | 52 |
| Weight (lb) | 266 |
| Compatible Material | Primer, Water-Based Paint, Acrylics, Latex, Solventborne Paints, Block Filler, Drywall Mud, Elastomeric Coating |
| Control Type | N/A |
| Convertible | Yes |
| Engine Size (kW) | 5.5 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4000 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Type | NPT |
| Frame Configuration | Cart |
| Hose Inlet Diameter (cm) | 1.27 |
| Hose Inlet Diameter (in) | 1/2 |
| Hose Reel Type | QuikReel |
| Material Application | Paints, Primers |
| Maximum Flow Rate (L/min) | 11.3 |
| Maximum Sound Pressure Level (dB(A)) | 80 |
| Maximum Tip Size (in) | 0.057 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (psi) | 3300 |
| Model | TexSpray |
| Number of Guns | 1 |
| Overall Height (cm) | 99 |
| Overall Height (mm) | 990.6000 |
| Overall Length (cm) | 132 |
| Overall Length (mm) | 1320.8 |
| Overall Width (cm) | 67 |
| Overall Width (mm) | 673.1000 |
| Phase | 3 |
| Power Rating (cc) | 200 |
| Power Rating (kW) | 5.5 |
| Power Source | Gas, Electric |
| Product Type | Single Leg |
| Product series | ProContractor |
| Series | DutyMax EH 300DI |
| Type | Airless Sprayer |
| Volume per Cycle (cycles/gal) | 52 |
| Weight (kg) | 121 |
