GH 130

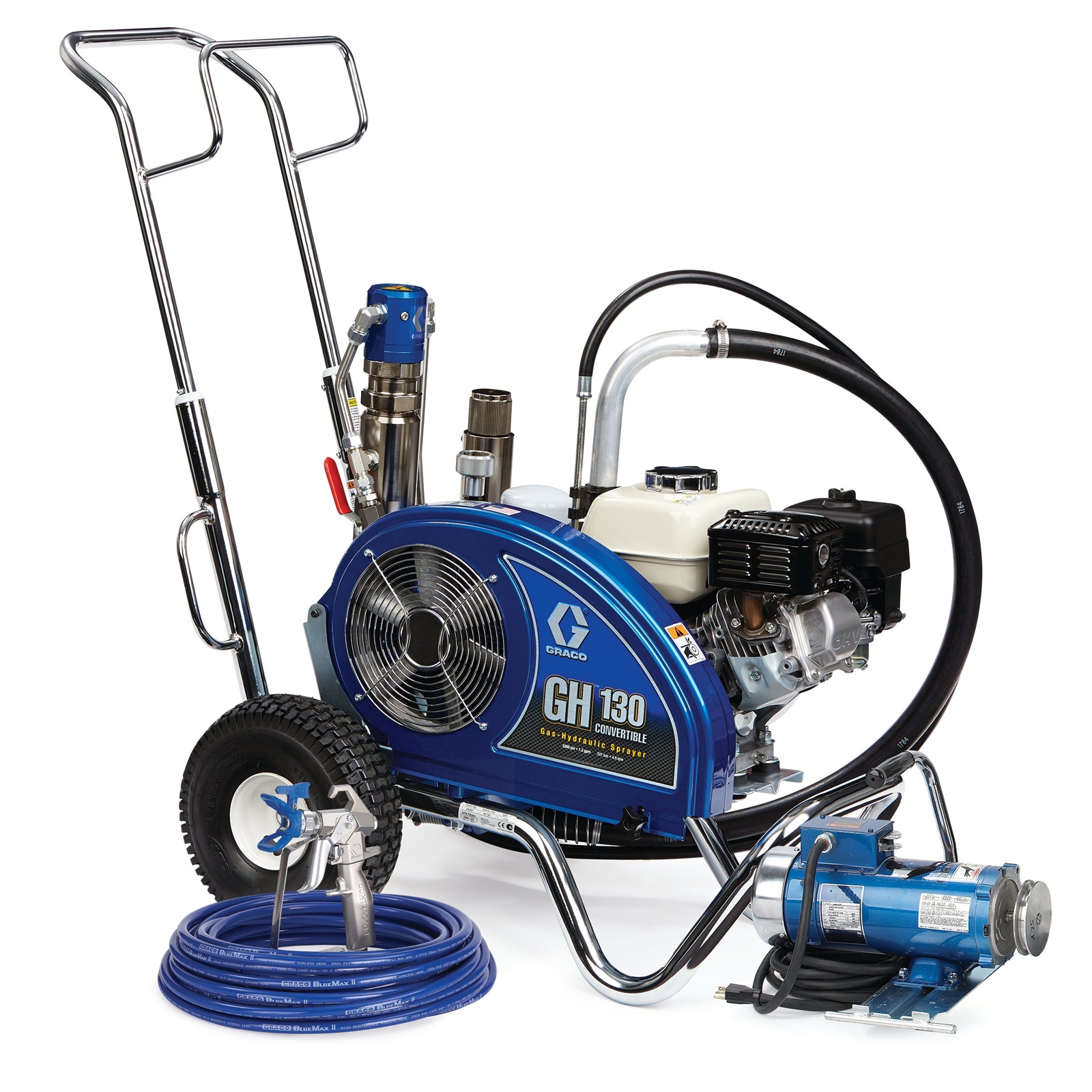

GH 130 Convertible Standard Series Gas Hydraulic Airless Sprayer with Electric Motor Kit
Part Number: 24W924
GH 130
GH 130 Convertible Standard Series Gas Hydraulic Airless Sprayer with Electric Motor Kit
Part Number: 24W924
The GH 130 Convertible is the clear choice for entry level contractors who demand maximum power in a small package. With the ability to change out the pump lower and convert to electric power without tools, you can be assured that you have the most versatile sprayer on the market today.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The GH 130 Convertible is the clear choice for entry level contractors who demand maximum power in a small package. With the ability to change out the pump lower and convert to electric power without tools, you can be assured that you have the most versatile sprayer on the market today.
- Endurance Chromex Piston Pump
- Lasts 2X longer than the next leading brand
- QuikChange pump design allows you to swap the pump easily on the job
- Faster cleaning with the QuikAccess intake foot valve
- High-Efficiency Hydraulic Motor
- Rock-solid performance time after time keeps you up and running
- Faster, more responsive changeover
- O-ring sealed fittings and form-fitted hydraulic lines prevent leaks
- Fewer moving parts mean less maintenance and longer life
- High-Capacity Cooling System
- Innovative design allows the pump to run cooler and more efficiently
- Hydraulic reservoir is tapered on the bottom
- Provides easier and more thorough fluid changes
- Cooling fins on reservoir deflect heat away from sprayer
- Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
- Easy Out Pump Filter
- Easy maintenance & less clogging
- Exclusive inside-out filter design won't collapse to ensure a quality finish
- Vertical design for less mess
- Heavy-Duty Prime Valve
- Maintenance-free design withstands high-pressure dumping
- Rugged, Durable Cart Design
- Thick chrome over welded steel withstands rugged environments
- Full pneumatic wheels absorb impacts and vibrations
- Retractable handle doubles as coiled hose storage
- Tilts on its nose for service in the field
- Electric Motor Kit
- Indoor and outdoor use
- Quickly swap the gas engine for an electric motor in seconds – without tools
- Ready to Work
Includes everything you need to get spraying:- Contractor Airless Spray Gun
- RAC X SwitchTips and Guard
- 50 feet of BlueMax II Airless Hose
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Electric Motor Kits | 288473, 288474 (CSA) |
|---|---|
| Compatible Material | Acrylics, Paint, Primer |
| Compatible Replacement Pump | 24B748 |
| Construction | Acetal, Aluminum, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Convertible | Yes |
| Engine Brand | Honda |
| Engine Size (HP) | 4 |
| Features | Endurance Chromex Pump, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design, Convertible |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | MNPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | FNPT |
| Frame Configuration | Cart |
| Includes | Contractor Gun, RAC X LP 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz, Electric Motor Kit |
| Maximum Flow Rate (GPM) | 1.30 |
| Maximum Hose Length (ft) | 300 |
| Maximum Sound Pressure Level (dB(A)) | 88 |
| Maximum Tip Size (in) | 0.037 |
| Maximum Tip Size 1 Gun (in) | 0.037 |
| Maximum Tip Size 1 Gun - Electric Motor (in) | 0.031 |
| Maximum Tip Size 2 Guns (in) | 0.023 |
| Maximum Tip Size 2 Guns - Electric Motor (in) | 0.017 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Model | GH |
| Number of Guns | 2 |
| Outlet Paint Filter | Easy Out |
| Overall Height (in) | 39.5 |
| Overall Length (in) | 41 |
| Overall Width (in) | 24 |
| Power Rating (HP) | 4.0 |
| Power Rating (W) | 2983 |
| Power Rating (kW) | 2.98 |
| Power Source | Gas Hydraulic, Electric |
| Product Series | Standard |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Endurance |
| Series | 130 |
| Type | Airless Sprayer |
| Weight (lb) | 155 |
| Compatible Electric Motor Kits | 288473, 288474 (CSA) |
| Compatible Material | Acrylics, Paint, Primer |
| Compatible Replacement Pump | 24B748 |
| Construction | Acetal, Aluminum, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Convertible | Yes |
| Engine Brand | Honda |
| Features | Endurance Chromex Pump, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design, Convertible |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Size (mm) | 19.05 |
| Fluid Inlet Thread Type | MNPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Size (mm) | 3.75 |
| Fluid Outlet Thread Type | FNPT |
| Frame Configuration | Cart |
| Includes | Contractor Gun, RAC X LP 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz, Electric Motor Kit |
| Maximum Flow Rate (L/min) | 4.9 |
| Maximum Hose Length (m) | 92 |
| Maximum Sound Pressure Level (dB(A)) | 88 |
| Maximum Tip Size (in) | 0.037 |
| Maximum Tip Size 1 Gun (in) | 0.037 |
| Maximum Tip Size 1 Gun - Electric Motor (in) | 0.031 |
| Maximum Tip Size 2 Guns (in) | 0.023 |
| Maximum Tip Size 2 Guns - Electric Motor (in) | 0.017 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Maximum Working Pressure (psi) | 3300 |
| Model | GH |
| Number of Guns | 2 |
| Outlet Paint Filter | Easy Out |
| Overall Height (cm) | 100.3 |
| Overall Height (mm) | 1003 |
| Overall Length (cm) | 104.1 |
| Overall Length (mm) | 1041 |
| Overall Width (cm) | 61 |
| Overall Width (mm) | 610 |
| Power Rating (W) | 2983 |
| Power Rating (cc) | 120 |
| Power Rating (kW) | 2.98 |
| Power Source | Gas Hydraulic, Electric |
| Product Series | Standard |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Endurance |
| Series | 130 |
| Type | Airless Sprayer |
| Weight (kg) | 70 |
Product Manuals
334654D, GH 130/200/230/300 and DutyMax GH/EH 230/300 Displacement Pump, Repair English
(5 MB)
(English Only)
Warranty
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 246215 | RAC X HandTite Tip Guard | 1 | ea |
| 240794 | BlueMax II Airless Hose, 1/4 in x 50 ft | 1 | ea |
| 288473 | Electric Motor Kit | 1 | ea |
| 238049 | TSL Throat Seal Liquid, 4 oz | 1 | ea |
| LP517 | Low Pressure RAC X LP SwitchTip, 517 | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
| 288420 | Contractor Airless Spray Gun, 2 Finger Trigger, RAC X 517 SwitchTip |
| 288251 | GB HOSE, SUCTION |
| 288732 | KIT, REPAIR, DRAIN HOSE |
| 189920 | Inlet Strainer, SST Cap Single Screen, 1 in |
| 235014 | Spray Prime/Drain Valve Kit |
| 117285 | PACKING, O-RING |
| 15V573 | Crushproof Inlet Strainer for 695 XT, 795 XT & 1095 XT |
| 15C766 | TUBE, DIFFUSION |
