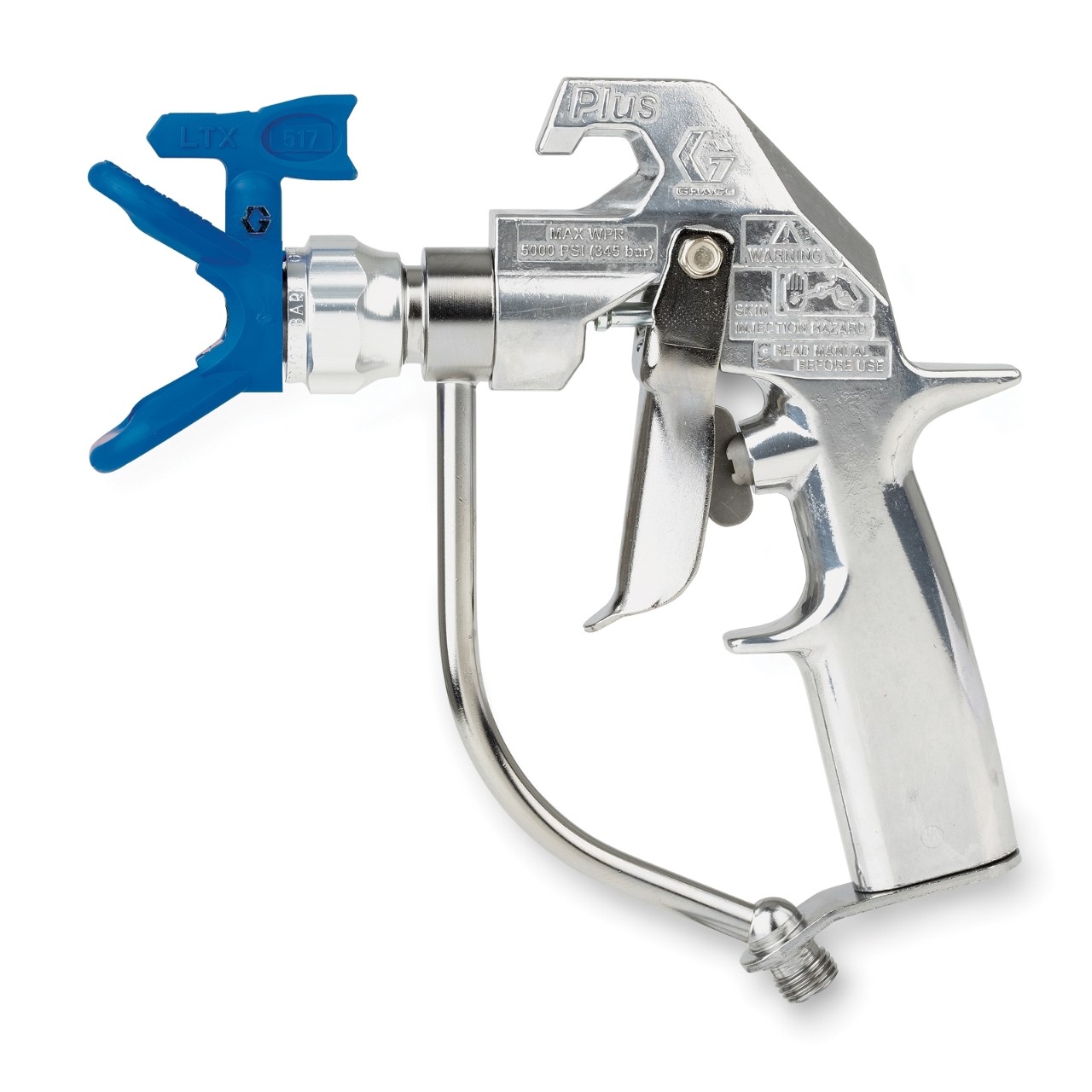

Silver Plus Airless Spray Gun
Silver Plus Airless Spray Gun, 2 Finger Trigger, RAC X 517 SwitchTip
Part Number: 246240
Silver Plus Airless Spray Gun
Silver Plus Airless Spray Gun, 2 Finger Trigger, RAC X 517 SwitchTip
Part Number: 246240
The Silver Plus Gun is known for its durability, long life, spraying performance and comfortable design. Rated at 5000 psi (345 bar, 34.5 MPa), this is the preferred gun for high-pressure applications. Includes a 2-finger trigger and a RAC X 517 SwitchTip and Guard.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Silver Plus Gun is known for its durability, long life, spraying performance and comfortable design. Rated at 5000 psi (345 bar, 34.5 MPa), this is the preferred gun for high-pressure applications. Includes a 2-finger trigger and a RAC X 517 SwitchTip and Guard.
- Rugged Design
- Durable forged aluminum withstands harsh work environments
- Lighter weight than competitive guns Polished body is easy to clean
- Exclusive Needle Design
- Factory set needle needs no trigger adjustments
- Guaranteed for life against breakage
- Maximum performance and long life
- Stainless Steel Fluid Tube
- Fluid flows directly to the tip through the gun fluid tube
- Provides the ability to spray heavier materials
- Including high solid coatings and mastics
- Optional Light Viscosity Needle Kit
- Provides faster shut-off to reduce spitting of light viscosity material
- Included in Silver Plus Gun (Part No. 235462), or as an optional Needle Kit (Part No. 235475)
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Body Material | Aluminum |
| Compatible Material | Paint, Coating |
| Component A Inlet Size (in) | 1/4 |
| Component A Inlet Thread Type | NPSM |
| Component Type | Single Component |
| Fluid Orifice Size (in) | 0.090 |
| For Use With | High Pressure Application |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Airless Gun |
| Gun Weight (lb) | 1.125 |
| Gun Weight (oz) | 18 |
| Includes | RAC X 517 SwitchTip, RAC X HandTite Guard |
| Maximum Fluid Pressure (MPa) | 34.5 |
| Maximum Fluid Pressure (psi) | 5000 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | Silver Plus |
| Product Type | Spray Gun |
| Purge Method | Liquid |
| Series | Airless Spray Gun |
| Sound Power Level (dB(A)) | 87 |
| Sound Pressure Level (dB(A)) | 78 |
| Spray Type | Airless |
| Trigger Lock | Locking |
| Trigger Type | Mechanical |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, Polyethylene, Polyurethane, Nylon, PTFE |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Body Material | Aluminum |
| Compatible Material | Paint, Coating |
| Component A Inlet Size (cm) | 0.635 |
| Component A Inlet Size (in) | 1/4 |
| Component A Inlet Size (mm) | 6.35 |
| Component A Inlet Thread Type | NPSM |
| Component Type | Single Component |
| Fluid Orifice Size (cm) | 0.229 |
| Fluid Orifice Size (in) | 0.090 |
| Fluid Orifice Size (mm) | 2.29 |
| For Use With | High Pressure Application |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Airless Gun |
| Gun Weight (g) | 510 |
| Gun Weight (kg) | 0.51 |
| Gun Weight (oz) | 18 |
| Includes | RAC X 517 SwitchTip, RAC X HandTite Guard |
| Maximum Fluid Pressure (MPa) | 34.5 |
| Maximum Fluid Pressure (bar) | 345 |
| Maximum Fluid Pressure (kPa) | 34500 |
| Maximum Fluid Pressure (psi) | 5000 |
| Maximum Fluid Temperature (°C) | 50 |
| Model | Silver Plus |
| Product Type | Spray Gun |
| Purge Method | Liquid |
| Series | Airless Spray Gun |
| Sound Power Level (dB(A)) | 87 |
| Sound Pressure Level (dB(A)) | 78 |
| Spray Type | Airless |
| Trigger Lock | Locking |
| Trigger Type | Mechanical |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, Polyethylene, Polyurethane, Nylon, PTFE |
Product Manuals
Sales Literature
Repair Parts
| Part No. | Description |
|---|---|
| 235474 | Repair Kit for Silver Plus and Flex Plus Guns- Includes Needle, Gasket and Diffuser/Seat |
