Ultra Max II 650 PC Pro

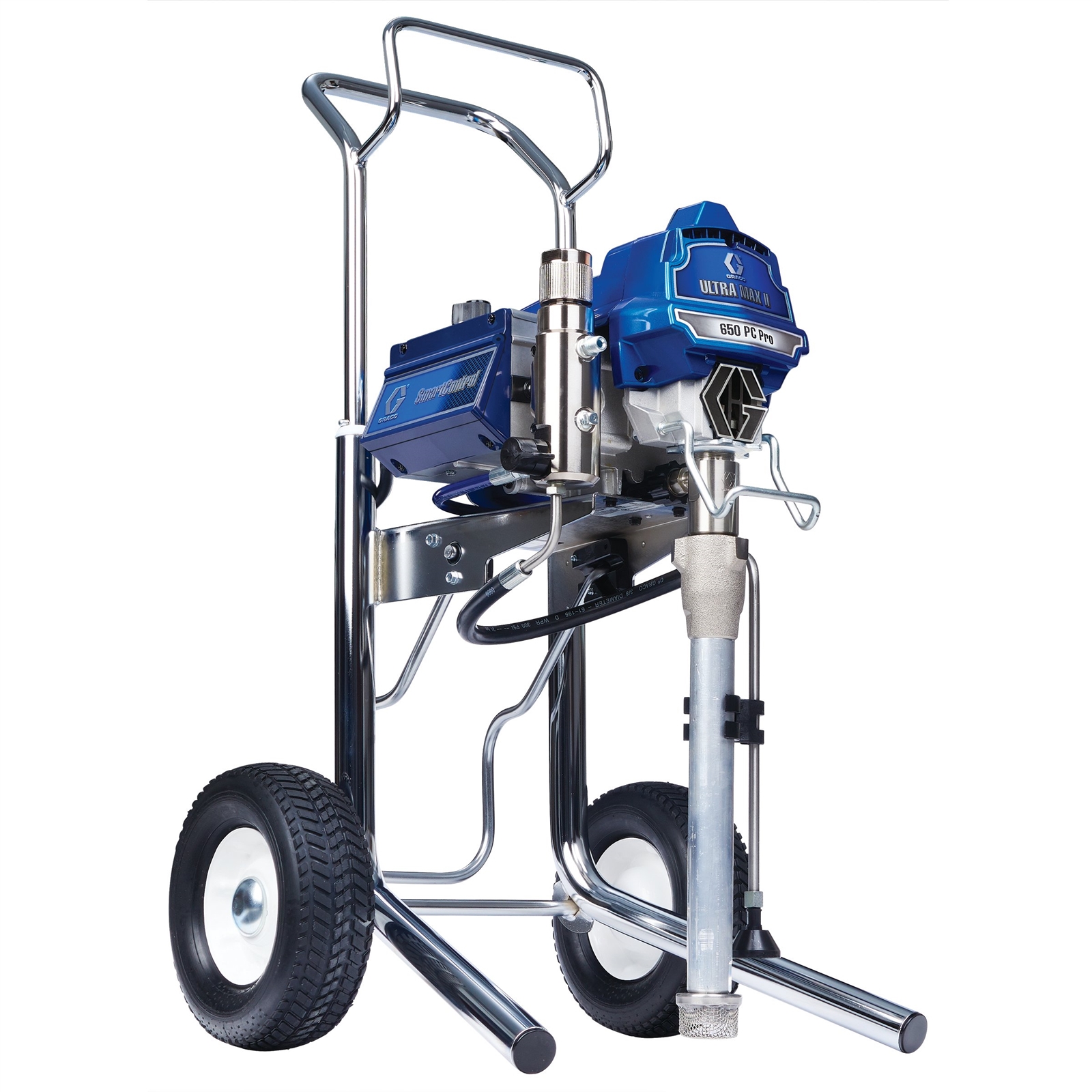

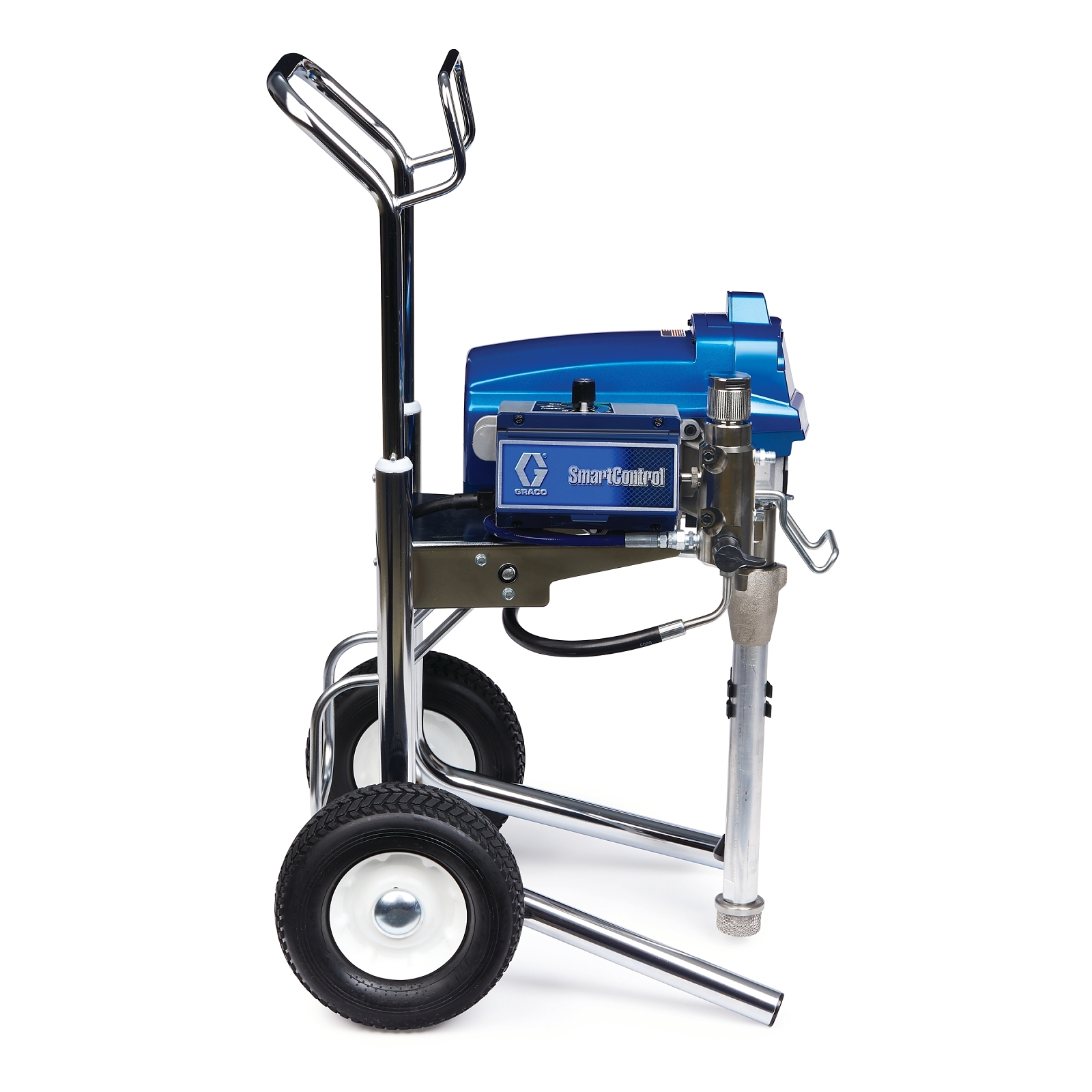

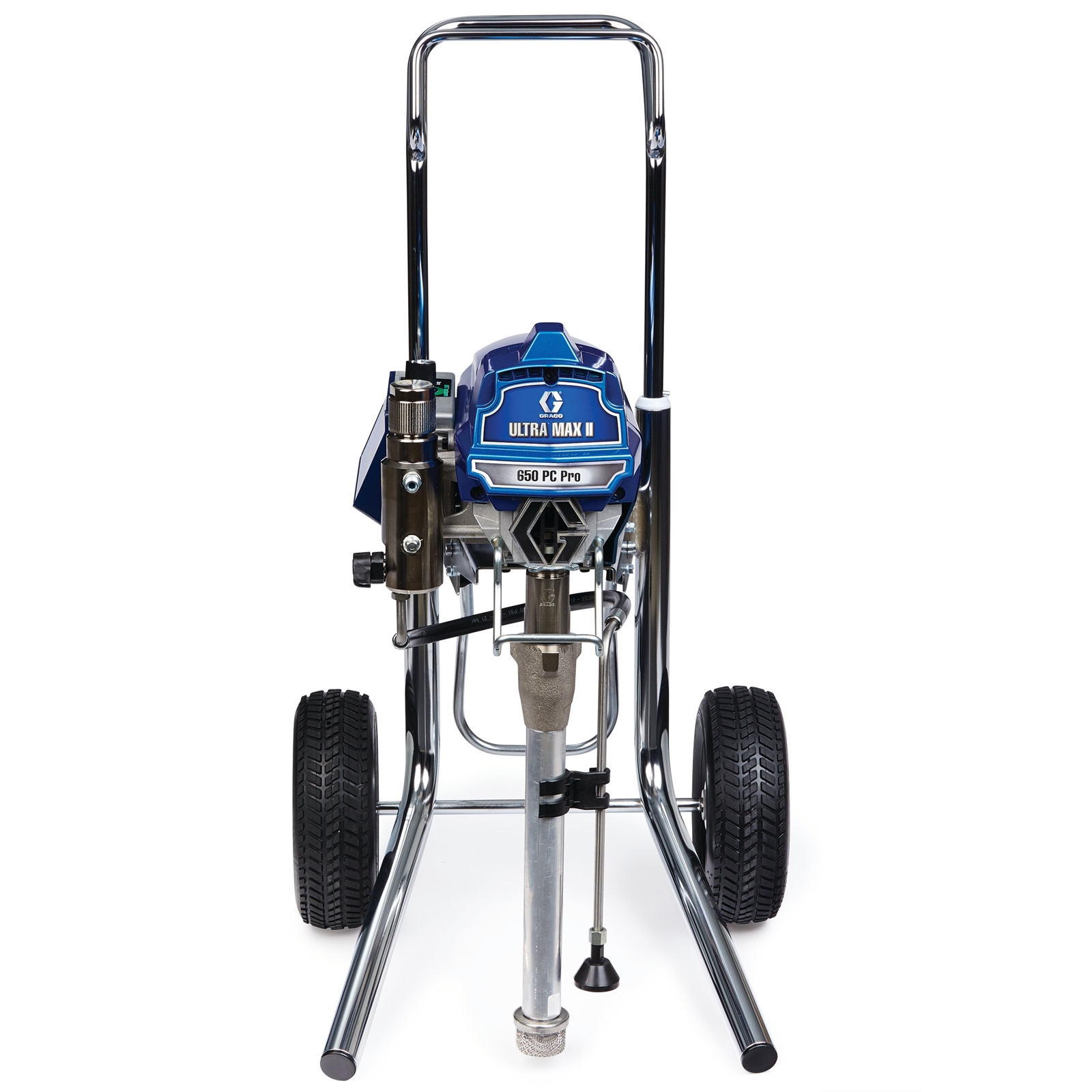

Ultra Max II 650 PC Pro Electric Airless Sprayer, Hi-Boy
Part Number: 19Y128
Ultra Max II 650 PC Pro
Ultra Max II 650 PC Pro Electric Airless Sprayer, Hi-Boy
Part Number: 19Y128
The Graco Ultra Max II 650 PC Pro Electric Airless Sprayer is the lightest weight 2-gun electric airless sprayer. It is a true workhorse – delivering the perfect combination of quality, performance, portability and durability.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
The Graco Ultra Max II 650 PC Pro Electric Airless Sprayer is the lightest weight 2-gun electric airless sprayer. It is a true workhorse – delivering the perfect combination of quality, performance, portability and durability.
Large Sprayer Performance with Mid-Size Portability to complete jobs faster. Increased capability to handle heavier coatings and a lower cost of ownership.
- Endurance Piston Pump
- Lasts 2X longer than competing pumps
- Larger intake to handle heavier coatings
- ProConnect: pump swaps in minutes with no tools
- 2-Hose Connection Manifold
- 2-Gun capability – supports up to .019” tips
- Easy Out filter provides easy maintenance and less cloggin
- Small Compact Frame
- Balanced design for easy transport and maneuvering
- Chrome over steel construction withstands jobsite abuse
- MaxPower Motor & Advantage Drive
- Maintenance-free brushless design with a Lifetime Warranty
- The longest lasting drive with a Lifetime Warranty
- SmartControl with Digital Display
- Even pressure delivery on every job
- Constantly monitors performance and adjusts motor speed to match your tip size and spraying needs
- FastFlushTM delivers 2X faster cleaning with ½ the water
- Contractor PC Spray Gun
- All-Day comfort and control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- Lowest Cost of Ownership
- Endurance pump lasts 2X longer than competing pumps
- Chromex piston rod with longer stroke
- Chrome-plated stainless steel sleeve
- V-Max Blue Packings
- Eliminate downtime with ProConnect – fast and easy on-the-job repair
- MaxPower Motor and Advantage Drive offer maintenance-free performance and Lifetime Warranty
- Endurance pump lasts 2X longer than competing pumps
Specifications & Documents
Technical Specifications
Convert to MetricAmperage (A) | 15 |
---|---|

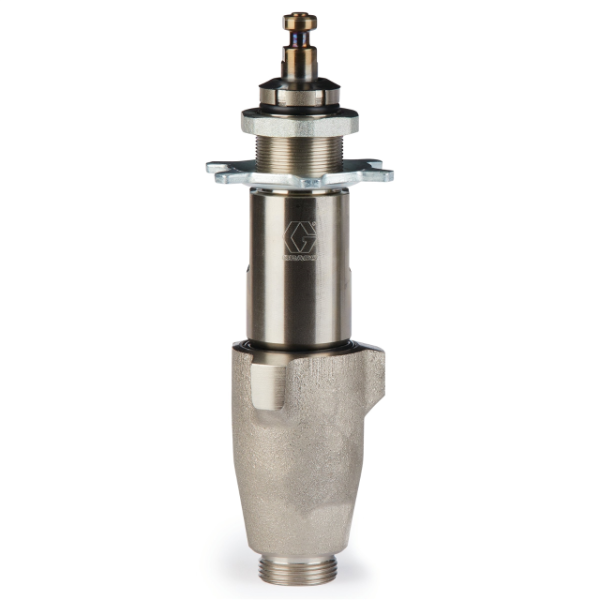

Compatible Replacement Pump | 19Y298 |
Construction | Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, Polyethylene, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel |
Engine Size (HP) | 1.8 |
Features | Endurance Chromex Pump, SmartControl 3.0, MaxPower Brushless, Advantage Drive, ProConnect, FastFlush, Easy Out Filter, Contractor PC Gun |
Filter Mesh Size | 60 |
Fluid Outlet Size (in) | 1/4 |
Fluid Outlet Thread Type | NPSM |
Frame Configuration | Hi-Boy |
Frequency (Hz) | 50/60 |
Hose Inlet Diameter (in) | 1/4 |
Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz |
Maximum Flow Rate (GPM) | 0.8 |
Maximum Sound Pressure Level (dB(A)) | 90 |
Maximum Tip Size (in) | 0.029 |
Maximum Tip Size 1 Gun (in) | 0.029 |
Maximum Tip Size 2 Guns (in) | 0.019 |
Maximum Working Pressure (psi) | 3300 |
Minimum Generator Power (W) | 4000 |
Model | Ultra Max II |
Motor Type | MaxPower |
Number of Guns | 2 |
Overall Height (in) | 28.25 |
Overall Length (in) | 23.25 |
Overall Width (in) | 20.5 |
Power Rating (HP) | 1.8 |
Power Source | Electric |
Pressure Control Type | SmartControl 3.0 |
Pump Mount Type | ProConnect |
Series | 650 PC Pro |
Sound Power Level (dB(A)) | 100 |
Type | Airless Sprayer |
Voltage (V) | 120 |
Volume Per Cycle (cycles/gal) | 570 |
Weight (lb) | 75 |
Amperage (A) | 15 |
Compatible Replacement Pump | 19Y298 |
Construction | Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, Polyethylene, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel |
Features | Endurance Chromex Pump, SmartControl 3.0, MaxPower Brushless, Advantage Drive, ProConnect, FastFlush, Easy Out Filter, Contractor PC Gun |
Filter Mesh Size | 60 |
Fluid Outlet Size (in) | 1/4 |
Fluid Outlet Thread Type | NPSM |
Frame Configuration | Hi-Boy |
Frequency (Hz) | 50/60 |
Hose Inlet Diameter (in) | 1/4 |
Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz |
Maximum Sound Pressure Level (dB(A)) | 90 |
Maximum Tip Size (in) | 0.029 |
Maximum Tip Size 1 Gun (in) | 0.029 |
Maximum Tip Size 2 Guns (in) | 0.019 |
Maximum Working Pressure (bar) | 231 |
Maximum Working Pressure (kPa) | 2310 |
Maximum Working Pressure (psi) | 3300 |
Minimum Generator Power (W) | 4000 |
Model | Ultra Max II |
Motor Type | MaxPower |
Number of Guns | 2 |
Overall Height (cm) | 71.7550 |
Overall Height (mm) | 717.5500 |
Overall Length (cm) | 59.055 |
Overall Length (mm) | 590.55 |
Overall Width (cm) | 52.0700 |
Overall Width (mm) | 520.7000 |
Power Source | Electric |
Pressure Control Type | SmartControl 3.0 |
Pump Mount Type | ProConnect |
Series | 650 PC Pro |
Sound Power Level (dB(A)) | 100 |
Type | Airless Sprayer |
Voltage (V) | 120 |
Volume Per Cycle (cycles/gal) | 570 |
Weight (kg) | 3.4050 |
Product Manuals
Warranty
What's Included
Part No. | Description | Qty | Unit |
---|---|---|---|
246215 | RAC X HandTite Tip Guard | 1 | ea |
240794 | BlueMax II Airless Hose, 1/4 in x 50 ft | 1 | ea |
238049 | TSL Throat Seal Liquid, 4 oz | 1 | ea |
17Y043 | Contractor PC Airless Spray Gun with RAC X LP 517 SwitchTip | 1 | ea |
LP517 | Low Pressure RAC X LP SwitchTip, 517 | 1 | ea |
Repair Parts
Part No. | Description |
---|---|
240794 | BlueMax II Airless Hose, 1/4 in x 50 ft |
253371 | KIT, REPAIR, CORD, POWER, 595 |
287911 | KIT, REPAIR, FILTER BOARD, GFI |
246382 | Easy Out Pump Manifold Filter, Short, 100 mesh |
246425 | Easy Out Pump Manifold Filter, Short, 30 mesh |
246384 | Easy Out Pump Manifold Filter, Short, 60 mesh |
287807 | KIT, REPAIR, MOTOR, 595 |
189920 | Inlet Strainer, SST Cap Single Screen, 1 in |
243222 | Pressure Control Transducer Repair Kit |
17D888 | KIT, REPLACEMENT, POTENTIOMETER |
24W892 | KIT,DISPLAY,SMARTCONTROL 2.5 |
287952 | KIT,REPAIR,DRAIN HOSE |
24W830 | Hose Replacement Kit |
246383 | Easy Out Pump Manifold Filter, Short, 200 mesh |
