Ultra Max II 495 PC Pro

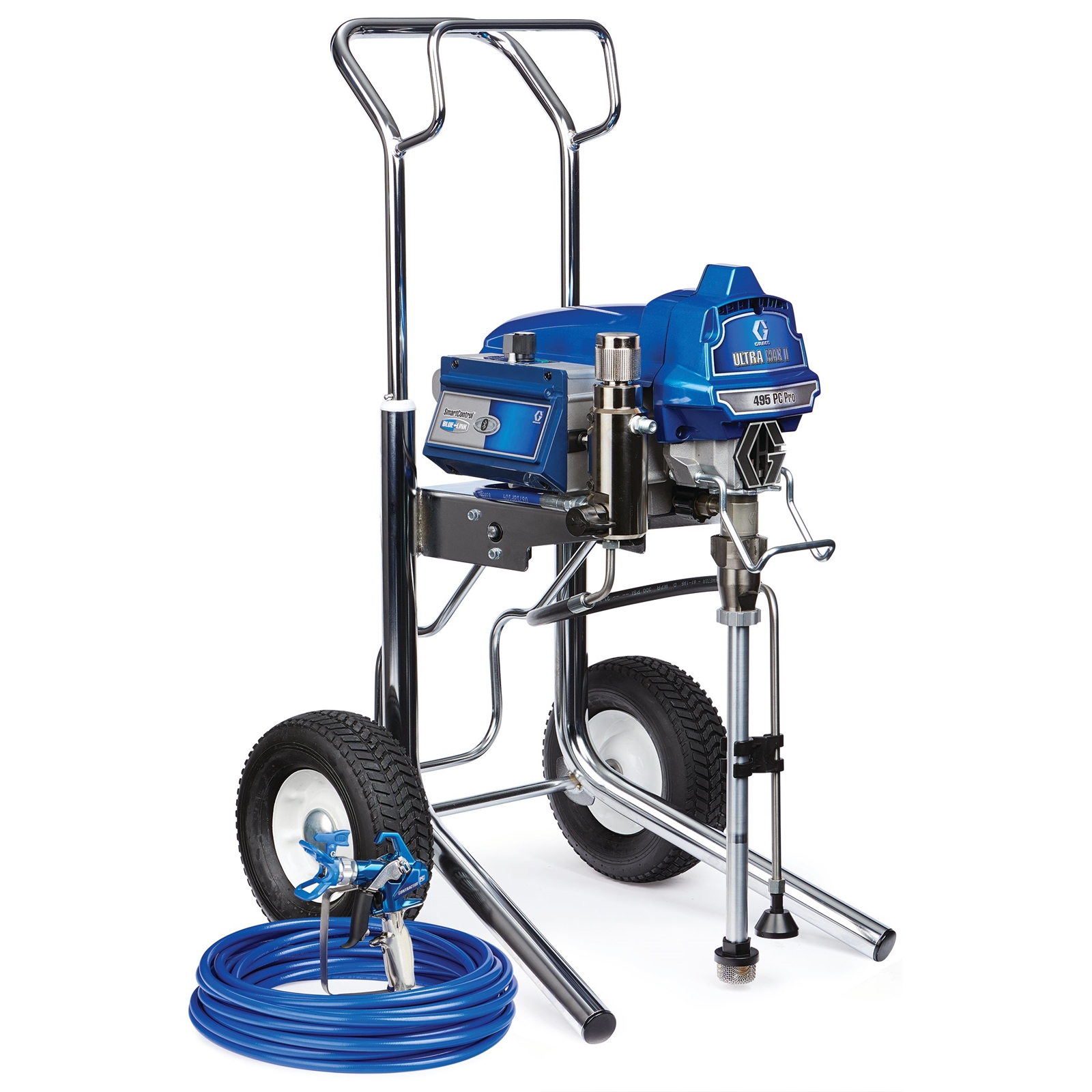

Ultra Max II 495 PC Pro Electric Airless Sprayer, Hi-Boy
Part Number: 17E857
Ultra Max II 495 PC Pro
Ultra Max II 495 PC Pro Electric Airless Sprayer, Hi-Boy
Part Number: 17E857
The Ultra Max II 495 PC Pro airless sprayer brings the leading technology and performance of Graco’s larger Ultra Max II models into a compact design that is lightweight and easy to transport while providing maintenance free performance, even pressure delivery and faster cleaning to finish jobs fast...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Ultra Max II 495 PC Pro airless sprayer brings the leading technology and performance of Graco’s larger Ultra Max II models into a compact design that is lightweight and easy to transport while providing maintenance free performance, even pressure delivery and faster cleaning to finish jobs faster.
Increased Productivity. Unmatched Reliability. Graco's Midsize Electric airless sprayers Proven technology. Trusted Reliability. Ultra Max II Midsize Electric airless sprayers offer several convenient features to reduce job site downtime, all on a lightweight, powerful platform.
- Durable Endurance Chromex Piston Pump
- Lasts 2X longer than the next leading brand
- Chromex rod and hardened stainless steel cylinder
- Long Life V-Max Blue Packings
- Faster cleaning with the QuikAccess intake valve
- SmartControl with Digital Display
- Even pressure delivery on every job
- Constantly monitors performance and adjusts motor speed to match your spraying needs
- Measure sprayer gallons, hours and pressure
- Provides support messages and diagnostic support
- MaxPower Motor
- Proven power and performance for all painting applications
- Maintenance-free brushless design with a Lifetime Warranty
- Advantage Drive
- The longest lasting drive
- Hardened steel gears provide smooth and reliableoperation and a Lifetime Warranty
- ProConnect One-Part Pump Replacement System
- Eliminate costly downtime
- Pump swaps in minutes – no tools, pins or parts to lose
- FastFlush High-Flow Cleaning System
- More spraying & less cleaning
- 2X faster cleaning with ½ the water
- Easy Out Pump Filter
- Easy Maintenance & Less Clogging
- Exclusive inside-out filtering process ensures a quality finish
- Durable Cart Design with Kickstand
- Withstands rugged environments
- Design allows for easy, one-person bucket changes
- Retractable handle doubles as hose storage
- Kickstand for easy one person bucket changes
- Contractor PC Spray Gun
- All-Day Comfort & Control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 15 |
|---|---|
| Compatible Material | Lacquer, Stains, Interior Latex, Exterior Latex, Enamel, Acrylics, Oil-Based Primer |
| Construction | Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Engine Size (HP) | 1.2 |
| Engine Size (kW) | 0.9 |
| Features | Endurance Chromex Pump, SmartControl 3.0, MaxPower Brushless, Advantage Drive, ProConnect, FastFlush, Easy Out Filter, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (in) | 1/4 |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz |
| Maximum Flow Rate (GPM) | 0.6 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.025 |
| Maximum Tip Size 1 Gun (in) | 0.025 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 3750 |
| Model | Ultra Max II |
| Motor Type | MaxPower |
| Number of Guns | 1 |
| Overall Height (in) | 38.25 |
| Overall Length (in) | 23.25 |
| Overall Width (in) | 20.5 |
| Phase | 1 |
| Power Rating (HP) | 1.2 |
| Power Rating (W) | 895 |
| Power Rating (kW) | 0.89 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 3.0 |
| Pump Mount Type | ProConnect |
| Pump Type | Endurance |
| Recommended Annual Usage | 50-100 gallons per week |
| Series | 495 PC Pro |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 620 |
| Weight (lb) | 66 |
| Amperage (A) | 15 |
| Compatible Material | Lacquer, Stains, Interior Latex, Exterior Latex, Enamel, Acrylics, Oil-Based Primer |
| Construction | Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Engine Size (kW) | 0.9 |
| Features | Endurance Chromex Pump, SmartControl 3.0, MaxPower Brushless, Advantage Drive, ProConnect, FastFlush, Easy Out Filter, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz |
| Maximum Flow Rate (L/min) | 2.3 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.025 |
| Maximum Tip Size 1 Gun (in) | 0.025 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 3750 |
| Model | Ultra Max II |
| Motor Type | MaxPower |
| Number of Guns | 1 |
| Overall Height (cm) | 97.2 |
| Overall Height (mm) | 972 |
| Overall Length (cm) | 59.1 |
| Overall Length (mm) | 591 |
| Overall Width (cm) | 52.1 |
| Overall Width (mm) | 521 |
| Phase | 1 |
| Power Rating (W) | 895 |
| Power Rating (kW) | 0.89 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 3.0 |
| Pump Mount Type | ProConnect |
| Pump Type | Endurance |
| Recommended Annual Usage | 50-100 gallons per week |
| Series | 495 PC Pro |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 620 |
| Weight (kg) | 30 |
Product Manuals
Warranty
Sales Literature
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 246215 | RAC X HandTite Tip Guard | 1 | ea |
| 240794 | BlueMax II Airless Hose, 1/4 in x 50 ft | 1 | ea |
| 238049 | TSL Throat Seal Liquid, 4 oz | 1 | ea |
| 17Y043 | Contractor PC Airless Spray Gun with RAC X LP 517 SwitchTip | 1 | ea |
| LP517 | Low Pressure RAC X LP SwitchTip, 517 | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 240794 | BlueMax II Airless Hose, 1/4 in x 50 ft |
| 15B071 | INSERT, FILTER |
| 117828 | KIT, O-RING, PTFE, ENCAPULATED |
| 287911 | KIT, REPAIR, FILTER BOARD, GFI |
| 246382 | Easy Out Pump Manifold Filter, Short, 100 mesh |
| 246425 | Easy Out Pump Manifold Filter, Short, 30 mesh |
| 246384 | Easy Out Pump Manifold Filter, Short, 60 mesh |
| 17C992 | KIT, REPAIR, STINGER TUBE |
| 246385 | Inlet Strainer, Nylon Cap, 7/8 in |
| 243222 | Pressure Control Transducer Repair Kit |
| 24W892 | KIT,DISPLAY,SMARTCONTROL 2.5 |
| 253367 | KIT,REPAIR,CORD,POWER,WHEELED |
| 287952 | KIT,REPAIR,DRAIN HOSE |
| 239914 | Replacement Drain Valve Kit |
| 24W830 | Hose Replacement Kit |
| 15E813 | NUT, JAM |
| 103413 | ProX21 Packing O-Ring |
| 246383 | Easy Out Pump Manifold Filter, Short, 200 mesh |
| 115099 | Hose Washer Inlet Seal |
| 15B652 | WASHER, SUCTION SWIVEL |
