Ultra 395 PC

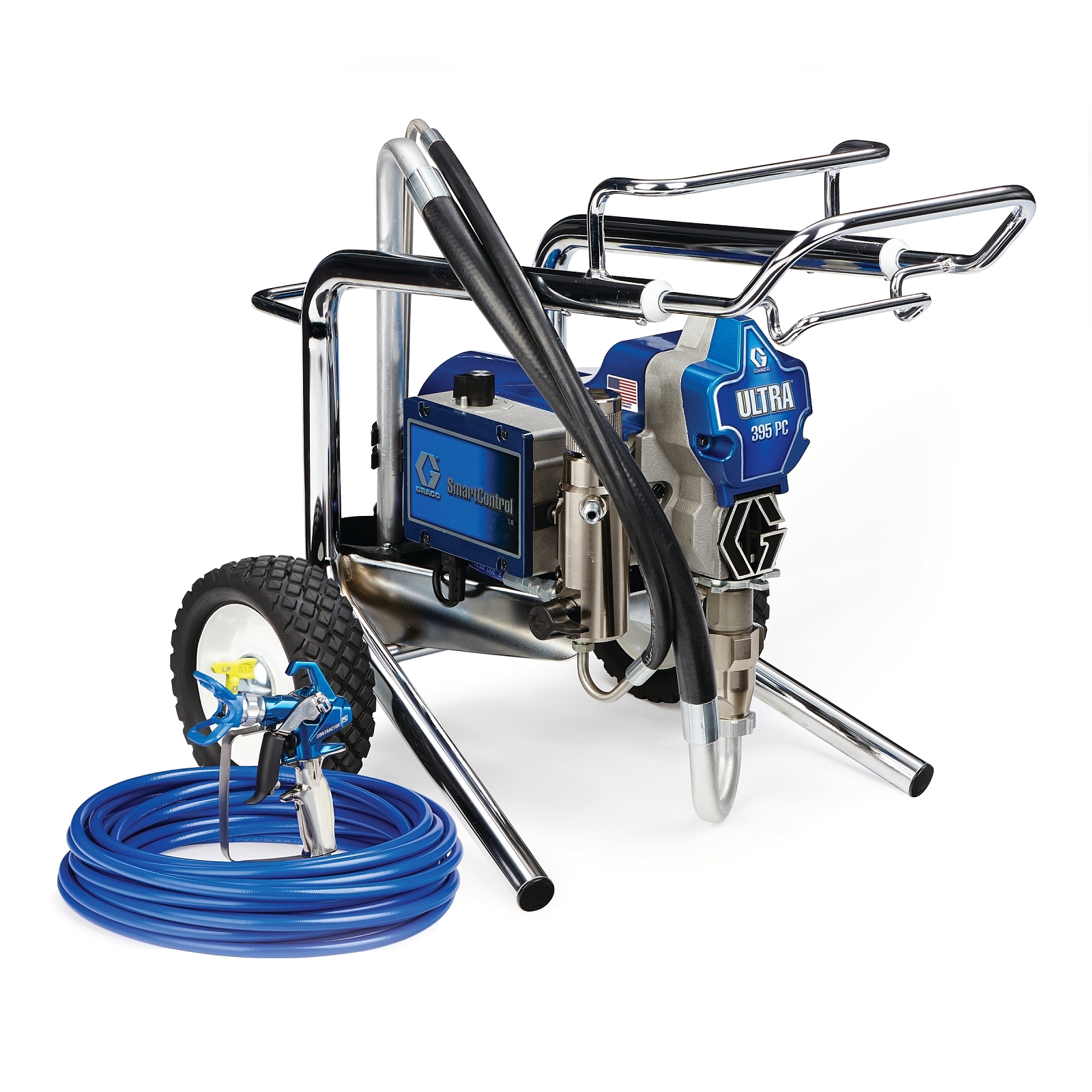

Ultra 395 PC Electric Airless Sprayer, Hi-Boy
Part Number: 17E846
Ultra 395 PC
Ultra 395 PC Electric Airless Sprayer, Hi-Boy
Part Number: 17E846
The performance and versatility of the Ultra 395 PC has made it Graco’s most popular sprayer. SmartControl 1.0 pressure control delivers a consistent spray fan without fluctuation and the proven reliability make it perfect for professionals who spray daily with a wide range of coatings.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The performance and versatility of the Ultra 395 PC has made it Graco’s most popular sprayer. SmartControl 1.0 pressure control delivers a consistent spray fan without fluctuation and the proven reliability make it perfect for professionals who spray daily with a wide range of coatings.
Small Size. Large Capability. Built with the same quality as Graco’s Large Electric sprayers, Graco Small Electric airless sprayers deliver exceptional power and performance.
- Durable Endurance Chromex Piston Pump
- Lasts 2X longer than the next leading brand
- Long Life V-Max Blue Packings, Chromex rod and hardened stainless steel cylinder
- Faster cleaning with the QuikAccess intake valve
- SmartControl 1.0
- Even pressure delivery
- Constantly monitors performance and adjusts motor speed to match your tip size and spraying needs
- Ideal for RAC X LP tips commonly used in fine finish and low overspray applications
- Durable TEFC DC Motor
- Get more work done
- Proven TEFC motor produces the most power possible for all painting applications
- Advantage Drive
- The longest lasting drive
- Hardened steel gears provide smooth and reliable operation and a Lifetime Warranty
- ProConnect One-Part Pump Replacement System
- Eliminate costly downtime
- Pump swaps in minutes – no tools, pins or parts to lose
- Easy Out Pump Filter
- Easy maintenance & less clogging
- Exclusive inside-out filtering process ensures a quality finish
- Rugged Steel Frame
- Thick chrome over steel withstands rugged environments
- Heavy-duty handles and semi-pneumatic wheels roll easily over rough terrain
- Durable Cart Design
- Withstands rugged environments
- Design allows for easy, one-person bucket changes
- Retractable handle doubles as hose storage
- Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 15 |
|---|---|
| Compatible Material | Lacquer, Stains, Interior Latex, Exterior Latex, Enamel, Acrylics |
| Construction | Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Engine Size (HP) | 7/8 |
| Engine Size (kW) | 0.65 |
| Features | Endurance Chromex Pump, SmartControl 1.0, TEFC DC, Advantage Drive, ProConnect, Easy Out Filter, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (in) | 1/4 |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz |
| Maximum Flow Rate (GPM) | 0.54 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.023 |
| Maximum Tip Size 1 Gun (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 3000 |
| Model | Ultra |
| Motor Type | TEFC DC |
| Number of Guns | 1 |
| Overall Height (in) | 38.25 |
| Overall Length (in) | 23.25 |
| Overall Width (in) | 20.5 |
| Phase | 1 |
| Power Rating (HP) | 7/8 |
| Power Rating (W) | 653 |
| Power Rating (kW) | 0.65 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 1.0 |
| Pump Mount Type | ProConnect |
| Pump Type | Endurance |
| Recommended Annual Usage | Up to 50 gallons per week |
| Series | 395 PC |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 700 |
| Weight (lb) | 66 |
| Amperage (A) | 15 |
| Compatible Material | Lacquer, Stains, Interior Latex, Exterior Latex, Enamel, Acrylics |
| Construction | Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Engine Size (kW) | 0.65 |
| Features | Endurance Chromex Pump, SmartControl 1.0, TEFC DC, Advantage Drive, ProConnect, Easy Out Filter, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz |
| Maximum Flow Rate (L/min) | 2.0 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.023 |
| Maximum Tip Size 1 Gun (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 3000 |
| Model | Ultra |
| Motor Type | TEFC DC |
| Number of Guns | 1 |
| Overall Height (cm) | 97.2 |
| Overall Height (mm) | 972 |
| Overall Length (cm) | 59.1 |
| Overall Length (mm) | 591 |
| Overall Width (cm) | 52.1 |
| Overall Width (mm) | 521 |
| Phase | 1 |
| Power Rating (W) | 653 |
| Power Rating (kW) | 0.65 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 1.0 |
| Pump Mount Type | ProConnect |
| Pump Type | Endurance |
| Recommended Annual Usage | Up to 50 gallons per week |
| Series | 395 PC |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 700 |
| Weight (kg) | 30 |
Product Manuals
Warranty
Sales Literature
Certifications
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 246215 | RAC X HandTite Tip Guard | 1 | ea |
| 240794 | BlueMax II Airless Hose, 1/4 in x 50 ft | 1 | ea |
| 238049 | TSL Throat Seal Liquid, 4 oz | 1 | ea |
| 17Y043 | Contractor PC Airless Spray Gun with RAC X LP 517 SwitchTip | 1 | ea |
| LP517 | Low Pressure RAC X LP SwitchTip, 517 | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 15J743 | Pro210ES Stand Replacement Cord Set |
| 240794 | BlueMax II Airless Hose, 1/4 in x 50 ft |
| 15B071 | INSERT, FILTER |
| 117828 | KIT, O-RING, PTFE, ENCAPULATED |
| 246379 | Q KIT, REPAIR, CONTROL BOARD, 120V |
| 248189 | KIT, REPAIR, FAN, MOTOR |
| 246382 | Easy Out Pump Manifold Filter, Short, 100 mesh |
| 246425 | Easy Out Pump Manifold Filter, Short, 30 mesh |
| 246384 | Easy Out Pump Manifold Filter, Short, 60 mesh |
| 287015 | KIT, REPAIR, MOTOR, .023 |
| 17C992 | KIT, REPAIR, STINGER TUBE |
| 246385 | Inlet Strainer, Nylon Cap, 7/8 in |
| 243222 | Pressure Control Transducer Repair Kit |
| 235014 | Spray Prime/Drain Valve Kit |
| 17D888 | KIT, REPLACEMENT, POTENTIOMETER |
| 287952 | KIT,REPAIR,DRAIN HOSE |
| 24W830 | Hose Replacement Kit |
| 15E813 | NUT, JAM |
| 103413 | ProX21 Packing O-Ring |
| 246383 | Easy Out Pump Manifold Filter, Short, 200 mesh |
| 195429 | SWITCH, TOGGLE |
| 15B652 | WASHER, SUCTION SWIVEL |
