GMAX II 5900

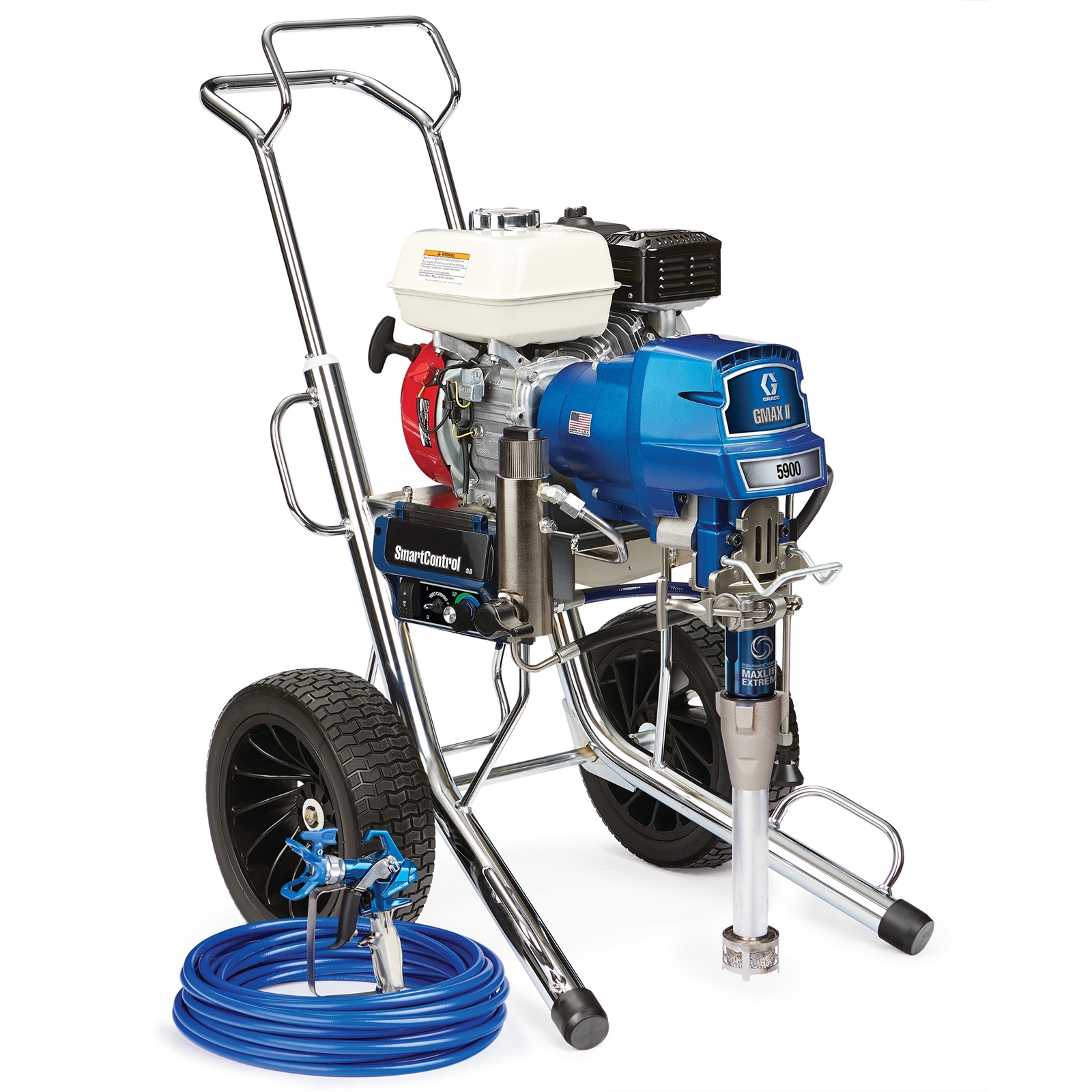

GMAX II 5900 IronMan Series Gas Airless Sprayer
Part Number: 17E833
GMAX II 5900
GMAX II 5900 IronMan Series Gas Airless Sprayer
Part Number: 17E833
With a 200cc Honda engine and the ability to spray up to 1.6 gallons per minute (6.1 liters per minute), the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial and industrial jobs.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
With a 200cc Honda engine and the ability to spray up to 1.6 gallons per minute (6.1 liters per minute), the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial and industrial jobs.
Beyond Jobsite Tough. Graco IronMan Series gas-powered airless paint sprayers provide superior power & durability to handle the most brutal and demanding conditions typically found on large commercial and industrial job sites.
- Endurance Vortex MaxLife Extreme Piston Pump
- The longest life
- Breakthrough Vortex Rotating Rod Technology
- Extreme rod extends pump rod life by 3X
- Oversized passages for high velocity flow to rotate piston for even wear
- 6X more gallons sprayed between repacks
- Graco exclusive abrasion-resistance composite delivers the most durable wear surface
- Repack pump in minutes with QuikPak cartridge repair system
- ProConnect 2 Pump Replacement System
- Pump swaps in 1-minute or less – no tools, pins or parts to lose
- Eliminate costly downtime
- Flat Proof Tires
- Never Have a Flat Again
- Tires can’t be punctured by nails, screws, or any sharp debris
- Crushproof Inlet Strainer
- Durable Filtration
- Stands up to harsh impacts to maintain filtering and flow
- SmartControl 3.0
- Consistent spray fan & pressure control
- Handles the widest range of coatings with the most consistent fan pattern
- Lowest dead band at any pressure
- WatchDog Pump Protection System
- Automatically prevents pump damage if material supply is too low
- Precision Advantage Drive
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
- Lifetime Warranty
- Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
- Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- Additional Features:
- Easy Out Pump Filter
- Heavy-Duty Prime Valve
- LED Display
- Rugged, Durable Cart Design
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Stains, Oil, Lacquer, Primers, Fillers, Acrylics, Interior Emulsions, Exterior Emulsions, Latex, Anti-Corrosive Paints |
|---|---|
| Compatible Replacement Pump | 17H826 |
| Construction | Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Convertible | Non-Convertible |
| Engine Brand | Honda |
| Engine Size (HP) | 6.5 |
| Features | Endurance Vortex MaxLife Extreme Pump, SmartControl 3.0, Flat Proof Tires, Honda Engine, Advantage Drive, ProConnect 2, Easy Out Filter, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, WatchDog, LED Display, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Inlet Size (in) | 1-5/16 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Reel Type | Hose Rack |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 3/8 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 ml) |
| Inlet Paint Strainer | 8 Mesh Stainless Steel Screen |
| Maximum Flow Rate (GPM) | 1.6 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (ft) | 150 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Tip Size (in) | 0.043 |
| Maximum Tip Size 1 Gun (in) | 0.043 |
| Maximum Tip Size 2 Guns (in) | 0.033 |
| Maximum Tip Size 3 Guns (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Model | GMAX II |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 40.5 |
| Overall Length (in) | 37.7 |
| Overall Width (in) | 24.4 |
| Power Rating (HP) | 6.5 |
| Power Rating (W) | 4847 |
| Power Rating (kW) | 4.85 |
| Power Source | Gas |
| Pressure Control Type | SmartControl 3.0 |
| Product Series | IronMan |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife Extreme |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance Vortex |
| Recommended Annual Usage | Up to 1,000 gallons per week |
| Series | 5900 |
| Spray Gun Type | Contractor PC Pro Gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Weight (lb) | 147 |
| Compatible Material | Stains, Oil, Lacquer, Primers, Fillers, Acrylics, Interior Emulsions, Exterior Emulsions, Latex, Anti-Corrosive Paints |
| Compatible Replacement Pump | 17H826 |
| Construction | Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Convertible | Non-Convertible |
| Engine Brand | Honda |
| Features | Endurance Vortex MaxLife Extreme Pump, SmartControl 3.0, Flat Proof Tires, Honda Engine, Advantage Drive, ProConnect 2, Easy Out Filter, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, WatchDog, LED Display, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Inlet Size (in) | 1-5/16 |
| Fluid Inlet Size (mm) | 33.34 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Size (mm) | 9.525 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Hose Reel Type | Hose Rack |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 3/8 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 ml) |
| Inlet Paint Strainer | 8 Mesh Stainless Steel Screen |
| Maximum Flow Rate (L/min) | 6.06 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (m) | 45 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Tip Size (in) | 0.043 |
| Maximum Tip Size 1 Gun (in) | 0.043 |
| Maximum Tip Size 2 Guns (in) | 0.033 |
| Maximum Tip Size 3 Guns (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 22700 |
| Maximum Working Pressure (kg/cm²) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Model | GMAX II |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 102.9 |
| Overall Height (mm) | 1029 |
| Overall Length (cm) | 95.8 |
| Overall Length (mm) | 958 |
| Overall Width (cm) | 62.0 |
| Overall Width (mm) | 620 |
| Power Rating (W) | 4847 |
| Power Rating (cc) | 200 |
| Power Rating (kW) | 4.85 |
| Power Source | Gas |
| Pressure Control Type | SmartControl 3.0 |
| Product Series | IronMan |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife Extreme |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance Vortex |
| Recommended Annual Usage | Up to 1,000 gallons per week |
| Series | 5900 |
| Spray Gun Type | Contractor PC Pro Gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Weight (kg) | 67 |
Product Manuals
Warranty
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 246215 | RAC X HandTite Tip Guard | 1 | ea |
| 240797 | BlueMax II Airless Hose, 3/8 in x 50 ft | 1 | ea |
| 277249 | BlueMax II HP Airless Whip Hose, 1/4 in x 3 ft (0.9 m), 4000 psi | 2 | ea |
| 238049 | TSL Throat Seal Liquid, 4 oz | 1 | ea |
| 17Y043 | Contractor PC Airless Spray Gun with RAC X LP 517 SwitchTip | 1 | ea |
| LP517 | Low Pressure RAC X LP SwitchTip, 517 | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
| 240794 | BlueMax II Airless Hose, 1/4 in x 50 ft |
| 17A095 | KIT, REPAIR, CONTROL BOARD, GMAX |
| 248215 | KIT, REPAIR, INTAKE TUBE |
| 257352 | Q KIT, REPAIR, PRIME VALVE, HD |
| 244240 | KIT, REPAIR, RETURN LINE, HI |
| 243222 | Pressure Control Transducer Repair Kit |
| 16Y496 | KIT,DISPLAY, GMAX, PREMIUM |
| 287541 | GB KIT,REPAIR,TUBE,SUCTION,7900 |
| 117285 | PACKING, O-RING |
| 118494 | PACKING, O-RING |
| 15V573 | Crushproof Inlet Strainer for 695 XT, 795 XT & 1095 XT |
| 15C766 | TUBE, DIFFUSION |
