GMAX 3400

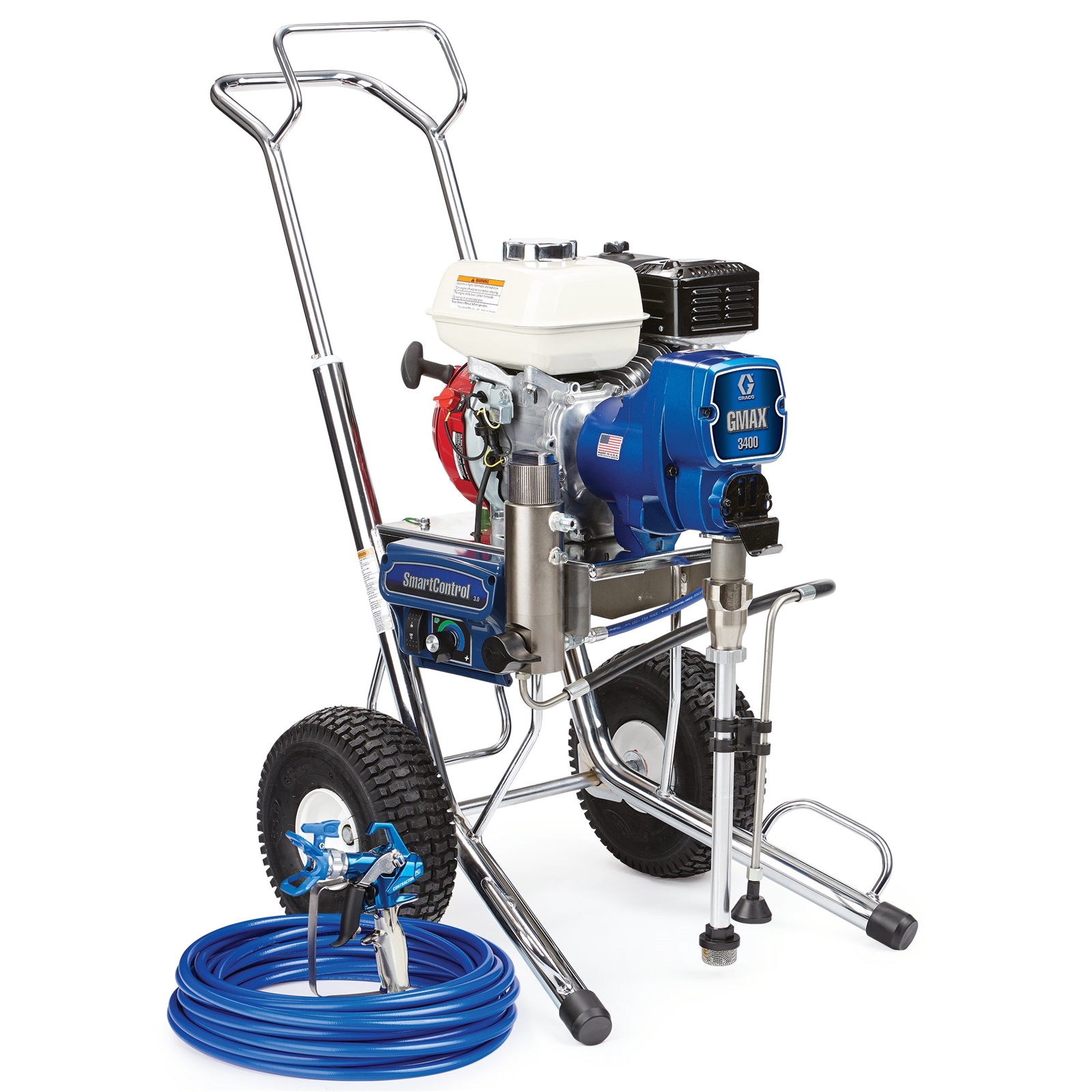

GMAX 3400 Standard Series Gas Airless Sprayer
Part Number: 17E825
GMAX 3400
GMAX 3400 Standard Series Gas Airless Sprayer
Part Number: 17E825
The GMAX 3400 is the perfect sprayer for the entry-level contractor who is looking for maximum power in a lightweight, portable package.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The GMAX 3400 is the perfect sprayer for the entry-level contractor who is looking for maximum power in a lightweight, portable package.
Everyday Reliability. Graco GMAX Standard Series gas-powered airless paint sprayers deliver unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.
- Endurance Chromex Piston Pump
- The most reliable pump
- Lasts 2X Longer than the next leading brand
- QuikChange pump design allows you to swap the pump easily on the job
- Faster cleaning with the QuikAccess intake foot valve
- SmartControl 3.0
- Consistent spray fan & pressure control
- Handles the widest range of coatings with the most consistent fan pattern
- Lowest dead band at any pressure
- Precision Advantage Drive
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
- Lifetime Warranty
- Easy Out Pump Filter
- Easy maintenance & less clogging
- Exclusive inside-out filtering won't collapse to ensure a quality finish
- Vertical design for less mess
- Heavy-Duty Prime Valve
- Maintenance-free design withstands high-pressure dumping
- Durable Cart Design
- Rugged and easy-to-maneuver
- Thick chrome over steel and pneumatic wheels for tough jobsite conditions
- Retractable handle doubles as coiled hose storage
- Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor preferred
- Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC
- Jobsite Ready
- Includes RAC X SwitchTip and 50 ft of BlueMax II hose
Specifications & Documents
Technical Specifications
Convert to Metric| Construction | Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
|---|---|
| Convertible | Non-Convertible |
| Engine Brand | Honda |
| Engine Size (HP) | 4 |
| Features | Endurance Chromex Pump, SmartControl 3.0, Honda Engine, Advantage Drive, Easy Out Filter, Heavy-Duty Prime Valve, Contractor PC Gun |
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Thread Type | UNF-2A |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Hose Inlet Diameter (in) | 1/4 |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz |
| Inlet Paint Strainer | 12 Mesh Stainless Steel Screen |
| Maximum Flow Rate (GPM) | 0.75 |
| Maximum Sound Pressure Level (dB(A)) | 86 |
| Maximum Tip Size (in) | 0.027 |
| Maximum Tip Size 1 Gun (in) | 0.027 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Model | GMAX |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 40.8 |
| Overall Length (in) | 35 |
| Overall Width (in) | 22.3 |
| Power Rating (HP) | 4.0 |
| Power Rating (W) | 2983 |
| Power Rating (kW) | 2.98 |
| Power Source | Gas |
| Pressure Control Type | SmartControl 3.0 |
| Product Series | Standard |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Endurance |
| Recommended Annual Usage | Up to 250 gallons per week |
| Series | 3400 |
| Type | Airless Sprayer |
| Weight (lb) | 89 |
| Construction | Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Convertible | Non-Convertible |
| Engine Brand | Honda |
| Features | Endurance Chromex Pump, SmartControl 3.0, Honda Engine, Advantage Drive, Easy Out Filter, Heavy-Duty Prime Valve, Contractor PC Gun |
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Size (mm) | 31.75 |
| Fluid Inlet Thread Type | UNF-2A |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz |
| Inlet Paint Strainer | 12 Mesh Stainless Steel Screen |
| Maximum Flow Rate (L/min) | 2.8 |
| Maximum Sound Pressure Level (dB(A)) | 86 |
| Maximum Tip Size (in) | 0.027 |
| Maximum Tip Size 1 Gun (in) | 0.027 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Maximum Working Pressure (psi) | 3300 |
| Model | GMAX |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 103.6 |
| Overall Height (mm) | 1036 |
| Overall Length (cm) | 88.9 |
| Overall Length (mm) | 889 |
| Overall Width (cm) | 56.6 |
| Overall Width (mm) | 566 |
| Power Rating (W) | 2983 |
| Power Rating (cc) | 120 |
| Power Rating (kW) | 2.98 |
| Power Source | Gas |
| Pressure Control Type | SmartControl 3.0 |
| Product Series | Standard |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Endurance |
| Recommended Annual Usage | Up to 250 gallons per week |
| Series | 3400 |
| Type | Airless Sprayer |
| Weight (kg) | 40 |
Product Manuals
Warranty
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 246215 | RAC X HandTite Tip Guard | 1 | ea |
| 240794 | BlueMax II Airless Hose, 1/4 in x 50 ft | 1 | ea |
| 238049 | TSL Throat Seal Liquid, 4 oz | 1 | ea |
| 17Y043 | Contractor PC Airless Spray Gun with RAC X LP 517 SwitchTip | 1 | ea |
| LP517 | Low Pressure RAC X LP SwitchTip, 517 | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 235014 | Spray Prime/Drain Valve Kit |
| 103413 | ProX21 Packing O-Ring |
| 117285 | PACKING, O-RING |
| 116752 | SWITCH, ROCKER |
| 15C766 | TUBE, DIFFUSION |
| 15E805 | TUBE, SUCTION, INTAKE |
| 115099 | Hose Washer Inlet Seal |
| 15B652 | WASHER, SUCTION SWIVEL |
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
| 240794 | BlueMax II Airless Hose, 1/4 in x 50 ft |
| 244240 | KIT, REPAIR, RETURN LINE, HI |
| 246385 | Inlet Strainer, Nylon Cap, 7/8 in |
| 243222 | Pressure Control Transducer Repair Kit |
| 17Y042 | Contractor PC Airless Spray Gun with RAC X 517 SwitchTip |
