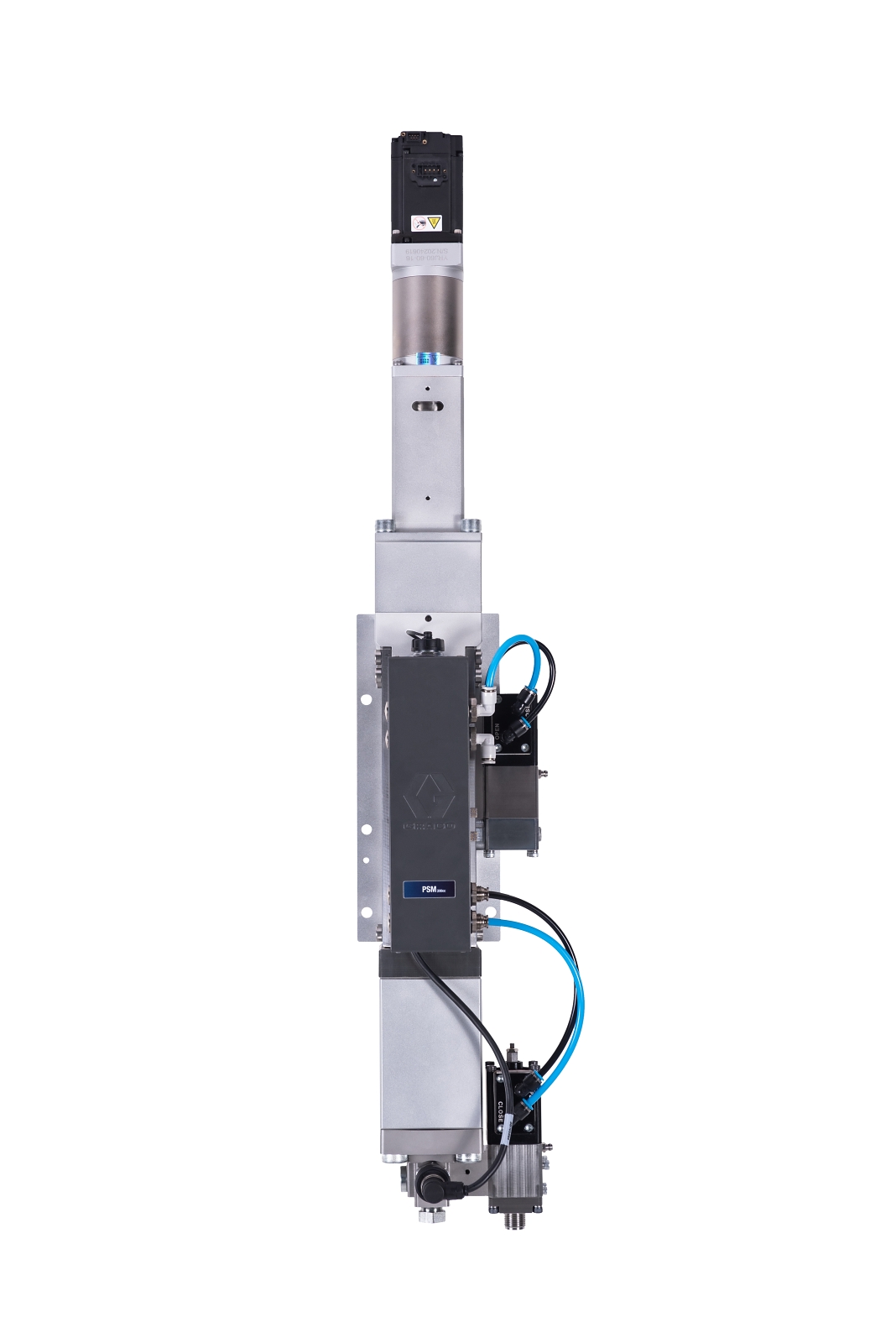

Precision Shot Meter (PSM) Dispense System
An innovative fluid path and robust construction make the precision shot meter (PSM) ideal for automatically dispensing one component epoxies, silicones, acrylics, urethanes, polysulfides and thermal interface materials (TIMs).
High Precision for Automated Assembly
No other one component shot meter and dispense system offers the same repeatable accuracy that automotive, electronics, and telecommunications manufacturers need.
- Servo motor control and high precision meter ensure precise, repeatable dispensing.
- First-in-first-out fluid path eliminates dead zones and downtime due to clogged valves.
- Wide shot size range with +/- 1 percent repeatability fits many applications.
- Lightweight construction and advanced software allow for easy, efficient and cost effective integration.
- Ultra wear resistant coating withstands abrasive and viscous material, reducing maintenance.
Compact Structure and Lightweight Design
The modular design of the precision shot meter (PSM) system can fit into almost any automated assembly line. Its compact size does not overload robot arms.
Servo motor powers precise and repeatable dispense.
Component construction resists wear from abrasive materials, extending service life.
Patented first-in-first-out (FIFO) fluid path keeps material from blocking and curing inside the supply pump.
