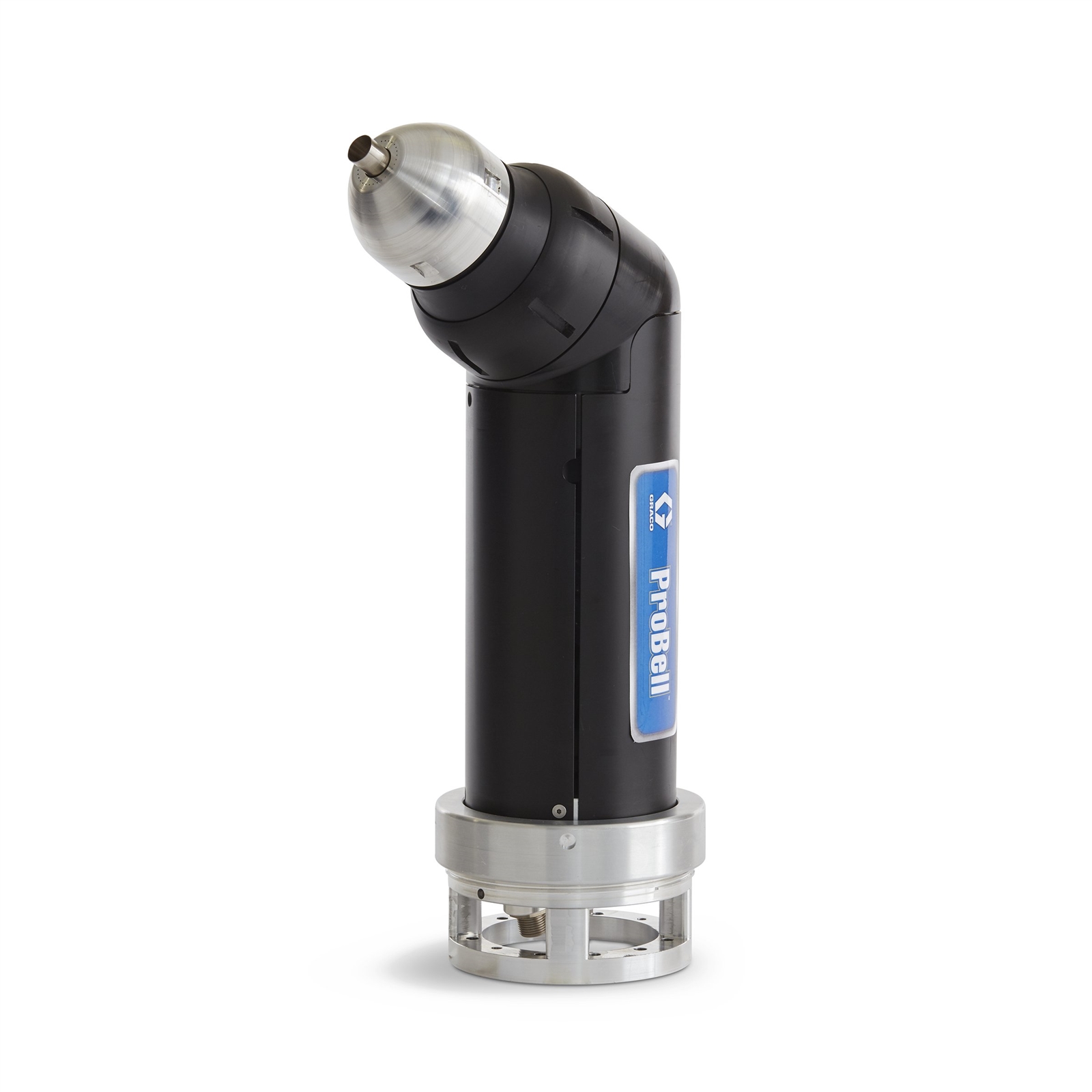

ProBell Applicator System, Hollow Wrist Robot, Solventborne, 15 mm bell cup, 0.75 mm nozzle and R1A230 applicator
Part Number: P1A230
Image is for illustrative purposes only.
ProBell
ProBell Applicator System, Hollow Wrist Robot, Solventborne, 15 mm bell cup, 0.75 mm nozzle and R1A230 applicator
Part Number: P1A230
Adding rotary bell atomization to electrostatics is proven to provide up to 95 percent transfer efficiency. This ProBell system integrates with hollow wrist robots. A quick disconnect plate allows you to remove the electrostatic spray gun from the robot without touching hose connections, making main...
More Info
Product is Discontinued
Replacement Product Not Available
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Adding rotary bell atomization to electrostatics is proven to provide up to 95 percent transfer efficiency. This ProBell system integrates with hollow wrist robots. A quick disconnect plate allows you to remove the electrostatic spray gun from the robot without touching hose connections, making maintenance easy.
ProBell delivers the spray performance, pattern and finish quality needed to exceed in any industry. Applications for which the rotary bell atomizer has proven itself include Tier 1 automotive, architectural panels and extruded aluminum, wood products, and more.
- System integration uses existing PLC (programmable logic controller) or new installation.
- Coiled fluid tube controls electrostatic resistivity for a wide range of material.

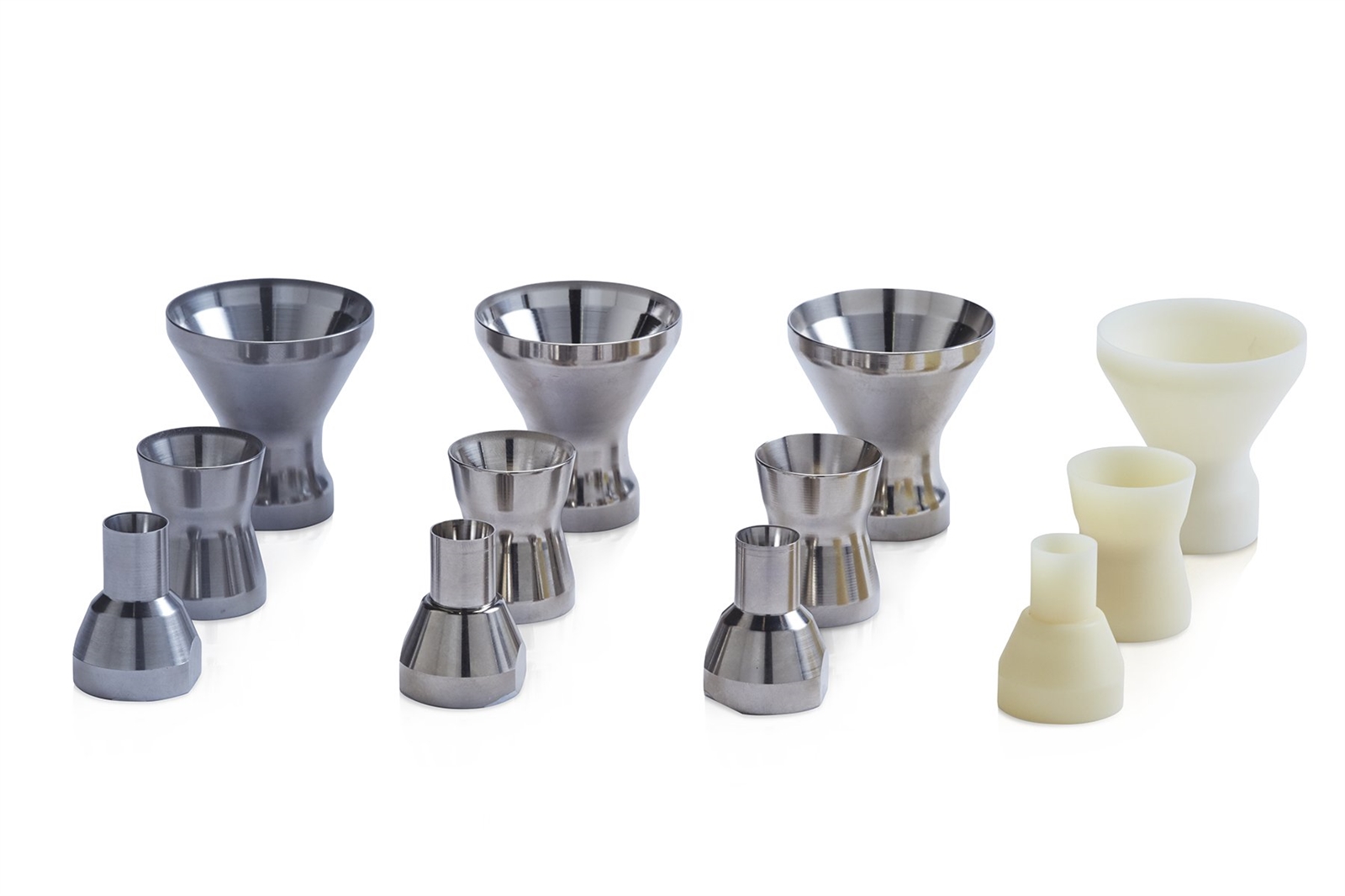

- Rotary bell atomizer has an aluminum bell cup with serrated edge. Equally spaced axial grooves act as channels for paint flow, producing uniform particles - ideal for atomizing difficult material like clear coats.
Specifications & Documents
Technical Specifications
Convert to Metric| Applicator Type | Automatic |
|---|---|
| Bell Cup Edge Type | Serrated |
| Bell Cup Material | Aluminum Standard |
| Bell Cup Size (in) | 0.6 |
| Compatible Paint Type | Solventborne |
| For Use With | R1A230 Applicator System |
| Gun Activation | Automatic |
| Gun Model | Solventborne |
| Gun Mount | Hollow Wrist |
| Gun Type | Rotary Applicator |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Current Draw (µA) | 150 |
| Maximum Fluid Pressure (MPa) | 1.03 |
| Maximum Fluid Pressure (psi) | 150 |
| Maximum Turbine Speed (RPM) | 60000 |
| Maximum Viscosity (cSt) | 150 |
| Maximum Working Pressure (MPa) | 1 |
| Maximum Working Pressure (psi) | 150 |
| Minimum Bearing Air Pressure (MPa) | 0.5 |
| Minimum Bearing Air Pressure (psi) | 70 |
| Minimum Viscosity (cSt) | 30 |
| Model | ProBell |
| Nozzle Size (in) | 0.03 |
| Output Voltage (kV) | 100 |
| Spray Type | Rotary Bell, Electrostatic |
| Technology Type | Rotary Atomization |
| Type | Rotary Applicator |
| Applicator Type | Automatic |
| Bell Cup Edge Type | Serrated |
| Bell Cup Material | Aluminum Standard |
| Bell Cup Size (cm) | 1.5 |
| Bell Cup Size (in) | 0.6 |
| Bell Cup Size (mm) | 15 |
| Compatible Paint Type | Solventborne |
| For Use With | R1A230 Applicator System |
| Gun Activation | Automatic |
| Gun Model | Solventborne |
| Gun Mount | Hollow Wrist |
| Gun Type | Rotary Applicator |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (bar) | 7.0 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Current Draw (µA) | 150 |
| Maximum Fluid Pressure (MPa) | 1.03 |
| Maximum Fluid Pressure (bar) | 10.3 |
| Maximum Fluid Pressure (kPa) | 1030 |
| Maximum Fluid Pressure (psi) | 150 |
| Maximum Turbine Speed (RPM) | 60000 |
| Maximum Viscosity (cSt) | 150 |
| Maximum Working Pressure (MPa) | 1 |
| Maximum Working Pressure (bar) | 10.3 |
| Maximum Working Pressure (kPa) | 1030 |
| Maximum Working Pressure (psi) | 150 |
| Minimum Bearing Air Pressure (MPa) | 0.5 |
| Minimum Bearing Air Pressure (bar) | 5 |
| Minimum Bearing Air Pressure (psi) | 70 |
| Minimum Viscosity (cSt) | 30 |
| Model | ProBell |
| Nozzle Size (cm) | 0.075 |
| Nozzle Size (mm) | 0.75 |
| Output Voltage (kV) | 100 |
| Spray Type | Rotary Bell, Electrostatic |
| Technology Type | Rotary Atomization |
| Type | Rotary Applicator |
Product Manuals
3A4738A, , Manual, ProBell Reflective Speed Sensor Kit, Instructions-Parts, English
(921 KB)
(English Only)
